Description :
4.3 inch Audio Video Security CCTV Camera Tester Foldable with12V Output RJ45 Cable
Features :
Foldingable design, bothwrist-wear and handy vision.
CCTV installation works best system is equipped with built-in , video input, audio input, seven kinds of standard bar output terminal and the DC12V supply, palm-sized, easy to carry operations.
Through out enables user to inspect; correct camera or confirm installation.
It's convenient for video that helps communication and discussion with clients during installation process.
bothAudio/Video .
Portable product:Portable product is able to use in any place and any time. It is easy to hold and do not need complicated that hinders the inspecting and repairing.
:4.3 "high image resolution enable to show clear image that fits any place to use.
Long work time:Equips with of high capability. Each 6hours recharge durables 5 -8 working hours.
Humanized design of appearance:Hand-hold design for professionals. Easy operation without taking off speeds your works. Clasp ring at bottom fits to all chains and use in all environments.
for camera:It's convenient for user to check camera condition and correct direction of camera, so to make installation and repairing easier.
The net line function:Can carry out can see to turn to show that the net line conjunction circumstance and the net lines link the sequence.
Application :
Camera quality inspecting; image of installation correcting; inspect and repair of system circuit... etc.

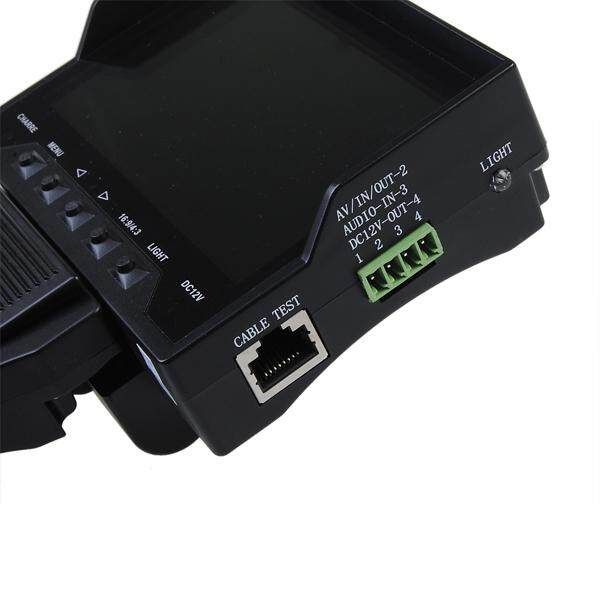

Function introduction :
1. 4.3”TFT LCD
2. When inserting transformer charging , the indicator( red) is bright, enough will put out instructions
3. The indicator( green) is bright after the switch start, indicator will put out when switch is close.
4. Press Function menu button to open or close LCD setting menu .
5-6. open function menu, press this button to adjust the brightness, contrast in saturation. Volume Incre. Language Selection
7. Select the screen ratio of 16:9 or 4:3
8. Lighting switch.
9. 5V input AC / adapter, DC5V 1.0A.
10. switch .
11. Camera 12V output, video, audio signals input through the interface, output, the display on the host screen
12. Reset switch
13. Brightness LED lighting work light
14 .Network testport
15. Folding button
Specification :
Display : 4.3"TFT LCD
Number of : 480RGB(H)X272(V)
Video In : Video In x 1 (BNC connector)
Export : 7 kinds of bar signal output
out x 1
( CCD camera of source / electric 500mA)
System Format : NTSC / PAL
Language : English/Chinese
Specification : Built-in rechargeable : 3.7V 2600mA/h
Specification : External : 5V 1.0A Adapter
Dimension : 178mm (L) x110mm (W) x 40mm(H)
Question :
Why can'tturn on the device?
1. Check capability.
2. Check if correctly using the manufactured re-charger.
3. Check if the re-charger is normal function.
Why can't the image function normally?
1. Check if the camera connects correctly with the terminal of the mainframe.
2. Check if the is on or off.
3. Check volume. Please recharge if the is run out.

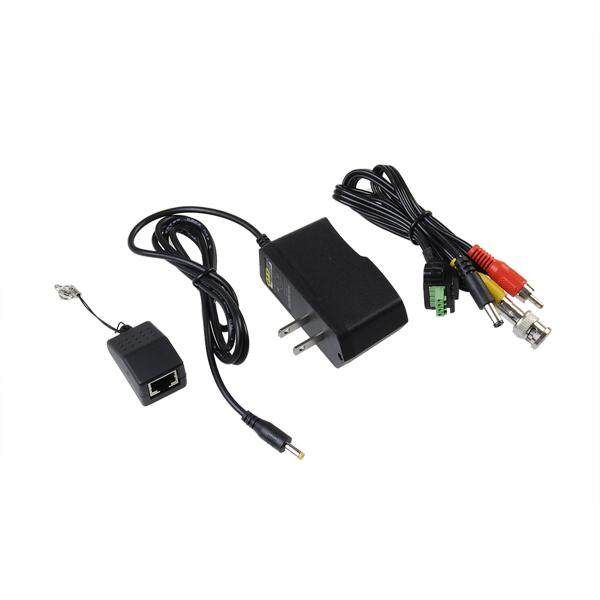

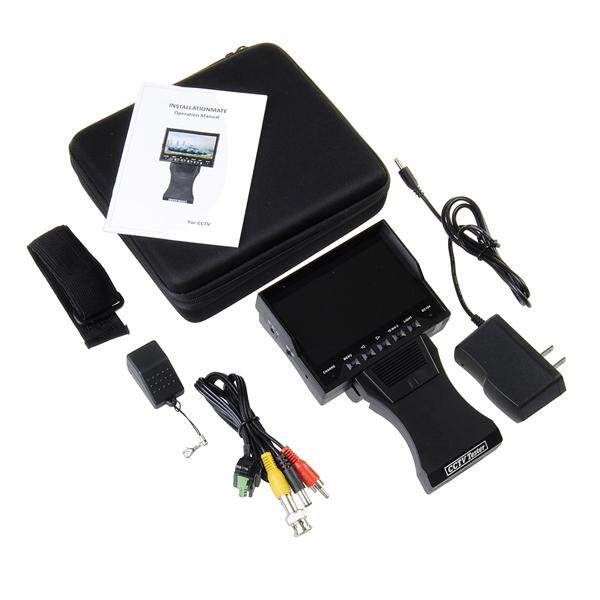

Package includes :
1 x 4.3 inch Audio Video Camera Tester
1 x Charger
1 x CCD cord DC12V OUTPUT AV cable(2 in 1)
1 x RJ45 adaptor
1 x User manual
