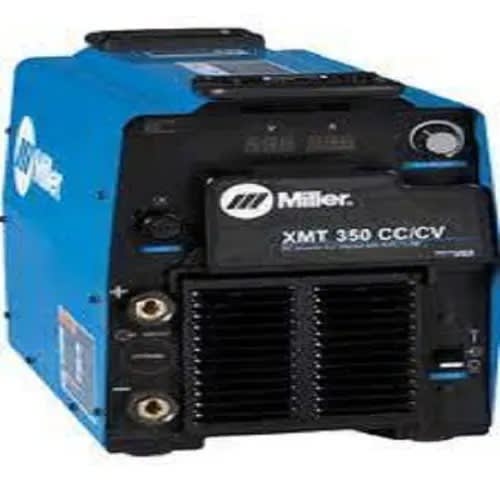

Miller Electric Welding 350 Cc/Cv
the Miller Xmt 350 Cc/Cv Is A Portable 350 Amp Multi-Process Welder That Is Capable Of Mig, Stick, And Dc Tig Welding. It Operates On Both
three-Phase And Single-Phase Input Power And Features Miller'S Auto-Line, Tm Which Means You Use 208-Volt To 575-Volt, Single Or Three-
Phase Input Power Without Manual Linking. It Is Ideal For Industrial Applications Because Of It'S Portability And Excellent Arc Performance
with Multiprocess Capabilities And Features Like Auto-Line, The Xmt 350 Is Portable And Versatile For Applications From Job Sites To The
factory Floor. Flexibility And Simplicity Make This The Most Popular Model. It Is Able To Carbon Arc Gouge With Carbons Up To 5/16″
Diameter. When Paired With A Wire Feeder Or Spool Gun, The Xmt 350 Cc/Cv Makes An Excellent Mig And Flux-Cored Welder. Miller® Xmt® 350
cc/Cv 3-Phase Multiprocess Welder With Auto-Line Power Management Technology Allows For Any Input Voltage Hook-Up With No Manual
linking, Providing Convenience In Any Job Setting. The Welder Operates At A Voltage Rating Of 208 - 575 Vac With A Frequency Of 60 Hz For
better Performance.

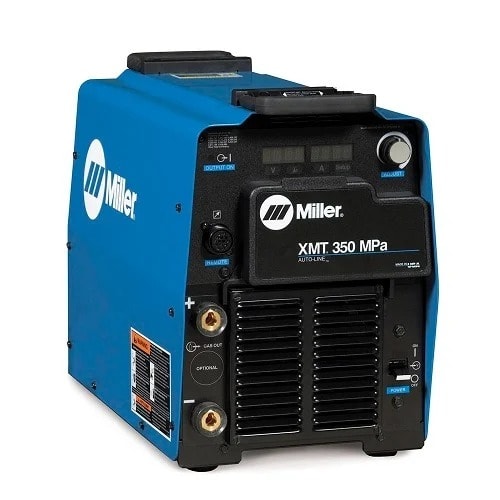

Xmt 350 Cc/Cv Xmt 350 Mpa
input Power Auto-Line™ 208–575 V, 3- Or -1-Phase
Input Voltage Limits 190–630 V
Weld Output 350 A At 34 Vdc, 60% Duty Cycle
Carbon Arc Gouging Rated: 1/4-Inch Carbons, Capable: 5/16-Inch Carbons
net Weight 80 Lb. (36.3 Kg)
Output Connections Dinse-Style
