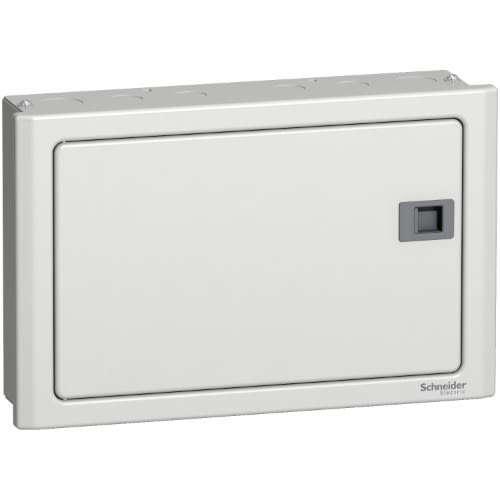

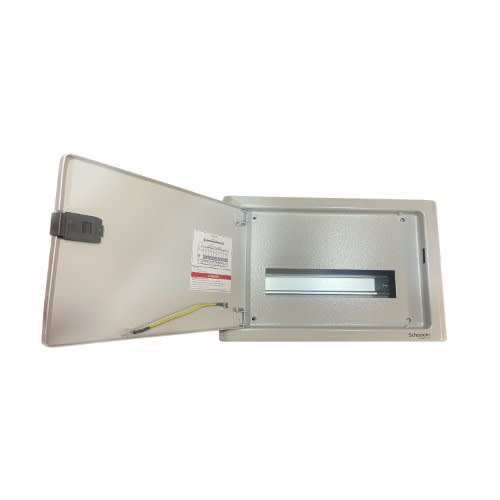

This Easy9 enclosure is a surface or flush mounted distribution enclosure. The In rated current can be up to 100A. It is a single-phase enclosure. The number of ways is 8. The cables can enter via 6 knock-outs. It is intended for installation in residential. The provided equipements are, washer, identification lable, screws and removable front cover. The colour of the enclosure is grey (RAL 7035). This enclosure comes with plain door, the enclosure material is powder coated steel. The IP degree of protection is IP40 closed door. The dimensions are (W) 362mm x (H) 232mm x (D) 90mm. According to IEC 62262 standard, the IK degree of protection is IK08. The operating temperature is 50°C to 50°C. This enclosure complies with IEC 61439-1 and 3 standards.
Main
- Range Easy9
- product or component type Enclosure
- enclosure type Distribution enclosure
- provided equipment 1 x washer, Identification label, 4 x screws, Removable front cover
Complementary
- enclosure mounting Surface, Flush
- Nb of horizontal rows 1
- number of plates 3 for plain plate
- network number of phases Single phase
- number of ways 8 ways
- type of rail DIN
- cable entry 6 knock-outs
- Type of door Plain door
- [In] rated current 100 A
- enclosure material Powder coated steel
- width 362 mm outside:
- height 232 mm outside:
- depth 90 mm outside:
- colour Grey (RAL 7035)
Environment
IEC 61439-3
- product certifications ASTA
- IP degree of protection IP40 conforming to IEC 60529 (closed door)
- IK degree of protection IK08 conforming to IEC 62262
- ambient air temperature for operation 50 °C
