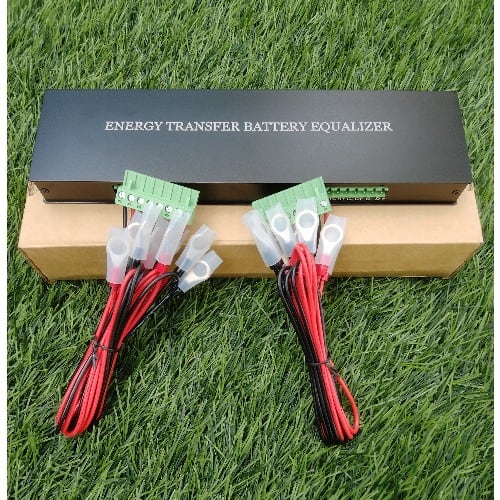

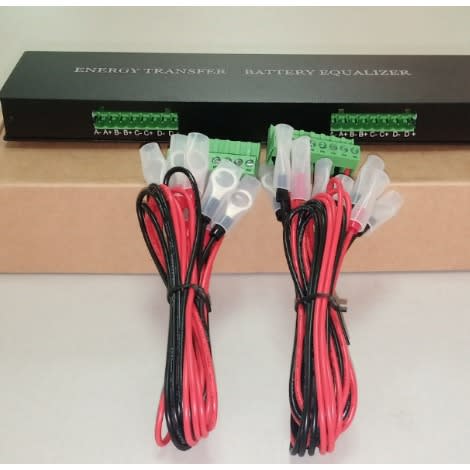

96v battery equalizer/balancer- 2021 model in Aluminum casing
This is a more advanced technology in battery voltage balancing. the equalizer is now encased in an aluminum casing for easy heat sink dissipation
When two or more batteries are connected in series or parallel, voltage differences begin to occur as the batteries charge and discharge. while some batteries may be overcharged others are undercharged. this ultimately reduces the life span of your precious battery bank by about 2-3yrs.
Once voltage difference of 2mv is detected, this energy transfer battery equalizer automatically begins to move current from higher to lower voltage battery until equilibrium is attained
Why waste money on expensive battery bank replacement when you can save such money and maximize your solar investment
Application
Battery balancer is suitable for lead-acid batteries(VRLA), lithium iron phosphate batteries(LFP), nickel-cadmium secondary batteries(Ni/CD), and nickel metal hydride secondary batteries(Ni/MH).
Specification
Battery nominal voltage
8* (2.4V/3.6V/6V/9V/12V)
Optimizing current 0-10A
Quiescent current
5mA(12V) 1.2mA(2.4V)
specification
96v

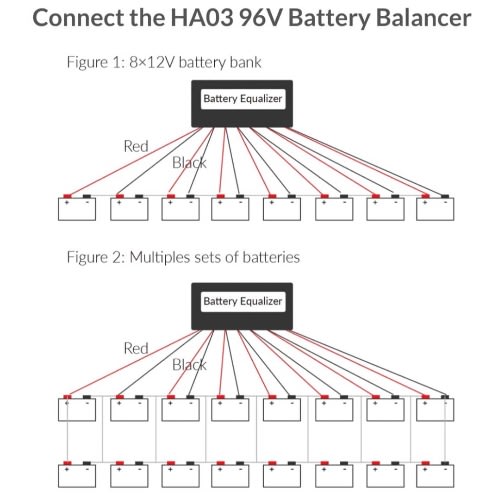

1. 8 batteries in series
2. 16 batteries in series/parallel
