| Model |
Energy Meter |
| Production Country |
China |
| Size (L x W x H cm) |
11x9x8 |
| Weight (kg) |
0.4 |
| Color |
multicolor |
The meter is fully in conformity with the relevant technical requirements of GBT17215321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter which can directly and accurately measure active energy of the energy consumption
62 digits LCD display without backlight shows the power consumption

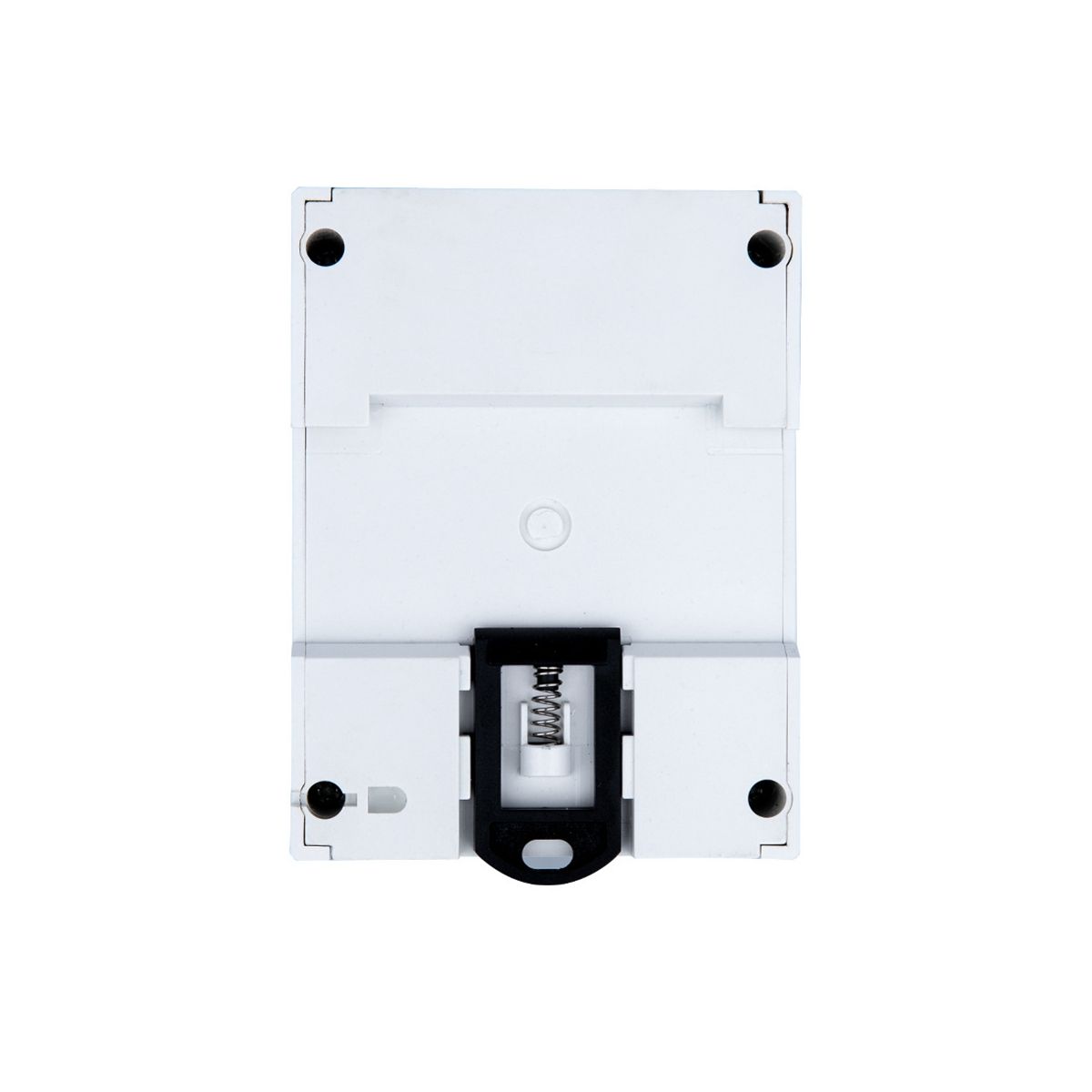

It features high reliability small volume light weight beautiful appearance advanced technology and 35mmDIN standard guide rail installation etc
It has good anti-electromagnetic interference low power consumption high precision high overload high stability anti electricity-stolen and
This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity used for fixed installation indoors apply to the environment temperature is -25 °C ~ 55 °C relative humidity is ≤ 95% and in the air does not contain gases and avoid dust mold salt fog condensation insects etc
Reference Voltage 3 X 220380V 3 X 230400V
Reference Current 3 X 580-100A
Accuracy Level 10
Rated Frequency 50Hz
Constant Pulse 400imp kWh
Display LCD 6 2
Power Consumption ≤2W 10VA
Starting Current 0004Ib
Operating Temperature -20 ~ 55°C
Storage Temperature 25 ~ 70°C
Operating Voltage 09-11 Rated Voltage
Utmost Voltage 08-115 Rated Voltage
Average Humidity Value of Year ≤75%

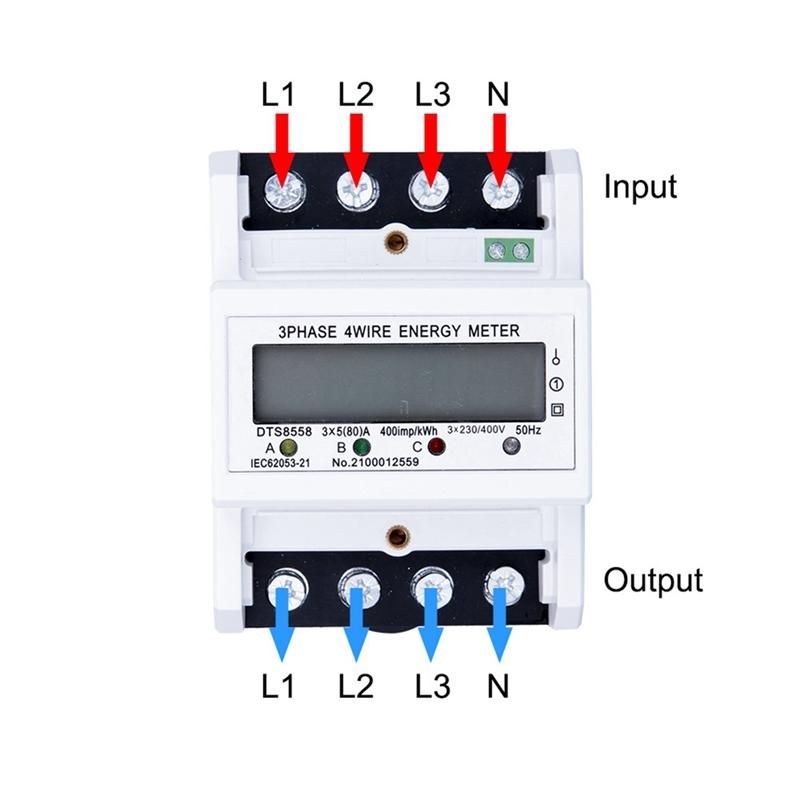

Type Three Phase Four Wire Electronic Type
type Energy Meter
colorWhite
MaterialMetal ABS

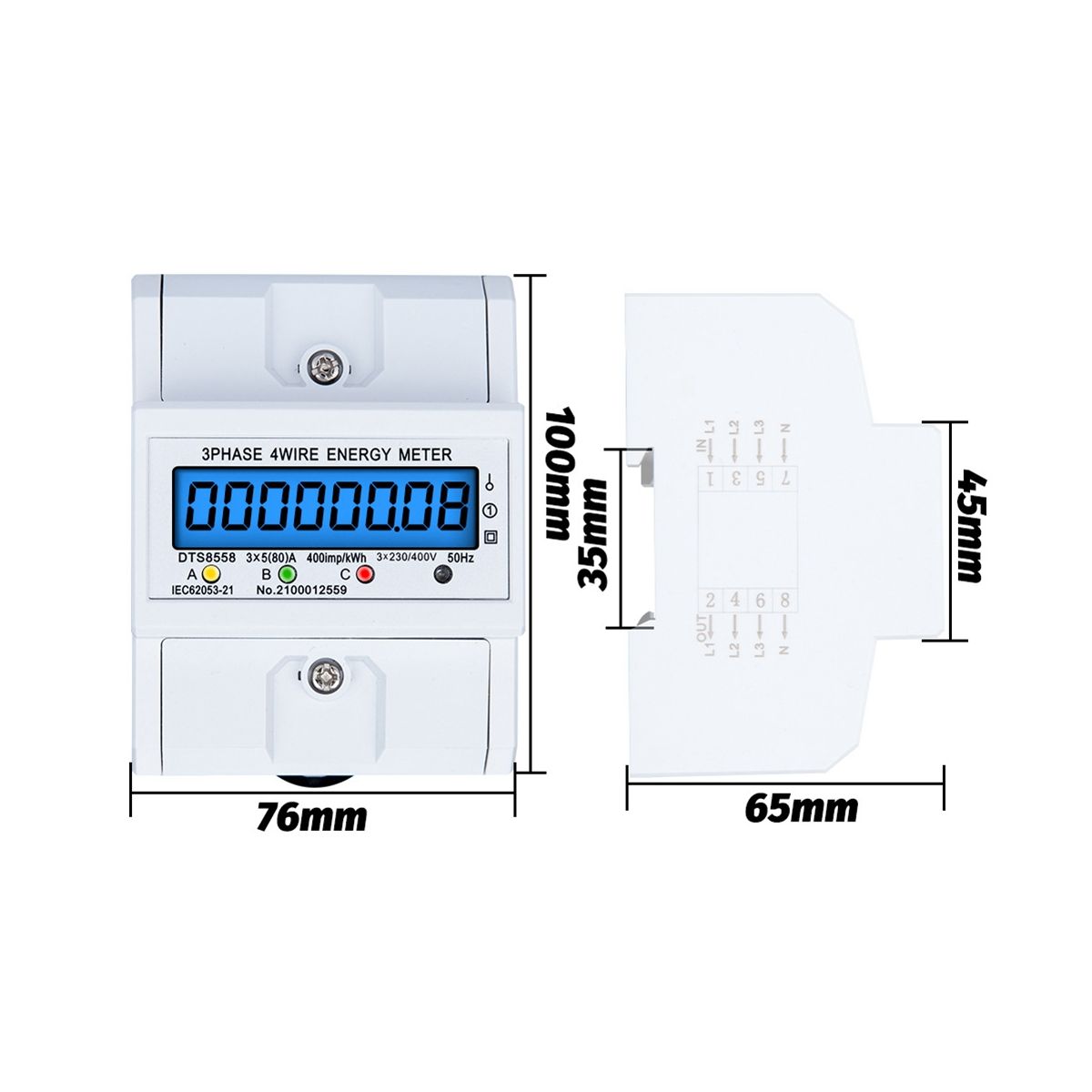

size100 x 76 x 65mm
Package Contents
1 x Energy Meter
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Energy Meter
