| Model |

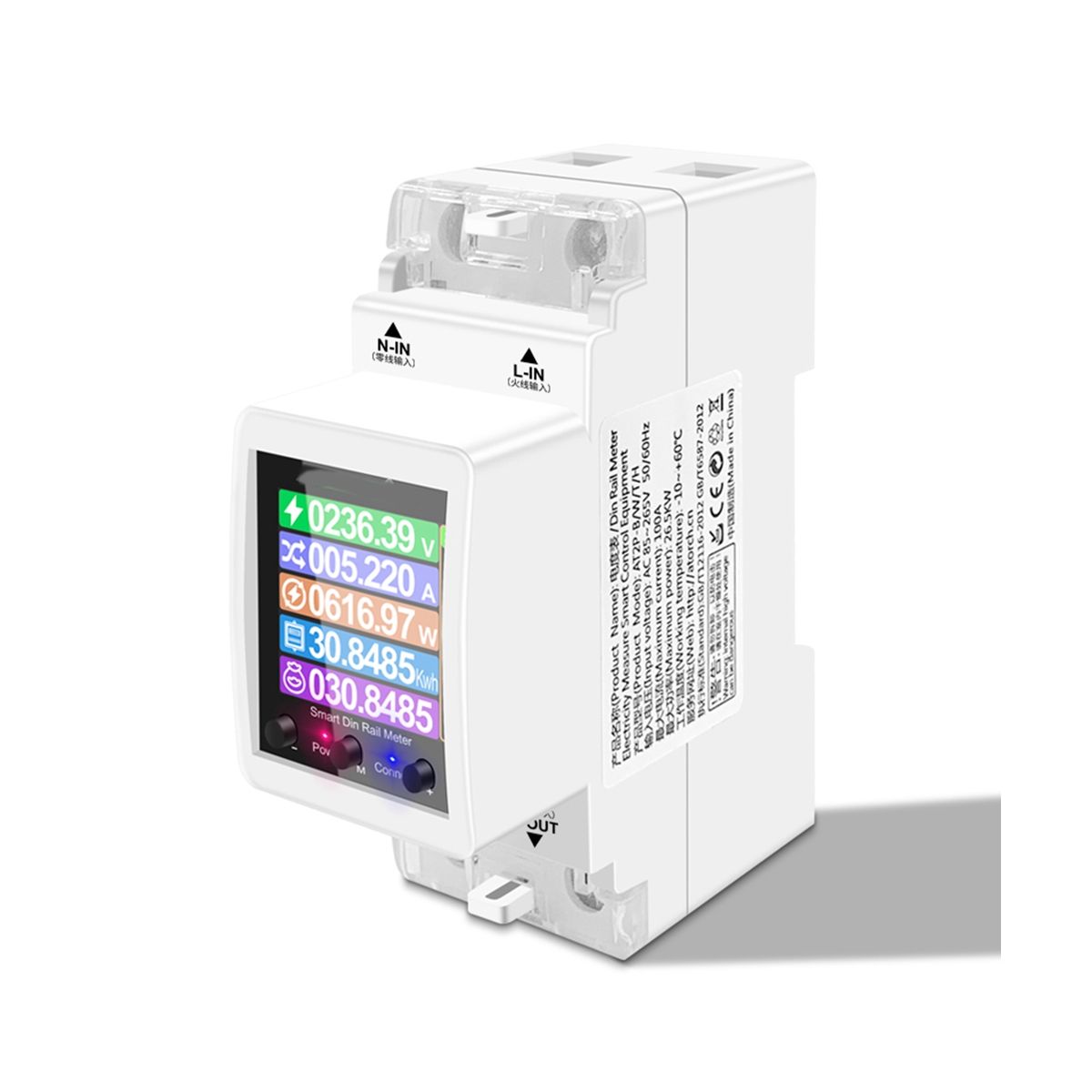

Din Rail Energy Meter |
| Production Country |
China |
| Size (L x W x H cm) |
12x8x5 |
| Weight (kg) |
0.202 |
| Color |
multicolor |
4 What types of mobile phones are supported A Currently support Android phones and phones 5 How big is the shunt A The built-in 100A shunt does not require an external CT 6 Is it single-phase or three-phase A At this is a single-phase electricity
7 Is this product a 24G or 5G network A This model is the WIFI version supports 24G network currently does not support 5G
8 Regarding the relay what is the difference between the WIFI version and the Bluetooth version A Built-in 100A relay WIFI version include relay Bluetooth version does not include relay
9 Does the product have power-off memory A Data has power-off memory switch mode has no power-off memory the power is turned on the relay is closed and the screen will normally display on that the connection is not disconnected
ELECTRICAL
material plastic
Color as shown
Measuring Energy Range 0-99999KWH
Display Type Analog and Digital
Model Number AT2PW
Power Supply AC
Phase single phase
Rated Voltage 220V
Operating Temperature -10°C~60°C
Accuracy Class 1%
Max Operating Current 80A - 99A
Installation 35mm Din rail
Display Panel 24 inches TFT-LCD HD Display Panel Graphic 240X320 RGB Dot-
Wireless Type 24GHz 80211bg
Power range Max 265KW
Energy Measurement range 0 ~ 99999kWh
Package Contents
1x Din Rail Energy MeterDue to different product batches the appearance may be different the functions are the same
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Din Rail Energy MeterDue to different product batches the appearance may be different but the functions are the same
