Model |
SSB-DPA-770M |
Production Country |
India |
Size (L x W x H cm) |
38.5 × 12.5 × 30 |
Weight (kg) |
8.8 |
Color |
Black |
Main Material |
Metal |
From: Sole Authorised Distributor in NigeriaDimensions: W385 × H125 × D300 mmWeight: 8.8kgModel: DPA-770MColour: Black
About AHUJA: Ahuja started out from India in 1940 and has grown into several large well-equipped factories employing hundreds of engineers manufacturing the widest range of PA System Equipment to meet every PA need that can ever be imagined through constant product development, thereby guaranteeing absolute reliability on the products even in the most extreme operating and climatic conditions.
DPA-770®M75 WATTS WITH
BUILT-IN DIGITAL PLAYERMEDIUM WATTAGE PA MIXER AMPLIFIER
- 4 Mic & 1 Aux Input.
- Built-in MP3 player with USB reader and remote control.
- Bluetooth facility.
- Line Output for connecting to a Booster Amplifier.
- Cut and Boost type Bass & Treble controls.
- Instant transfer to DC Power (Car Battery) if AC power fails.
SPECIFICATIONS:
- Power Output: 100W Max., 75W RMS at 10% THD, 70W RMS at 5% THD
- Output Regulation: ≤ 2 dB, no load to full load at 1kHz
- Input Channels: 4 × Mic. 0.6mV/4.7kΩ, 1 × Aux 100mV/330kΩ
- Frequency Response: 50-15,000Hz ±3dB
- Signal to Noise Ratio: 55dB
- Tone Controls: Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz, Line: 400mV/3.5kΩ

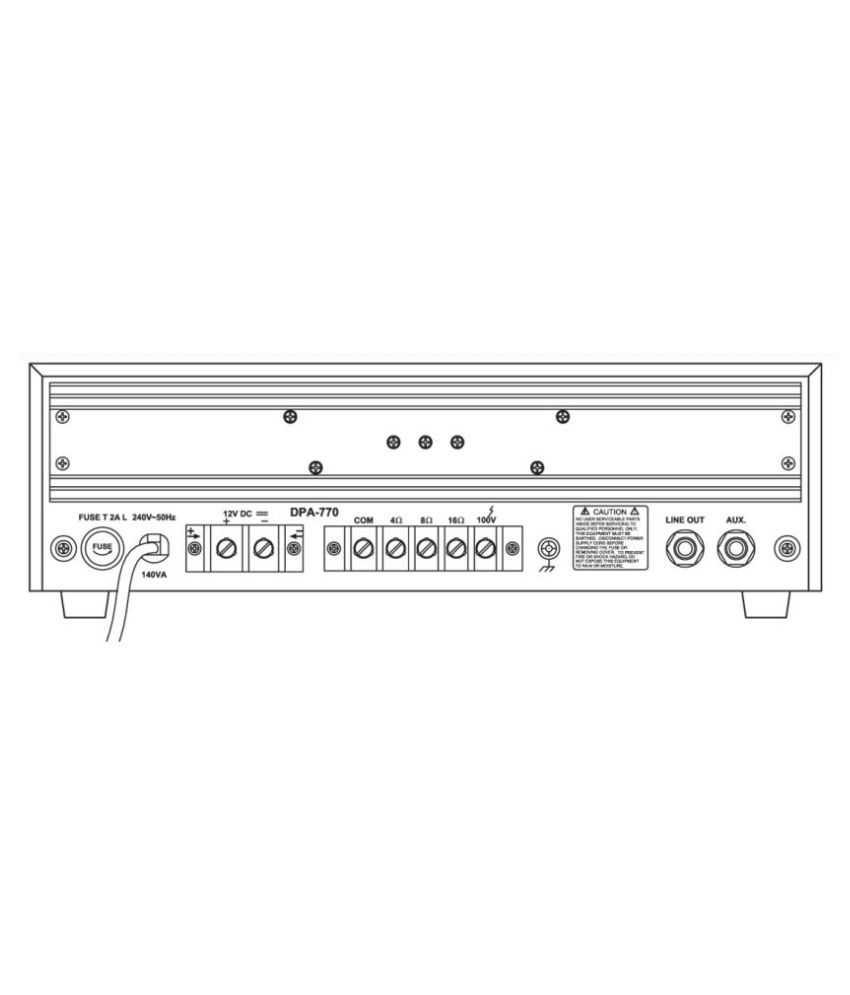

- Speaker Outputs: 4Ω, 8Ω, 16Ω & 100V
- Digital Player: MP3 Player with USB, SD, MMC Card Reader & Bluetooth
- Power Supply: AC: 220-240V 50/60Hz, DC: 12-14V Car Battery)
- Power Consumption: AC: 90VA DC: 3.1A
- Dimensions: W385 × H125 × D300 mm
- Weight: 8.80kg
Key Features
4 Mic & 1 Aux Input.
Built-in MP3 player with USB reader and remote control.
Bluetooth facility.
Line Output for connecting to a Booster Amplifier.
Cut and Boost type Bass & Treble controls.
Instant transfer to DC Power (Car Battery) if AC power fails.
