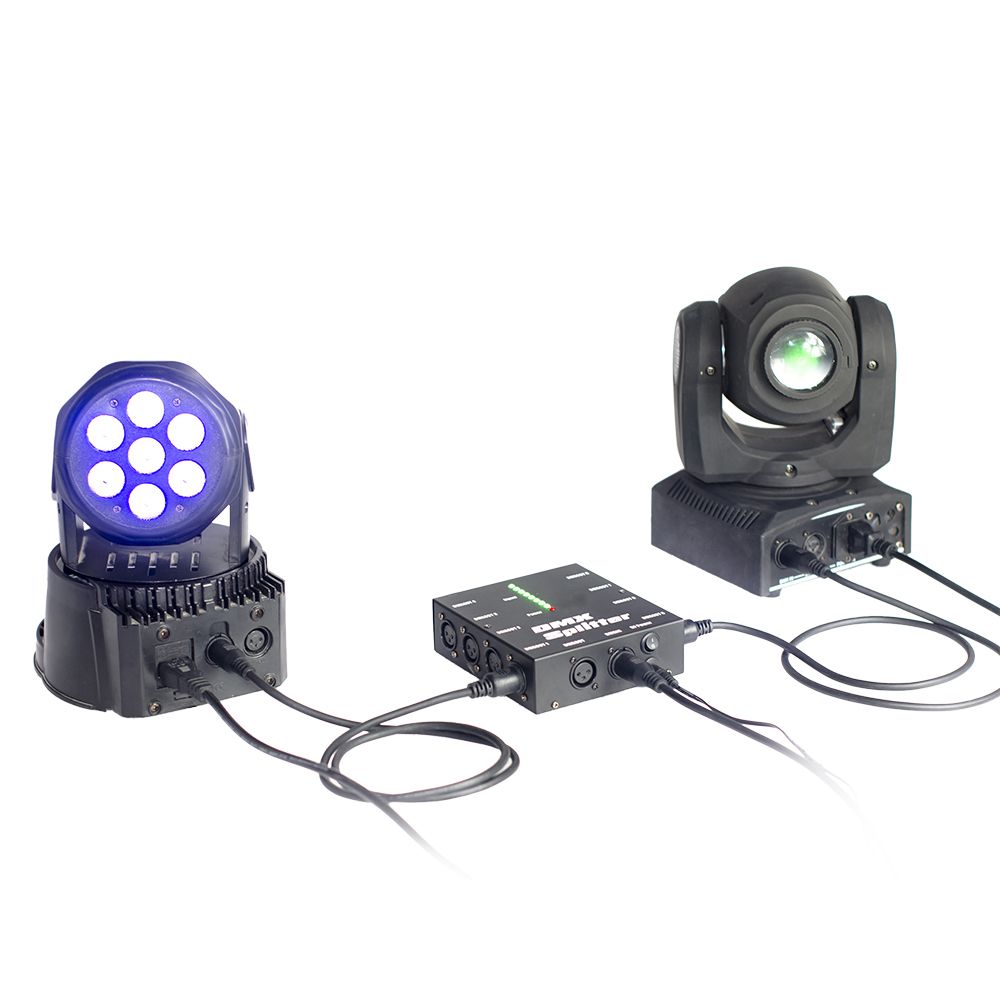

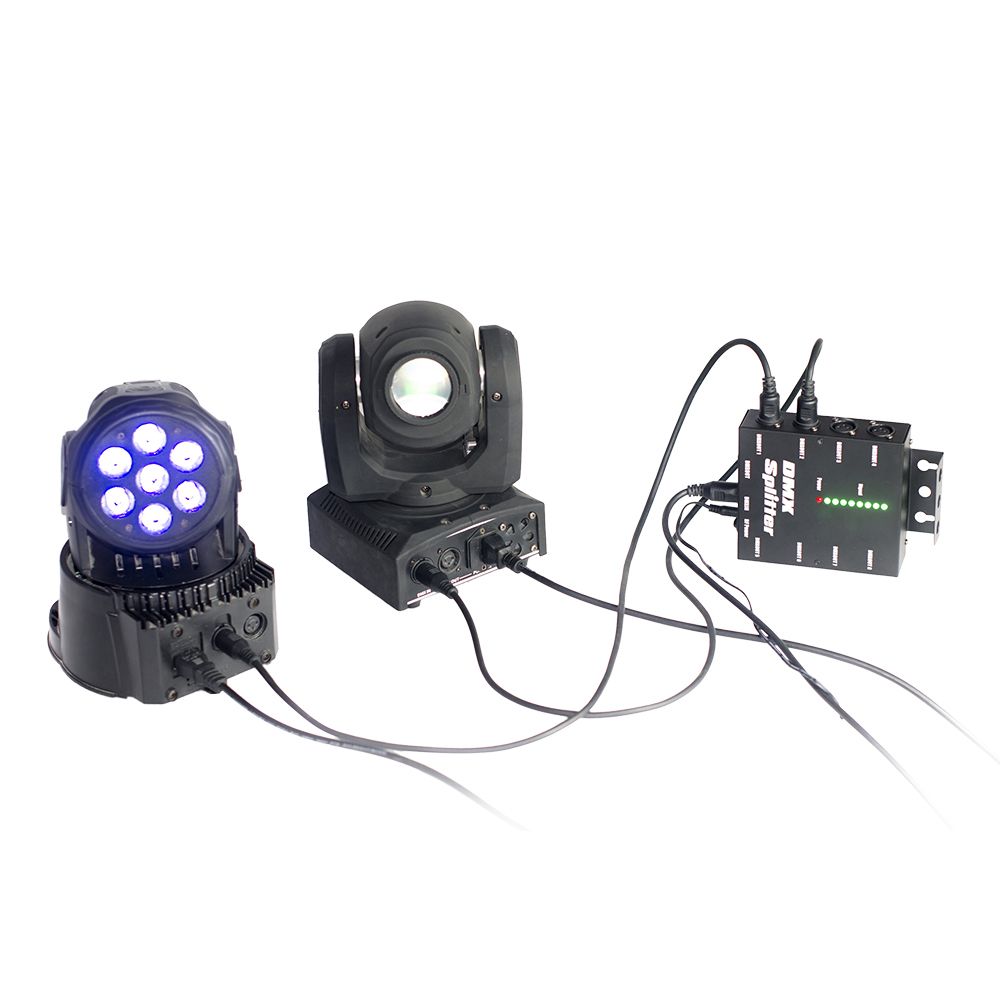

This kind of DMX512 optical splitter functions as DMX512 distribution amplifier, which is small in size and light in weight that it is easy for you to carry. It is specially designed for connection of DMX512 receivers like dimmers, par lights, moving lights, etc. in star configuration It amplifies the DMX512 signal, making the DMX512 data transmission more reliable. With 1000V isolation between input and output and between any individual outputs, each interface also has over-current protection, so all of these will maximize the protection of your console and lighting.
Features:MINI SIZE AND LIGHT WEIGHT: Its mini size and light weight ensure that you can carry easily.
EASY INSTALLATION: Simple design makes you install quickly.
MORE OUTPUT PORTS: 1 input, 1 output directly, 8 independent outputs.
OPTIONAL PLACEMENT: It can be hung on the wall or nailed anywhere as you like (the hanging hook and the nail are not provided.)
WIDE APPLICATION: It is suitable any one of DMX512 equipments.
Specifications:Input voltage: DC 9-12v 500MA min

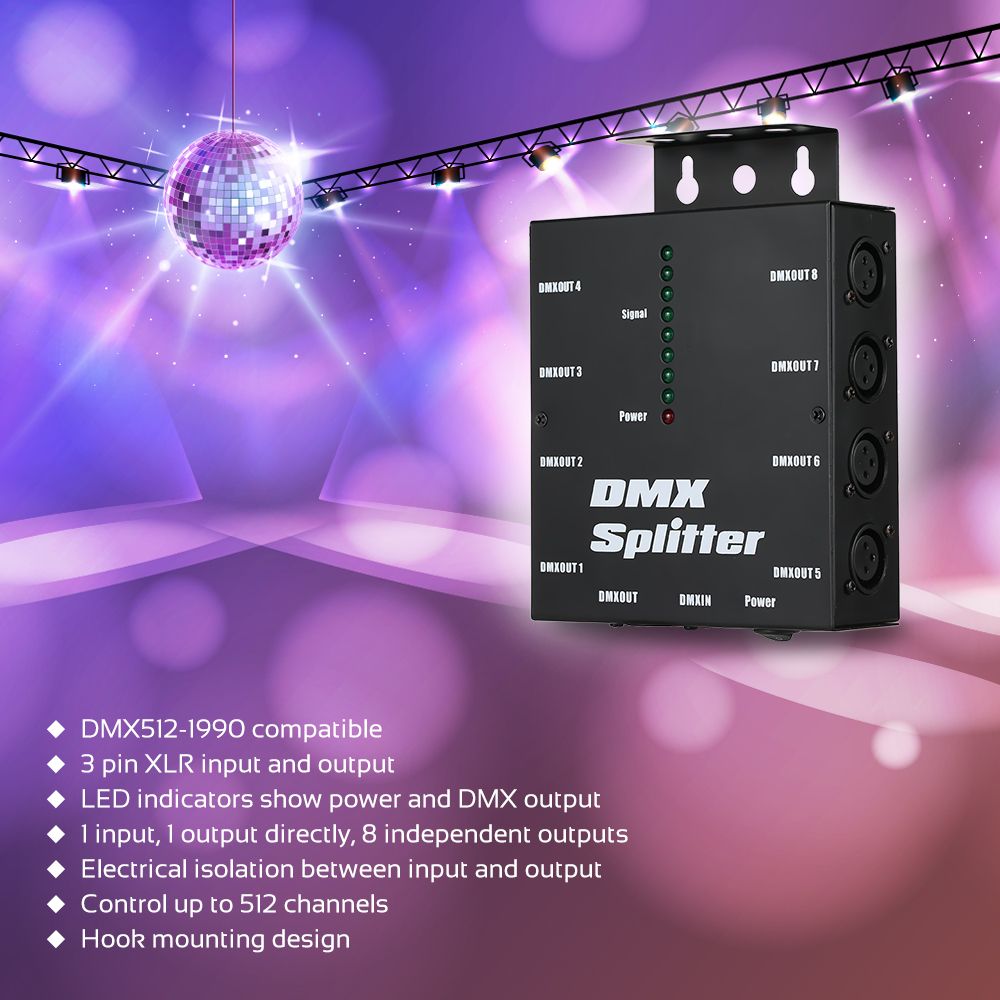

DMX512-1990 compatible
3 pin XLR input and output

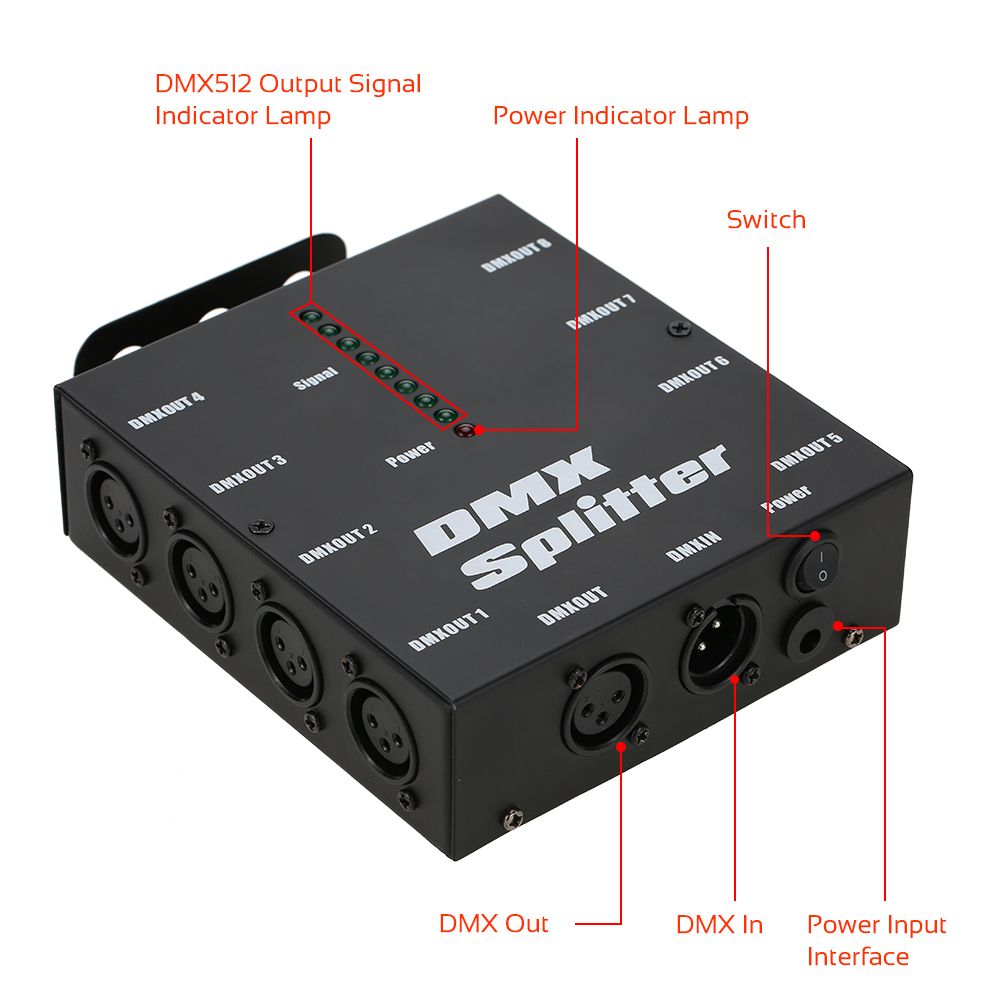

LED indicators show and DMX output
1 input, 1 output directly, 8 independent outputs
Electrical isolation between input and output
Control up to 512 channels
Hook mounting design
Item color: Black
Material: Iron
Warranty：1 year
Item size: 12.8 * 4.3 * 17.2cm/ 5 * 1.7 * 6.8in （L * W * H）
Item weight: 567g/20oz
Package size: 19.5 * 16.5 * 5.5cm/7.7 * 6.5 * 2.2in （L * W * H）
Package weight: 740g/26.1oz
Notes:1. The input voltage can not exceed the nominal voltage, please use the provided adapter.
2. The hanging hook and the nail are not provided.
3. This item is non-waterproof，please use it carefully.

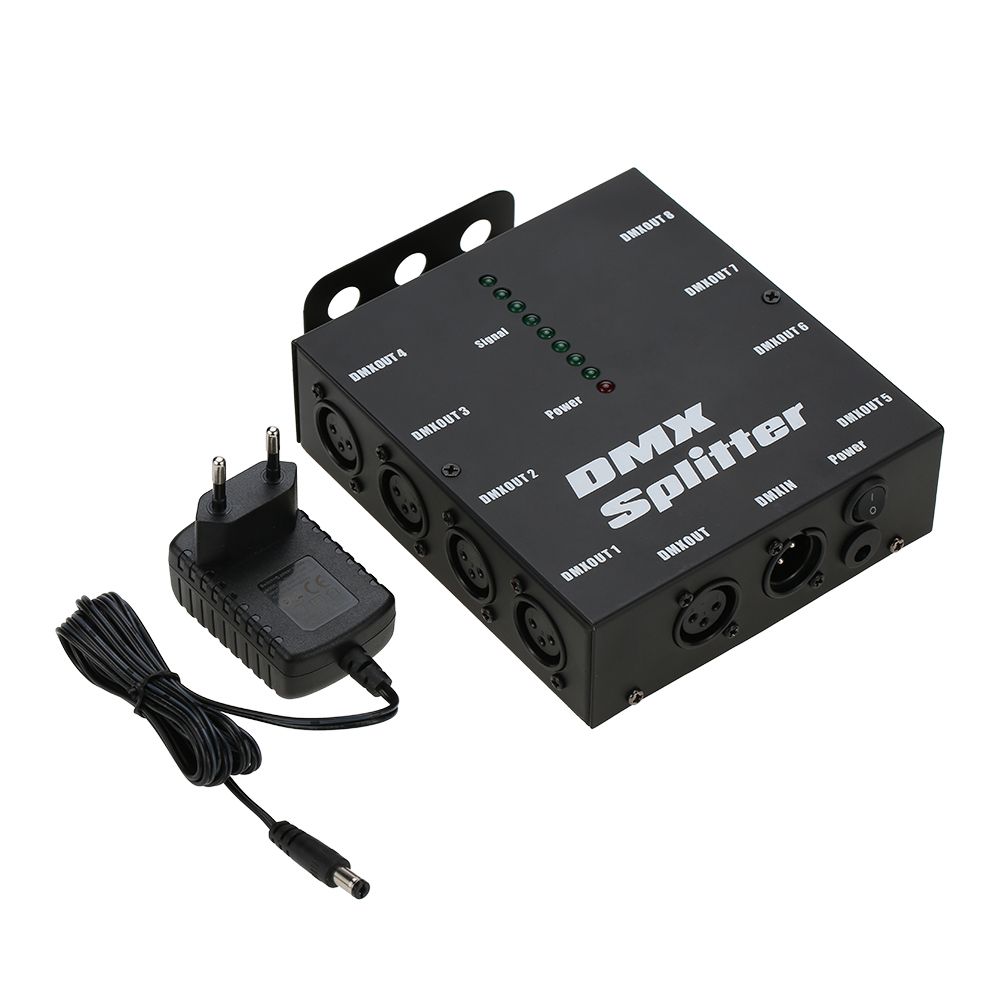

Package list:1 * DMX512 optical splitter
1 * adapter
1 * Instruction
Key Features
MINI SIZE AND LIGHT WEIGHT: Its mini size and light weight ensure that you can carry easily.
EASY INSTALLATION: Simple design makes you install quickly.
MORE OUTPUT PORTS: 1 input, 1 output directly, 8 independent outputs.
OPTIONAL PLACEMENT: It can be hung on the wall or nailed anywhere as you like (the hanging hook and the nail are not provided.)
WIDE APPLICATION: It is suitable any one of DMX512 equipments.
