Our wireless transmitter can transmit standard DMX 512 protocol data (generated by console) by wireless way, supporting 8000m ultra long distance transmission. 7 groups ID code settable for you to control different group lighting.
Features:20dBm high , 800m ultra long visible distance wireless transmission.
Adopts 2.4G ISM work frequency section, with 126 channels.
No time delay when signal data is transmitting, signal data is real time and reliably.
It means successfully connected when transmitter LEDs flashing red and receiver flashing green.
Receiver have a built-in 650mAh batterys, don't need adapter any more, can work for 16h when fully charged.
7 groups ID code settable without any interfere with each other. Just set the transmitter and receiver with same color LEDs to make it work.
Specifications:Material: stainless steel + plastics
Color: black & silvery
Adapter: 4 adapters
(optional)Type: 3 types
(optional) type 1: 1 receiver
type 2: 1 transmitter + 3 receiver

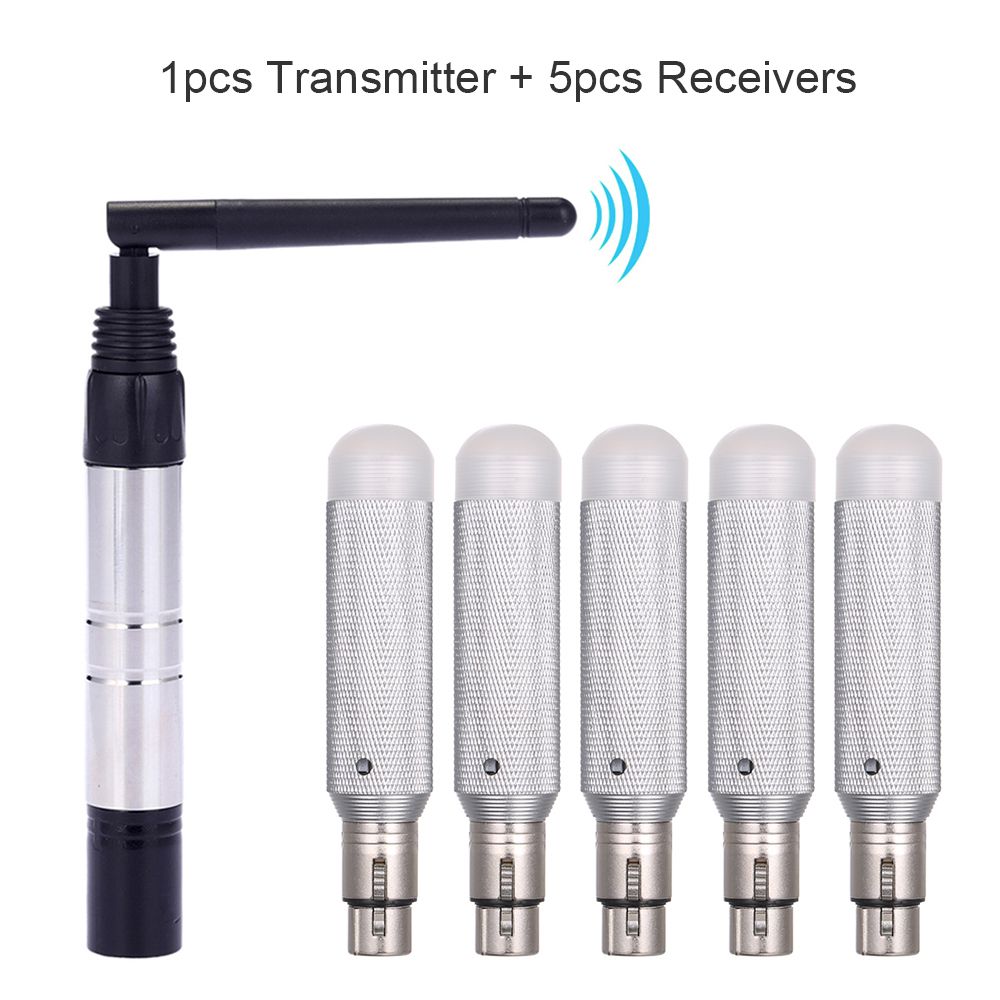

type 3: 1 transmitter + 5 receiver
DMX Connector: 3 pin female
Input: AC 100-240V / 50-60Hz
Output: 5V / 1A

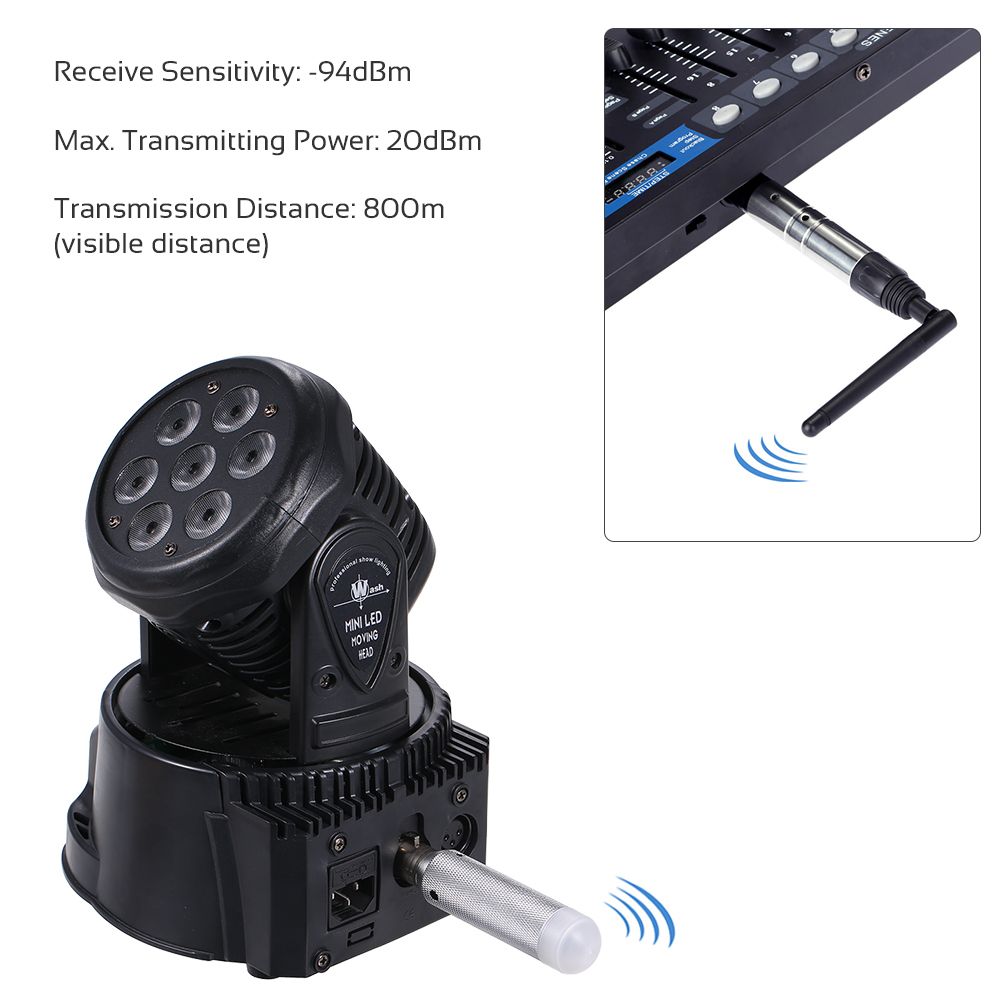

Receive Sensitivity: -94dBm
Max. Transmitting : 20dBm
Transmission Distance: 800m (visible distance)
Working Frequency Section: 2.4G ISM, 126 channels
Charging Time: 2.5h
Working Time: 16h
Receiver Weight: 70g / 2.47ounce

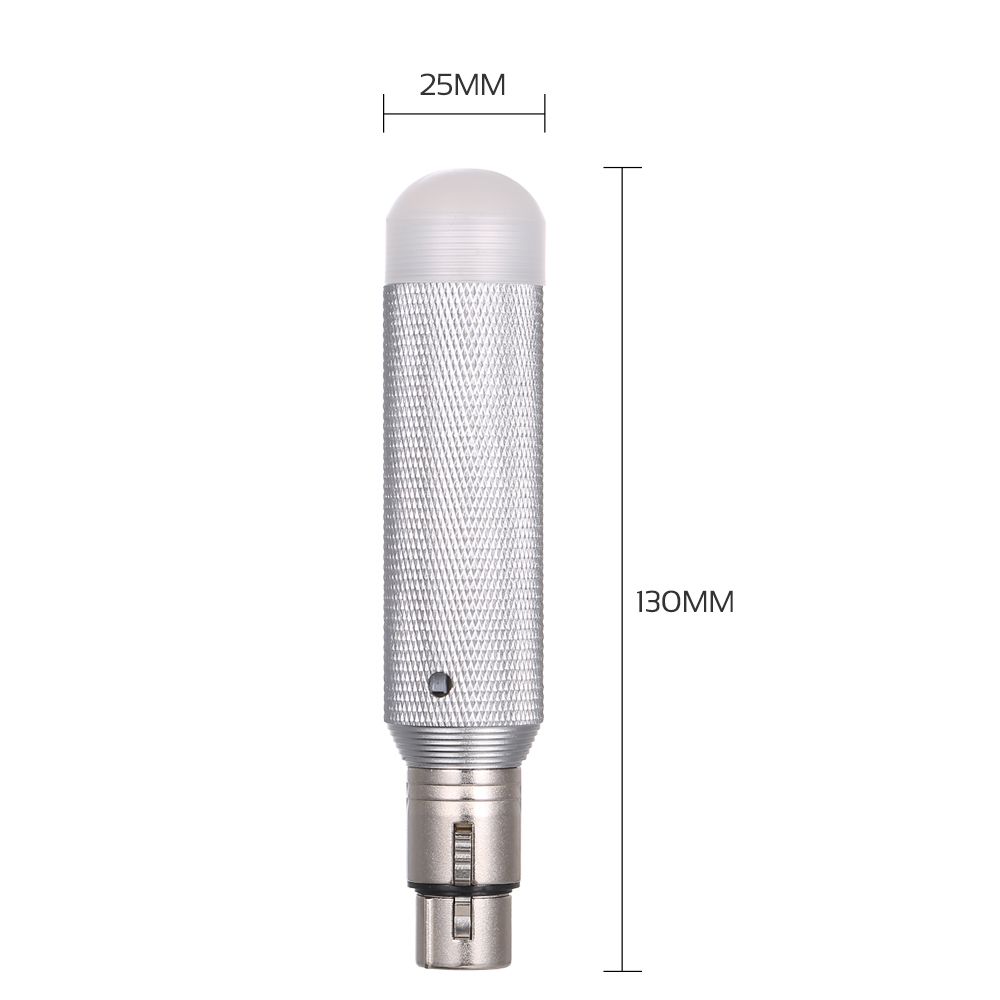

Receiver Size: 130 * 25mm / 5.12 * 0.98in
Transmitter Weight: 76g / 2.68ounce
Transmitter Size: 140 * 18mm / 5.51 * 0.71in
Package Weight:
type 1: 187g / 6.6ounce; type 2: 710g / 1.57ounce; type 3: 1100g / 2.43ounce
Package Size:
type 1: 157 * 113 * 55mm / 6.18 * 4.45 * 2.17in
type 2: 130 * 130 * 170mm / 5.12 * 5.12 * 6.69in
type 3: 245 * 130 * 165mm / 9.65 * 5.12 * 6.5in
Notes:1. Please allow 1-10mm error due to manual measurement, thanks for your understanding!
2. We have 4 different adapters for your option, please choose the right one that is applicable in your country.
3. Before using the product, please read the manual carefully.
4. There is a built-in rechargeable batterys in the receiver lasting about 16h, can also use while charging.
5. No batterys in transmitter, need to connect with while using.
Package List:type 1:
1 * DMX Receiver
1 * Adapter
1 * User Manual
type 2:
1 * DMX Transmitter
3 * DMX Receiver
1 * Adapter
1 * User Manual
type 3:
1 * DMX Transmitter
5 * DMX receiver
1 * Adapter
1 * User Manual
Key Features
20dBm high , 800m ultra long visible distance wireless transmission.
Adopts 2.4G ISM work frequency section, with 126 channels.
No time delay when signal data is transmitting, signal data is real time and reliably.
It means successfully connected when transmitter LEDs flashing red and receiver flashing green.
Receiver have a built-in 650mAh batterys, don't need adapter any more, can work for 16h when fully charged.
7 groups ID code settable without any interfere with each other. Just set the transmitter and receiver with same color LEDs to make it work.
