Buy Diesel Pumping Machine 3" in Nigeria

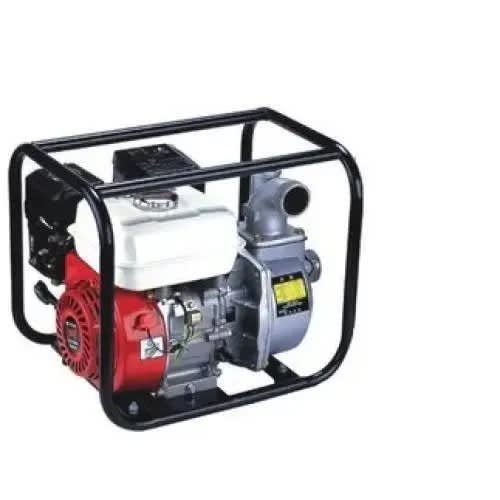

Diesel Pumping Machine 3"

₦ 792000 ₦ 800,000.00 -1%

0 No Reviews

Product SKU: RENG503285

Quantity

In Stock

Product Highlights

A DIESEL WATER PUMP IS A TYPE OF WATER PUMP THAT USES A DIESEL ENGINE FOR POWER.IT IS USED FOR VARIOUS PURPOSES SUCH AS IRRIGATION, DEWATERING, AND FIREFIGHTING, TO TRANSPORT WATER FROM ONE LOCATION TO ANOTHER.

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

DIESEL PUMPING MACHINE 3"

A DIESEL WATER PUMP IS A TYPE OF WATER PUMP THAT USES A DIESEL ENGINE FOR POWER. IT IS USED FOR VARIOUS PURPOSES SUCH AS

IRRIGATION, DEWATERING, AND FIREFIGHTING, TO TRANSPORT WATER FROM ONE LOCATION TO ANOTHER. DIESEL ENGINE PUMPS ARE IDEAL

WHEN THERE IS NO ELECTRICITY OR IT MAY BE DISRUPTED. THE DIESEL PUMP MACHINE CAN BE USED WITH MANY FORMS OF IRRIGATION, SUCH

AS DRIP, SPRINKLERS, OR WITH A HOSE. THIS PUMP IS EQUIPPED WITH A VACUUM-ASSISTED PRIMING SYSTEM, AN INDUSTRIAL PUMPING

MACHINE USED FOR SUCTIONING AND DISCHARGING WATER. IT COMES IN A 4" PIPE SIZE, WITH A MAXIMUM FLOW OF UP TO 1,200 GALLONS PER

MINUTE (GPM). YOU CAN USE THIS DIESEL-POWERED CENTRIFUGAL PUMP TO REMOVE MUDDY WATER, SLUDGE, AND GREYWATER OR TRANSFER

SOLID-LADEN LIQUIDS. A PUMP IS A DEVICE THAT MOVES FLUIDS (LIQUIDS OR GASES), OR SOMETIMES SLURRIES, BY MECHANICAL ACTION,

TYPICALLY CONVERTING ELECTRICAL ENERGY INTO HYDRAULIC ENERGY.

SPECIFICATION
DISPLACEMENT: 331 CC.
FUEL USED: DIESEL.
SUCTION HEIGHT: 8 METERS.
DELIVERY DISTANCE (HORIZONTAL): 26 METERS.
