Buy Ac Self Priming Electric Transfer Pump in Nigeria

Ac Self Priming Electric Transfer Pump

₦ 169750 ₦ 175,000.00 -3%

0 No Reviews

Product SKU: RENG464093

Brand: UNIC

Quantity

In Stock

Product Highlights

About this item
Professional performance with a maximum flow rate of 60 liter per minute (16 gallons per minute), voltage: 110V-220V AC, maximum power: 550W/0.55kw,works effici

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Brand	Unic
Warranty Period	3 Months

110V-220V AC Self Priming Electric Transfer Pump, Oil Change Fuel Diesel Kerosene Biodiesel Pump

About this item
Professional performance with a maximum flow rate of 60 liter per minute (16 gallons per minute), voltage: 110V-220V AC, maximum power: 550W/0.55kw,works efficiently
Self priming rotary pump with sensitive switch for precise control, electric power supply makes it very fast and convenient
The high-quality electric clip is made of all copper and is durable. The one-key lock of the waterproof power switch has a transparent waterproof cover, which is safer to use.
Designed for transferring diesel oil or kerosene for vehicle, oil warehouse, construction site, farm and outdoor work.
Professional Electric Oil Pump makes transferring fuels easy. Whether you need to fuel your vehicle, generator, farm equipment, or other fuel-powered equipment, this pump has you covered. It can handle diesel oil, kerosene, not for gasoline. Oil Change Fuel Diesel Kerosene Biodiesel Pump

Note Outlets differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.

Features
1.Induction motor with aluminum housing.
2.With self-priming pump and bypass valve.
3.Continuous duty cycle.
4.Kerosene biodiesel pump.
5.Improve efficiency.

Package Included:
1 x Transfer Pump
1 x Filter Screen
2 x Connector

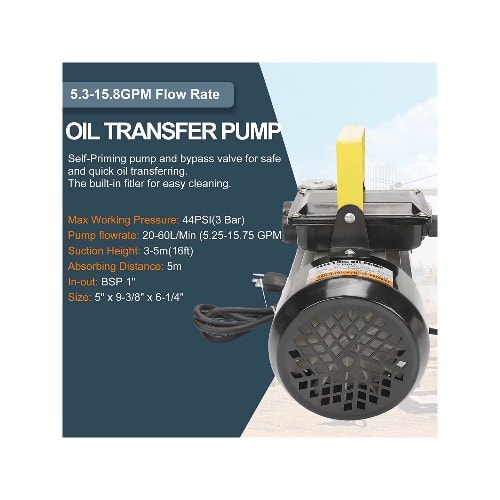

Specification:
Voltage: 110V-220V AC
Wattage: 550W/0.55kw
Max Lift: 10M(32Ft)
Max Pressure:44PSI(3Bar)
Suction Height:3-5M(10-16Ft)
Rotational Speed: 2800 R/Min
Flow Rate: 20-60L/Min (5.25-15.75 GPM)
Size : 5" x 9-3/8" x 6-1/4"

Specification details:

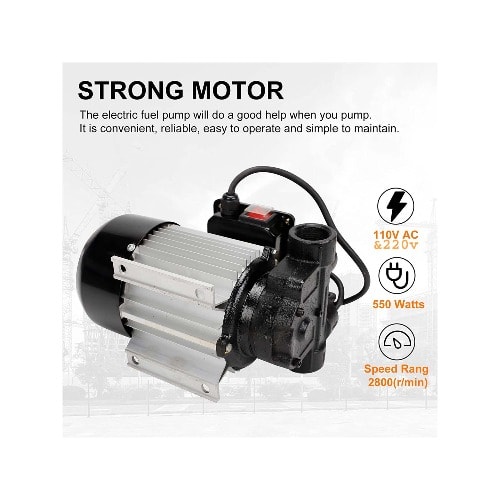

All Copper Motor:
High-quality all-copper motor, the core adopts high-quality copper wire, to ensure the efficient operation of the motor, no matter what the situation, it can help you pump oil better and faster.

safer Three-proof switch:
It is made of stainless steel, Waterproof, electric and oil proof, which is efficient, convenient and durable, resistant to high temperature and corrosion.

Cast steel pump head:
Cast steel pump head design, The built-in oil return valve function can help you refuel the car more safely and efficiently, avoid you for the trouble of oil return and oil leakage

Portable handle:
Suitable for ergonomically designed portable handle, comfortable hand feel, easy to carry, making refueling more convenient

Anti-breaking wire end:
Reinforce the end of the anti-breaking wire, so that you can avoid the danger of leakage, the machine is more durable, and every detail is implemented.

High-quality copper clips:
High-quality all-through clamps, durable, ensure the smooth operation of the machine, so that you have no worries during the operation

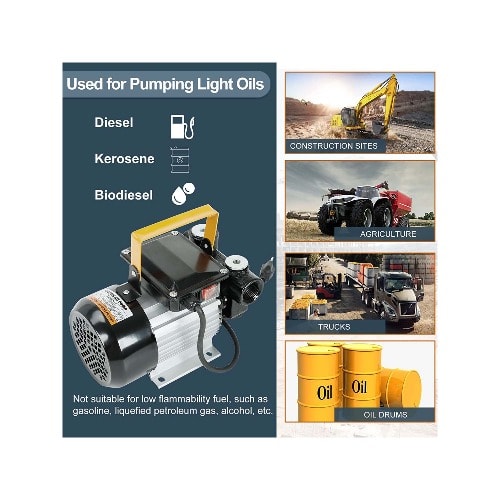

Widely Application
1.This self-prime transfer pump is designed for light oil, perfect to pump diesel, biodiesel and kerosene. The pumps can not handle thicker oil such as vegetable oil, transmission fluid,motor oil, petrol ect.

2.The pump is Perfect for transfering oil from one tank to another , can Use this pump for fueling vehicles, transfering fluids, filtering fluids. But can not for gasoline fuel.
