Product Specifications
Description

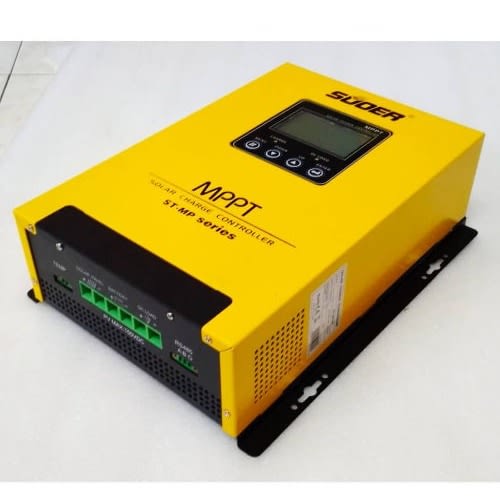

Suoer solar controller 60 amp 12v/24v/48v 60A mppt solar charge controller

New Feature

MPPT technology
1.Max input voltage of solar panel:150V
2.Clock timing function,light control mode,Time control mode
3.Regulatory mechanism of temperature compensation( Auto regulate the charging voltage according to the temperature sensors )
4.Built-in solar data monitoring interface(RS485)
5.Solar charging voltage can be regulated
6.LCD Display with backlight
7.Good heat dissipation effect with less noise
8.Cable specification:>=10 square millimetres(Copper cable)
9.Reverse protection,short circuit protection
10.Auto identify system voltage of 12V/24V/48V
11.Hanging style design makes it convenient to install
12.Available in 60A/80A/100A

Working Mode

There are several common working mode of MPPT solar controller:
1. Button Mode (Manual switching load)
2. Light Controlled Mode (Load switch is controlled by solar panels
photosensitive control and timing control)
3. Light control turn on delay off mode.
4. Circulation model (With Clock Fuction)
5.MPPT charging mode,Maximum power point tracking automatically

Protection

*PV array short circuit
*over discharge Protection
*Discharge voltage protection
*IP21 Mechanical protection
*Load overload
*the input low voltage protection
*PV Lightning protection
*Battery reverse polarity
*The overcharger protection voltage

Application

MPPT Solar Power Controller of light and night away less than 10 ma power flow, ideal for small power solar products, such as solar street lamp light, streetlight, DC Load, illumination, solar power system and so on.

Technical Parameters

Model	SON-MPPT-60A
charging mode	Controller or Host computer
Maximum current of discharge	12V/24V/48Vsystem	60A
Discharge protection	12V/24V/48Vsystem	fuse 100A/150A
Appointment of on-off mode	12V/24V/48Vsystem	tomake an appointment time of on and off
Normally open, normally open control mode	12V/24V/48Vsystem	Normally open or normally close
PV voltage control switch mode	12V/24V/48Vsystem	PV voltage on, PV voltage off
PV voltage and time delay control switch mode	12V/24V/48Vsystem	PV voltage on and time delay off
PV voltage and time delay	12V/24V/48Vsystem	(Take a 12V battery for example) The default 10.5V (Can be adjusted on control interface)
Communication characteristics
RS485 communication interface	12V/24V/48Vsystem	Select COM connecting type
Temperature protection	85ºC
Overheat protection	When the temperature is over 75,reduce the power output by decrease 3A each degree.
audible noise	≤40dB
heat-dissipating	Temperature control system + Load control system
metadata accessories	Imported materials,conform to EU standards,temperature can be chosen,electrolytic capacitor rated temperature is not lower than 105 degrees Celsius.
smell	Do not produce peculiar smell and the smell of harmful to health
environmental requirement	Meet the 2002/95/EC; No cadmium,hydride and fluoride
attribute
Gross weight	60A:3.5kg 80A/100A:4.2kg
Electro Magnetic Compatibility(EMC)	En61000
Mechanical protection type	IP21
Environmental Requirement
humidity	0~90% (Not condensation)
Altitude	0~3000m
Ambient temperature	-20ºC ~+40ºC
Storage temperature	-40ºC~+75ºC
Atmospheric pressure	70~106kPa
