Features:
1.Install easily and quickly
2.Waterproof and dustproof
3.Auto lock provides secure docking
4.Connecting:Pressing and tight hoop connecting
5.There are insulating member on both side of contact holes which can guide and prevent electric shocking
Specification:
1.Rated Current:25A(2.5/4mm2),30A(4/6mm2)
2.Withstanding Voltage:1000V (TUV),600V(UL)
3.Contact Resistance:≤0.3mΩ
4.Protection Class:Class II
5.Temperature Range:-40 oC~+90oC
6.Protection Degree:IP2X,unmated;IP67,mated
7.Wire Size Range:2.5/4/6mm2(14AWG,12AWG,10AWG)
8.Unmating Force:200 Newton
9.Insulation Material:PC/PA

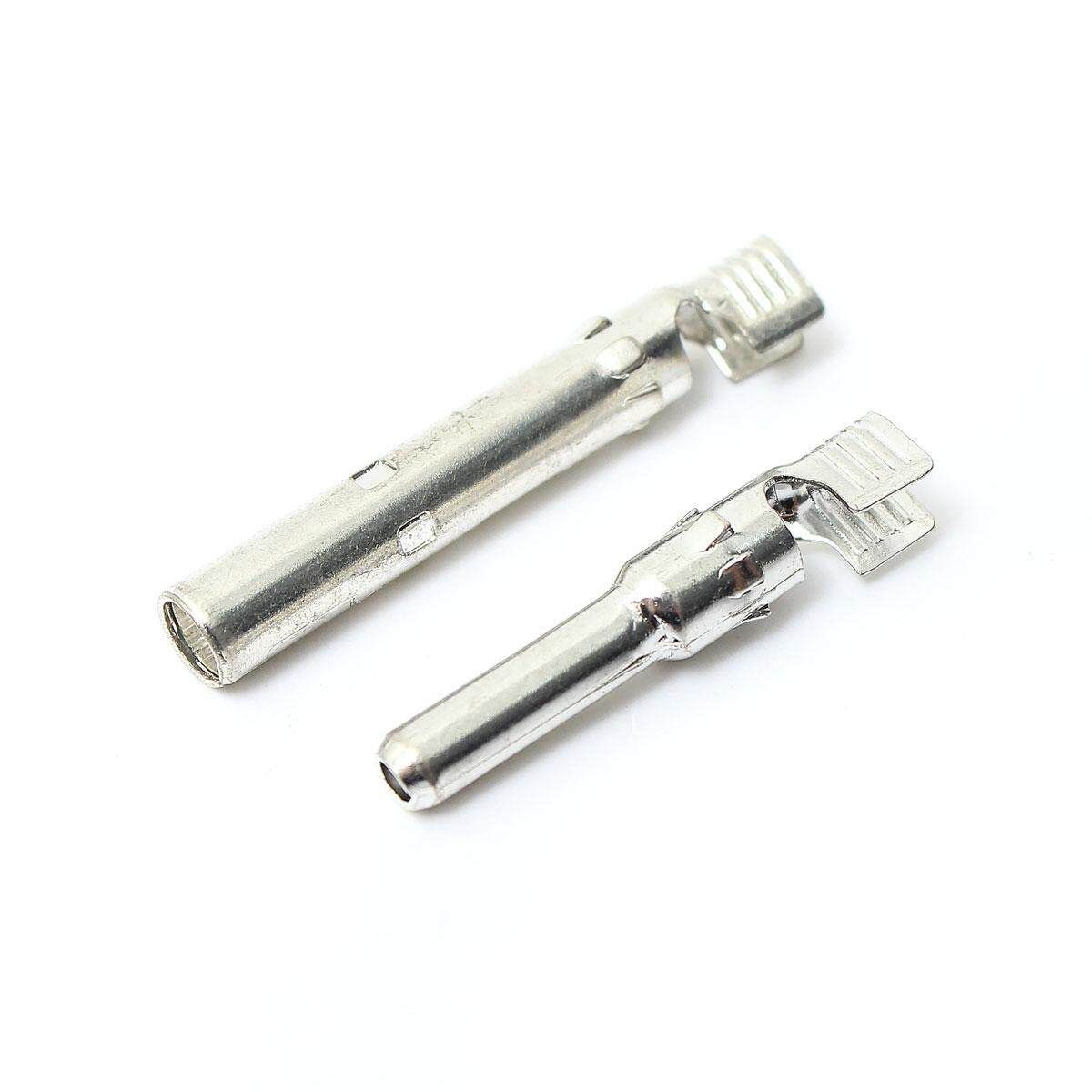

10.Contact Material:Copper,silver plated
11.Flame Class:UL94-V0 or UL94-5VA
Description:
1.Material:PC/PA+Copper,silver plated
2.:Black
3.Size:L*W*H/8.5*2*2CM
a a a a a
Key Features
Install easily and quickly
Waterproof and dustproof
Auto lock provides secure docking
Connecting:Pressing and tight hoop connecting
Rated Current:25A
Withstanding Voltage:1000V
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box

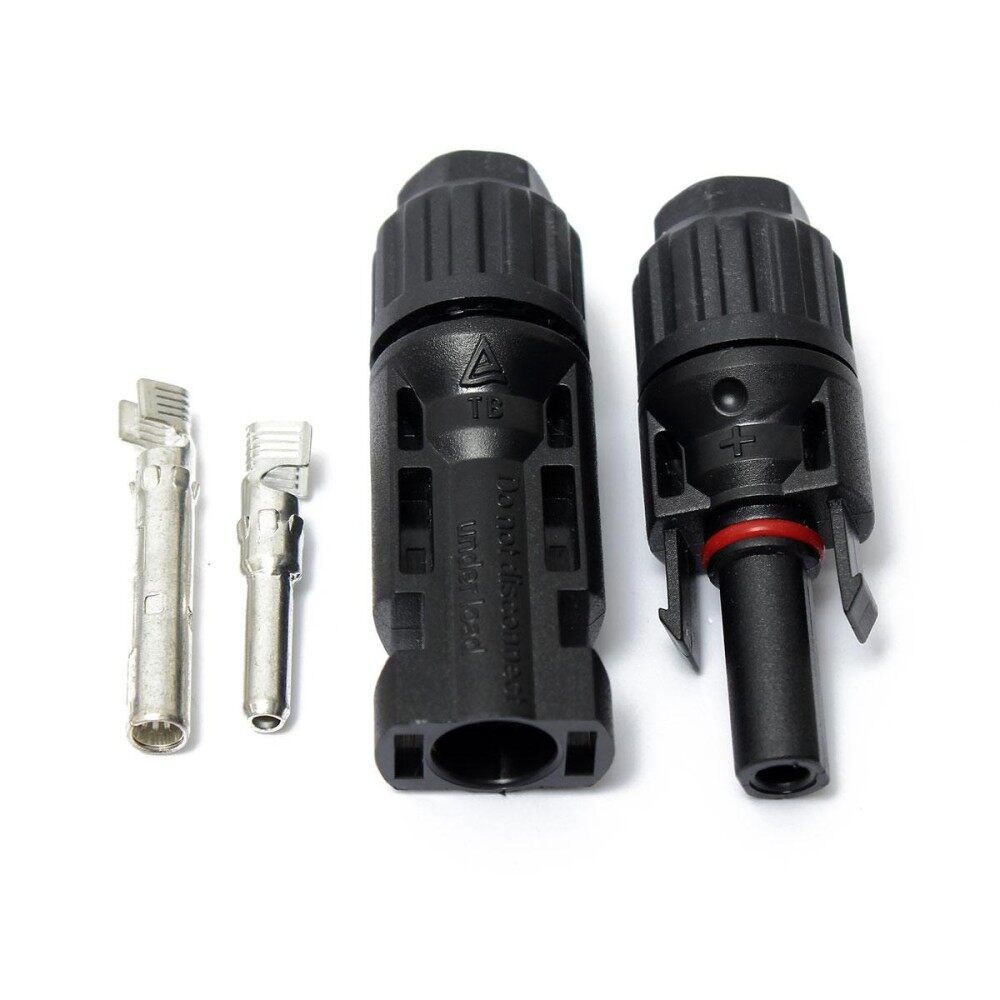

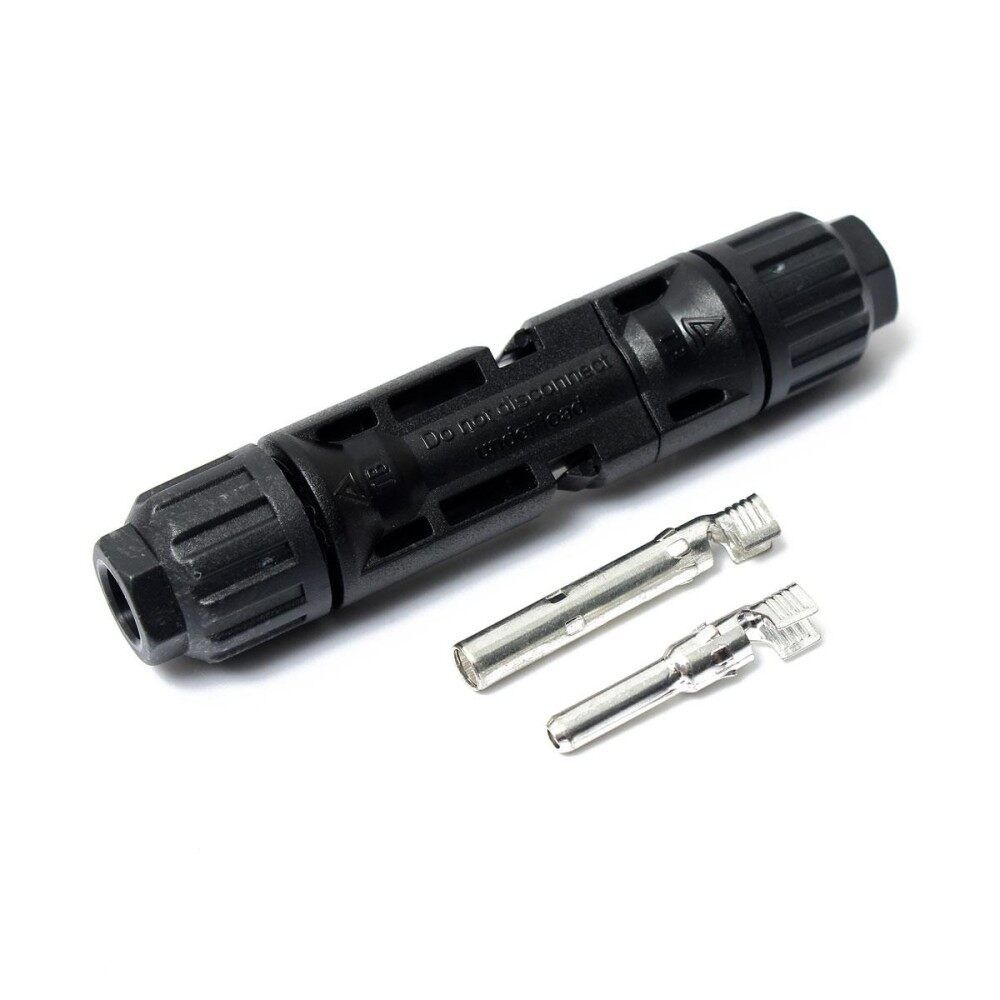

1X Wire Cable Connector
