Model Apricot 1m 2.5mm2 Aqua 2m2.5mm2 ArmyGreen 3m2.5mm2 Avocado 5m2.5mm2 Beige 10m2.5mm2 Black 20m2.5mm2 [Note:ColorFamilyisthechooseofthemodel,notrealcolor;Colorjustmeansthemeaningofthemodel]

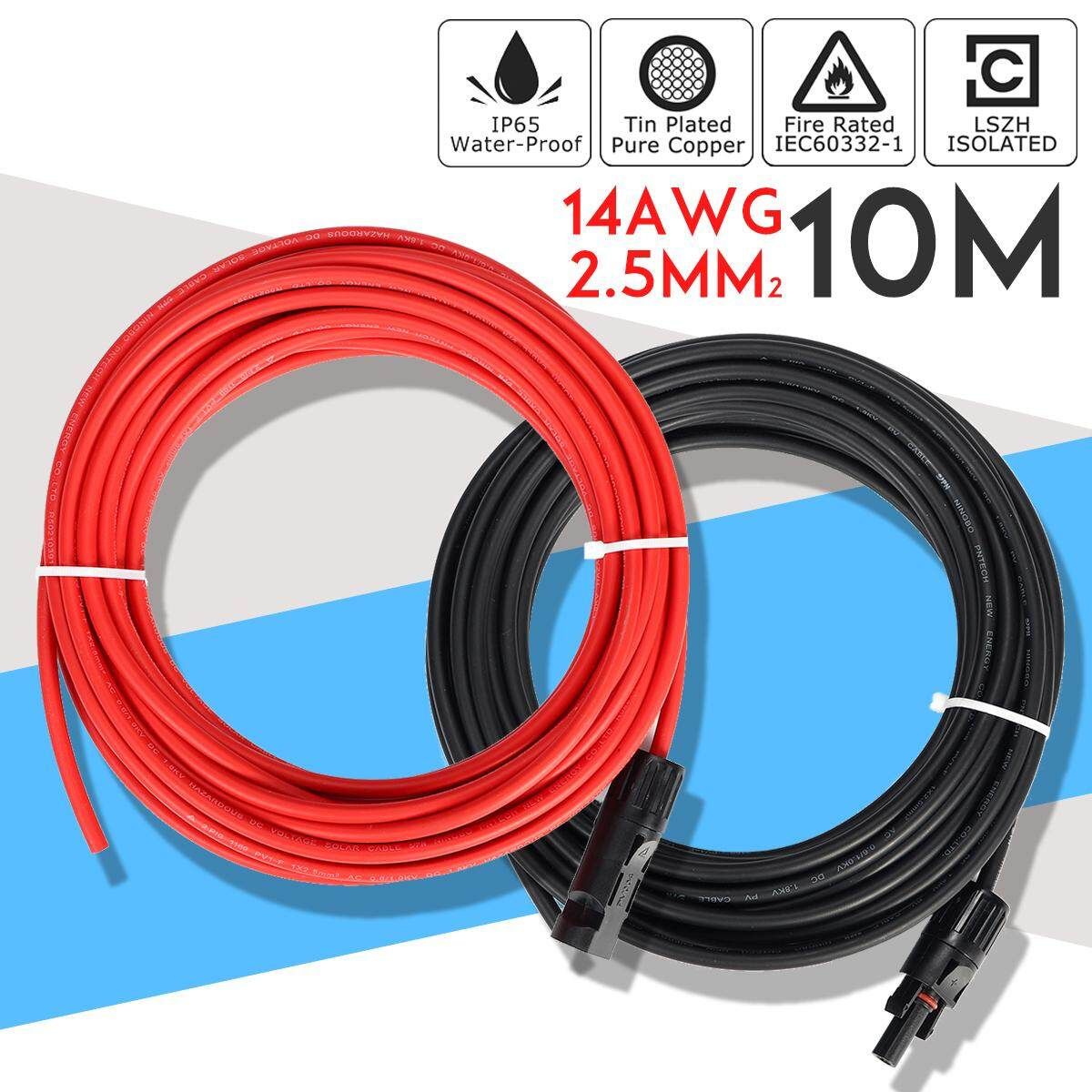

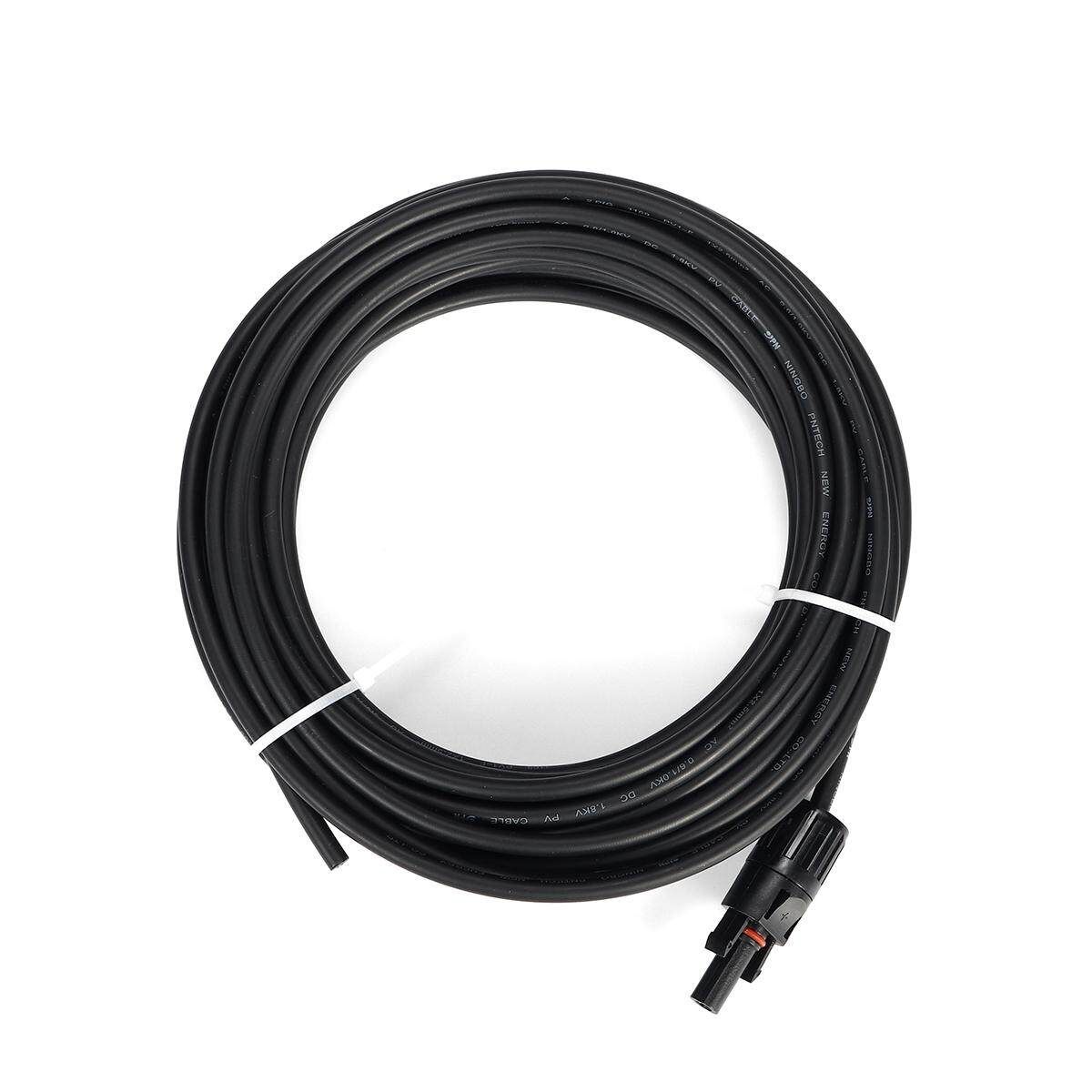

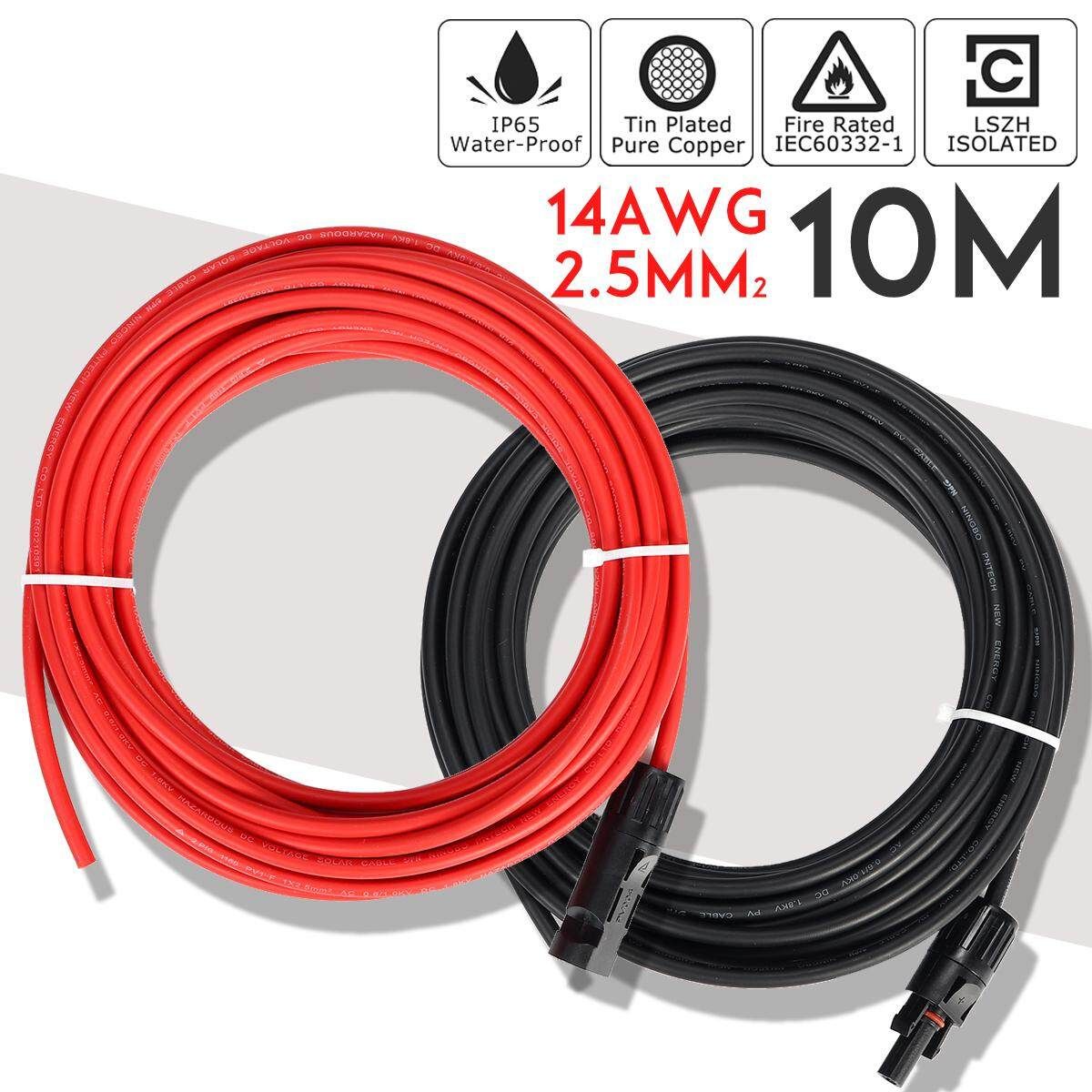

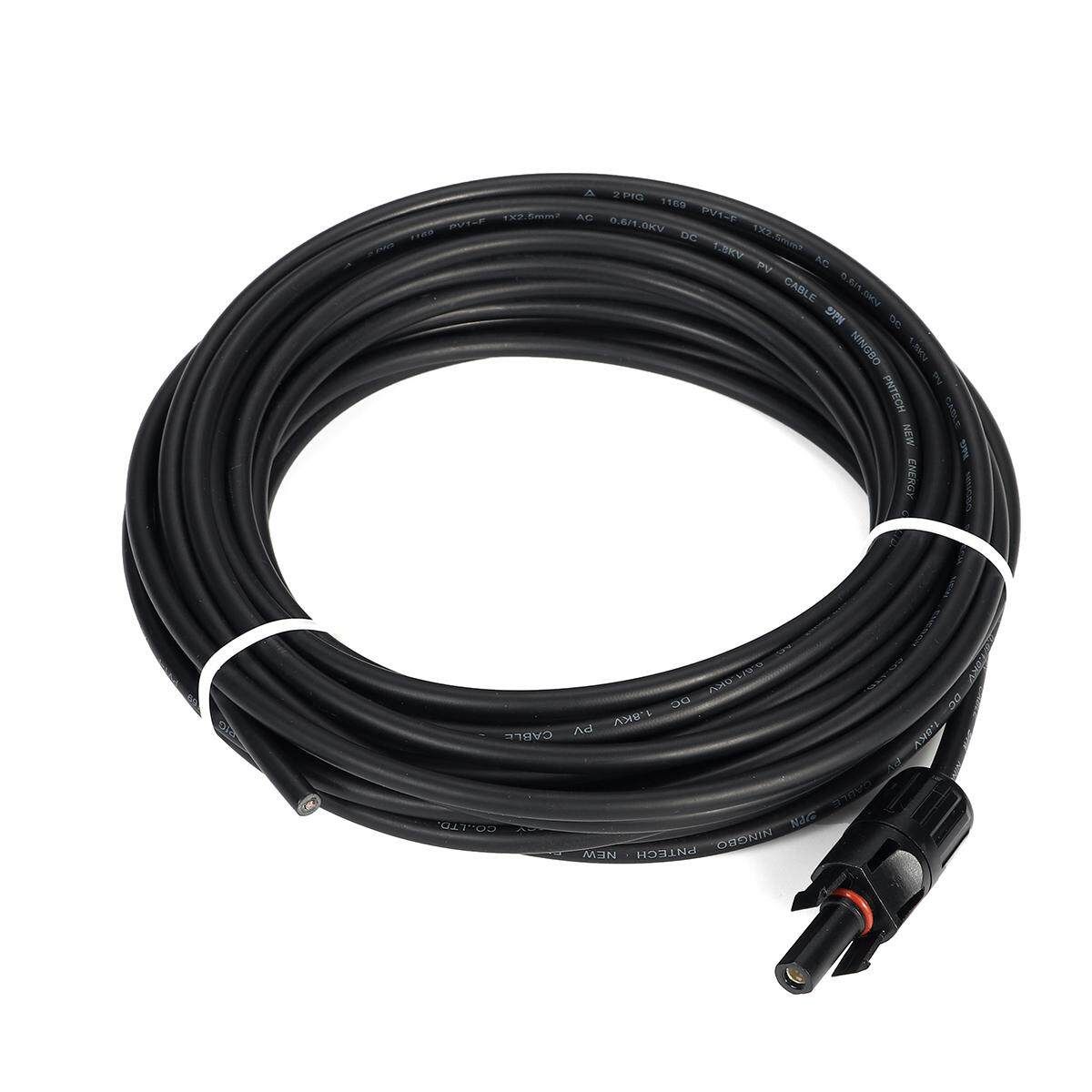

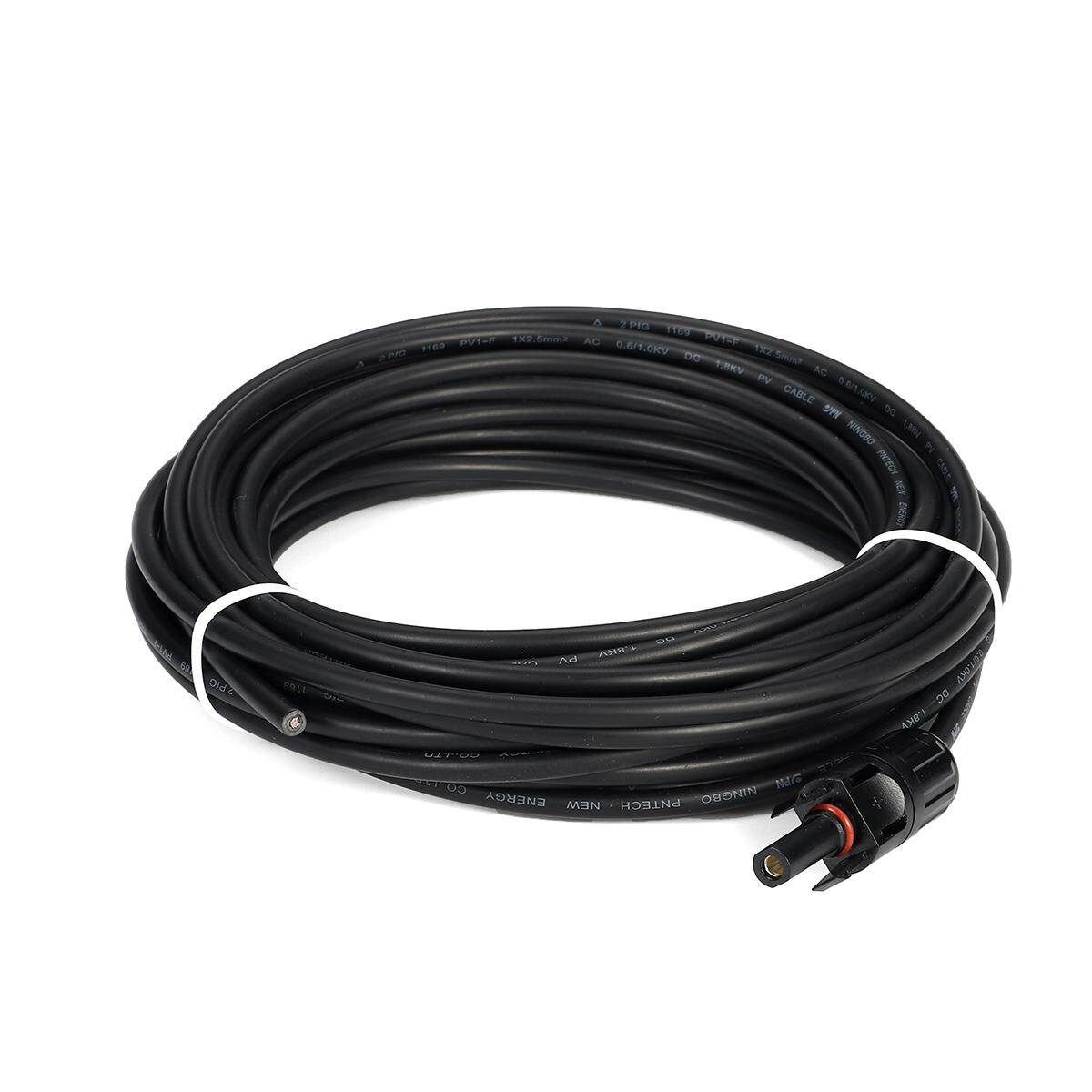

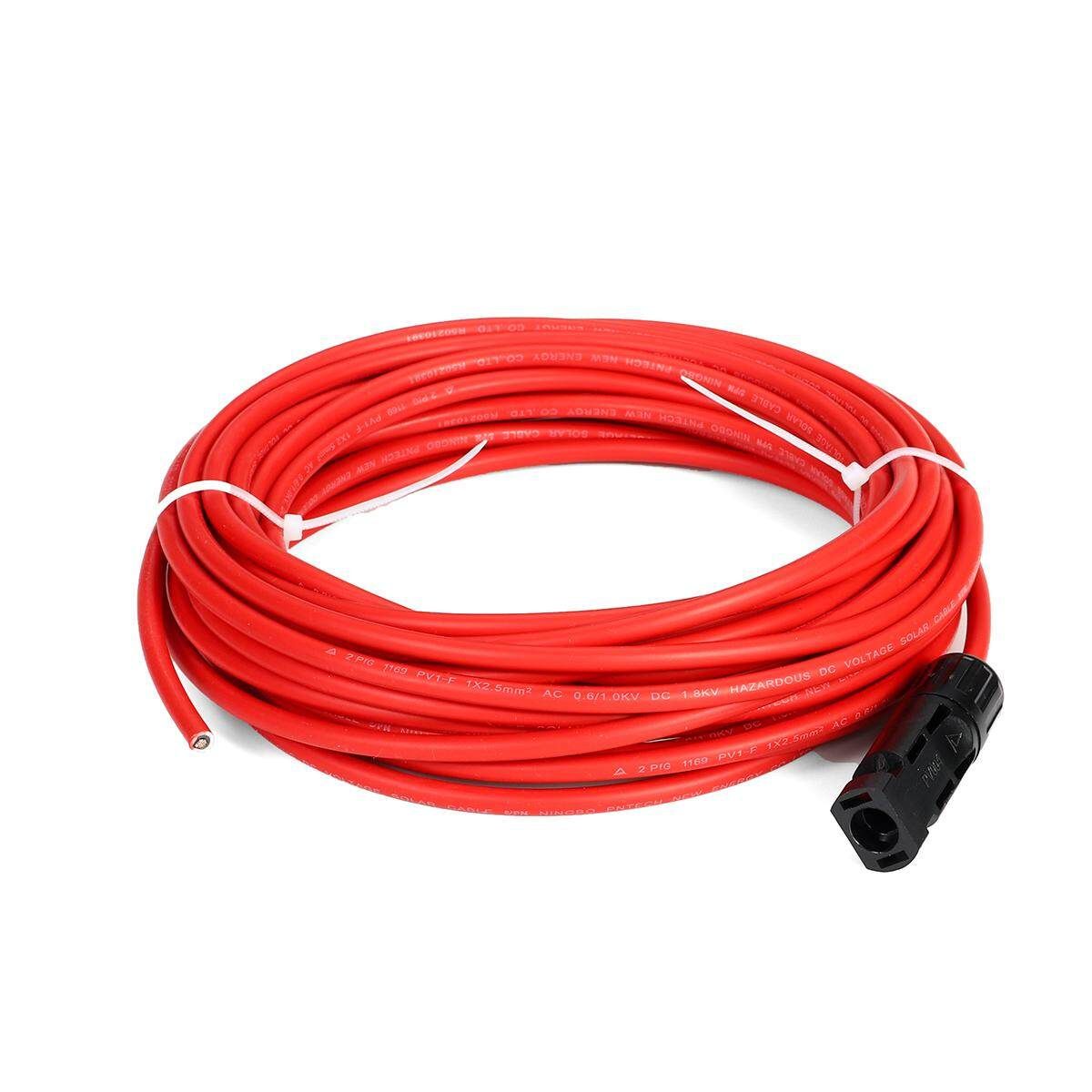

Cable(2 PfG 1169) for Photovoltaic
FEATURE:
Brand: Pintech
Conductor: Stranded Tinned Copper
Insulation: Halogen Free Crosslinked Polyolefin
Sheath: Halogen Free Crosslinked Polyolefin
Nominal Cross-Section:2.5mm2
Rated Temperature: -40~﹢90℃
Rated Voltage : 1/1.8kV
Rated Voltage AC: 0.6kV
Rated Current: 33~57a
Weathering Resistance: Sun Res.
Burning Behavior: (IEC60332-1)
Black Cable MC4 Connector: Male
Red Cable MC4 Connector: Female
TECHNOLOGY 0f 14AWG(2.5mm2):
Rated Temperature(℃) = -40~90
Rated Votage(AC/(kV)) = 0.6~1.0/1.8
Cable Core(NO.) = 1
Cross-Section Area (mm2) = 2.5
Cross-Section Area (AWG) = 14
Diameter Of Wires/ Number(NO./mm) = 51/0.25
Thickness Of The Insulation(mm) = ≥0.5
Thickness Of The Sheath(mm) = ≥0.5
Outer Dia.(mm) = 5.3±0.2
Conductor Resistance(20℃)(Ω/km) = ≤8.21
Voltage On Completed Cable(kV/min) = 6.5/5 No Breakdown Cable(2 PfG 1169)for Photovoltaic
a a a a a
Key Features
Sun Res
Halogen Free Crosslinked Polyolefin
Stranded Tinned Copper
Red Cable MC4 Connector: Female
Black Cable MC4 Connector: Male
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 Pair Solar panel extension cable
