Item Model
Antique White
4 To 1
Apricot
3 To 1
Aqua
2 To 1
[Note: is the choose of the model, not real ; just means the meaning of the model]
Feature:
It can be used in harsh environment
Created seal, design of dust proof
Strong pulling force capability
Lower contact resistance
Load capability with big current and high voltage
Double seal rings for better waterproof effect
With excellent resistance and UV endurance
Compatible with PV cables with different insulation diameters
Resistance of extra high low temperature and fireproof
Quick simple assembly processing and simple removal of plugs without the aid of any extra instrument
Specification:
Model: 2 to 1
Rated current: 20A(4mm2)30A(6mm2)
Rated voltage: 1000V
Contact resistance: 2mΩ
Insulation resistance : 500mΩ
Suitable single core cable section: 2.5mm2, 4mm2, 6mm2
Cable outer diameter: Φ5mm ~Φ 7mm
Connector insulation material: PPO
Degree of protection: IP67
Safety: II
Operating temperature range: -40 ~ +105 ℃
Model:3 to 1
Rated voltage: TUV1000 V /UL 600V
Current: 20A~30A
Wire :2.5mm2~6mm2 / 14AWG~10AWG
Terminal specification :φ4.0mm
High voltage:TUV6000 V AC(1 min) /UL 2200V (1 min)
Safety: II
Connector conductor material: Copper,Silver Plated
Contact resistance: ≤5mΩ
Material: PPO
Degree of protection: IP68(IEC 60529)
Temperature rating: -40 degree ~ +85 degree
Flame Retardant Grade: UL94V-O
Model: 4 to 1
main cable specification: 2.5~6mm2 / 14AWG ~ 10AWG
Branch cable specification: 4mm2(AWG12)
Rated Current: 20A~30A
Rated voltage: TUV 1000VDC/UL 600VDC
Withstanding Voltage : TUV 6000VAC(1min) /UL 2200VDC(1min)
Contact resistance: ≤5mmΩ
Waterproof degree:IP68
Flame class: UL94VO
Safety Class: Ⅱ
Withdrawal force: ≥50N
Insertion force: ≤50N
Insulation material: PPO
Terminal Material: Copper,Silver plated
Connecting system: crimping connection
Temperature range: 40 ℃ ~ +85 ℃
Package:

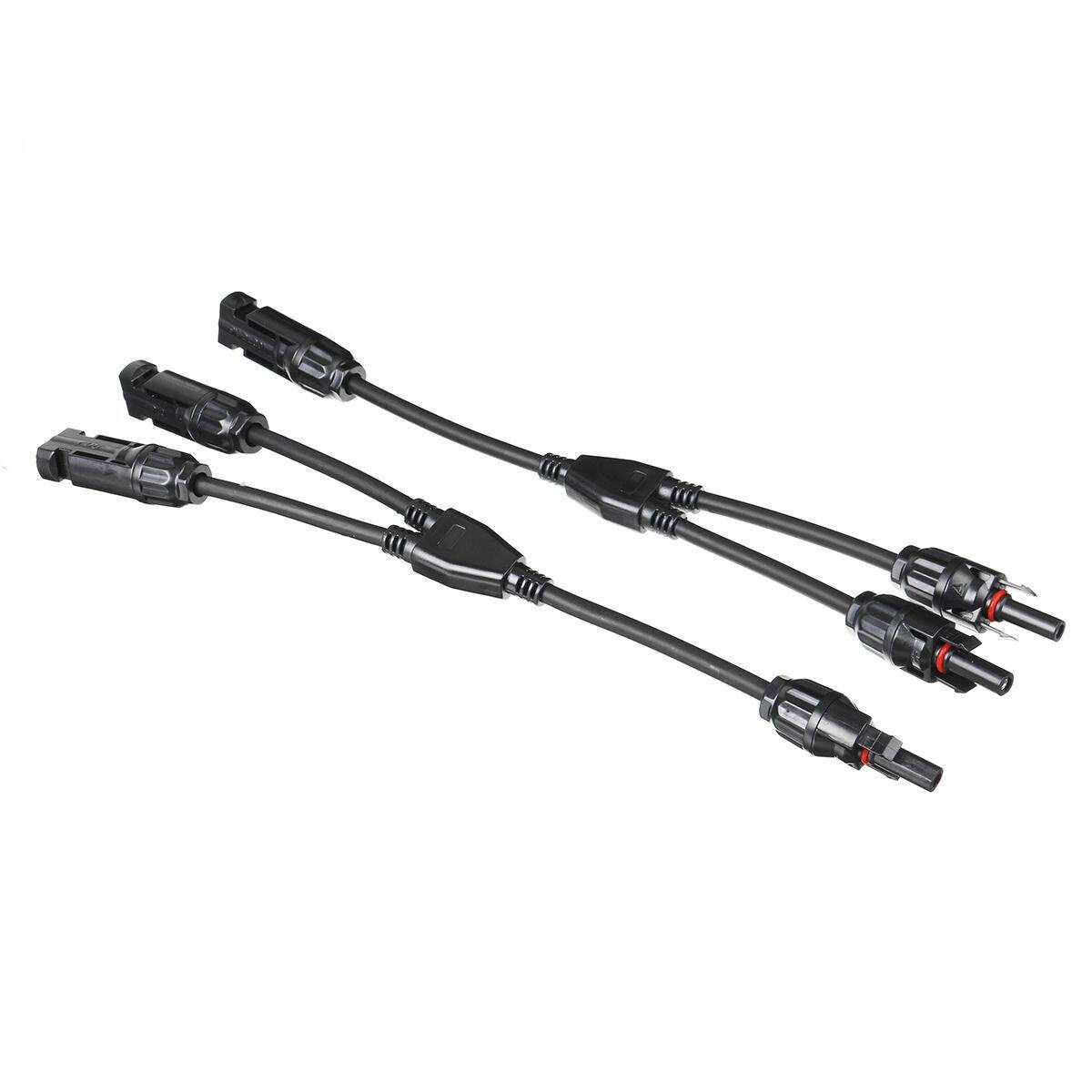

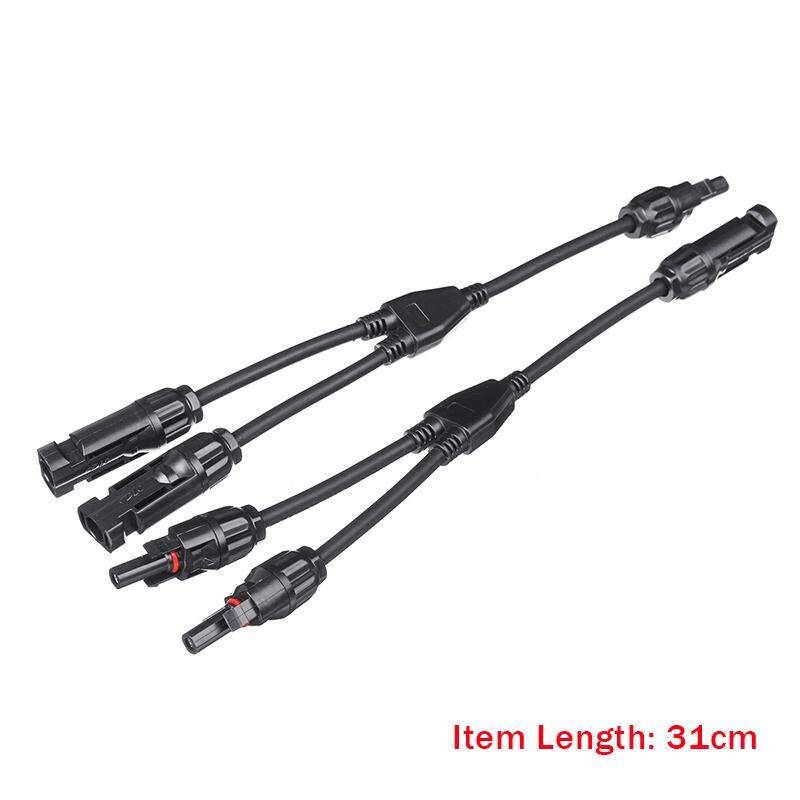

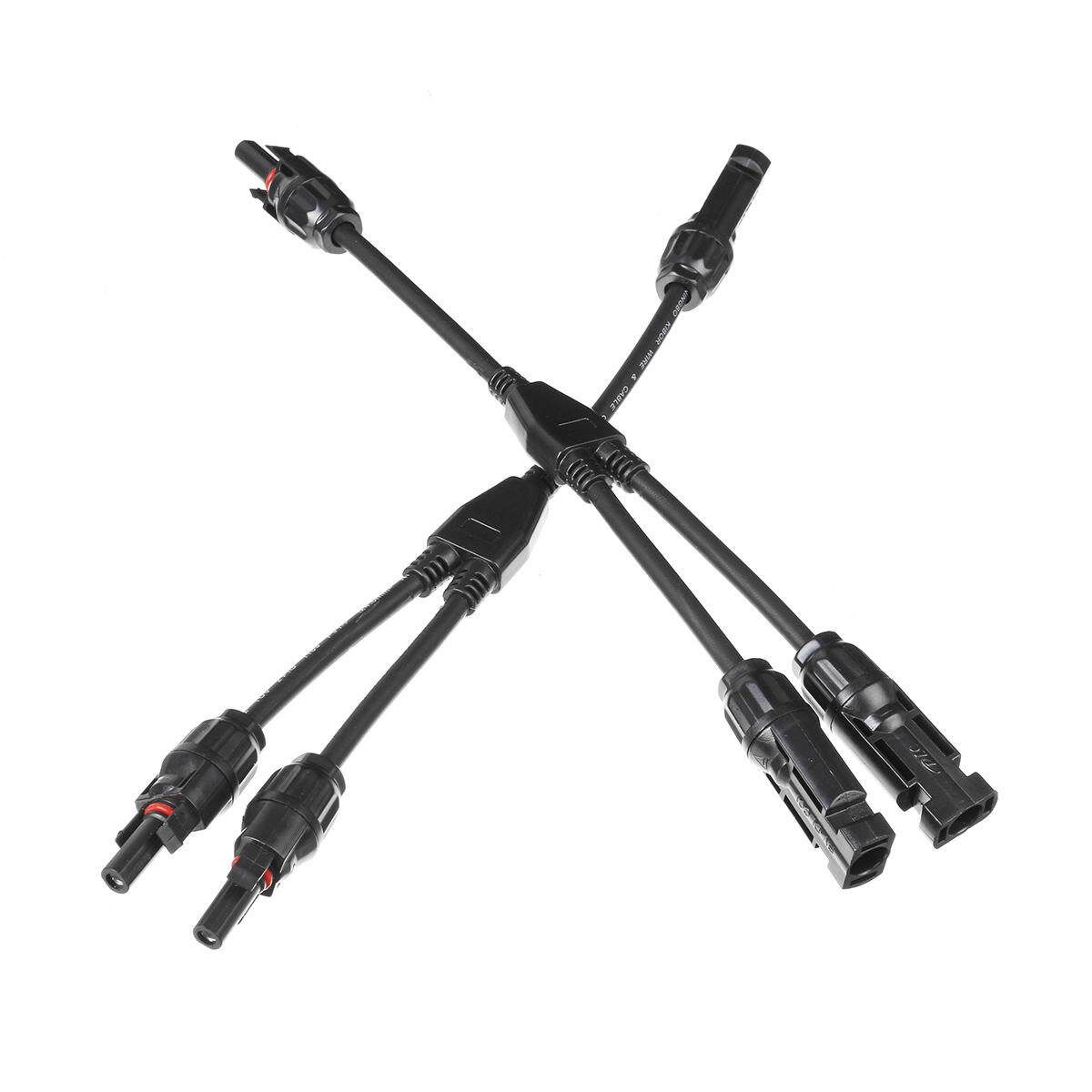

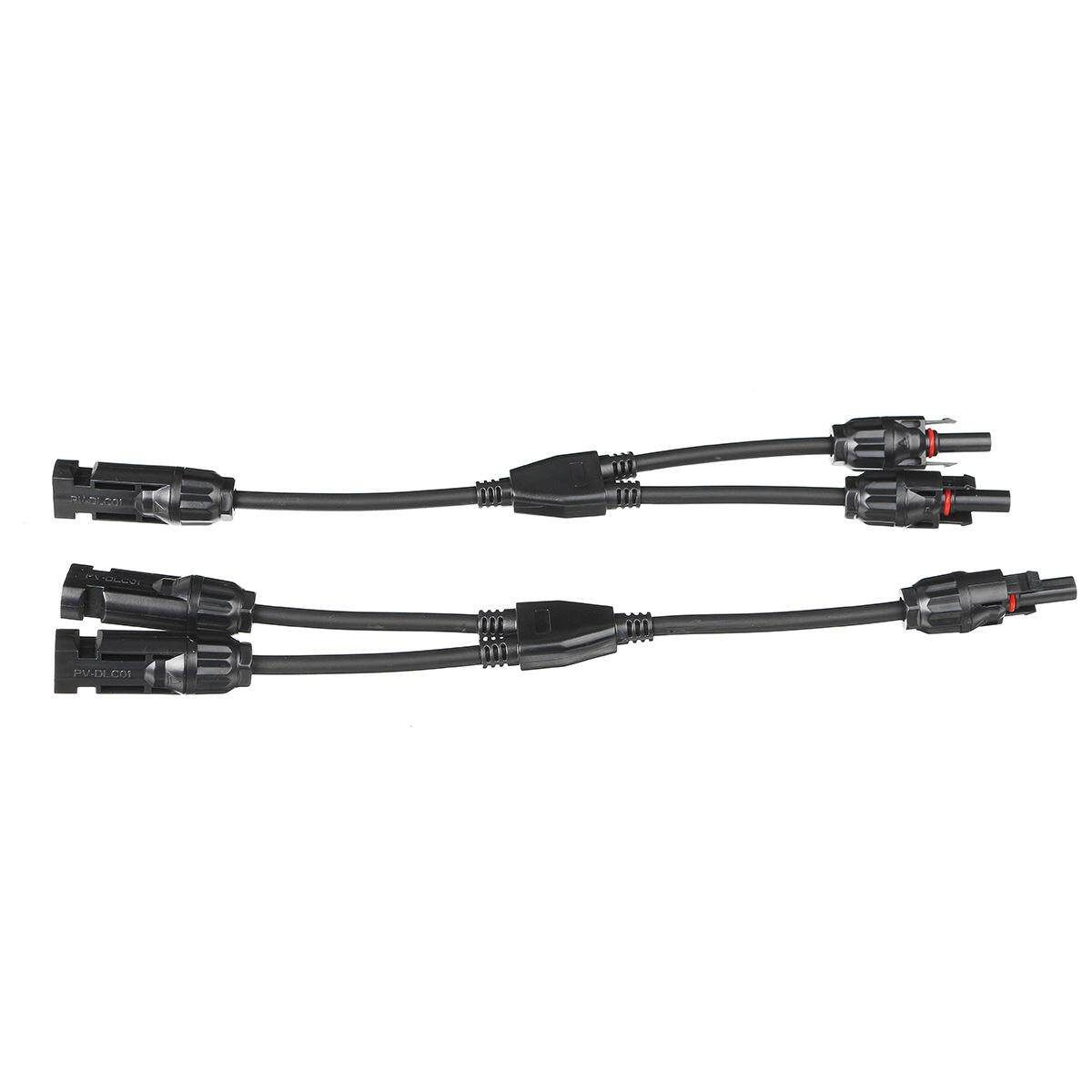

1X MC4 Branch
a a a a a
Key Features
It can be used in harsh environment
Created seal, design of dust proof
Strong pulling force capability
Lower contact resistance
Load capability with big current and high voltage
Double seal rings for better waterproof effect
With excellent resistance and UV endurance
Compatible with PV cables with different insulation diameters
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

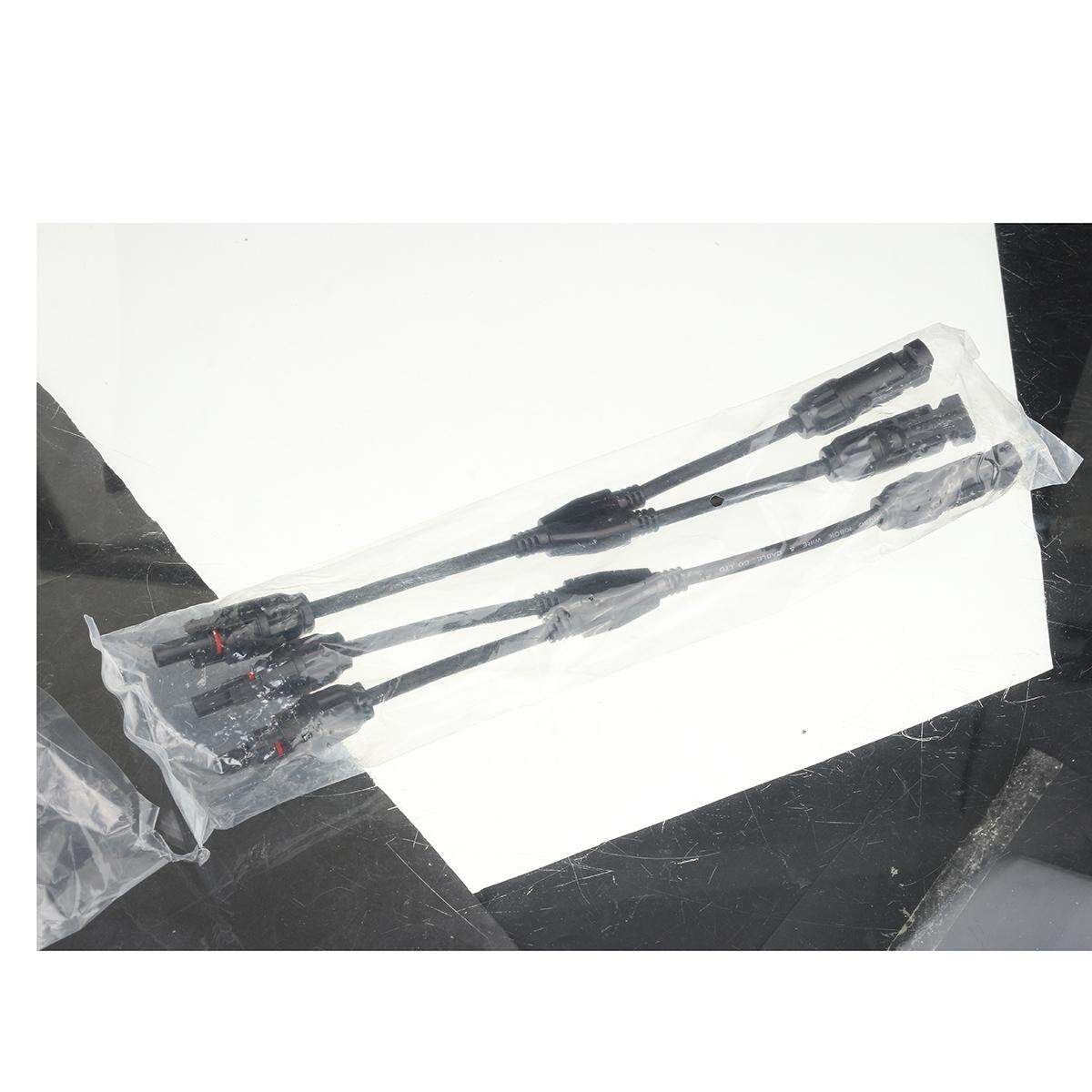

What's In the Box
1 pair MC4 Branch
