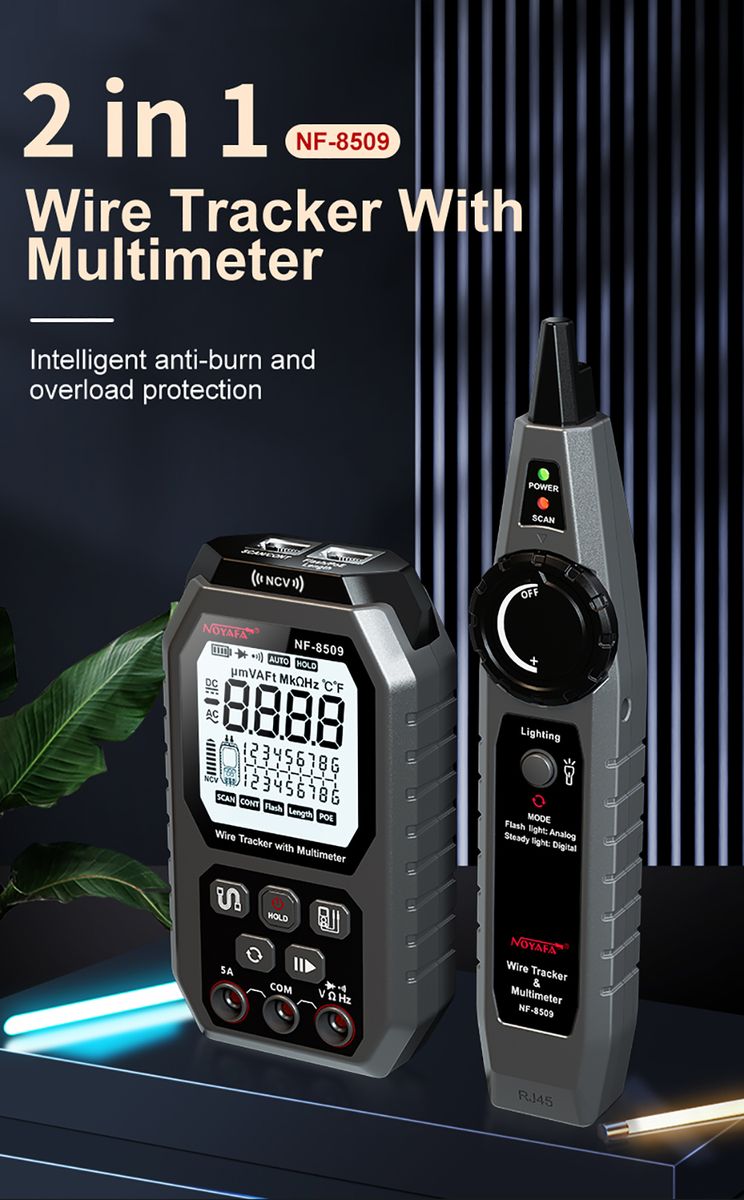

This meter combines with the cable tracing and cable length measuring functions. The advantage of this meter is the long-tracing distance clear sound signals rapid and precise cable length measurement. The meter is a practical tool for laboratories, factories, radio lover network installers and technicians.
Features:Wire Mapping Function: When the crystal head is ready, use wire scanning to test the continuity of the network cable.

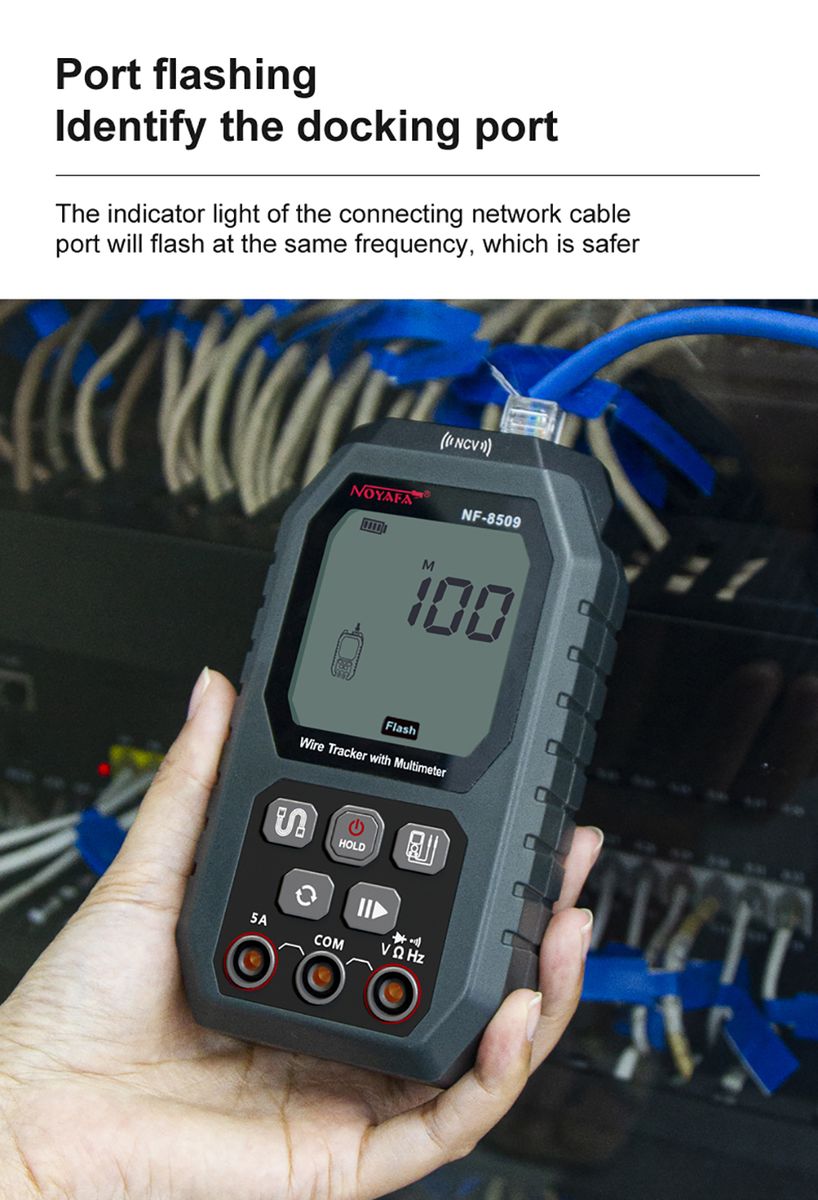

Port Flashing Identify the Docking Port: The indicator light of the connecting network cable port will flash at the same frequency, which is safer.
Length Test: Support cable length test in the range of 5M-200M.
Precision Circuit Board: Using high-quality components, high-precision measurement guarantee.
Resistance Test : Common resistance measuring pens can be measured with one end touching one side.
NCV Induction Non-Contact: High and low AC voltage non-contact induction is safer.
LED Lighting: Cables can be found clearly even in a dark computer room.

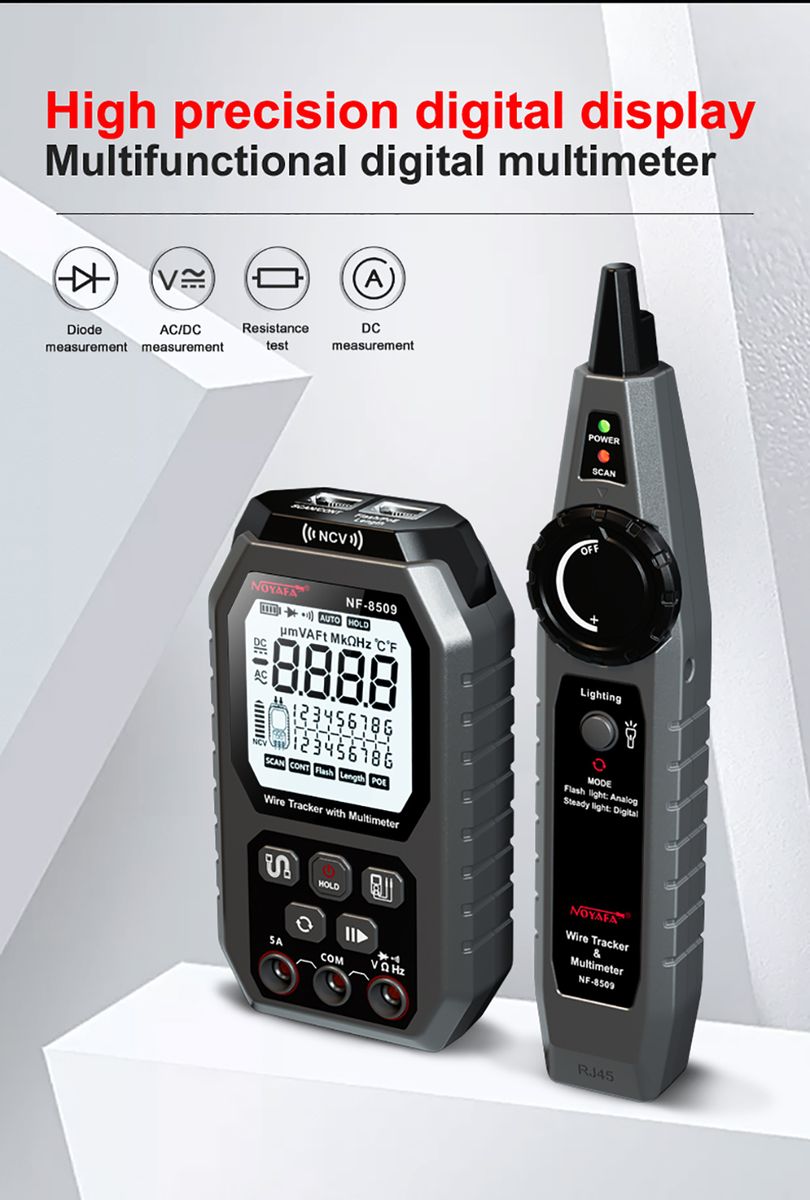

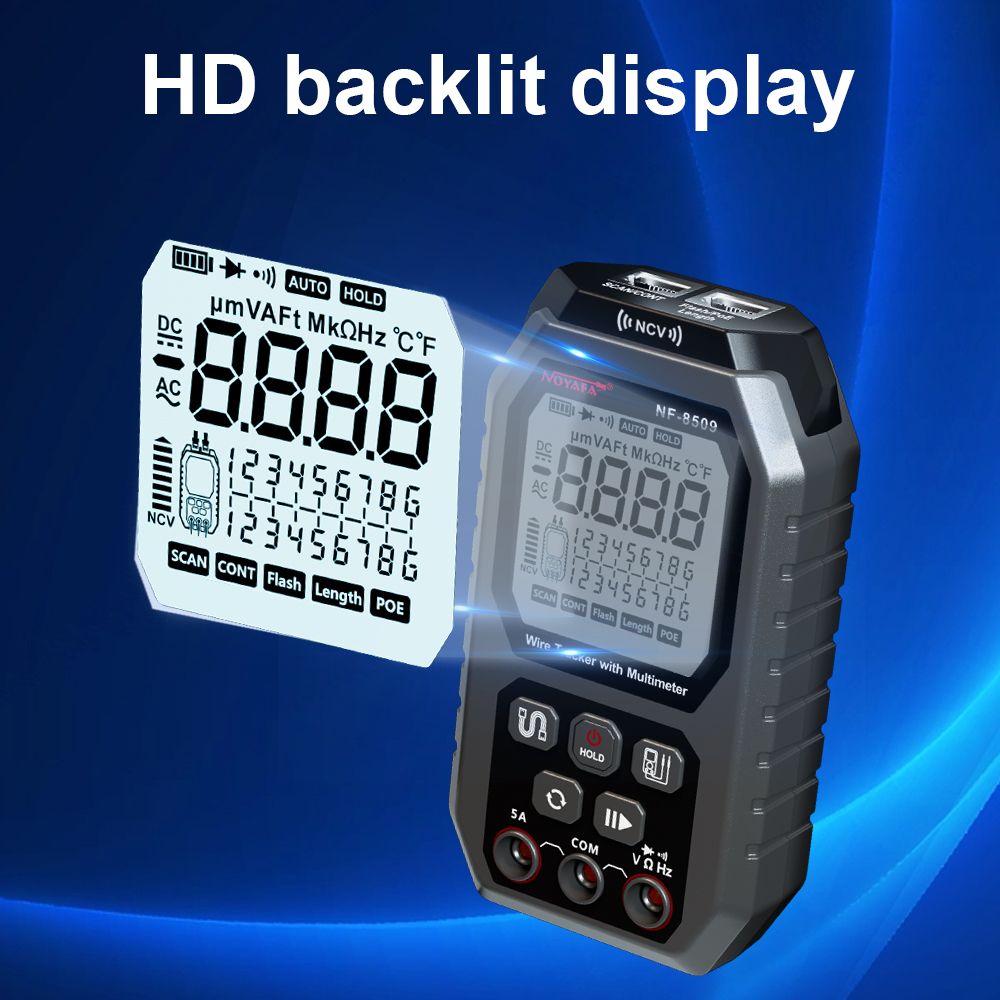

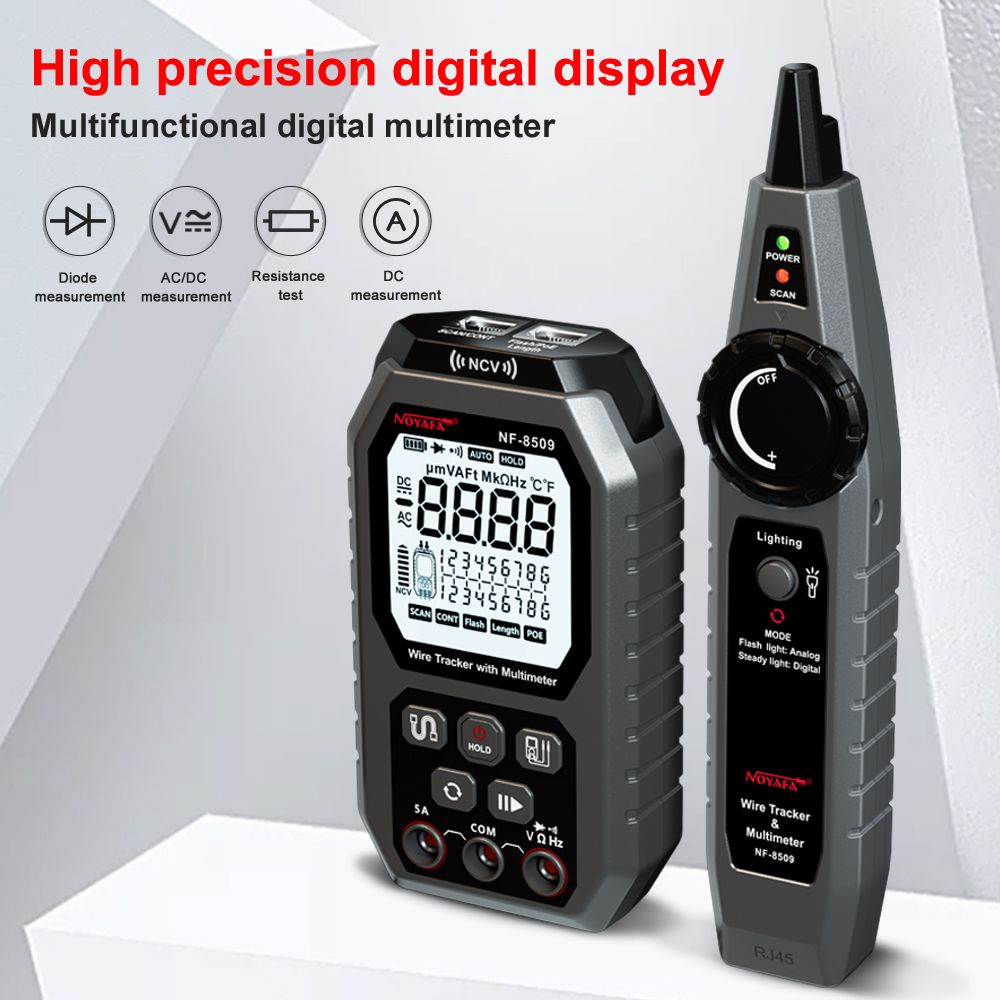

HD Backlit Display: High-definition digital display large screen, clear data display, easy operation.

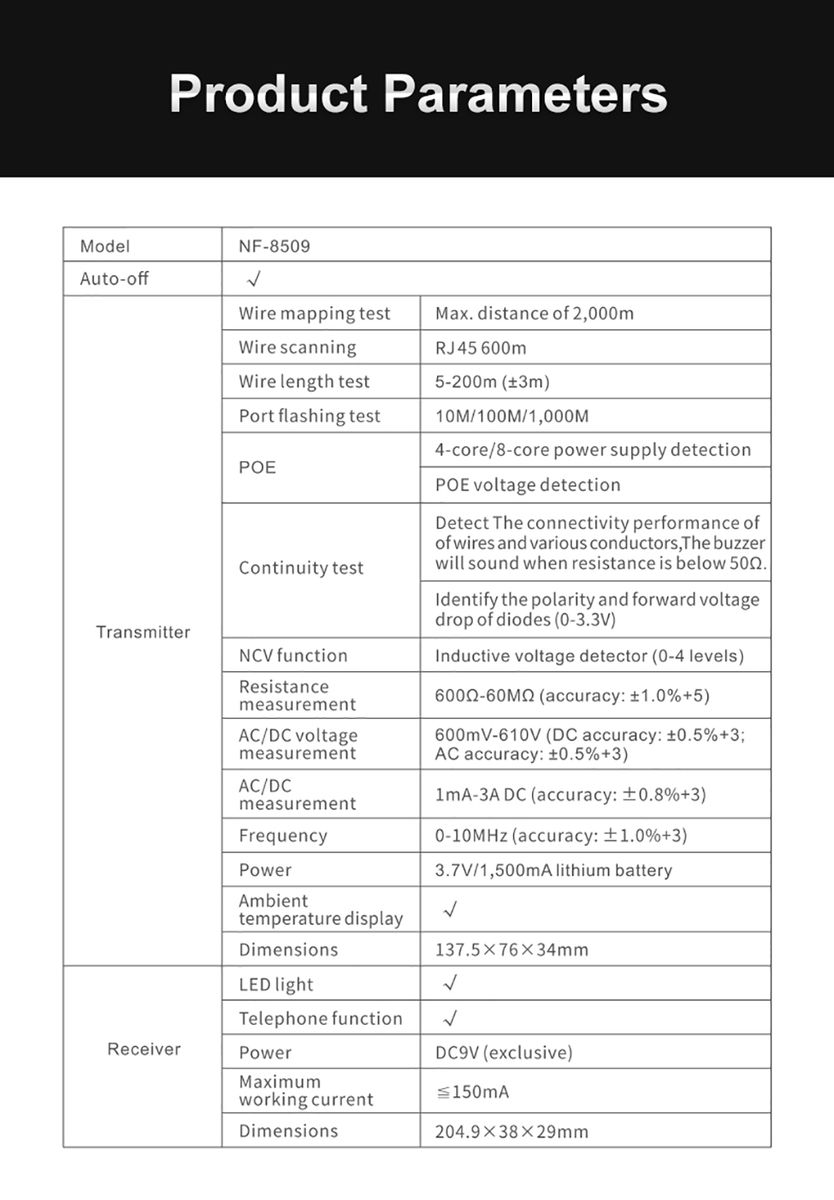

Specifications:Material: ABS
Model: NF-8509
Line Finding Function: Anti-interference mode / Normal mode
Auto off Function: Yes
Transmitter:Wire Mapping Test: Max. distance of 2,000m
Wire Scanning: RJ45 600m
Wire Length Test: 5-200m (±3m)
Port Flashing Test: 10M/100M/1000M
POE: 4 core / 8 core supply detection, POE voltage detection
Continuity Test:
1. Detect the connectivity performance of wires and various conductors, The will sound when resistance is below 500Ω;
2. Identify the polarity and forward voltage drop of diodes (0-3.3V)
NCV Function: Inductive voltage detector (0-4 levels)
Resistance Measurement: 600Ω-60MΩ (accuracy: ±1.0%+5)
AC/ Voltage Measurement: 600mV-610V ( accuracy:±0.5%+3; AC accuracy:±0.5%+3)
AC/ Current Measurement: 1mA-3A current (accuracy: ±0.8%+3)
Frequency: 0-10MHz (accuracy: ±1.0%+3)
Supply: 3.7V, 1500mA lithium battery
Receiver: LED Lighting: Yes
Telephone Function: Yes
Supply: 9V (exclusive)
(Not included)Maximum Working Current: ≤150mA
Transmitter Size: 137.5 * 76 * 34mm / 5.41 * 2.99 * 1.34in
Receiver Size: 205 * 38 * 29mm / 8.07 * 1.49 * 1.14in
Package Weight: 650g / 1.43lb
Package Size: 24 * 16.5 * 5.5cm / 9.45 * 6.49 * 2.16in
Package List:1 * Transmitter
1 * Receiver
2 * Test Meter Pen
1 * Type-C Data Cable
1 * Headset
1 * Tool Bag
1 * RJ45 Adaptor Cable
1 * User Manual (English/German/Spanish/French)
Key Features
Wire Mapping Function: When the crystal head is ready, use wire scanning to test the continuity of the network cable.
Port Flashing Identify the Docking Port: The indicator light of the connecting network cable port will flash at the same frequency, which is safer.
Length Test: Support cable length test in the range of 5M-200M.
Precision Circuit Board: Using high-quality components, high-precision measurement guarantee.
Resistance Test : Common resistance measuring pens can be measured with one end touching one side.
NCV Induction Non-Contact: High and low AC voltage non-contact induction is safer.
What's In the Box
1 x Transmitter,1 x Receiver,2 x Test Meter Pen,1 x Type-C Data Cable,1 x Headset,1 x Tool Bag,1 x RJ45 Adaptor Cable,1 x User Manual (English/German/Spanish/French),
