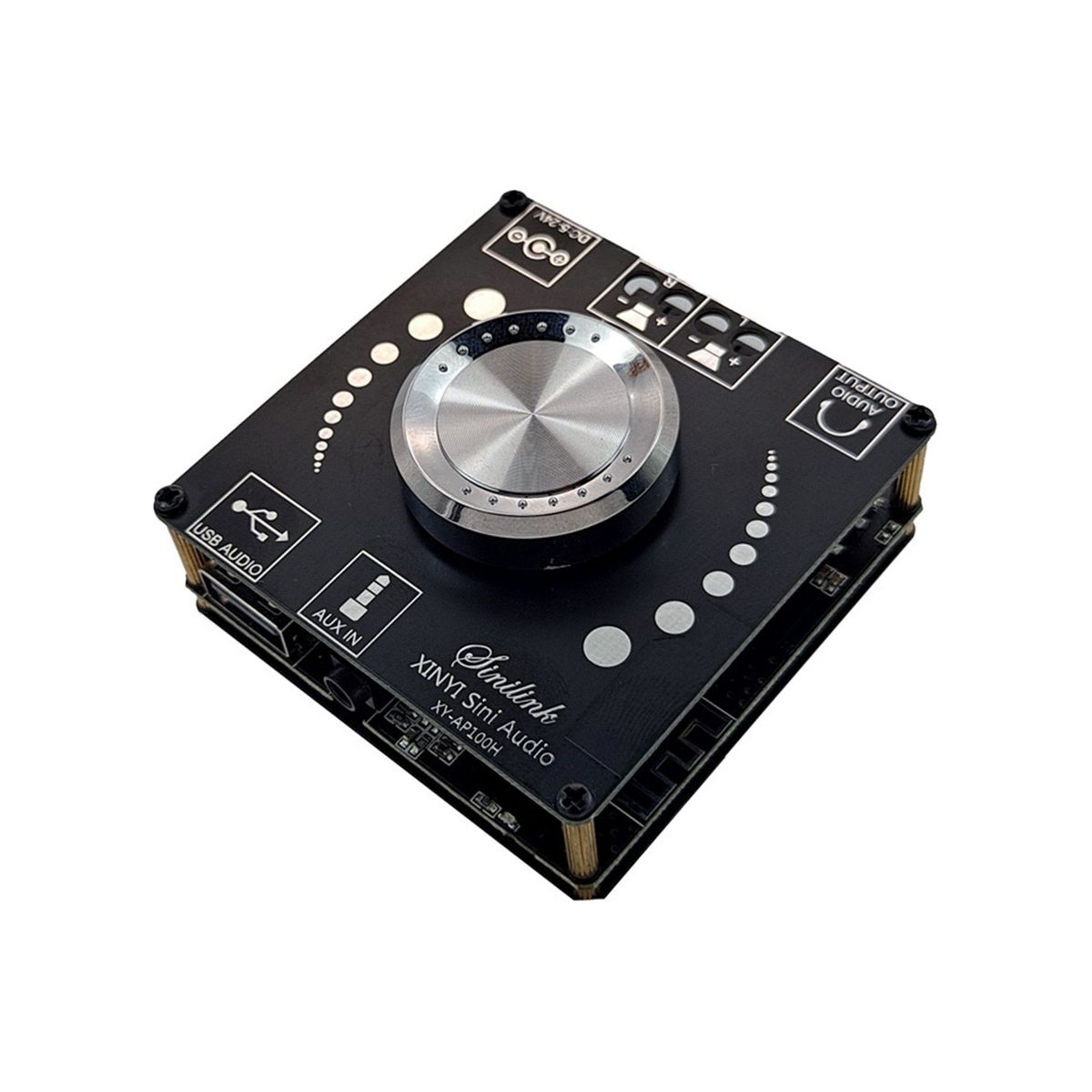

Product model: XY-AP100H
Product name: Bluetooth digital power amplifier board
Number of channels: left and right channels (stereo)
Adapted horn: 30W~300W 4 Ω 8 Ω 16 Ω
Bluetooth version: 5.0 Power supply voltage: DC5~26V (the higher the voltage, the greater the output power)
Transmission distance: 15 (no blocking)
Protection mechanism: power reverse connection protection, short circuit protection, - overheat protection

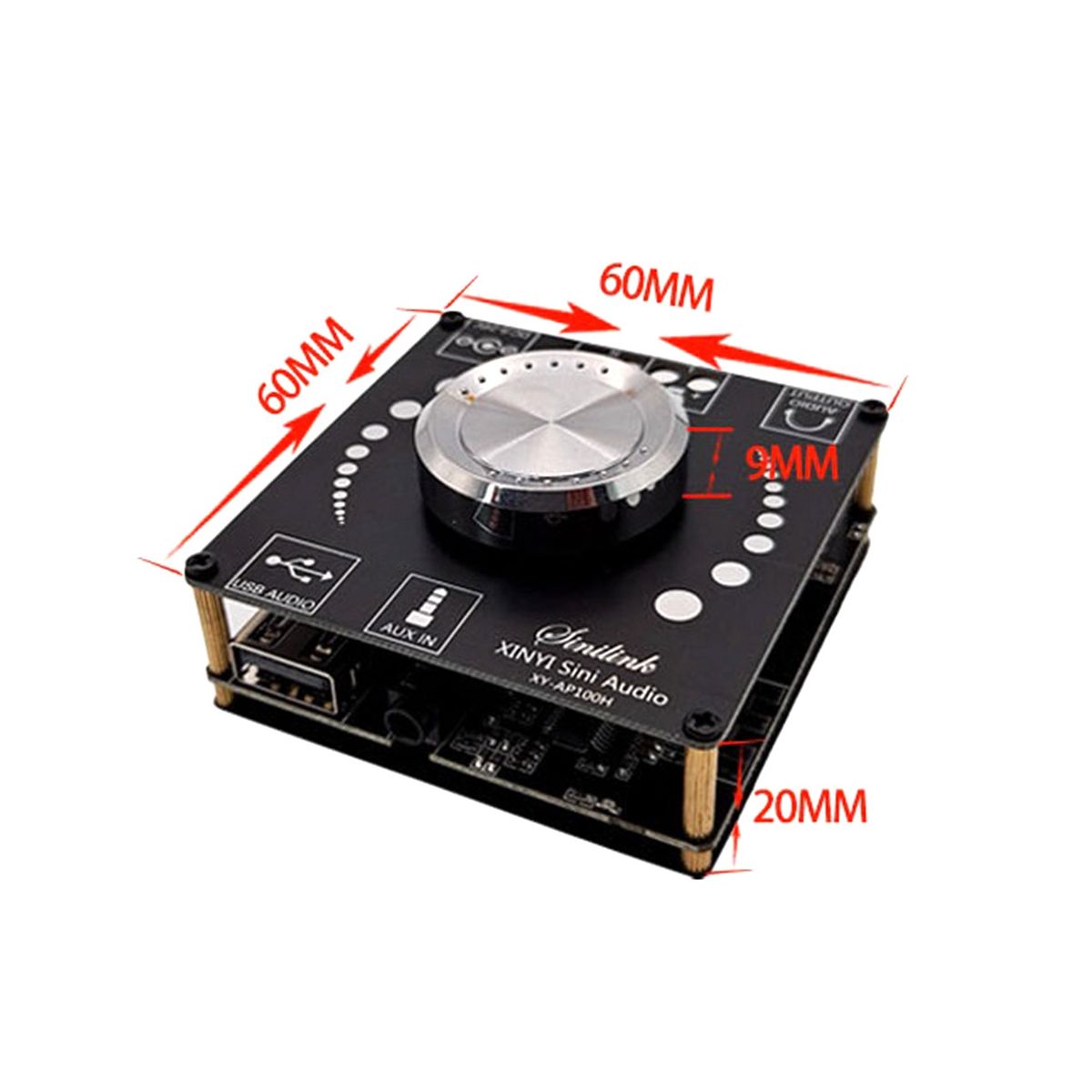

Product size: 60 x 60 x 20mm
Presenting cool features: Mobile App control supports Android and OS
Note: The output power of the power supply should be the output power of the power amplifier, otherwise the sound quality will be affected by 12V → 8 Ω/30W+30W, 4 Ω/40W+40W
15V → 8 Ω/36W+36W, 4 Ω/ 60W+60W
19V → 8 Ω/64W+64W, 4 Ω/ 90W+90W
24V → 4 Ω/80W+80W, 2 Ω/more than 100W+100W
Material: PCB+metal
colour: black Package Contents:
1 x AP100H power amplifier board
1 x DC adapter Only the above package content, other are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
Bluetooth Amplifier Board
XY-AP100H
TPA3116D2
audio module
BT5.0 Digital Amplifier Board
The details are as described above
What's In the Box
1 x AP100H power amplifier board
1 x DC adapter
