| Model |
Amplifier |
| Production Country |
China |
| Size (L x W x H cm) |
7.5x5x2.5 |
| Weight (kg) |
0.05 |
| Color |
multicolor |
| Main Material |
plastic |

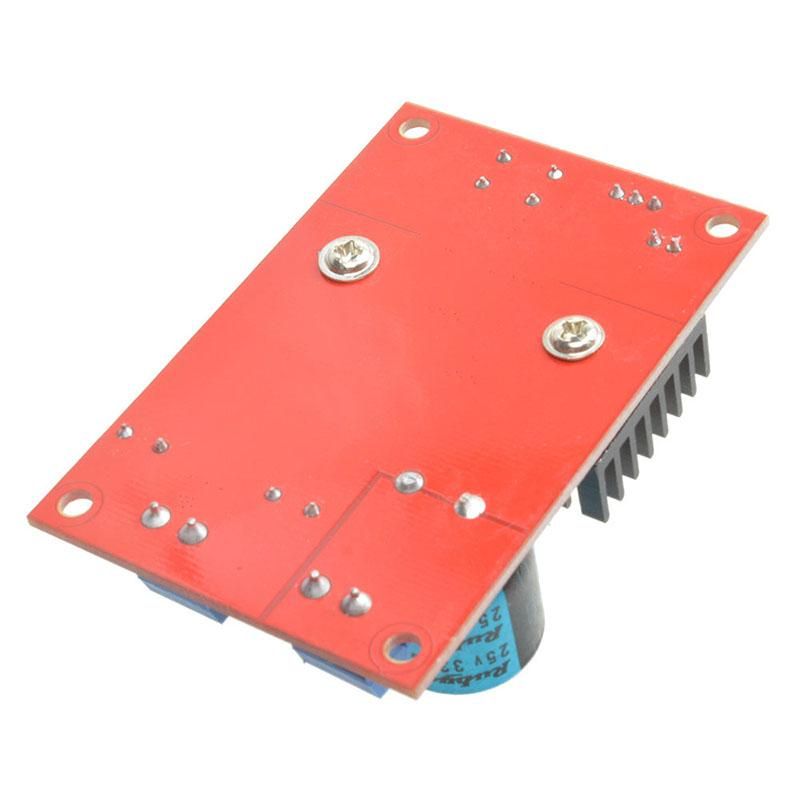

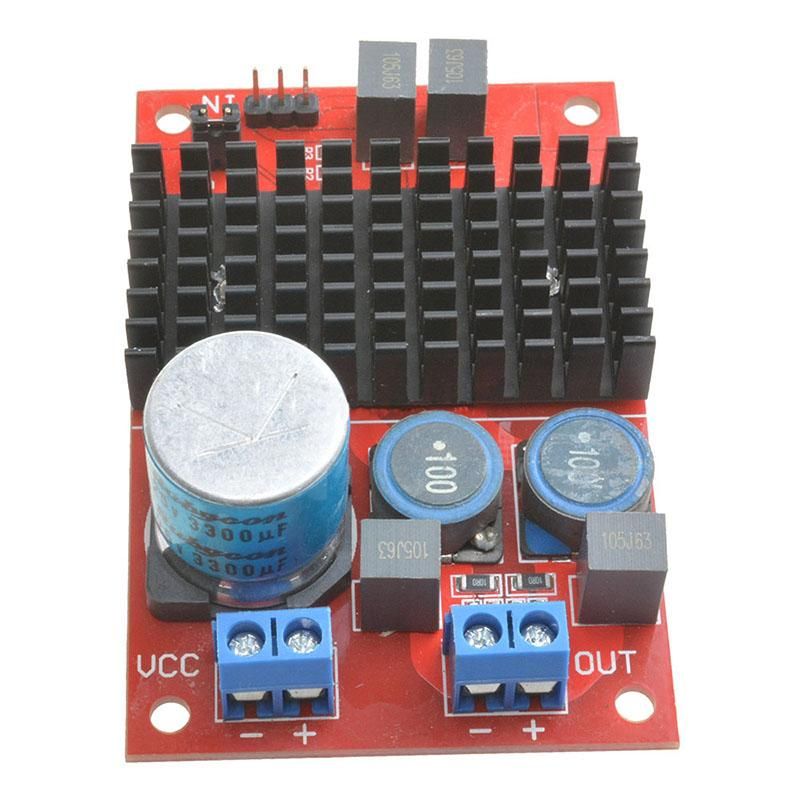

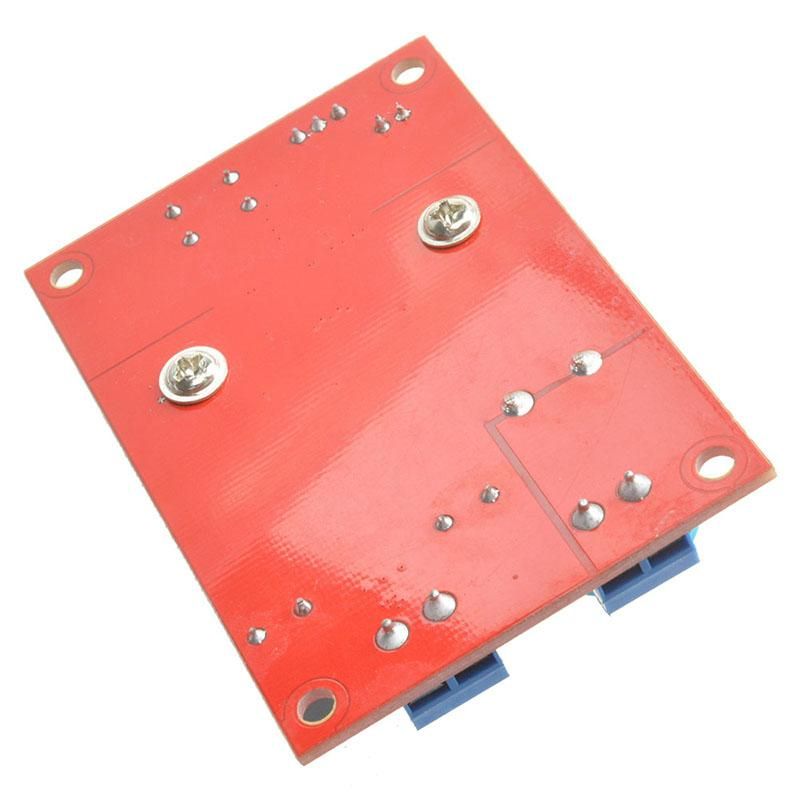

Small size design, BTL output, the maximum output power 100w, can drive 2 ohm speakers, be balanced (differential) input, external heat sink chip work more stable.
Signal input mode can be according to the following two needs:
Balanced input signal (differential): Signal + Signal -, GND (ground).
Unbalanced inputs (single-ended): - end and GND (ground) short circuit, the signal input from the + terminal.
3300 / 25V filter capacitor
Board size: 75mm * 50mm/2.95*1.97 inch
Board overall height: 25mm/0.98 inch
Operating Voltage: DC 12v-24v
Maximum output power: 100w (2 ohm speakers connected)
material:plastic
colour:red
Package Contents:1x Amplifier Board
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.
Key Features
Durable and good quality
Power Audio Board
Amplifier Board
Digital Board
Mono Channel Board
Board
The details are as described above
What's In the Box
1x Amplifier Board
