Description:
The XDuoo XD05 BAL2 has gained significant attention as a portable audio decoder and headphone amplifier device, thanks to its advanced DAC chip, powerful output , full metal body design, multiple interfaces, and high-capacity battery. A great tool for you to have, stable and practical, buy it!
Features:
MORE MUSIC DETAILS, MORE DIMENSIONAL FEELING: It uses two DAC chips, two chips to process digital music signals at the same time, whether your mobile phone, tablet or computer, whether it is MP3 or DSD format, it can fully show more music details.
PLAY BACK A MORE HIGH-FIDELITY SOUND: Its THD+N is reduced to 0.00065%. Through twochips with low phase noise crystal oscillator, combined with the new CPLD, the clock jitter is greatly reduced, making the music infectious.
1500MW OUTPUT : Its output reaches 1500mW, which makes the diaphragm of the headphone fully vibrate and improves the loudness of the harmonics. Even the high impedance headphone with 300ohm can fully show its music details, clarity, ex-plosive and elasticity, and fully enjoy the happiness brought by music.
MULTIPLE INPUT INTERFACES: AES balanced input and 4.4mm balanced output, which is from digital input to headphone output are all balanced circuits, Let your balanced headphones have higher crosstalk and wider sound field, have a new experience.

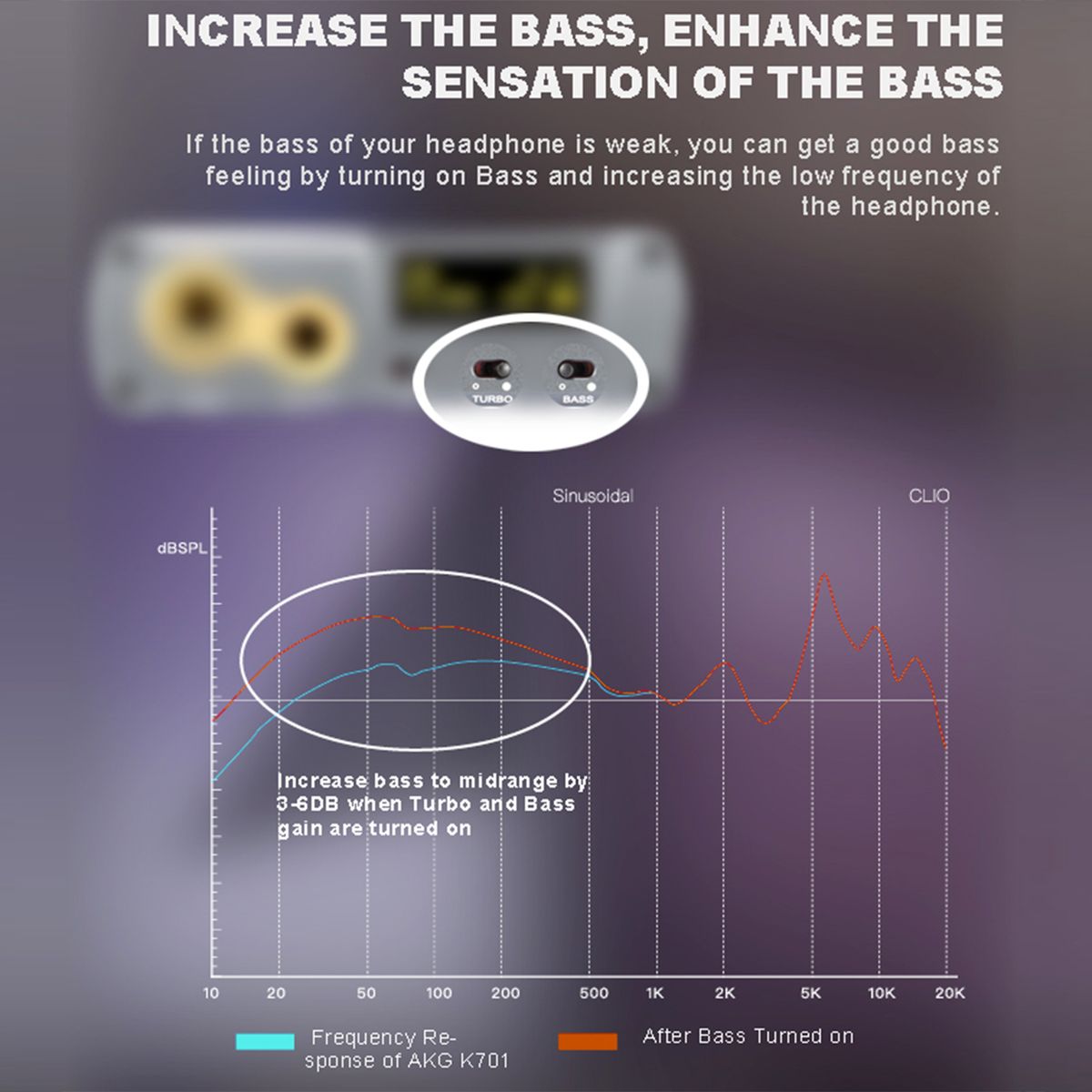

ENHANCE THE SENSATION OF THE BASS: If the bass of your headphone is weak, you can get a good bass feeling by turning on Bass and increasing the low frequency of the headphone.
WIRELESS TRANSMISSION ALSO HAS GOOD SOUND QUALITY: Can be connected to various BT playback devices, support for high definition formats such as aptX_HD and LDAC, Let the wireless connection also have good sound quality.
SUPPORT : Built-in 5000mah lithium-ion polymer battery, which can playback continuously for more than 12 hours. When it is indoors, it can be powered by external (EXTE gear), so as to retain the battery . When it needs to be carried out, its internal battery is also full.

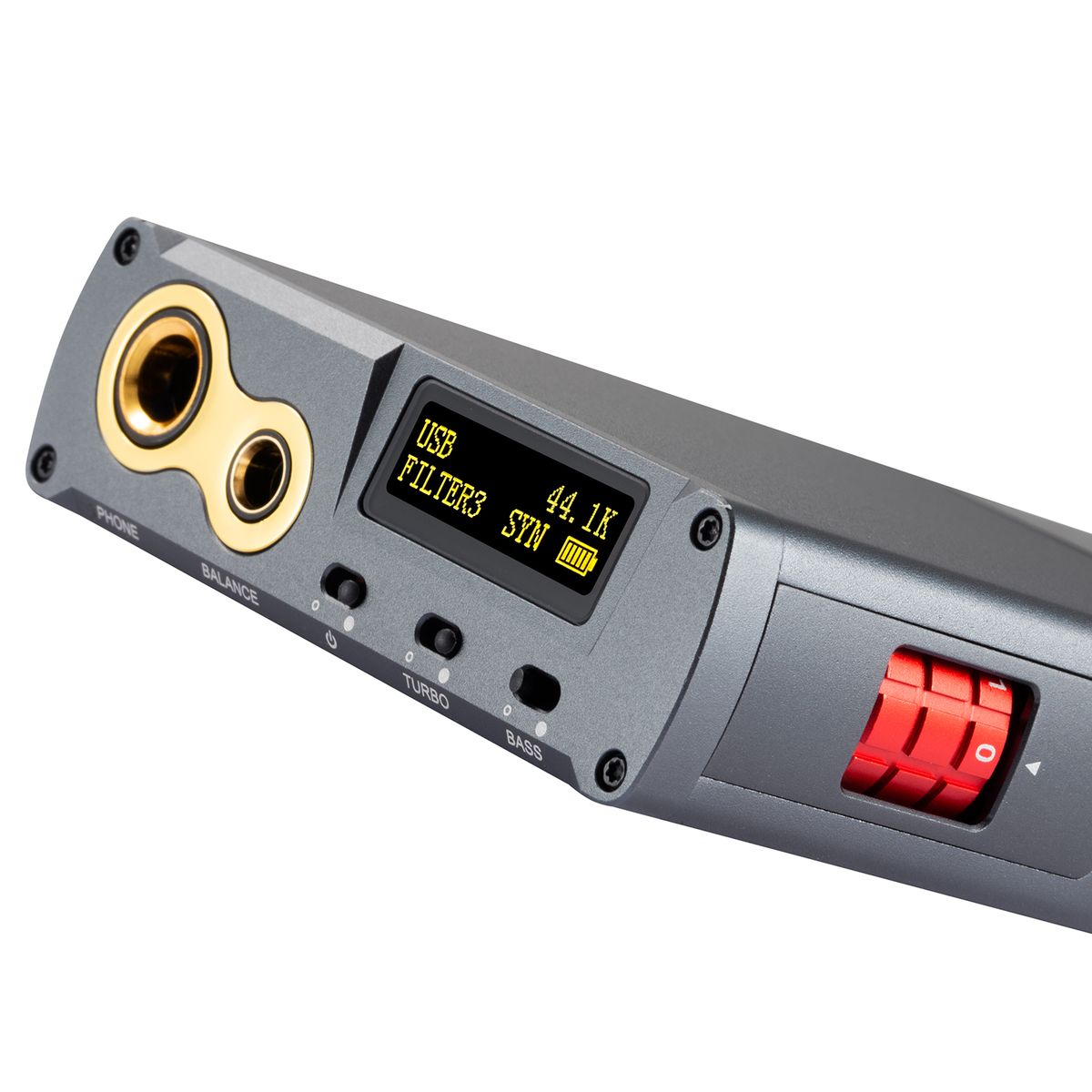

OLED SCREEN, DISPLAYING IMPORTANT INFORMATION: The OLED display clearly shows the audio sampling rate, input interface, and DAC filter status, let you know at any time whether it works at its best.
Specifications:
Name: HiFi DAC Amplifier
Model: XD05 BAL2
Battery: 3.8V/5000mAh
Battery Life: USB IN≥9H, SPDIF IN≥15H, AUX IN≥24H
Time: ≤3 hours ( ), ≤6 hours (slow )
Screen: 0.91-inch OLED
Applicable OS: Compatible with Windows, Linux, Mac OS X, iOS, Android system
Frequency Response:
USB/SPDIF: 20Hz~20kHz(±0.5dB)
AMP: 10Hz~100kHz(±0.5dB)
Sampling Rate Support:
USB:
MQA: 8X
: 16-32BIT/44.1-768KHZ
DSD: DOP/NATIVE mode,DSD64-512
AES/Optical/Coaxial:
: 16-24BIT/44.1-192KHZ
DSD: DSD64(DOP)
BT Formats: AAC, SBC,APTX, APTX_LL, APTX_HD, LDAC
Turbo: +6/15dB
Bass: +6dB
6.5 Phone Output Parameters:
Output : 1500mW (32Ω load)
THD+N: 0.0012%@1KHz
S/N: 120dB
Crosstalk: ≥72dB
4.4 Phone Output Parameters:
Output : 1500mW (32Ω load)
THD+N: 0.00065%@1kHz
S/N: 120dB
Crosstalk: ≥100dB
AUX OUT parameters:
Output Level: 2.0Vrms
THD+N: 0.0008%@1kHz
S/N: 120dB
Crosstalk: ≥100dB
Item Size: 13.2*7.5*2.2cm/5.19*2.95*0.86in
Item Weight: 300g/10.58oz
Package Size: 25*16*5cm/9.84*6.30*1.96in
Package Weight: 800g/28.22oz
Package List:
1 * HiFi DAC Amplifier
1 * HiFi DAC Amplifier
1 * Double-ended Type-C /Data Cable
1 * USB A to C Adapter
1 * Double-ended Type-C OTG Cable
1 * 8 Pin to Type-C OTG Cable
1 * AES Cable
1 * 6.5 to 3.5mm Headphone Plug

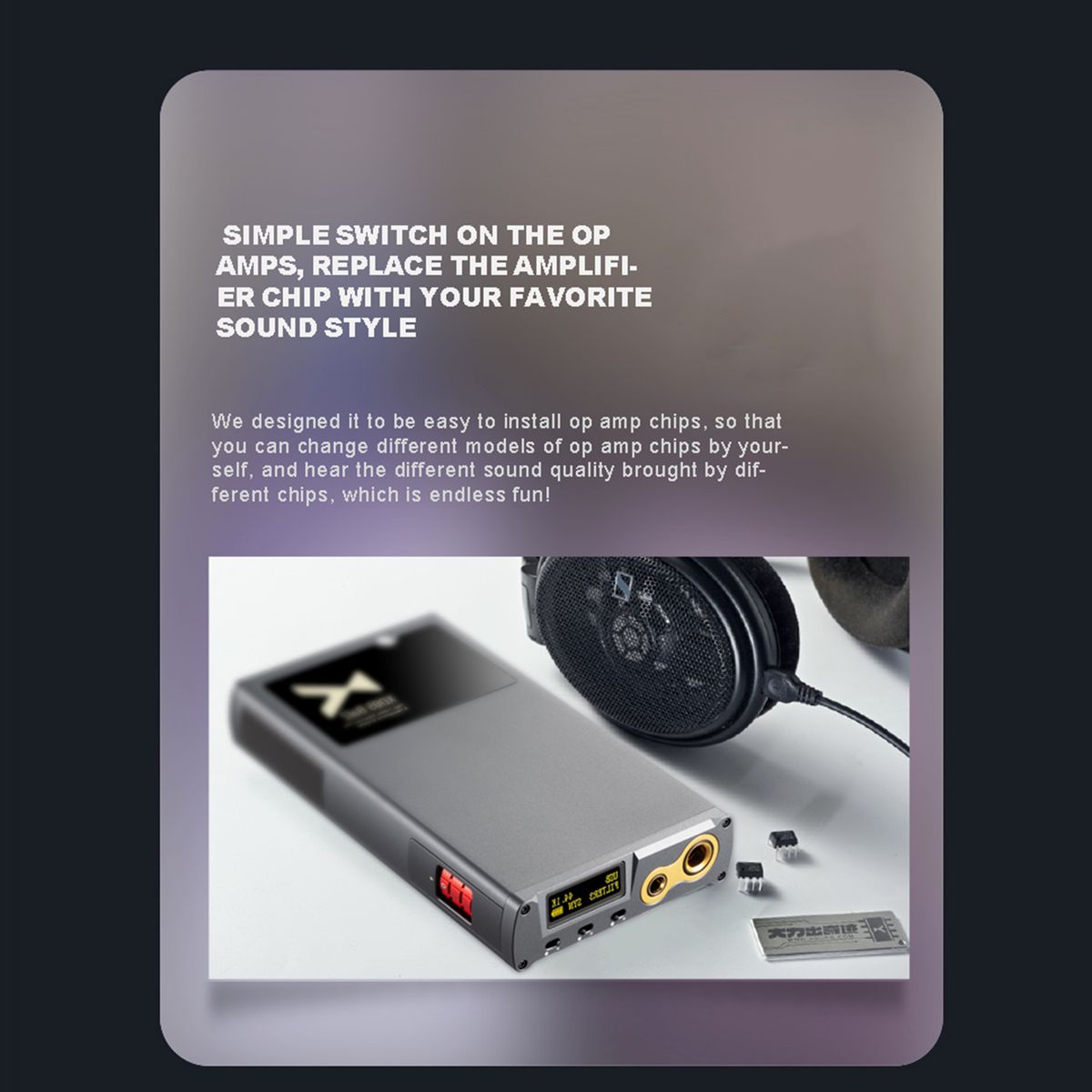

2 * Op Amp Chip
1 * Screwdriver
5 * Screw
10 * Silicone Foot Mat
1 * User Manual
Key Features
MORE MUSIC DETAILS, MORE DIMENSIONAL FEELING: It uses two DAC chips, two chips to process digital music signals at the same time, whether your mobile phone, tablet or computer, whether it is MP3 or DSD format, it can fully show more music details.
MORE MUSIC DETAILS, MORE DIMENSIONAL FEELING: It uses two DAC chips, two chips to process digital music signals at the same time, whether your mobile phone, tablet or computer, whether it is MP3 or DSD format, it can fully show more music details.
MORE MUSIC DETAILS, MORE DIMENSIONAL FEELING: It uses two DAC chips, two chips to process digital music signals at the same time, whether your mobile phone, tablet or computer, whether it is MP3 or DSD format, it can fully show more music details.
MORE MUSIC DETAILS, MORE DIMENSIONAL FEELING: It uses two DAC chips, two chips to process digital music signals at the same time, whether your mobile phone, tablet or computer, whether it is MP3 or DSD format, it can fully show more music details.
MORE MUSIC DETAILS, MORE DIMENSIONAL FEELING: It uses two DAC chips, two chips to process digital music signals at the same time, whether your mobile phone, tablet or computer, whether it is MP3 or DSD format, it can fully show more music details.
MORE MUSIC DETAILS, MORE DIMENSIONAL FEELING: It uses two DAC chips, two chips to process digital music signals at the same time, whether your mobile phone, tablet or computer, whether it is MP3 or DSD format, it can fully show more music details.
What's In the Box
1 x HiFi DAC Amplifier,1 x HiFi DAC Amplifier,1 x Double-ended Type-C /Data Cable,1 x USB A to C Adapter,1 x Double-ended Type-C OTG Cable,1 x 8 Pin to Type-C OTG Cable,1 x AES Cable,1 x 6.5 to 3.5mm Headphone Plug,2 x Op Amp Chip,1 x Screwdriver,5 x Screw,10 x Silicone Foot Mat,1 x User Manual
