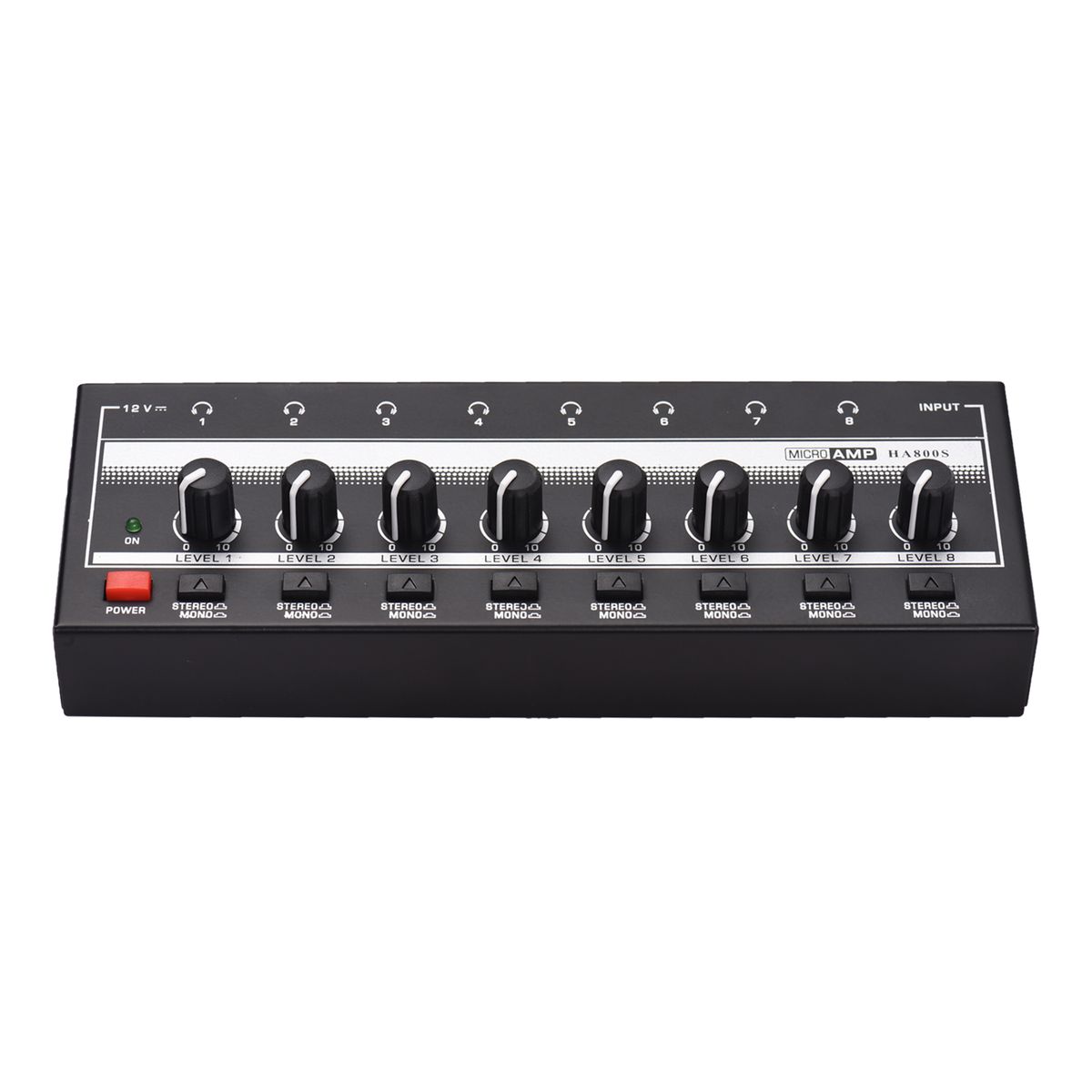

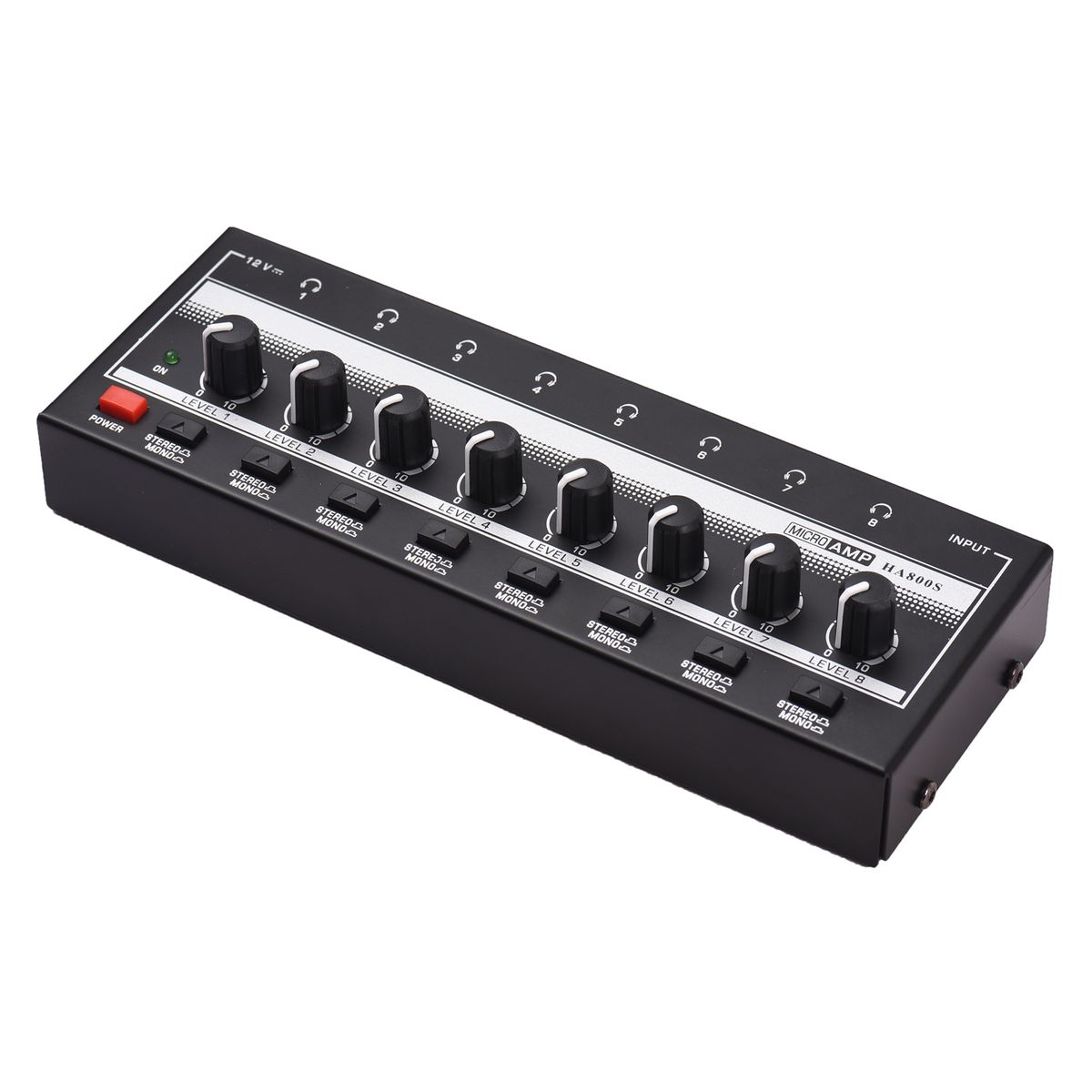

This 8-channel stereo headphone amplifier is designed for use with all types of headphones and therefore provides maximum flexibility. Its high- stereo amplifiers guarantee the highest sonic quality even at maximum volume. The ultra low-noise 4580 operational amplifiers ensure outstanding audio performance.
Features:Ultra compact stereo headphone amplifier for studio and stage applications.
Equipped with 8 headphone output channels and 1 input channel.
The volume of each output channel can be independently controlled.

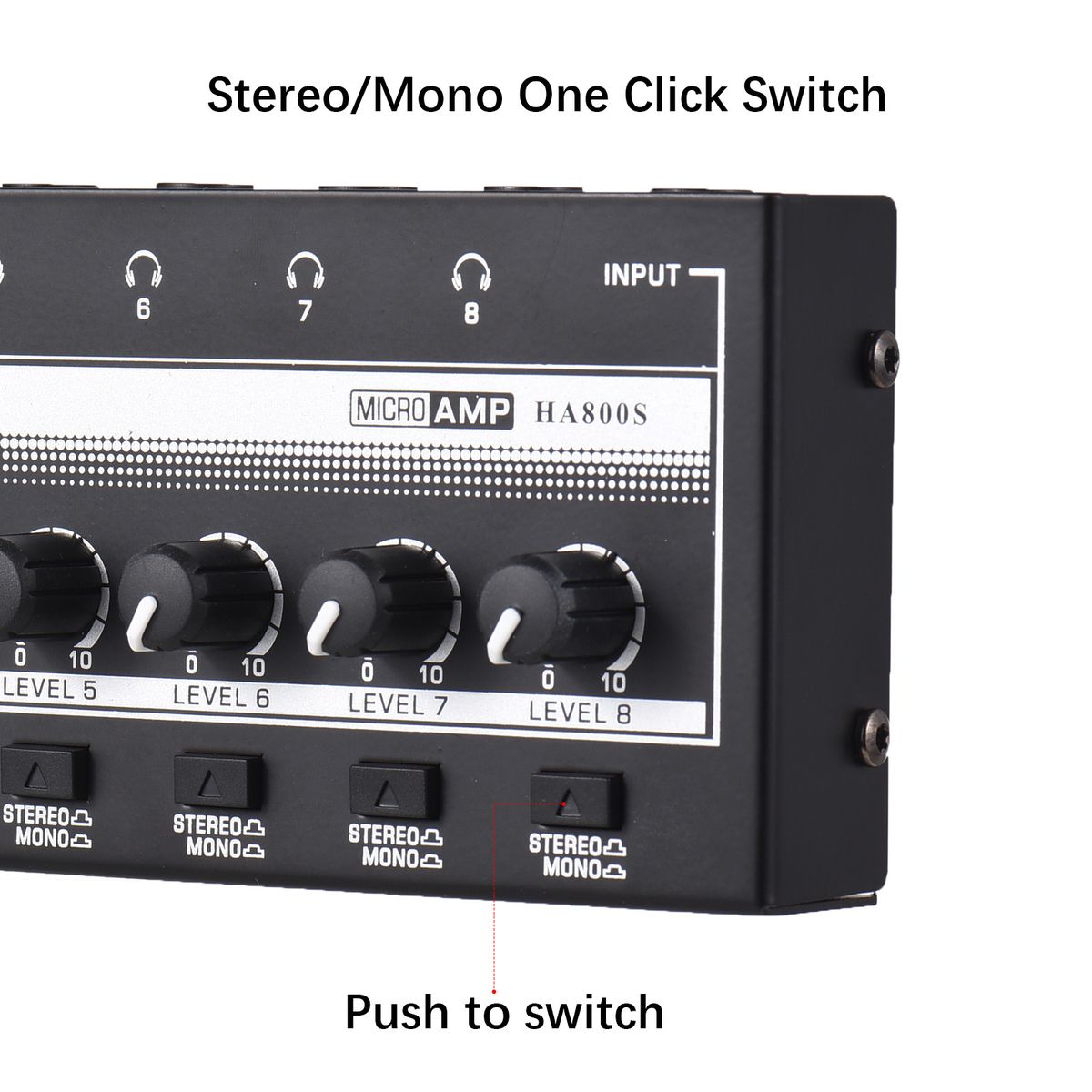

The volume of each output channel can be switched between single and dual channels.
Even at maximum volume, it can provide the highest sound quality for each earphone.
Ultra low noise 4580 operational amplifier with outstanding performance.
Equipped with a 12V adapter.
Specifications:Plug: EU / US (Optional)
Input: 100-240VAC, 50/60Hz
Output: 12V, 2.5A
Line Input:
Type: 1/8" TS connector, stereo
Impedance: 100kΩ
Max. Input Level: +15dBu
Headphone Output:

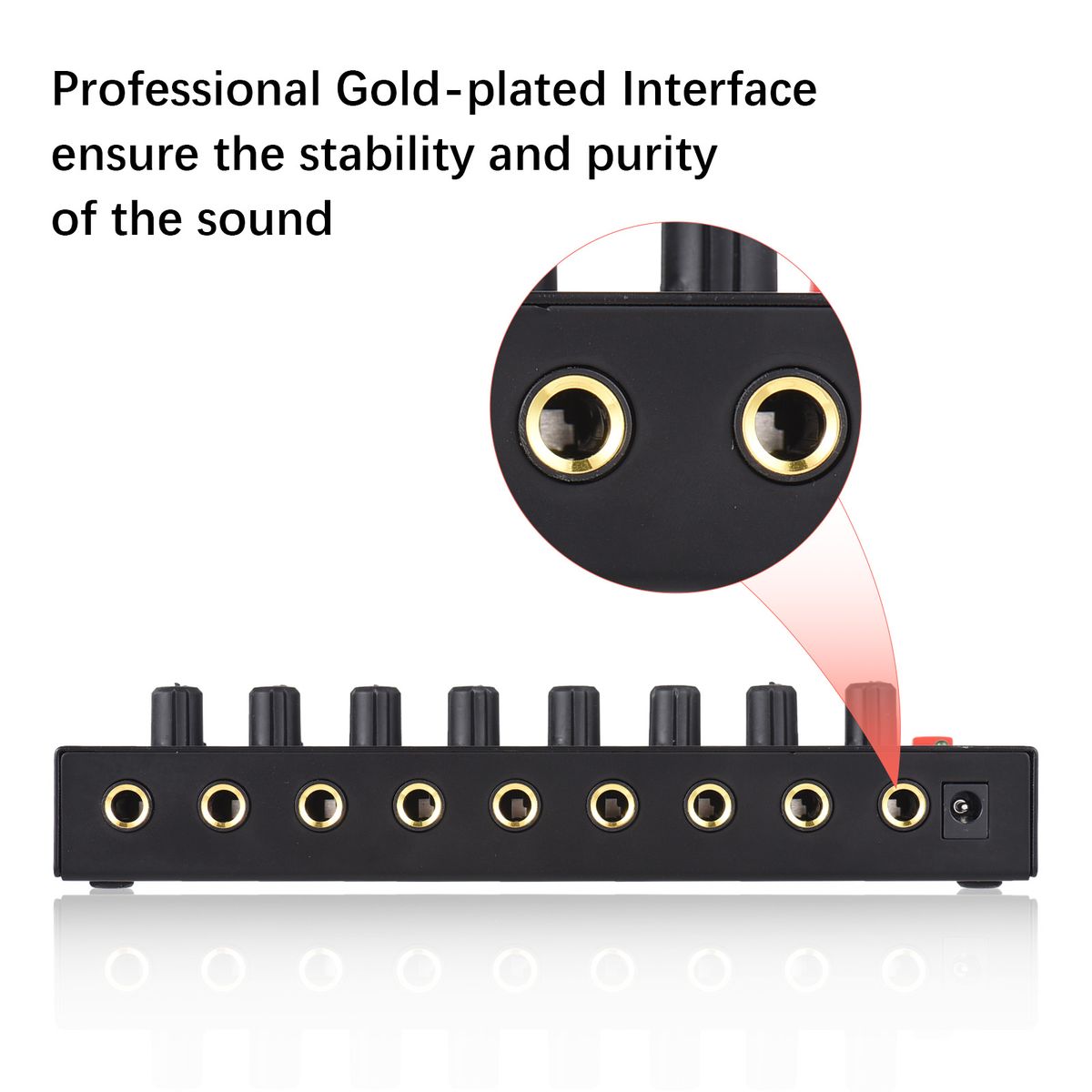

Type: 1/8" TS connector, stereo
Impedance: Approx. 80Ω
Max. Output Level: Approx. 40mW in 100Ω
Material: Metal
Item Size: 198 * 72 * 26mm / 7.80 * 2.83 * 1.02in
Item Weight: 427g / 15.06oz
Package Weight: 640g / 22.57oz
Package Size: 24 * 17.5 * 6cm / 9.45 * 6.10 * 2.36in

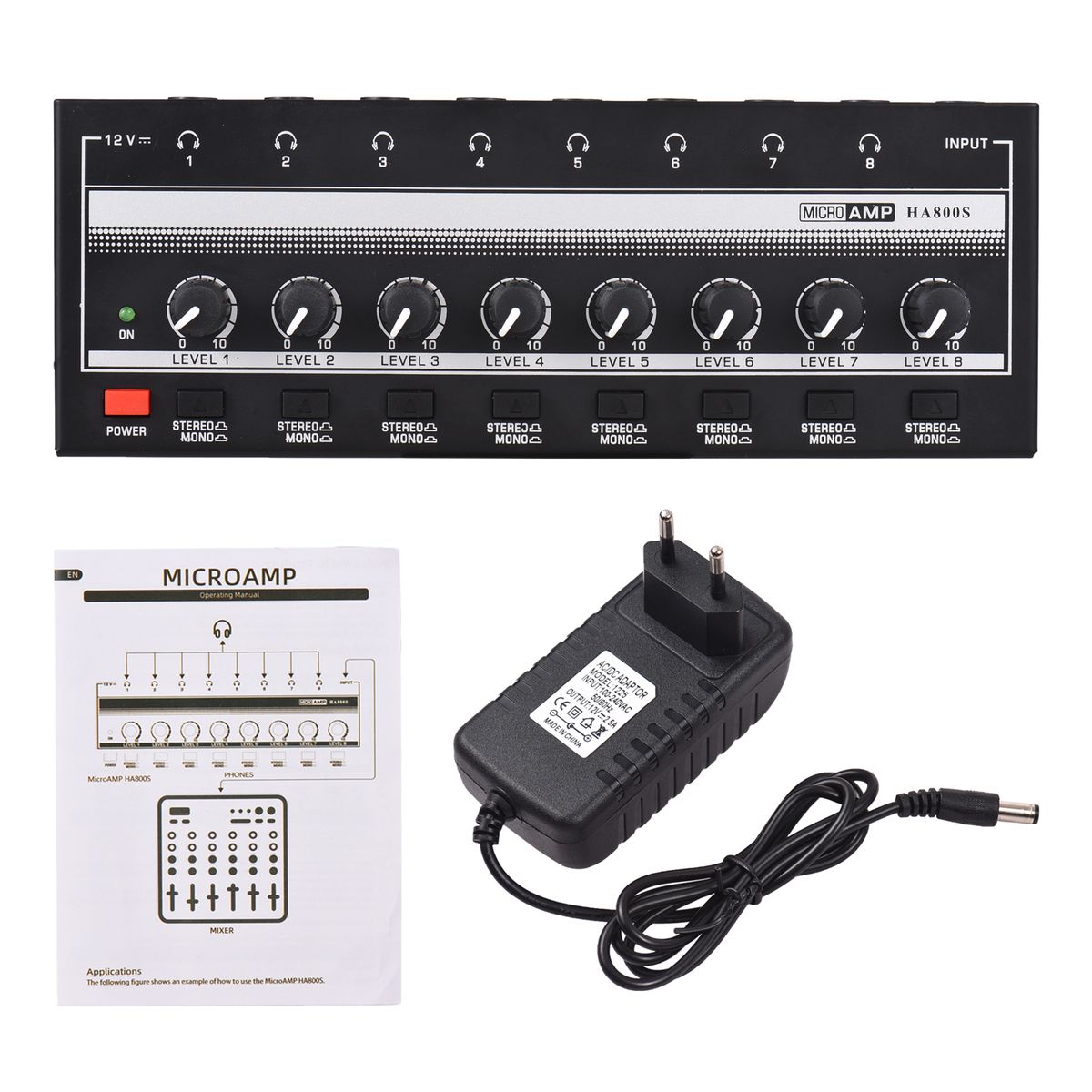

Package List:1 * Amplifier
1 * Adapter
1 * Manual (English)
Key Features
Ultra compact stereo headphone amplifier for studio and stage applications.
Equipped with 8 headphone output channels and 1 input channel.
The volume of each output channel can be independently controlled.
The volume of each output channel can be switched between single and dual channels.
Even at maximum volume, it can provide the highest sound quality for each earphone.
Ultra low noise 4580 operational amplifier with outstanding performance.
What's In the Box
1 x Amplifier,1 x Adapter,1 x Manual (English)
