Note: Do not mount the unit in direct sunlight or near heat sources.
Overview:
This product is a wired dual passive infrared detector, exquisite design, easy installation. Fit for the locations of the balcony, window, door, corridors, outdoor, etc. high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, pulse count, LED switch, etc. selectable functions, can be integrated with wired alarm host.
Features:
*MCU technology to prevent all kinds of false alarms.
*SMT chip, anti-EMI & anti-RFI design. Anti-tamper alarm function to enhance anti-damage.
*The PIR sensor is a wide angle 15mX15m with high catch performance and false alarm immunity.
*Automatic temperature compensation, adjustable pulse count.
*LED ON/OFF optional, better concealment.
Specifications:
Working Voltage: 9V-16V
Standby Current: 12mA
Working Current: ≤ 18mA
Wide Detector Angle: 85° (15mX15m)
Detection Distance: 15m (no barrier, 25℃)
Detection Method: Low noise dual pyroelectric sensor
Tamper Switch: 12V 50mA
Detection Speed: 0.3-3m/s
Sensitivity: Level 2 adjustable
LED Color: Red
Installation Way: Wall/Ceiling Hanging
Installation Height: 2m-4m Adjustable
Casing Material: ABS
Operating temperature: -10°C to 50°C
Item Size: Approx. 11.6 * 6.8 * 5cm
Item Weight: Approx. 90g / 3.2oz
Package Information:
Package Size: Approach. 16.3*7*5.5cm/ 6.42*2.76*2.16in
Package Weight: Approach. 144g / 5.1oz

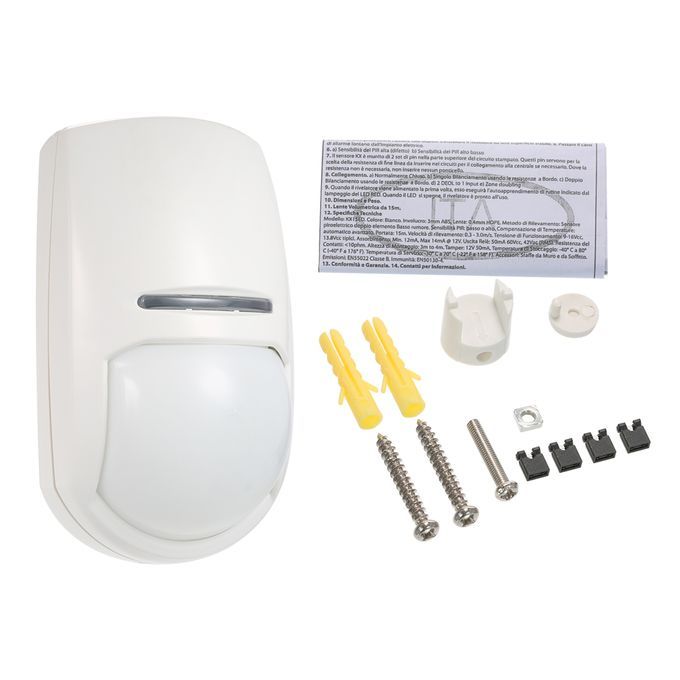

Package List:
1 * Wired PIR Motion Sensor
2 * Mounting Bracket
1 * Accessory Bag
1 * User Manual
a a a a a
Key Features
xMCU technology to prevent all kinds of false alarms.
xSMT chip, anti-EMI & anti-RFI design. Anti-tamper alarm function to enhance anti-damage.
xThe PIR sensor is a wide angle 15mX15m with high catch performance and false alarm immunity.
xAutomatic temperature compensation, adjustable pulse count.
xLED ON/OFF optional, better concealment.
xMCU technology to prevent all kinds of false alarms.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x Wired PIR Motion Sensor,2 x Mounting Bracket,1 x Accessory Bag,1 x User Manual
