Note: Do not mount the unit in direct sunlight or near heat sources.
Overview:
This product is a wide angle passive infrared detector, exquisite design, easy installation. Fit for the locations of the balcony, window, door, corridors, etc. high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design, temperature compensation, pulse count, LED switch, etc. selectable functions, can be integrated with wired alarm host.
Features:
*MCU technology to prevent all kinds of false alarms.
*SMT chip, anti-EMI & anti-RFI design. Anti-tamper alarm function to enhance anti-damage.
*The PIR sensor is a wide angle 10.6mX10.6m with high catch performance and false alarm immunity.
*Automatic temperature compensation, adjustable pulse count.
*LED ON/OFF optional, better concealment.
Specifications:
Working Voltage: 9V-16V
Standby Current: 18mA
Alarm Current: 20mA

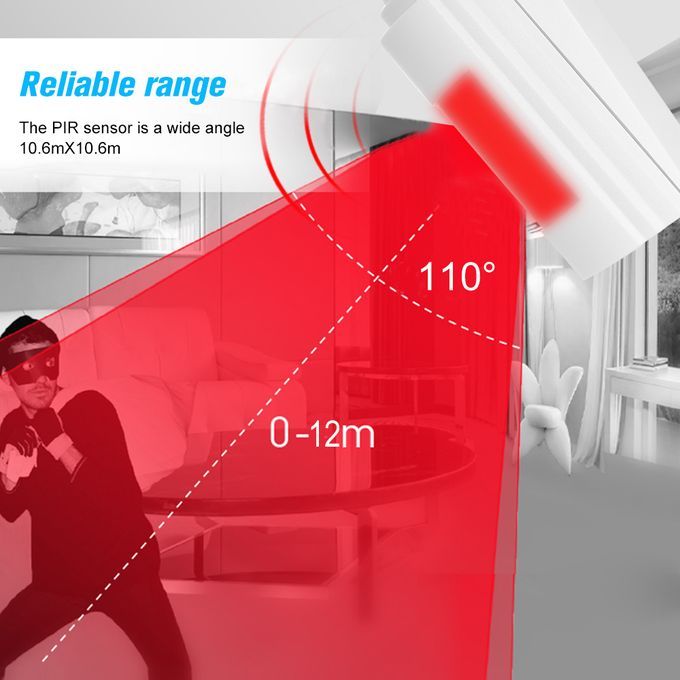

Wide Detector Angle: 110° (10.6mX10.6m)
Detection Distance: 12m (25℃)
Detection Speed: 0.2-7m/s
Sensitivity: Level 2 adjustable
Installation Way: Wall Hanging
Installation Height: 1.1m-3.1m Adjustable
Alarm output: NC
LED indicator light: ON/OFF optional
Operating temperature: -10°C to 50°C

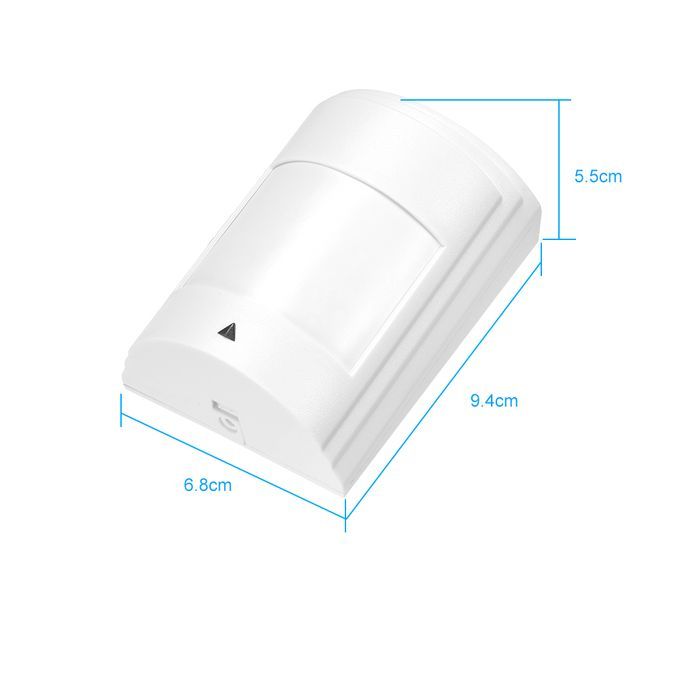

Item Size(Each): Approx. 9.4 * 6.8 * 5.5cm(L*W*H)
Item Weight(Each): Approx. 76g / 2.7oz
Package Information:
Package Size: Approach. 14 * 11 * 6cm / 5.5 * 4.3 * 2.4in
Package Weight: Approach. 180g / 6.3oz
Package List:

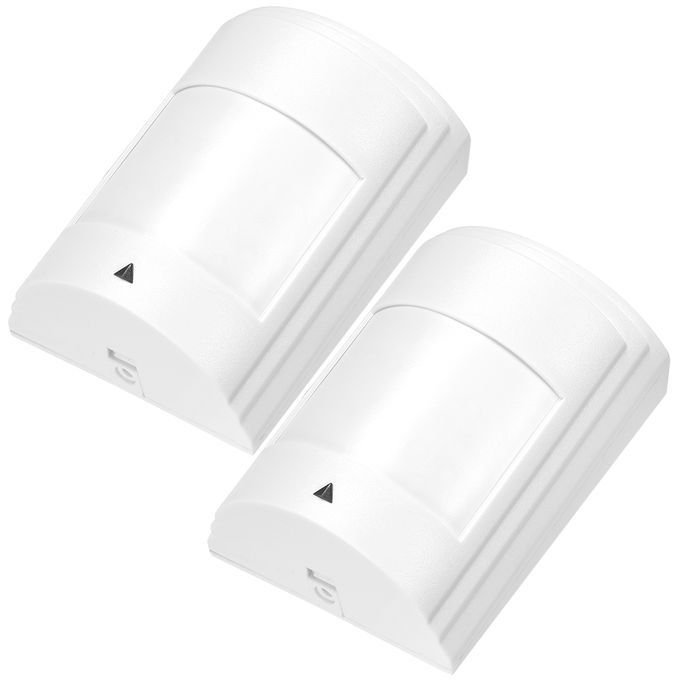

2 * Wired PIR Motion Sensor
2 * User Manual
a a a a a
Key Features
xMCU technology to prevent all kinds of false alarms.
xSMT chip, anti-EMI & anti-RFI design. Anti-tamper alarm function to enhance anti-damage.
xThe PIR sensor is a wide angle 10.6mX10.6m with high catch performance and false alarm immunity.
xAutomatic temperature compensation, adjustable pulse count.
xLED ON/OFF optional, better concealment.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
2 x Wired PIR Motion Sensor,2 x User Manual
