The wired barcode scanner can read all international standard 1D and 2D code with advanced reading performance of the decoding chip. and easy one-button operation greatly increases work efficiency while avoiding a series of failures due to complex setup steps.
Features:
One Scanner Meets Different Needs
2D cashier scanning, warehouse cargo scanning, item barcode scanning, tracking number scanning are all supported.
High Recognition Rate
Easily recognize various phone screens, folded and vague codes.

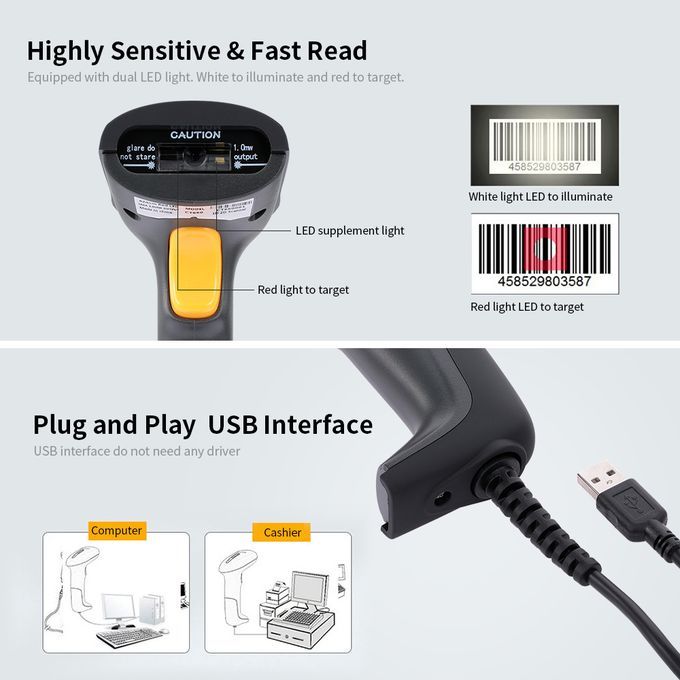

Highly Sensitive and Read
Dual LED. White LED illumination and red LED aiming. Great combination just for quick and convenient use.
Plug and Play USB Interface
USB interface; plug and play; driver-free. Easy to install.
Exquisite Design
Buzzer design, anti-slip handle, indicator light and resilient button. All elements have made the scanner superior to use.
Specification:
Model: CT660
Type: Optical imaging
1D code: Support
2D code: Support
Phone screen: Support
Computer screen: Support
Transmission type: Wired transmission
Interface type: USB
Cable length: 1.8m
Sensor: CMOS sensor, pixel: 640*480, 30fps
Targeting:624nm red LED
Light source: 624nm white LED
Scan method: Manual trigger scan, inductive scan, continuous scan
Scan angle: horizontal: 40° Vertical: 30°
Dip angle/elevation/oblique angle: 360/±60/±61 degree
Working voltage: 5V DC±5%
Working current: 390mA(Max),300mA(Typical)
OS: Android/Apple/Mi crosoft
Scan speed: 200times/sec
Basic code system: 1D: Code 39 (Code 32), Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 25(Straight 2 of 5 Industrial)
2D: QR Code, Data Matrix, PDF417
Optimal code system: 1D: China Post(Hong Kong 2 of 5), NEC 2 of 5, Code 11, MSI Plessey, GS1 Databar(RSS), Korea Post, Trioptic code39, GS1 Composite Code, Telepen
2D: MicroPDF417, Aztec Code, Codablock, MaxiCode, 汉信(Chinese Sensible Code)
Item size: 16.5 * 9.2 * 6.5cm / 6.50 * 3.62 * 2.56in(L * W * H)
Item weight: Approx.123g / 4.34oz
Package size: 20 * 12 * 9.8cm / 7.87 * 4.72 * 3.86in(L * W * H)
Package weight: 262g / 9.24oz
Package list:
1 * Barcode scanner
1 * USB cable
1 * User manual (English&Chinese)
What's In the Box
1 x Barcode scanner,1 x USB cable,1 x User manual (English&Chinese)
