The scanner reads all international standard 1D&2D codes in printed materials or on the screen, using advanced image scanning engine with 300,000 pixels CMOS imaging technology. It can help you work more efficiently that can scan code 200 times per second without complex setup and installation drivers.
Features:
Wide angle design, quick scanning. More effective than the common scanner.
USB interface to let you free from installation. Plug and play.
Perfect compatibility with various systems. Mobile phone, computer and screen use. 1D & 2D are all supported.
Automatically inductive scanning. Strong performance and instant upload.
Adopt new engine that can quickly recognize code quickly and read instantly.
Specification:
Model: T98
Type: Optical imaging
1D code: Support
2D code: Support
Phone screen: Support
Computer screen: Support
Transmission type: Wired transmission
Interface type: USB
Cable length: 1.8m
Sensor: CMOS sensor, pixel: 640*480, 30fps
Color: Silver
Light source: 624nm red LED
Scan method: Trigger scan, inductive scan, continuous scan

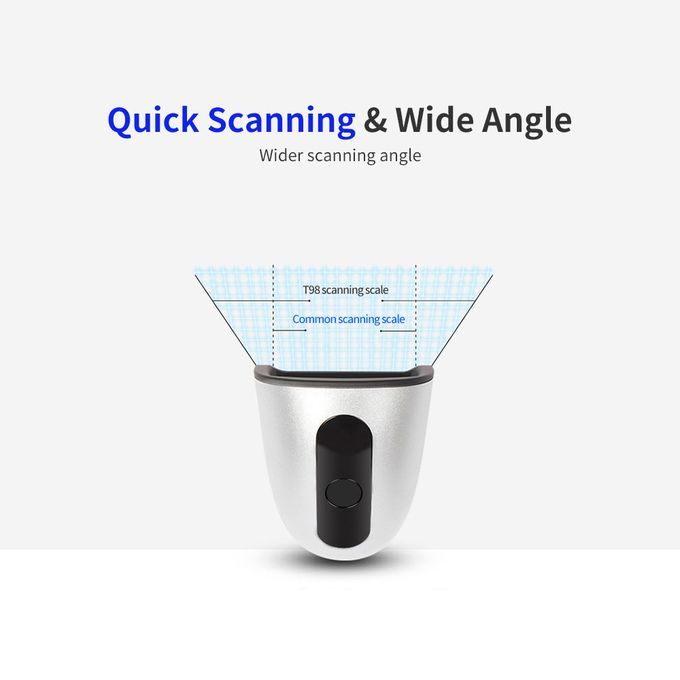

Scan angle: horizontal: 37° ; Vertical: 28°
Dip angle/elevation/oblique angle: 360/±65/±65 degree
Working voltage: 5V DC±5%
Working current: 140mA
OS: Android/Apple/Micr osoft
Scan speed: 200times/sec
Basic code system: 1D: Code 39 (Code 32), Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 25(Straight 2 of 5 Industrial)
2D: QR Code, Data Matrix, PDF417
Optimal code system: 1D: China Post(Hong Kong 2 of 5), NEC 2 of 5, Code 11, MSI Plessey, GS1 Databar(RSS), Korea Post, Trioptic code39, GS1 Composite Code, Telepen
2D: MicroPDF417, Aztec Code, Codablock, MaxiCode, 汉信(Chinese Sensible Code)
Item size: 15.5 * 10.5 * 8.4cm / 6.10 * 4.13 * 3.31in(L * W * H)
Item weight: Approx.297g / 10.48oz
Package size: 16 * 11.2 * 9.5cm / 6.30 * 4.41 * 3.74in(L * W * H)
Package weight: 438g / 15.45oz
Package list:
1 * Barcode Scanner
1 * USB Cable
1 * User Manual
What's In the Box
1 x Barcode Scanner,1 x USB Cable,1 x User Manual
