Model |
expanding board |
Production Country |
China |
Size (L x W x H cm) |
10x8x3 |
Weight (kg) |
0.07 |
Color |
blue |
Main Material |
PCB+Metal |

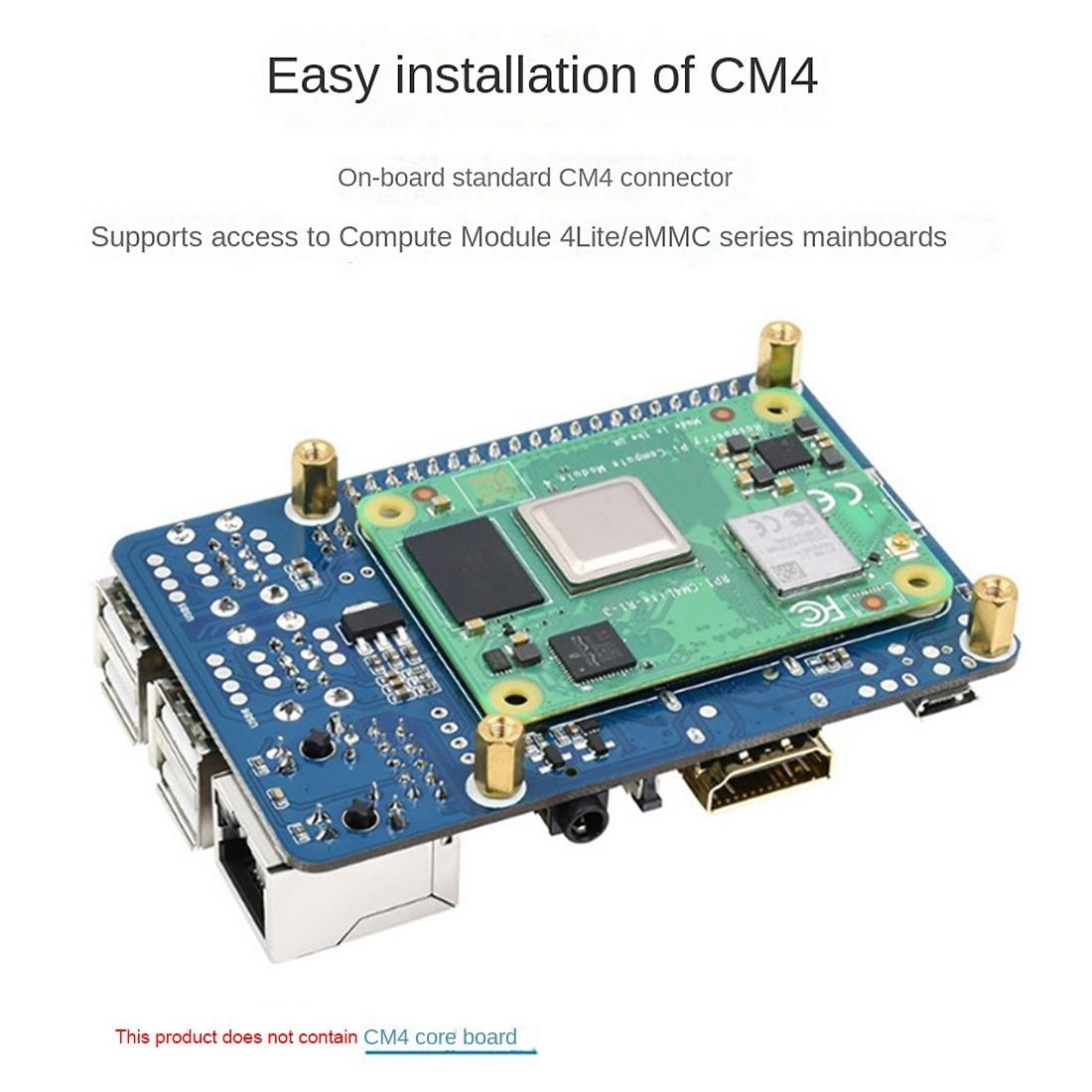

1. Onboard standard CM4 connector, support access to CM4 Lite/eMMC series motherboards, quad-core Cortex A72 64-bit processor, more powerful performance
2. The interface position is easily compatible with the motherboard for Raspberry Pi 3B series (3B/3B+)

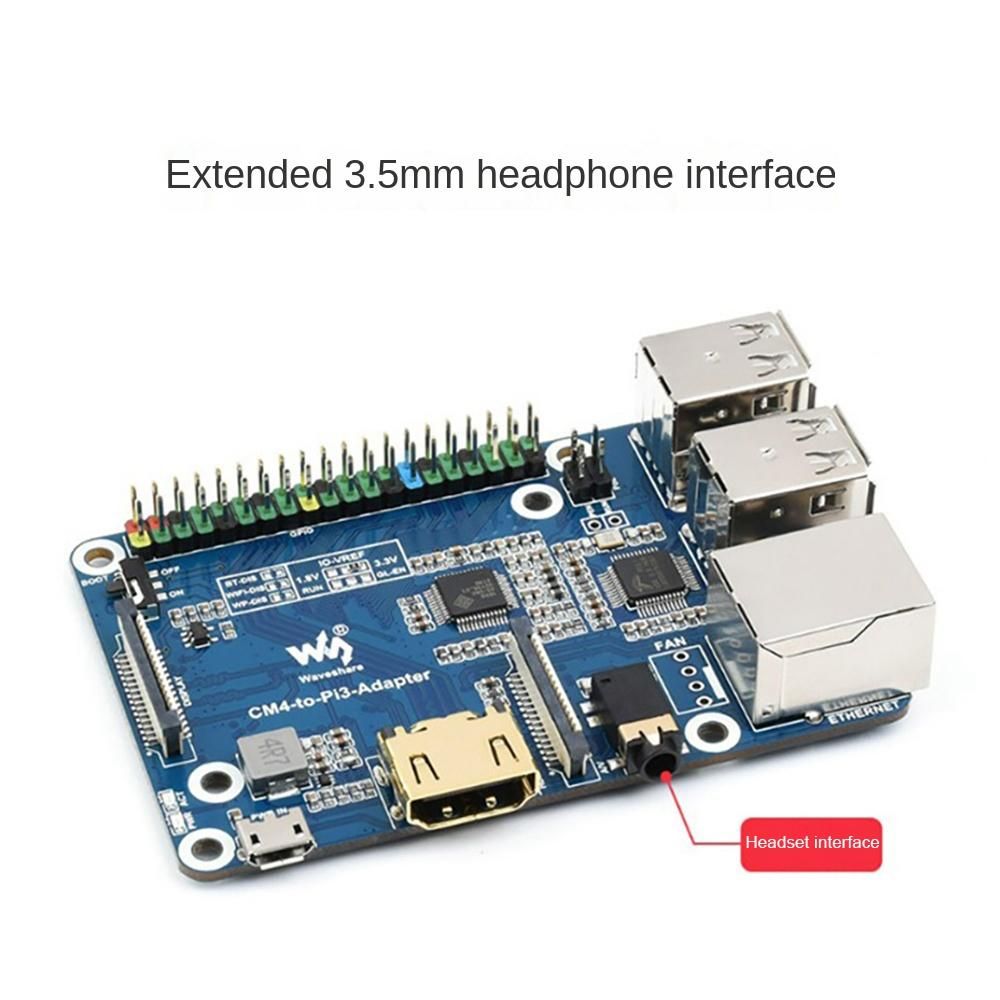

3. Onboard USB audio headphone jack
4. Onboard 4-way USB expansion port, compatible with USB2.0/1.1 transmission

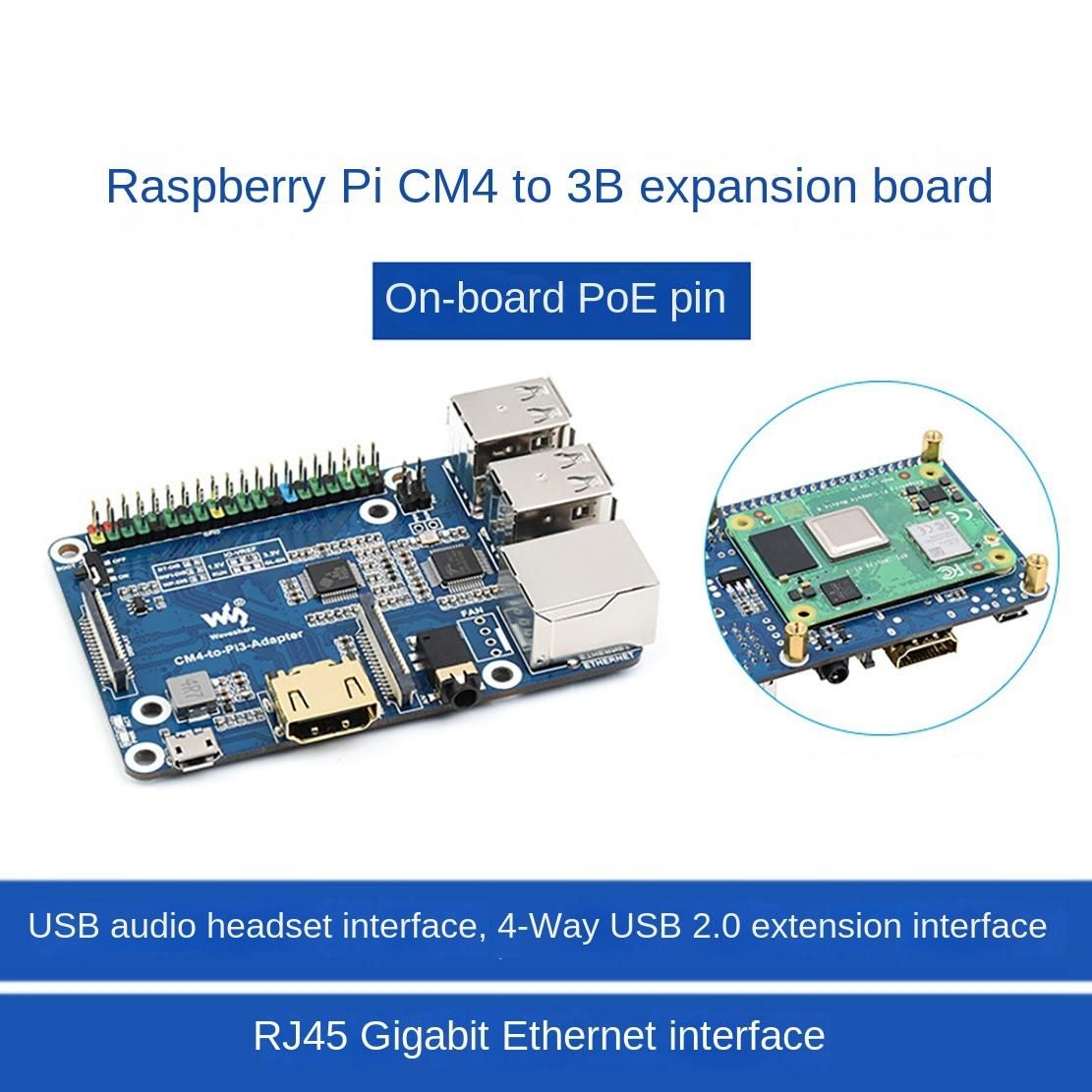

5. Onboard RJ45 Gigabit Ethernet port, 10/100/1000M adaptive. Onboard PoE pins, support access to expansion boards with PoE function
Specification:

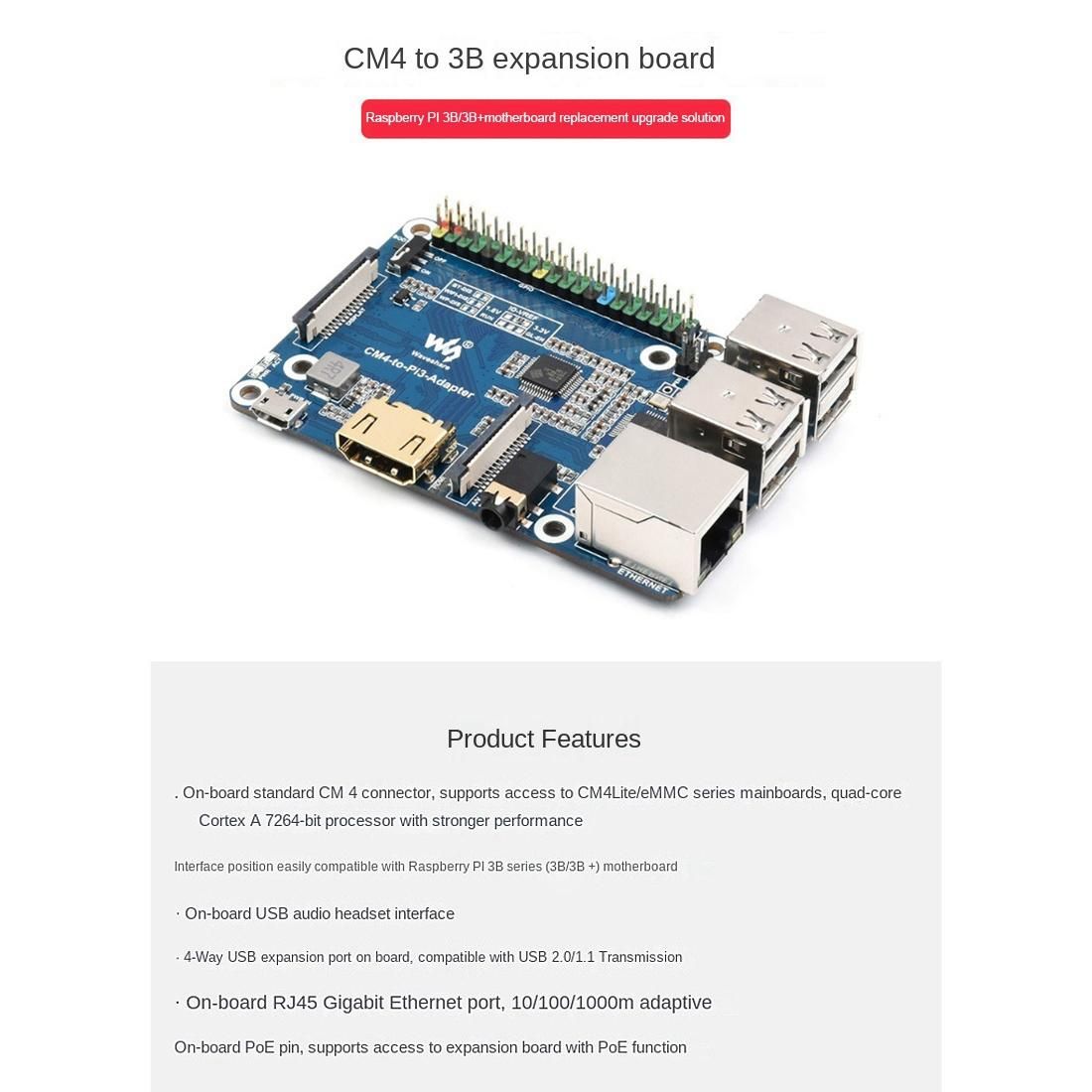

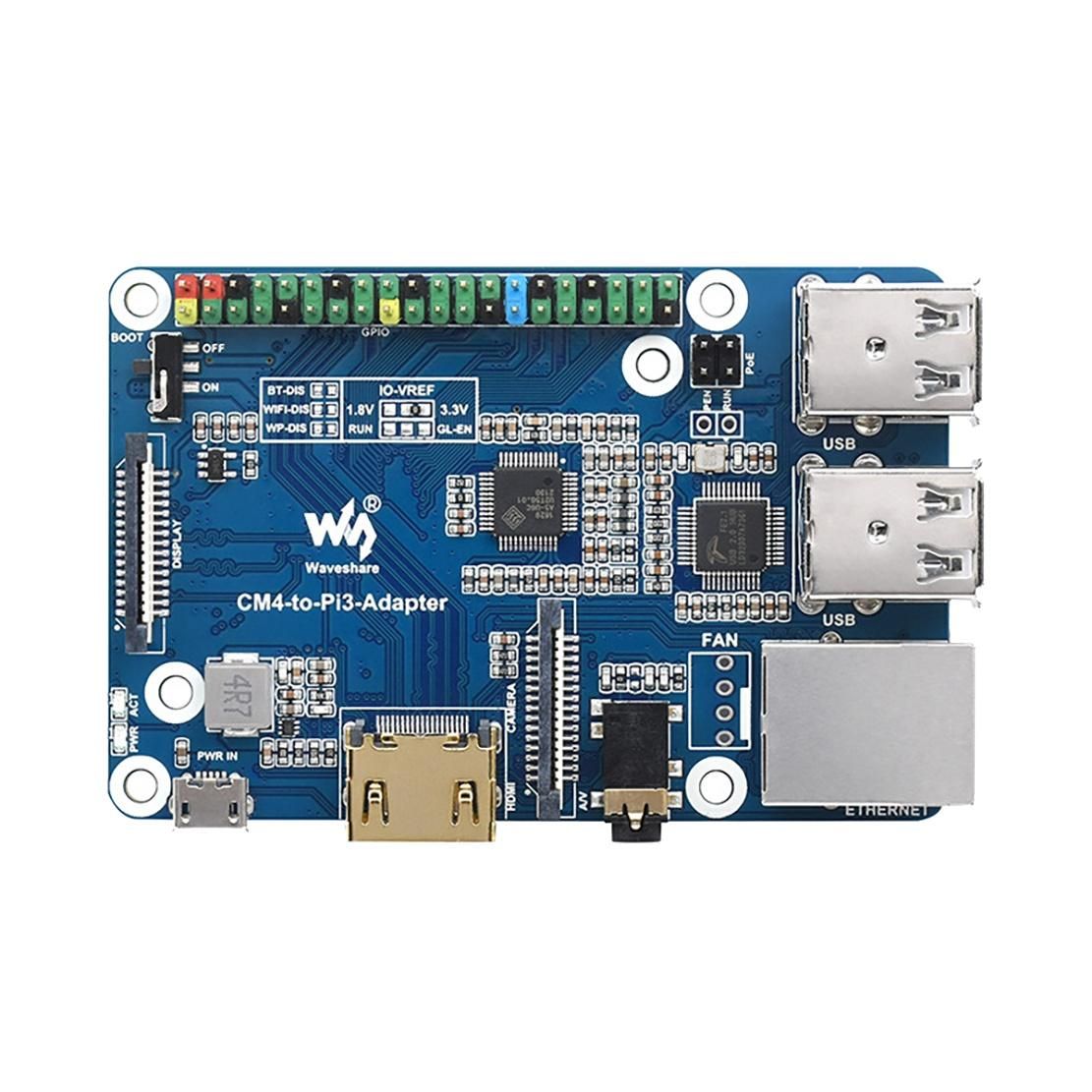

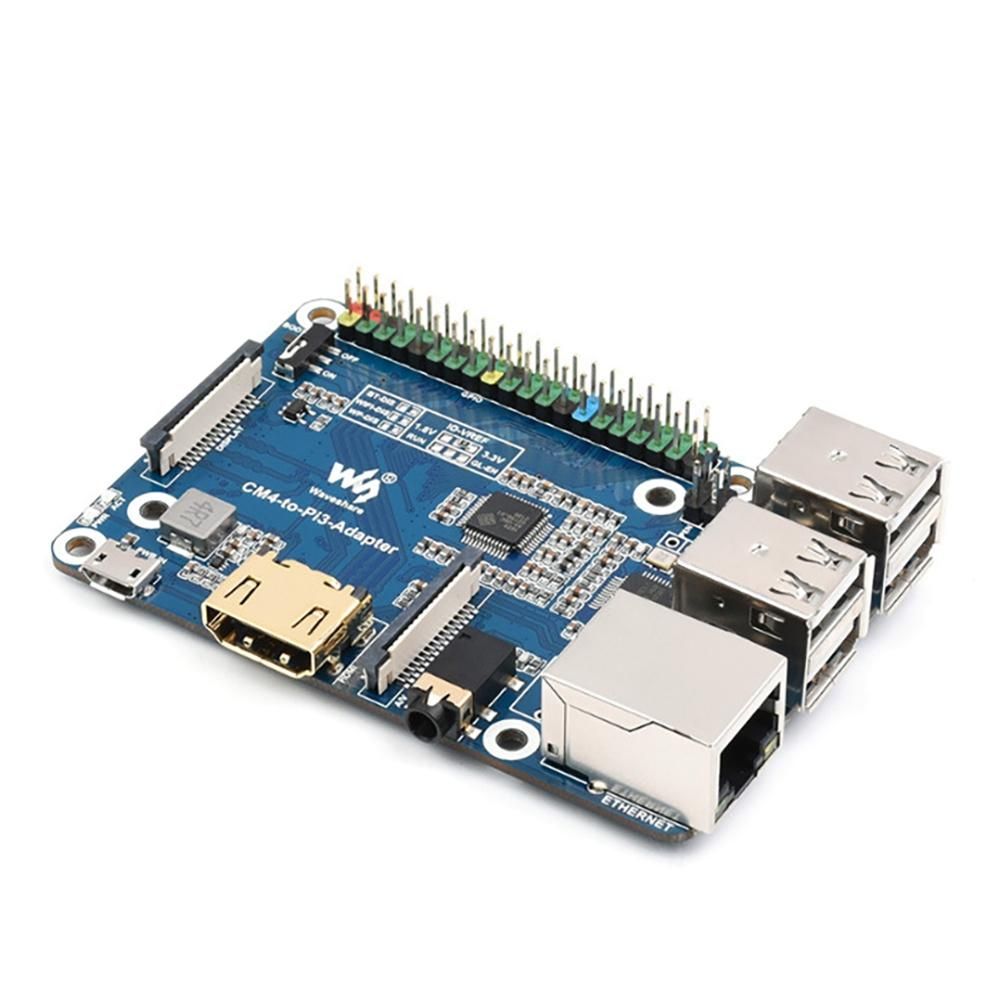

Product name: CM4 to 3B expansion board

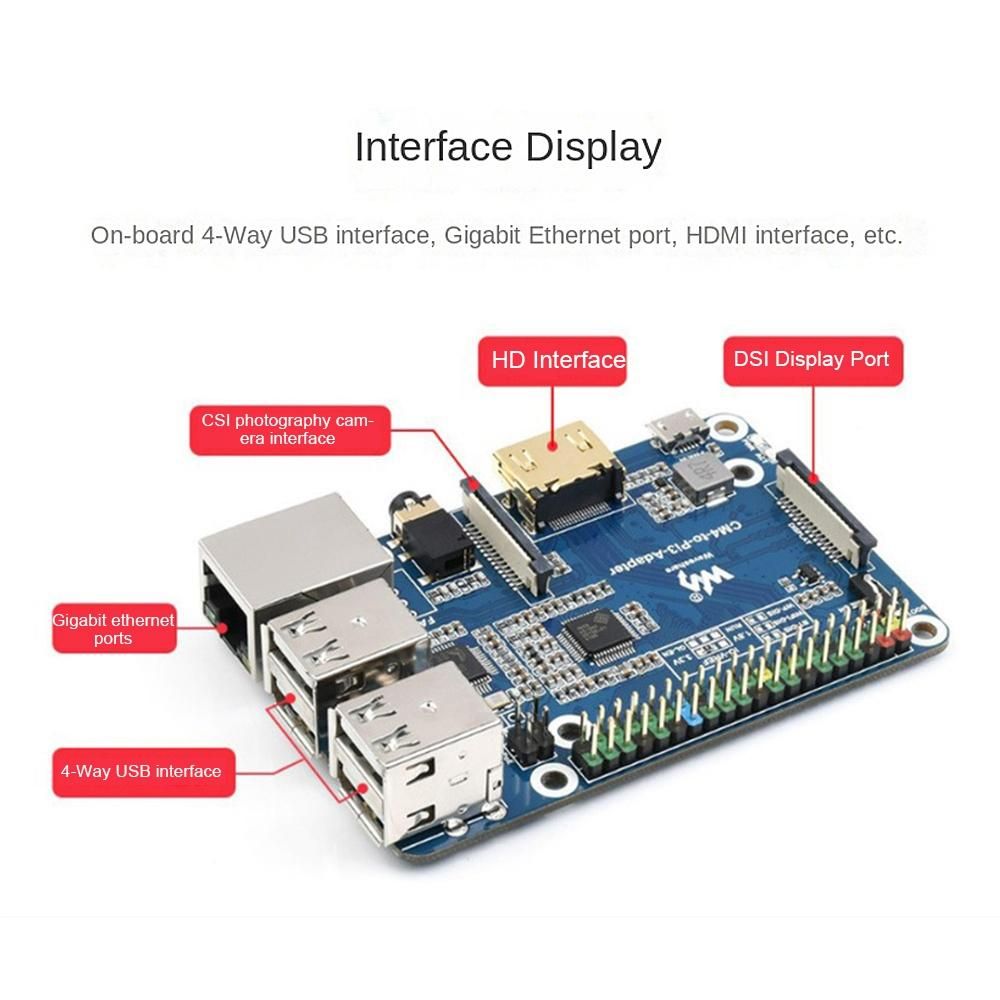

Interface: 1*HDMI-compatible interface, 1*DSI display interface, 1*CSI camera interface, 1*Gigabit Ethernet port, 4*USB interface, 1*3.5mm headphone jack
Applicable products: for Raspberry Pi 3B/3B+
Product size: 85 x 56mm
Material: PCB+Metal
colour: blue
Package Contents:
1 x CM4 to 3B expansion board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Key Features
expansion board
CM4 To 3B Expansion Board
CM4 expansion board
For Raspberry Pi 3 Model B/B+
For Raspberry Pi CM4 to 3B
What's In the Box
1 x CM4 to 3B expansion board
