Description:

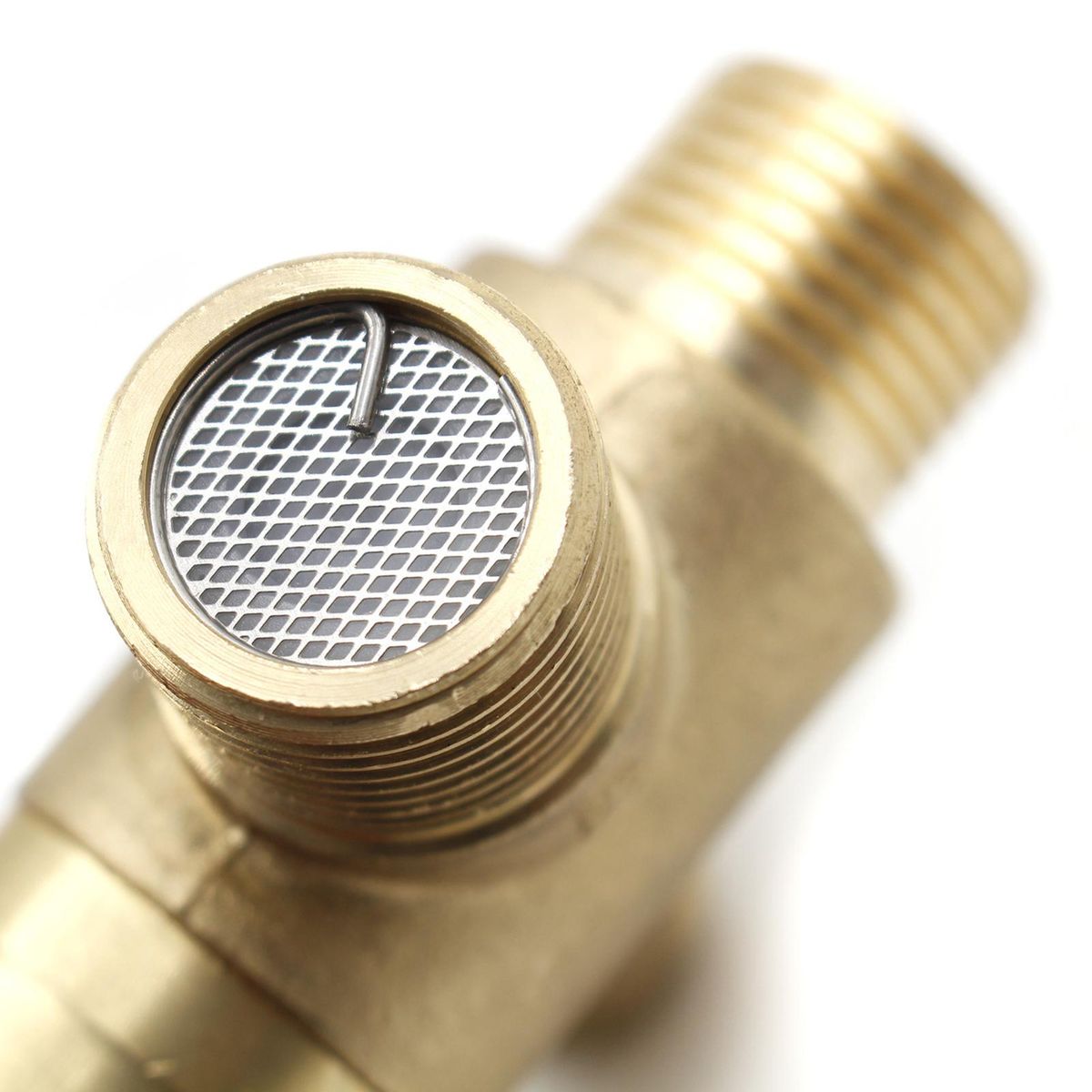

Filter screen is set at the connection of hot and cold water to protect the water from other impurities.
Built in temperature control safety device can automatically turn off hot water without cold water to protect scalds.
Practical solid brass valve core is used, which is firm, durable and not easy to rust. It is made of high-quality chrome material.
The length of this product is 11.5cm, the width is 6.2cm and the height is 3.8cm.
The wall mounted thermostatic water mixing valve of the bathtub is easy to install and suitable for most water heaters. It is easy to control the cold and hot water volume and adjust the water temperature as required.
Item Name: Water Valve
Material: Copper, Chrome
Working Pressure: 0.05-1 mpa
Recommended Pressure: 0.1-0.5 mpa (drain Valve is Required when the Pressure is Above 0.5 mpa)
Standard Pressure: Dynamic Pressure 0.3 Plus or Minus 0.02 mpa
Cold Water Supply Temperature: 4 - 29 Degrees Celsius
Hot Water Supply Temperature: 55 - 85 Degrees Celsius
Recommended Normal Use Temperature: 60 - 70 Degrees Celsius
Water Temperature Control Range: 20 -50 Degrees Celsius
Safety Button Temperature: 38 Degrees Celsius
Features: Adjustable Temperature, Leakproof, Solid
Product introduction:
The thermostatic mixing valve is a supporting product specially developed for the hot water system. It is widely used in electric water heaters, pipeline water valves, washbasins, showerwater heaters and central heating water systems. It can also be used in electric water heaters andwater heaters. Users can adjust the temperature of hot and cold water mixing according to their needs. The required temperature can be quickly reached and stabilized to ensure that the outlet water temperature is constant, and is not affected by changes in water temperature, flow, and water pressure. It solves the problem of hot and cold water temperature in the bath. When the cold water is interrupted, the mixing valve can automatically close the hot water within a few seconds, playing a safety role

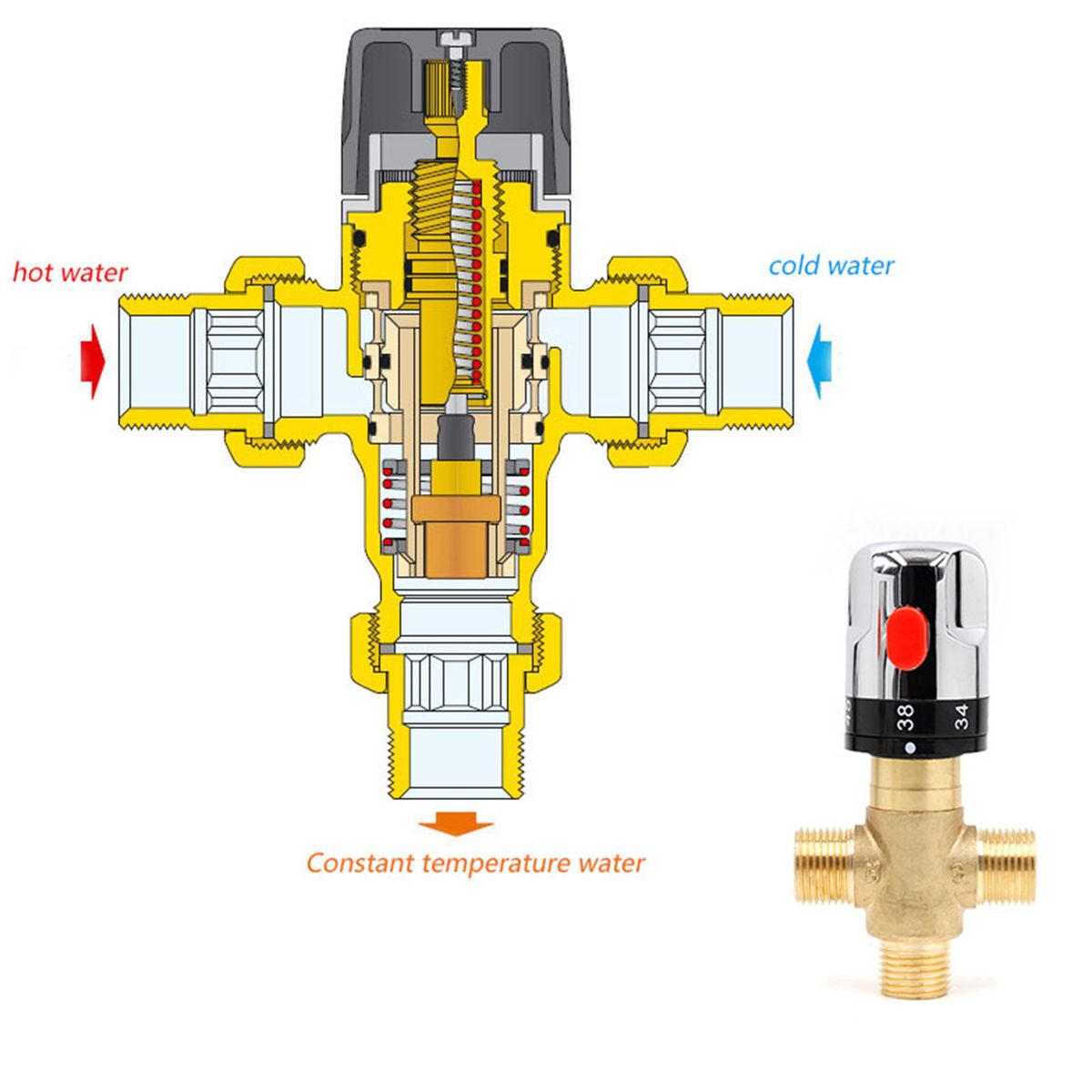

Working Principle:
A thermal element is installed at the mixing outlet of the thermostatic water mixing valve, which uses the characteristics of the thermal element to move the valve core in the valve body, block or open the water inlet of cold and hot water. When blocking cold water, turn on hot water. When the temperature regulating knob is set to a certain temperature, no matter how the inlet temperature and pressure of cold and hot water change, the proportion of cold and hot water entering the outlet will also change, so that the outlet water temperature is always constant. The temperature regulating knob can be set arbitrarily within the specified temperature.
Size Details:
L: 11.5cm/4.53", W: 6.2cm/2.44", H: 3.8cm/1.5"(Approx.)
Notes:Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
Package Includes:1 x Water Valve
What's In the Box
1 x Water Valve
