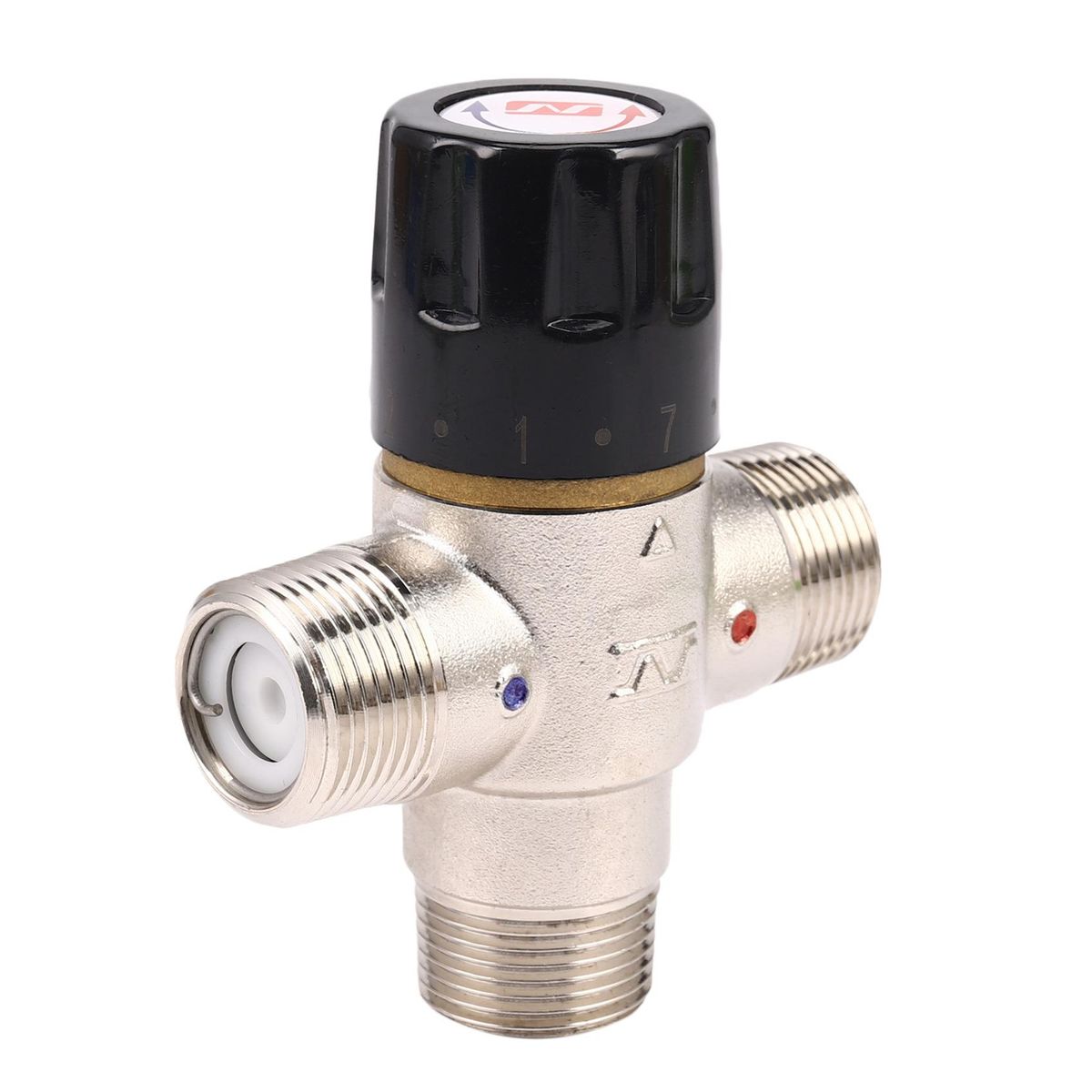

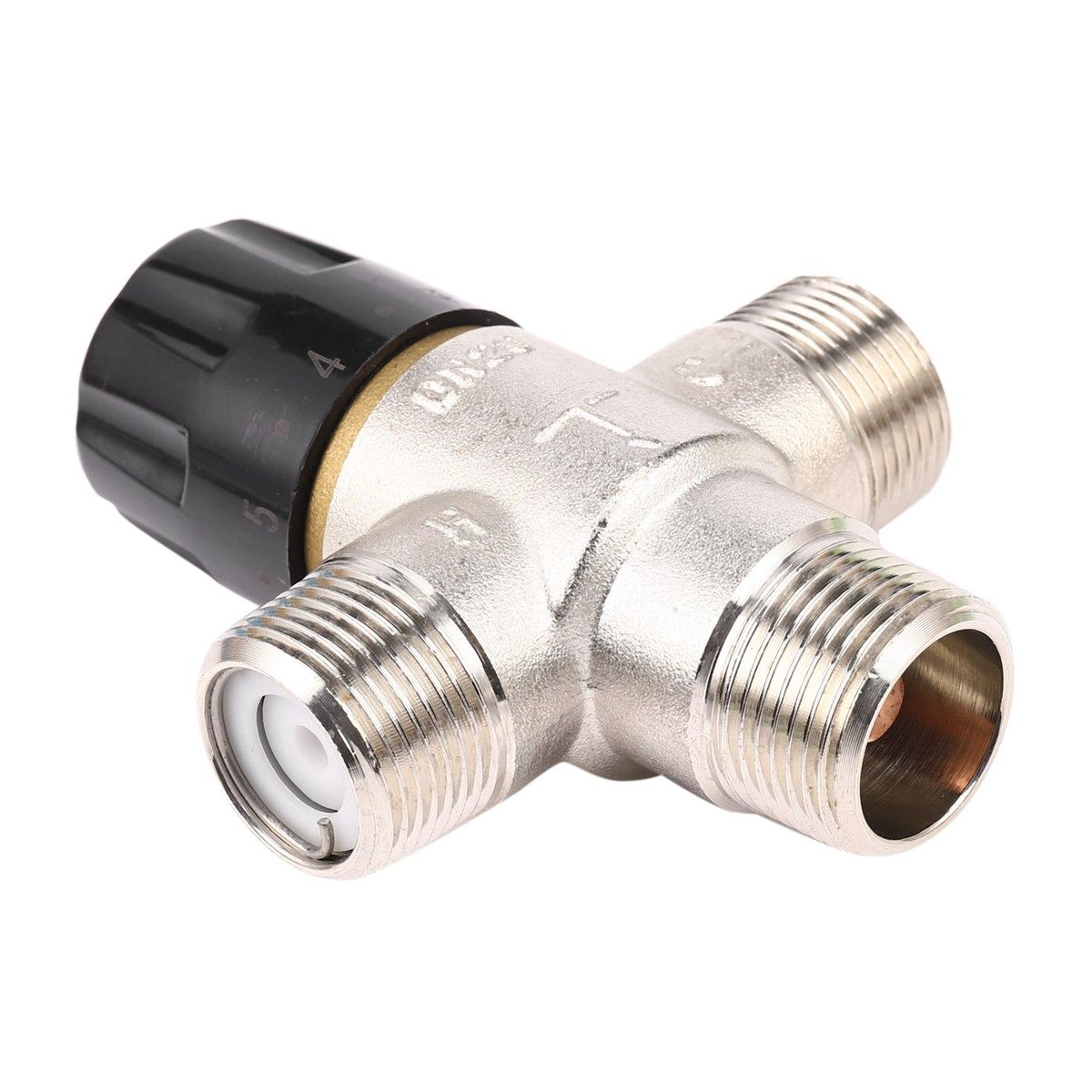

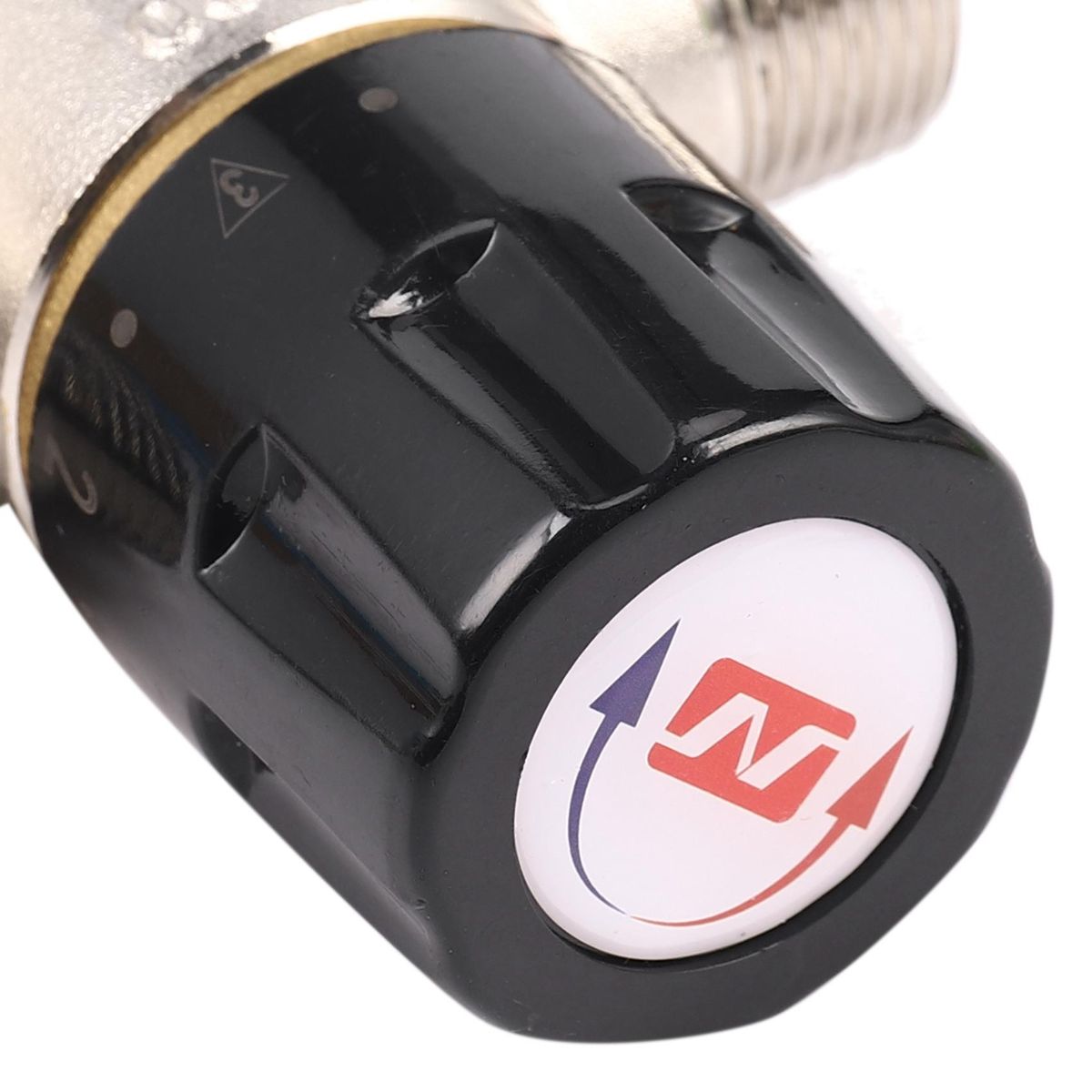

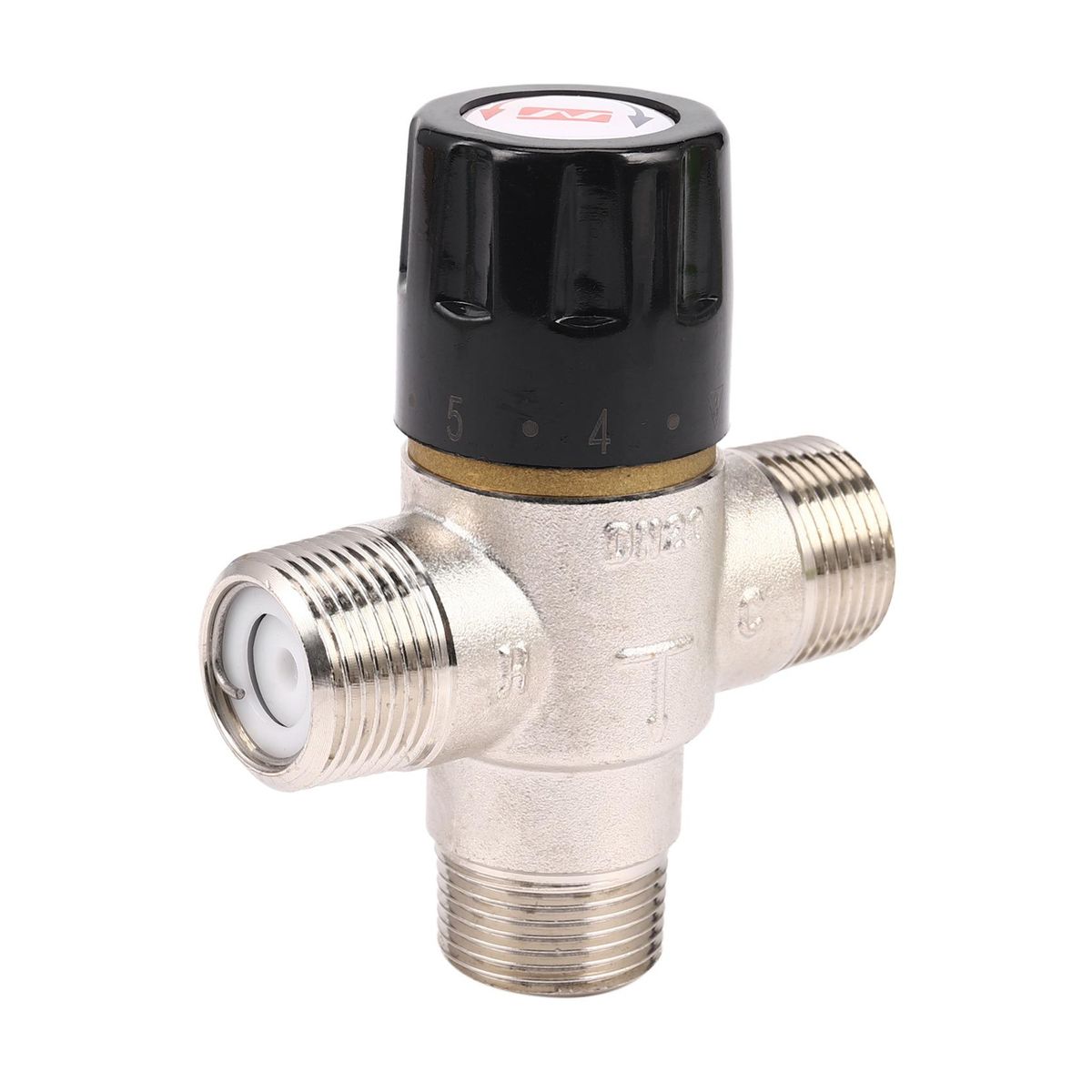

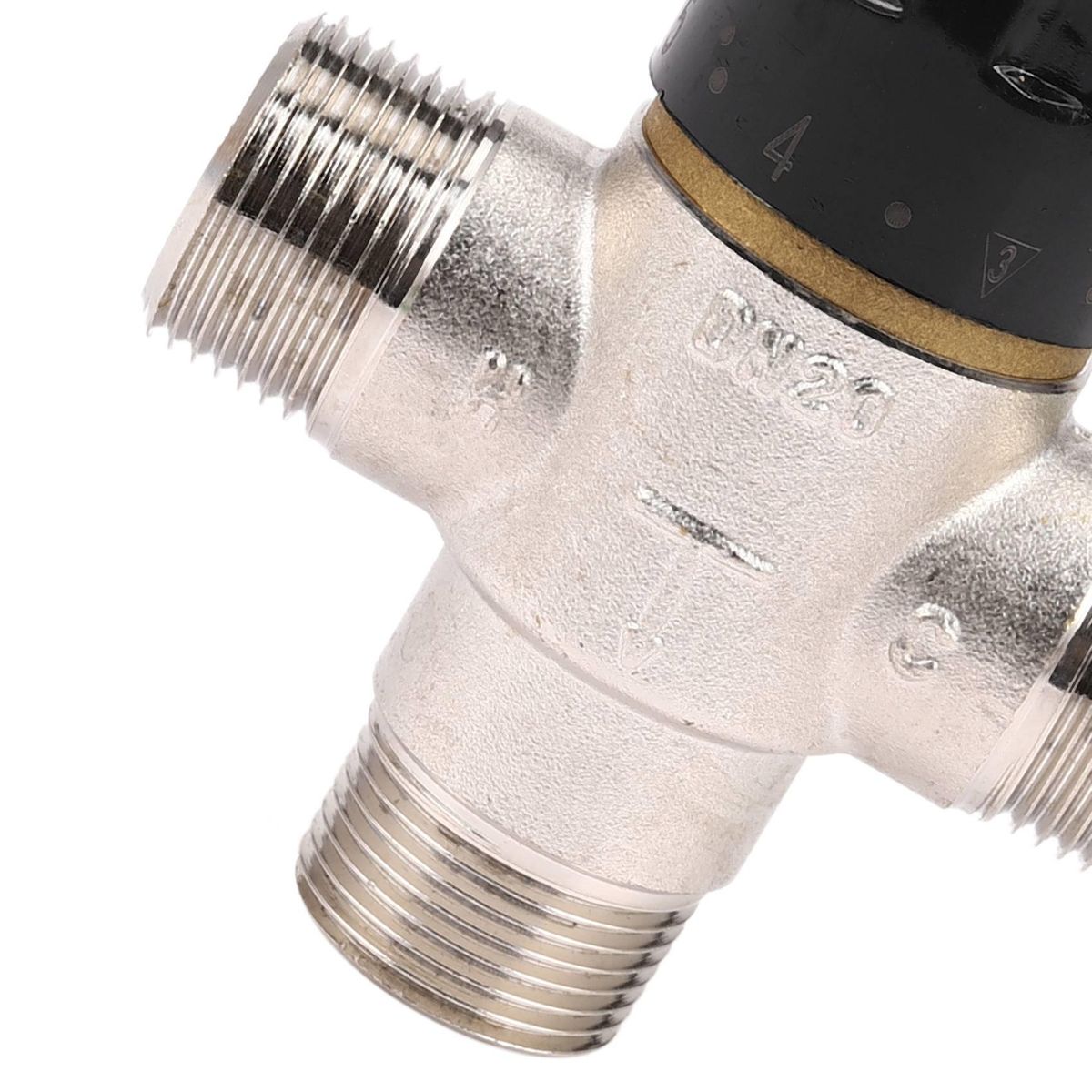

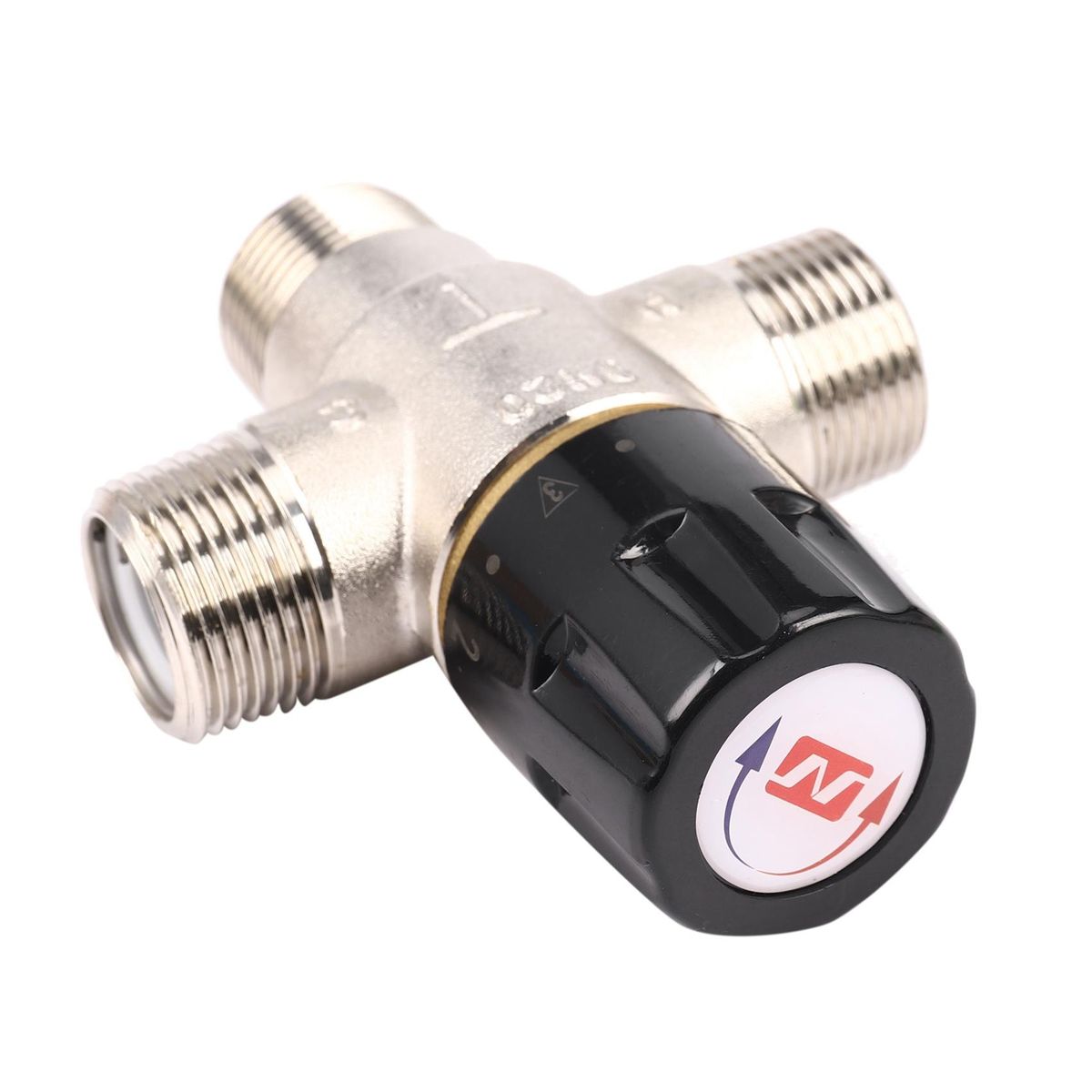

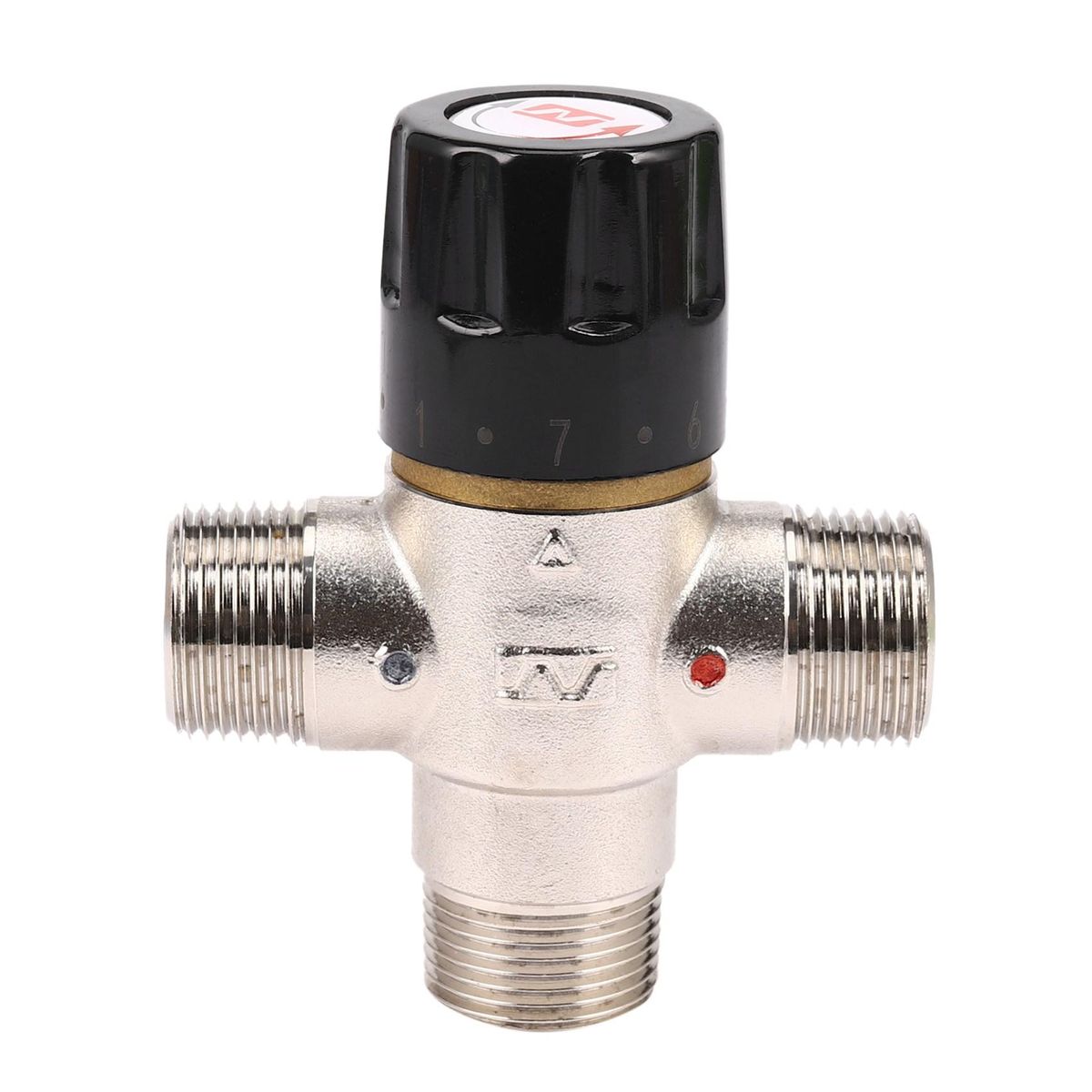

What is the thermostatic mixing valve?A Thermostatic Mixing Valve is a valve that blends hot water (stored at temperatures high
enough to kill bacteria) with cold water to ensure constant, safe outlet temperatures preventing,scalding.They shut-off rapidly in the event of a hot or cold supply failure to prevent scalding
or thermal shock.TMVs accurately control water temperatures for bathing, showering and
hand-washing. They maintain pre-set temperatures - even if water pressure varies when other appliances are used. TMVs can be fitted under baths and basins, be part of,shower fittings, or as a feature of exposed hot and cold water mixers.One way valves：Tow inlets have one way valves,1、 Fail-safe on Hot or Cold Supply Failure,2、 Delivers Stable Mixed Water Temperature,3、Extended Mix Temperature Range : 35-55 Celsius,4、Idea for Domestic and Public Water Application,5、Tamper-Proof Cap
Temperature setting range:35-55 Celsius,Hot water inlet temperature range：Below 95,Cold water inlet temperature range：4-29 Celsius,Maximum working temperature：≤99 Celsius,Temperature stability:+/-2 Celsius
Pressure:Medium Pressure
Model Number:NO
Standard or Nonstandard:Standard
Temperature of Media:Medium Temperature
Media:Water
Actuator Mode:With Instruction
Thread Type:NPT
Structure:other
Hydrostatic pressure：10bar
Max working pressure(dynamic):5bar
Working pressure:0.03-1Mpa
Ideal working pressure：0.1-0.5Mpa
Inlets: M, Outlet: M
Flow rate(1 kg pressure drop)：26.67 L/min
colour:Silver + black
Material:copper
size:9.8*7.9*4.8cm
Connections: BSP,3/4 inch
Package Contents:
1*Thermostatic mixing valve
Installation Precaution:
1、All installations should be carried out by a Licensed Professional.
2、Install in accordance with markings on valve body. i.e. hot water inlet-marked H, cold water inlet-marked C.
3、After temperature setting, if inlets temperature or pressure fluctuates, outlet temperature variation is within +/-2 Celsius.
4、The external check valves at inlets prevent cross-flow of hot&cold water when inlets pressure is not the same.
5、If the ratio between two inlets is too large, one flow-limiting valve should be fixed at the side of higher pressure.
6、Prior to installation, provisions should be made to flush the piping of any debris or other foreign
materials to ensure proper system operation.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
