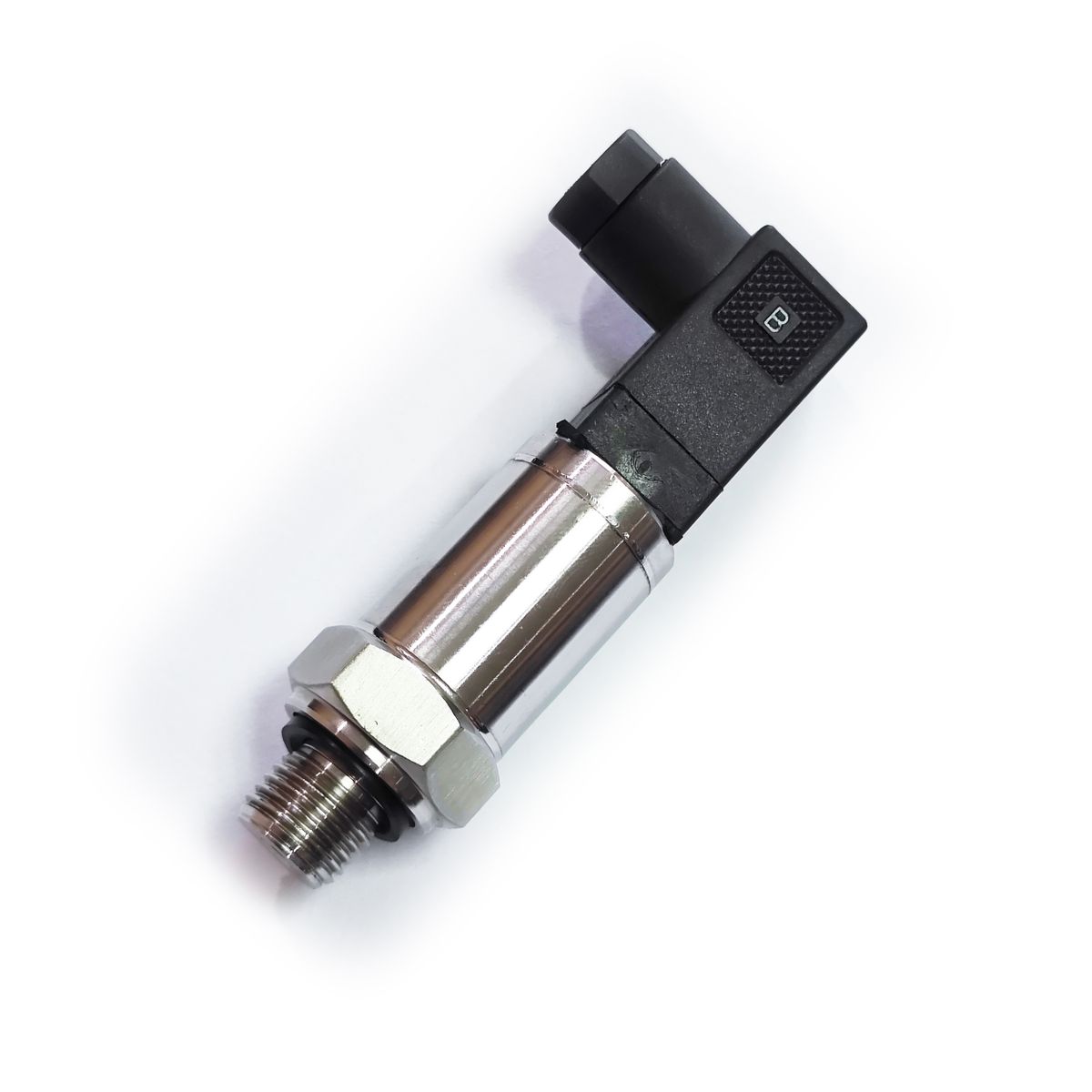

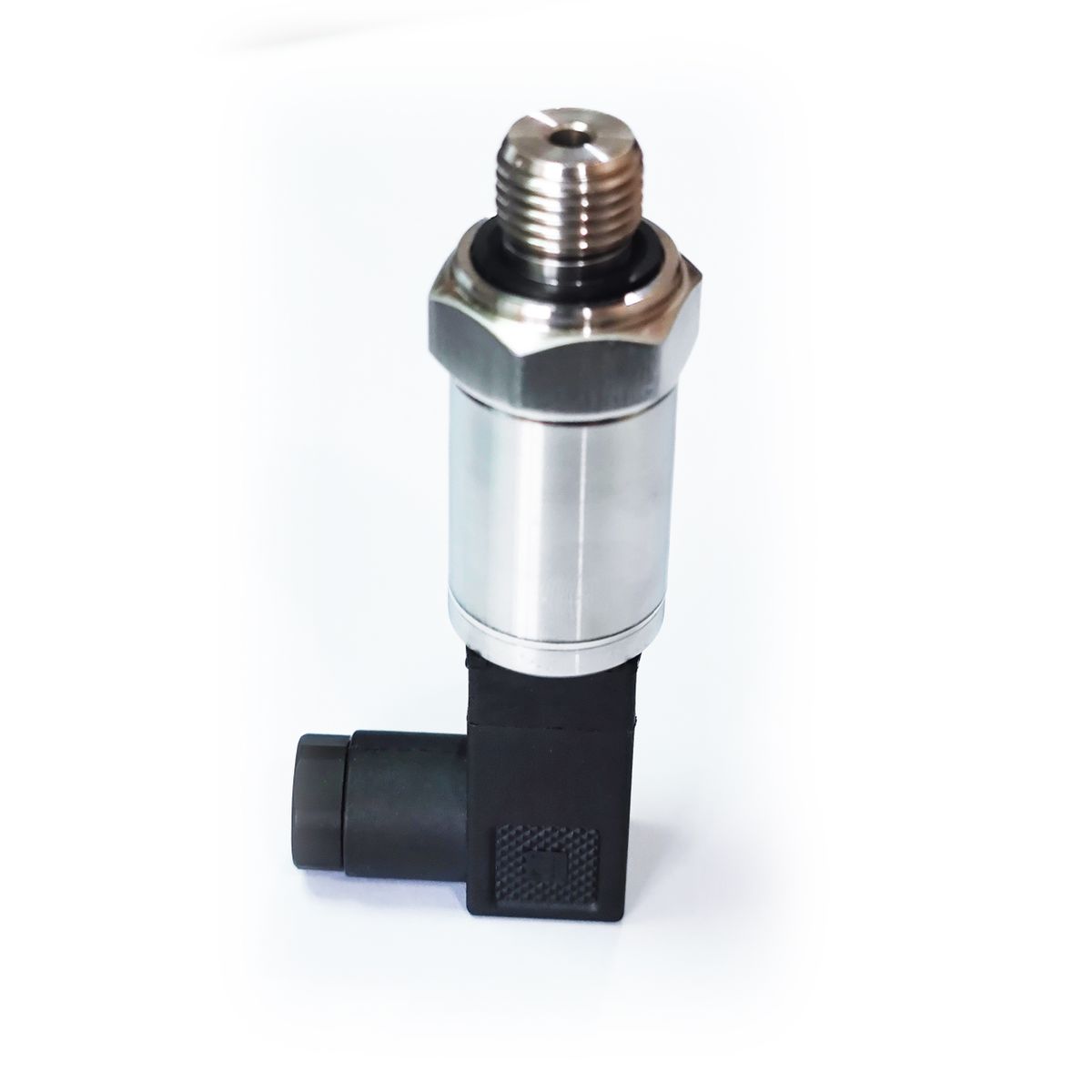

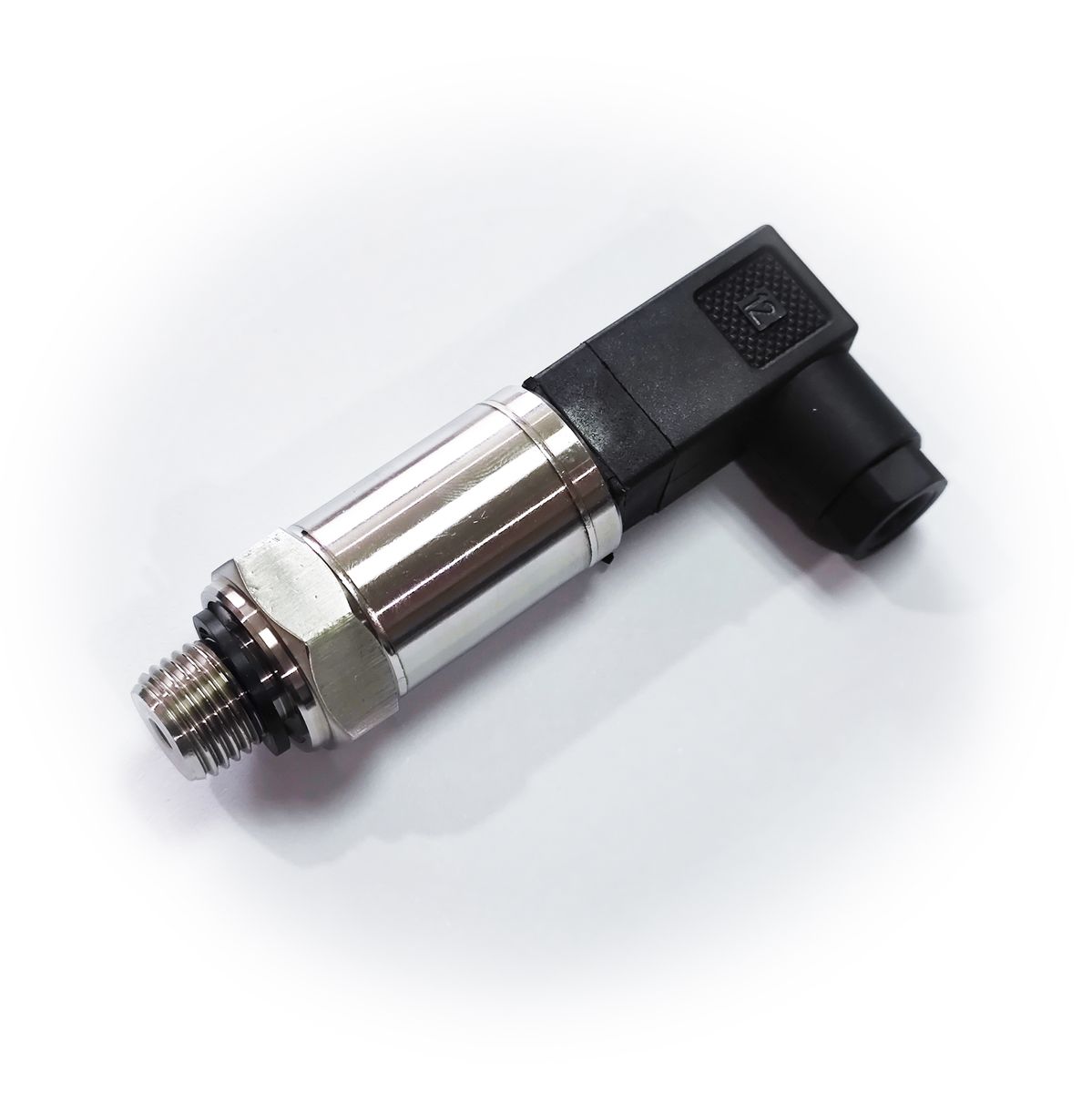

Description
YD6080 series of preure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainle steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various envments and climates, so it is widely used in various fields.
Feature
◆ CE conformity ◆ Low cost and high quality ◆ All stainle steel integrated structure ◆ Small size, convenient to install and operate ◆ 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage output ◆ Complete surge voltage protection function ◆ For applications such as air, water, oil ◆ Provide OEM, flexible customization
Application
◆ Intelligent IoT constant preure water supply ◆ Engineering machinery, industrial proce control and monitoring ◆ Energy and water treatment syst◆ Steel, light industry, envmental protection ◆ Medical, agricultural machinery, testing equipment ◆ Flow measurement equipment ◆ Hydraulic and pneumatic control syst◆ Air-conditioning unit and refrigeration equipment ◆ Water pump, air compreor preure monitoring
Parameter
Measuring range: 0~600Bar Accuracy: ±1.0%FS Output signal: 4-20mA (2 wire) Supply voltage: 12~36(24)VDC Operating temperature: -40~105℃ Compensation temperature: -20~80℃ Operating current: ≤3mA Temperature drift (zero&sensitivity): ≤±0.03%FS/℃ Long-term stability: ≤±0.2%FS/year Response time: ≤3ms Overload preure: 150%FS Burst preure: 300%FS Cycle life: 500,000 times Preure medium: Non-corrosive liquid or gas Preure connection: G1/4, Other preure connection is on request Electrical connection: Hirschman DIN43650C Housing material: 304 Stainle Steel Protection cla: IP65 Explosion-proof cla: ExiaⅡCT6 Weight: ≈0.120kg

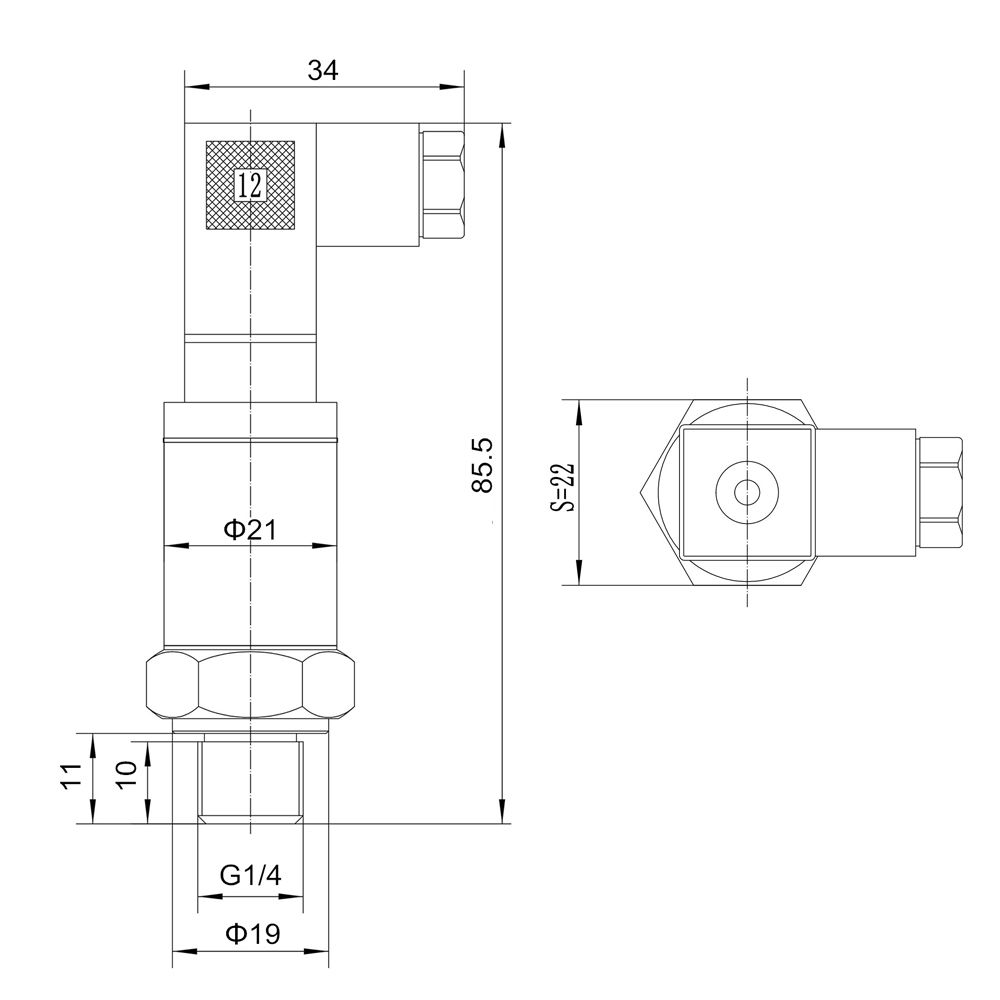

Dimension (unit:mm)
Electrical connection
Pin1: Supply + (Red) Pin2: Output + (Black) With shielded cable
Ordering information
Default cable length: 1.0m / 11.8inch cable. If you have other special requirements, please contact us and note in the order.
About shippingShipping and Packaging All itwill be double checked and well packed before sending.Itwill be dispatched within 2 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resoe the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Type:Transmission Pressure r
Origin:CN(Origin)
Sensitivity:≤±1.0%FS
Style:Varistor Type
r Type:Photoelectric
Measuring Range:0-60mpa
Signal Type:Frequency Signal
Supply voltage:12-36VDC
Housing material:304 Stainless Steel
Electrical connection:Hirschman DIN43650C
Explosion-proof class:Exia2CT6
Paired cable:1m
Max Measuring Range:400 Bar & Above
Output signal:4-20mA
Operating temperature:-40-105℃
Pressure connection:G1/4 or other
Protection class:IP65
Electromagnetism Compatibility:EN50051-1
What's In the Box
1X water oil fuel gas air pressure transmitter G1/4 12-36V 4-20mA 0-600bar optional stainless steel pressure transducer sensor
