Features:
- It's an advance preure transducer than traditional mechanical preure transducer.
- ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
- It has complete surge voltage protection function.
- Light weight and small size, convenient to install and operate.
Specification:
Product Name: Oil Preure Transducer
Material: Stainle Steel & Rubber
Color: Sier & Black
Voltage: DC 5V

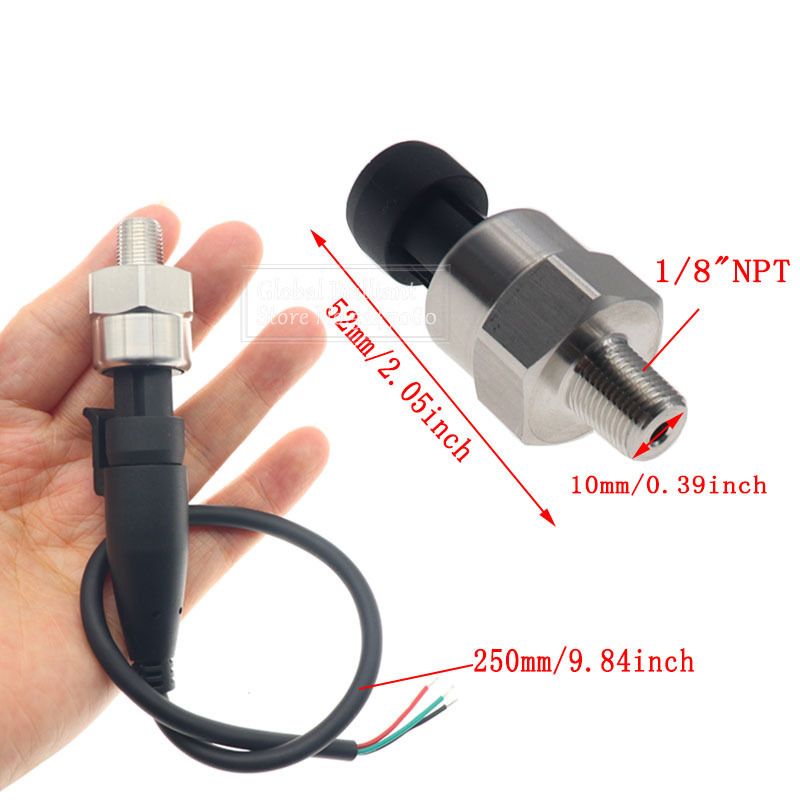

Size: 53mm x 14mm
Cable Length: 312mm
Thread: 1/8"-27 NPT / 1/8" NPT

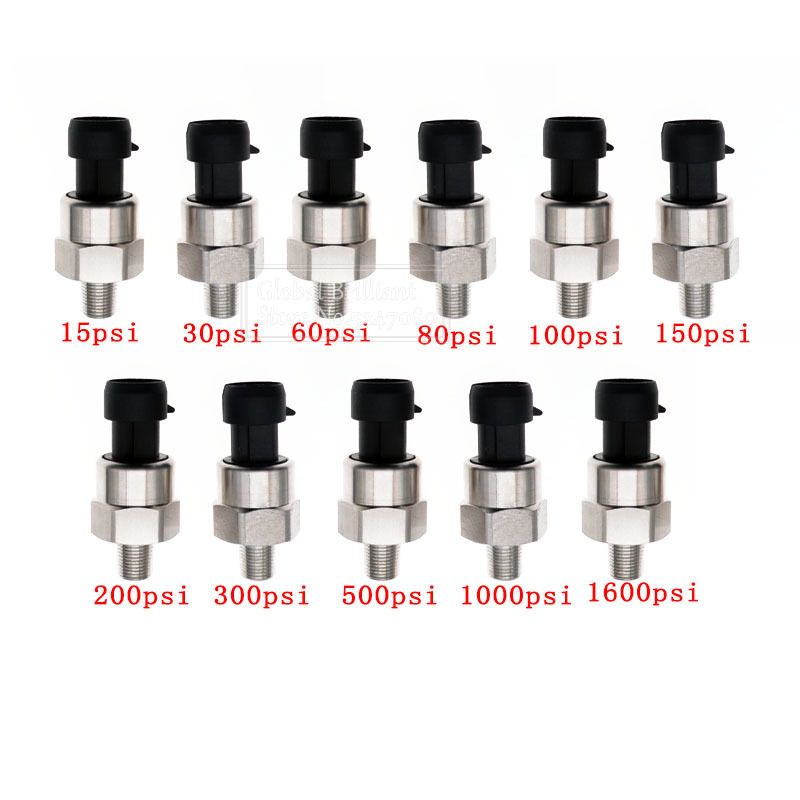

Preure: 15psi, 30psi, 60psi,80psi,100psi,150psi,200psi,500psi,1000psi,1600psi
--30 psi
Input: 0-30 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8"-27 NPT.

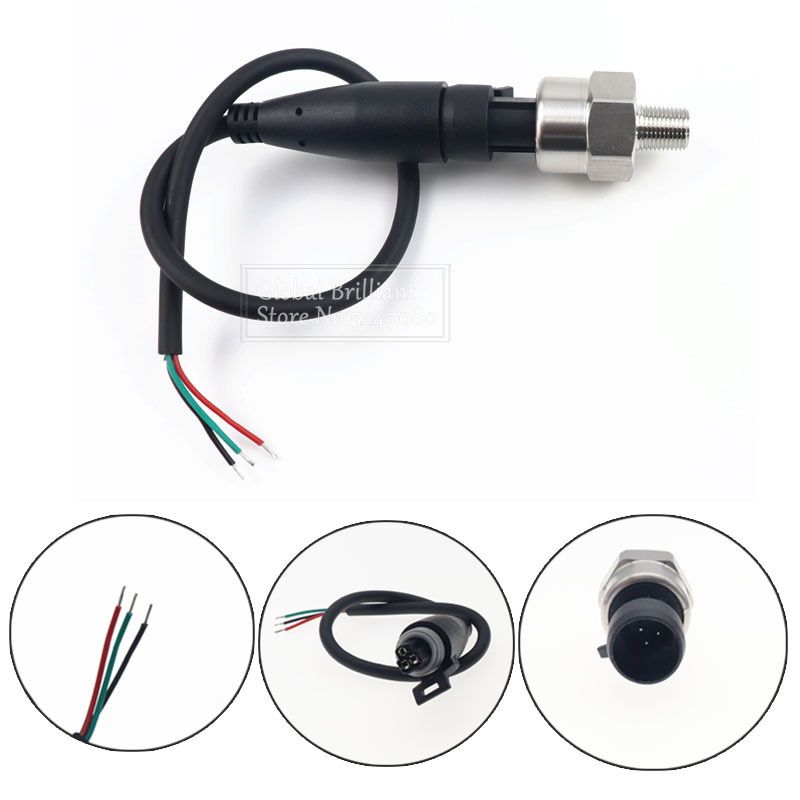

Wiring Connector: Water sealed quick disconnect. Mating connector is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
--100 psi
Input: 0-100 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8"-27 NPT
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harne (pigtail) is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
--150 psi
Input: 0-150 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8" NPT
Wiring: Red for +5V; Black for ground; Green for signal output
Overload Capacity: 2-4 times of rated preure
Working Temperature: -40℃~+120℃
Compensation Temperature: 0℃~+80℃
Protection Cla: IP67
Preure Medium: Oil, gas and water which is compatible with 316L stainle steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: Le than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Cla: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1
--200 psi
Input: 0-200 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V
Working Temperature: -40~+125℃
Accuracy: ±1%FS
Thread: 1/8"-27 NPT
Overload Capacity: 2 times of rated preure
Preure Medium: Oil, gas and water which is compatible with 316L stainle steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: ± 0.2%FS/year
Temperature Effect on Zero: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃
Temperature Effect on Sensitivity: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃
Shock Resistance: 100g
Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Cla: ExiaTTCT6
Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3
Wiring Connector: Water sealed quick disconnect. Mating connector and wire harne (pigtail) is included.
Wiring: Red for IN+; Black for GND; Green for OUT.
Fitment:
For oil, , , gas, air preure(Cannot use measuring water preure)
Can be used in oil tank, gas tank, tank etc.
Package Includes:
2 Set Preure Transducers
About shippingShipping and Packaging All itwill be double checked and well packed before sending.Itwill be dispatched within 2 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resoe the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Type:Transmission Pressure r
Origin:CN(Origin)
Linear:Oil Pressure r
Repeatability:Oil Pressure r
Resolution:Oil Pressure r
Sensitivity:Oil Pressure r
Style:Varistor Type
OEM NO.:Oil Pressure r
r Type:Differential Holzer
Measuring Range:Oil Pressure r
Hysteresis:Oil Pressure r
Signal Type:Voltage Signal
What's In the Box
1X 2 Set DC 5V 1/8NPT Oil Fuel Gas Air Pressure Transducer Transmitter Sensor 15/30/60/80/100/150/200/300/500/1000/1600Psi Steel
