Color LCD display:
The BSIDE color LCD display greatly improves the reading experience. The numbers and letters with a bright black background light up, making it easy to read even in bright sunlight or under low light conditions.

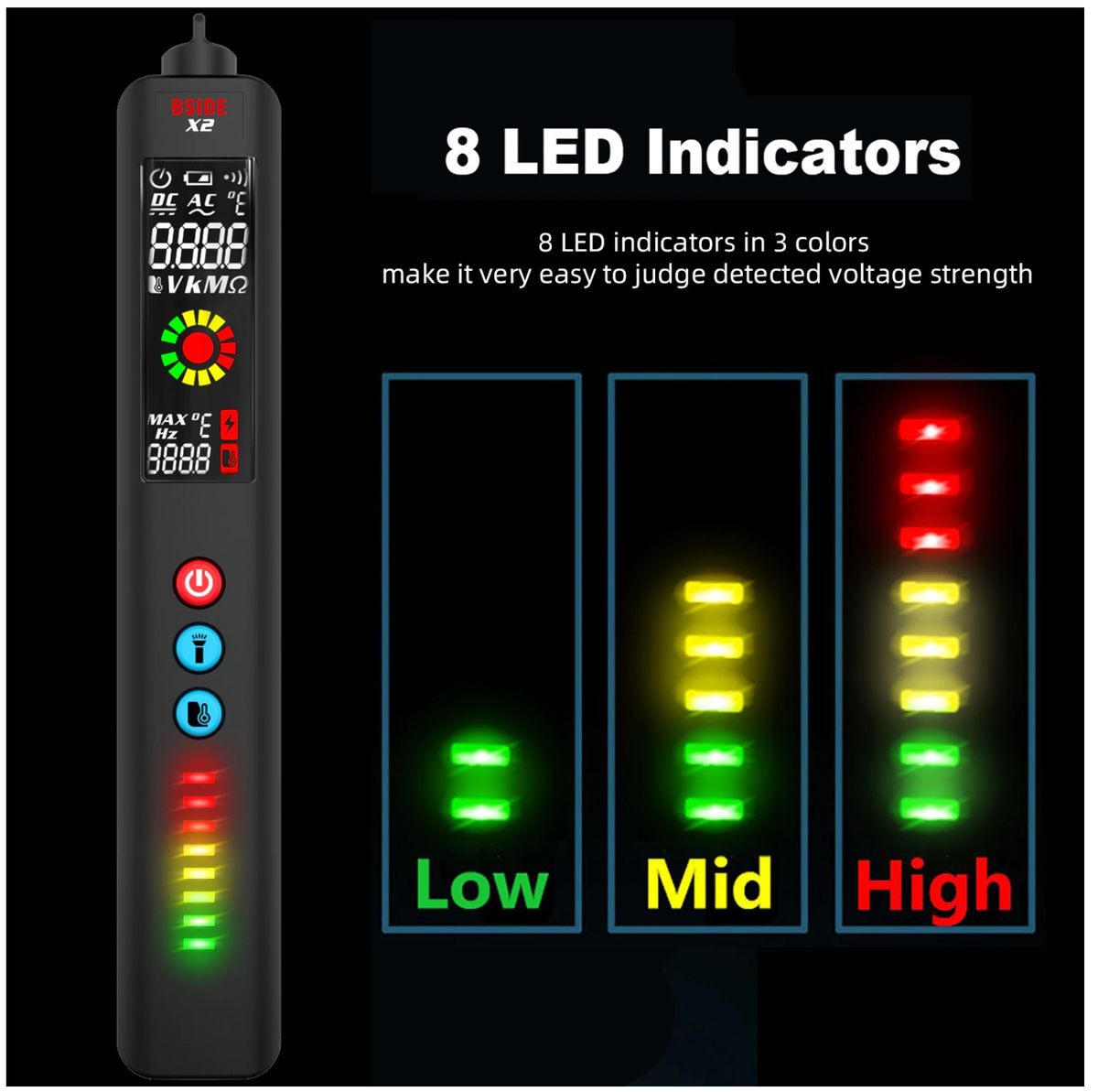

8 LED indicators:
8 LED indicators in 3 colors make it easy for you to judge the detected voltage intensity.
3 Result Display:
The high-resolution large-screen three-line display can display 3 test results, voltage, frequency and analog bars on the screen.
Integrated multimeter:
The design of the integrated multimeter of the voltage detector not only greatly expands the test application range, but also allows you not to worry about the multimeter taking up too much space.

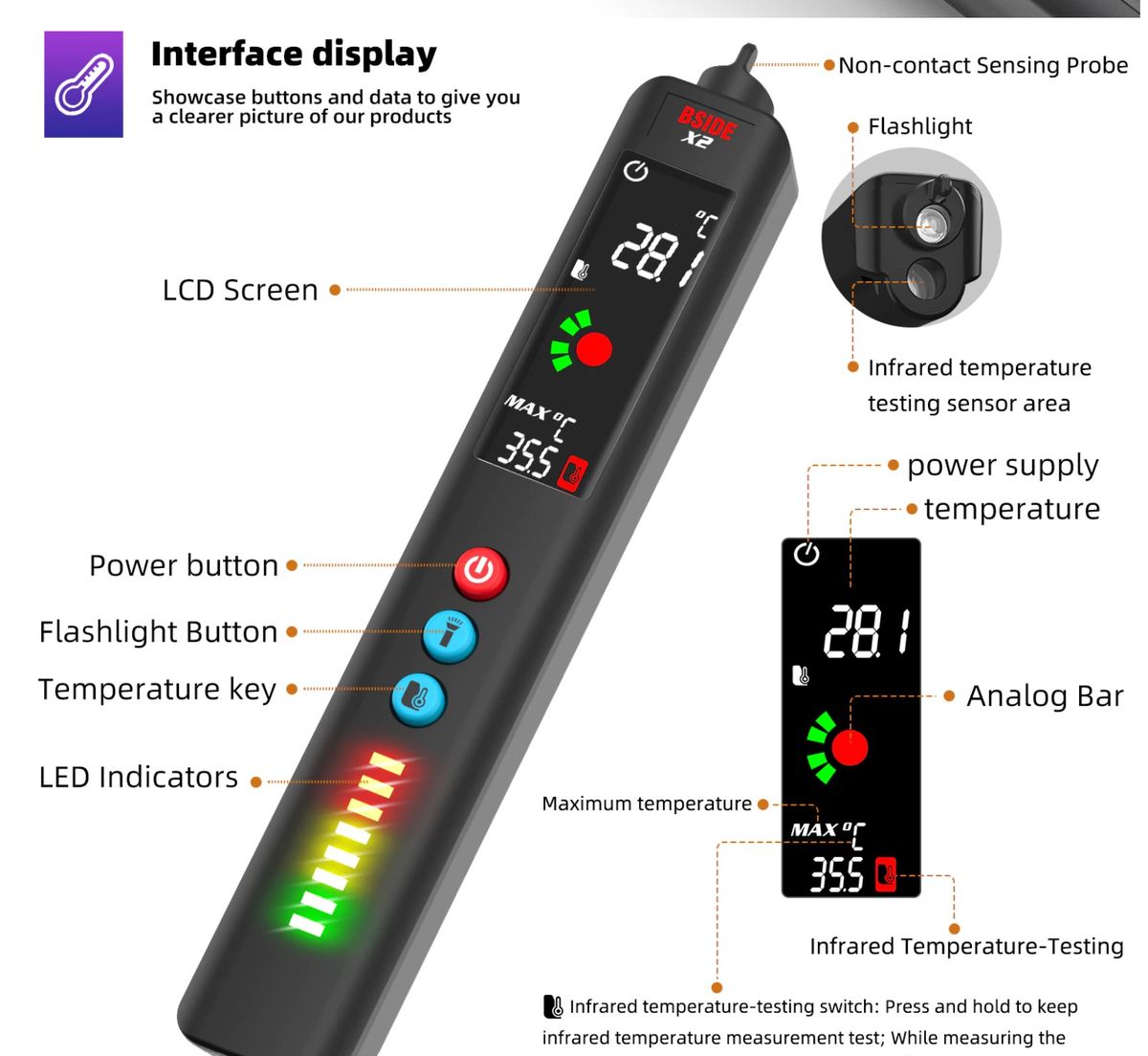

BSIDE Integrated infrared thermometer X2:
The voltage detector integrated infrared thermometer greatly enhances the testing experience, which is very suitable for HVAC applications, automobiles, grills, etc.
Color LCD display:
The BSIDE color LCD display greatly improves the reading experience. The numbers and letters with a bright black background light up, making it easy to read even in bright sunlight or under low light conditions.
8 LED indicators:
8 LED indicators in 3 colors make it easy for you to judge the detected voltage intensity.
3 Result Display:
The high-resolution large-screen three-line display can display 3 test results, voltage, frequency and analog bars on the screen.
Integrated multimeter:
The design of the integrated multimeter of the voltage detector not only greatly expands the test application range, but also allows you not to worry about the multimeter taking up too much space.
X2 Specifications:
Display: 2000 counts
DC Voltage: 500V 0.01V ±(0.8%+3)
AC Voltage: 500V 0.01V ±(1.2%+5)
Resistance: 10MΩ 1Ω ±(1.2%+3)
Frequency: 1000Hz 1Hz ±(2.0%+3)
Temperature: 0℃-380℃±(2.5%+2); -20℃-0℃±(2.5%+3); -4℉-716℉
Distance to Spot Ratio: 6:1
Continuity: If the resistance less than 30Ω, the beeper sounds

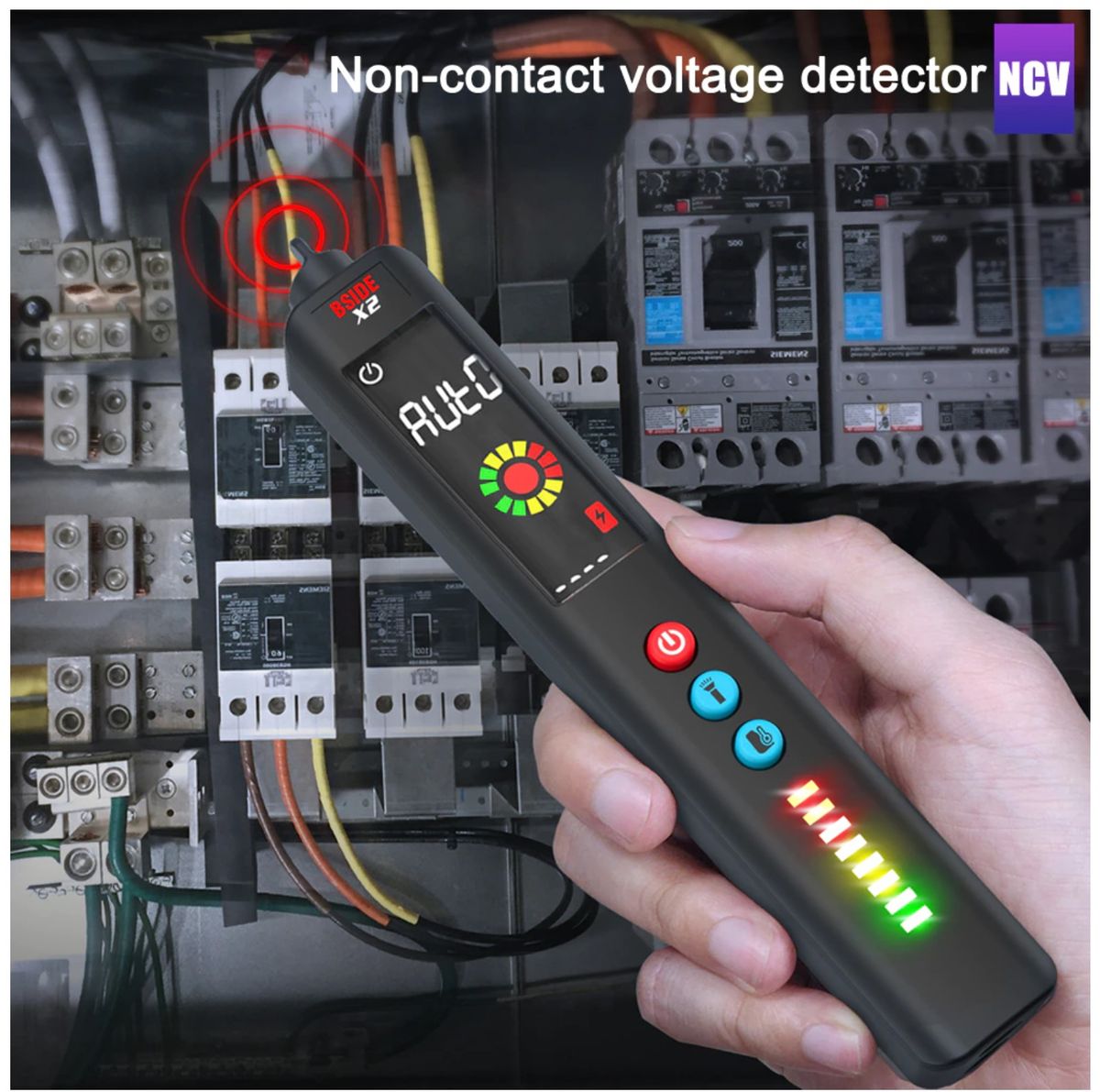

V-Alert (Non-contact Voltage Detection): Yes
Power: 1.5V AAA x 2 (not included)
Size: 181*31*28mm
Weight: 87g
Package Includes:
1 x X2 Voltage Detector
1 x Test Leads
1 x Case
1 x User Manual
Note:
The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.

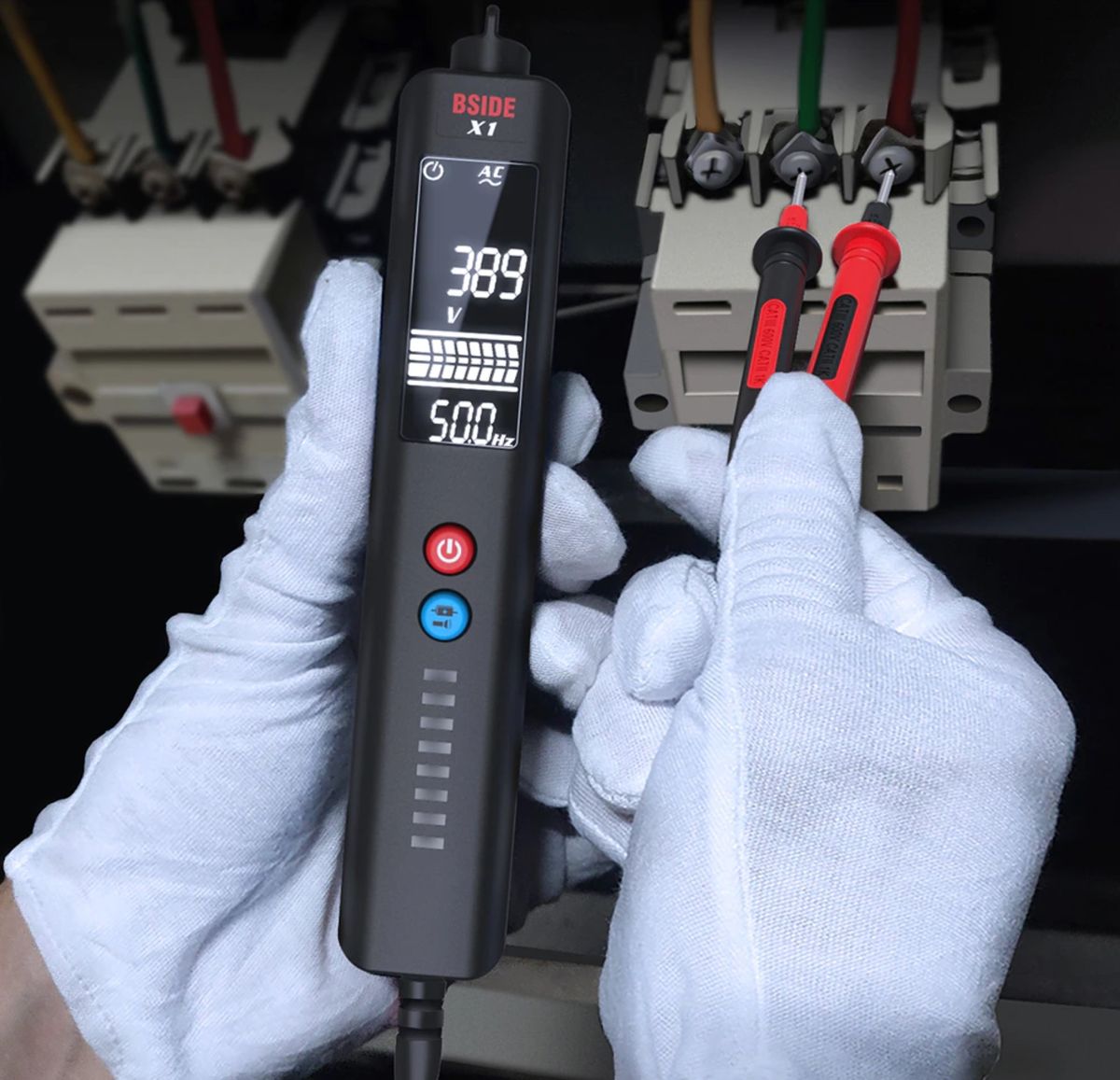

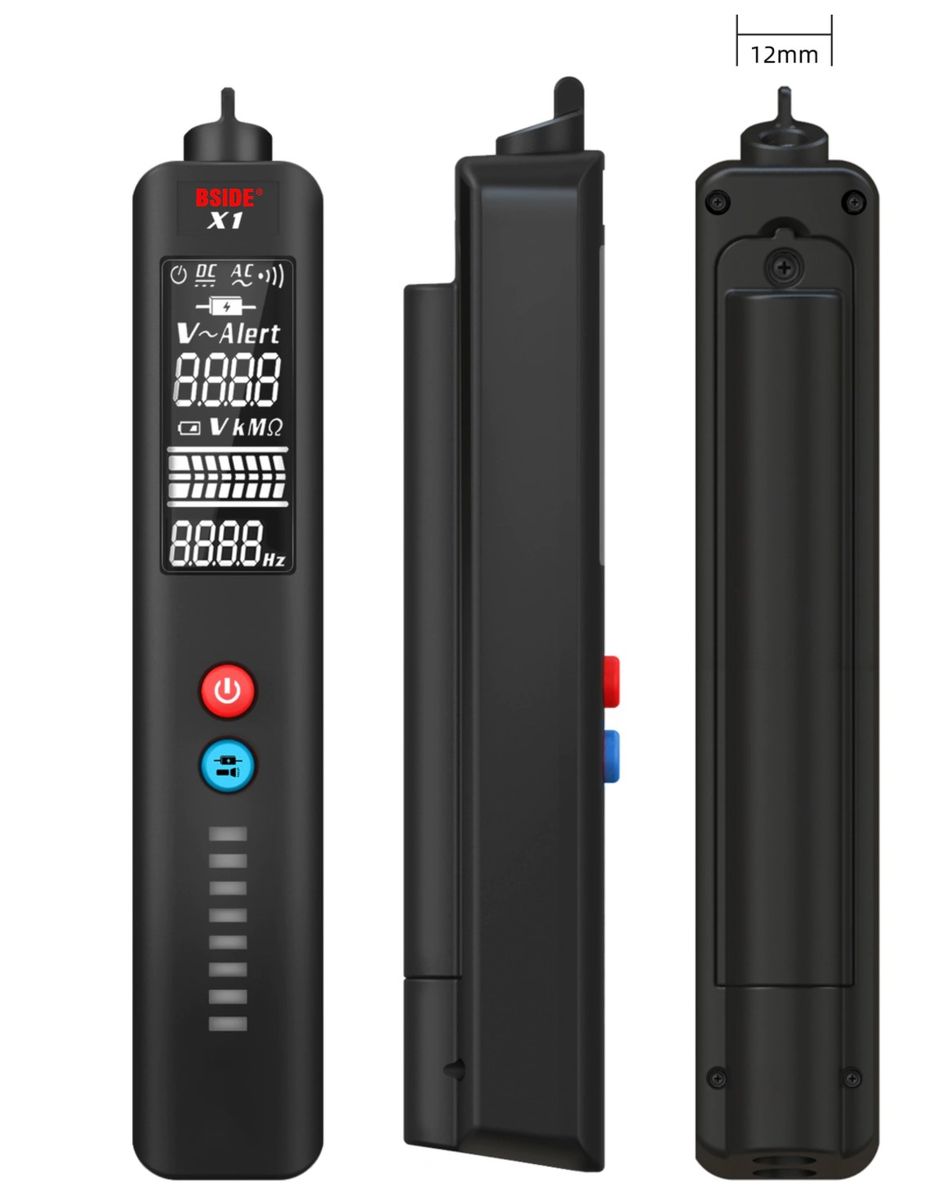

BSIDE Voltage Detector Multimeter X1:
1.Non-contact and slim desigh, convenient to operate and carry.
2.EBTN super-clear display, clear and easy to read.
3.Dual mode operation.(Low sensitivity and High sensitivity)

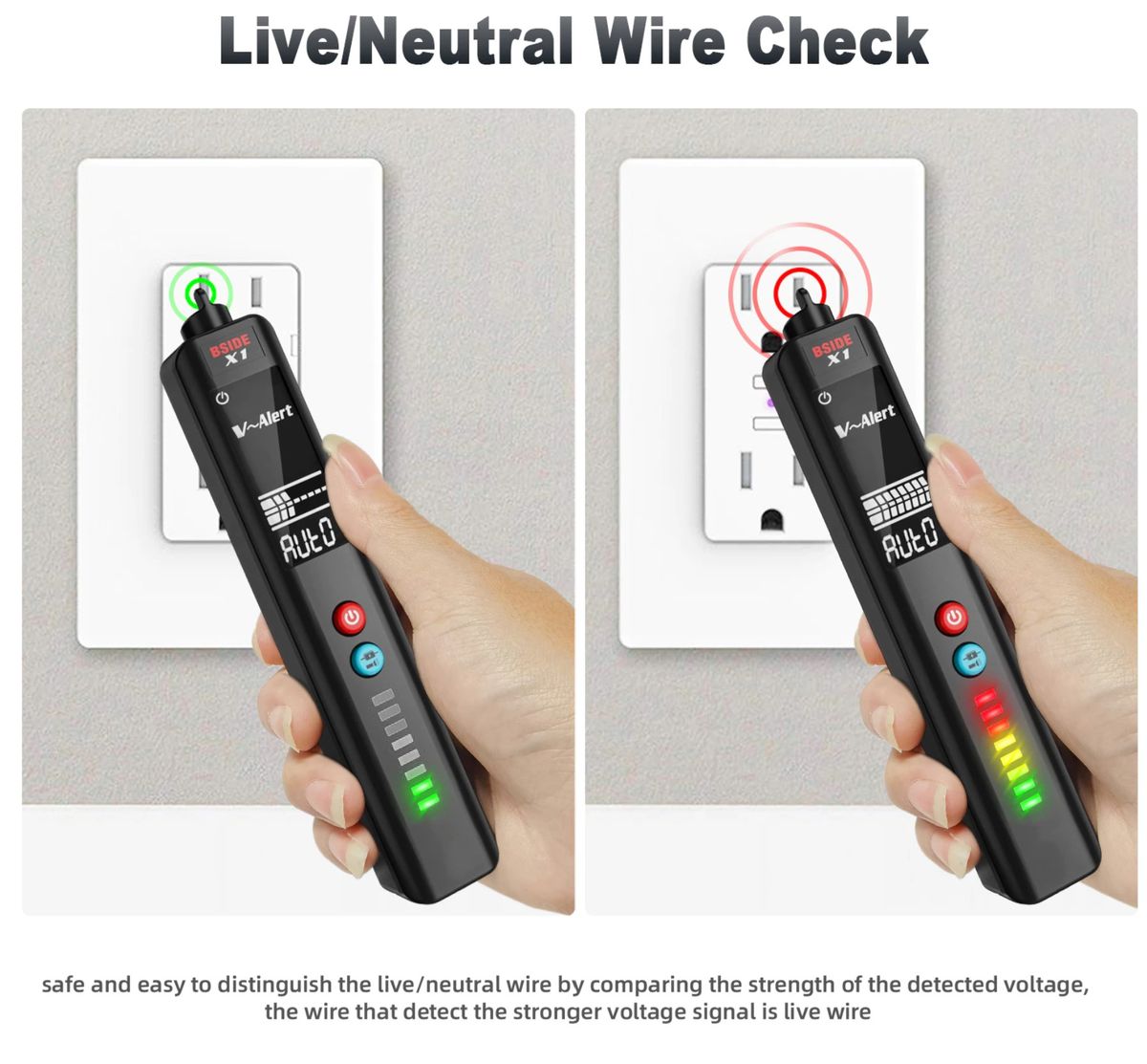

4.With inductive dangerous voltage alarm, live/neutral line distinction, live break point positioning, continuity check, flashlight function, etc.
5.LCD Display & LED indicator dual prompts-Dangerous voltage at a glance.
6.With 8 LED indicators in 3 colors (Red/Yellow):Automatic identification of high/medium/low voltage.
7.Alarm mode: Sound、Analog strip and light (Red/Yellow).
8.Double insulation body material greatly improves the safety standard to protect you from electric shock.
9.Safety level: CAT II 600V.
10.Battery low voltage reminder, Auto power off features.

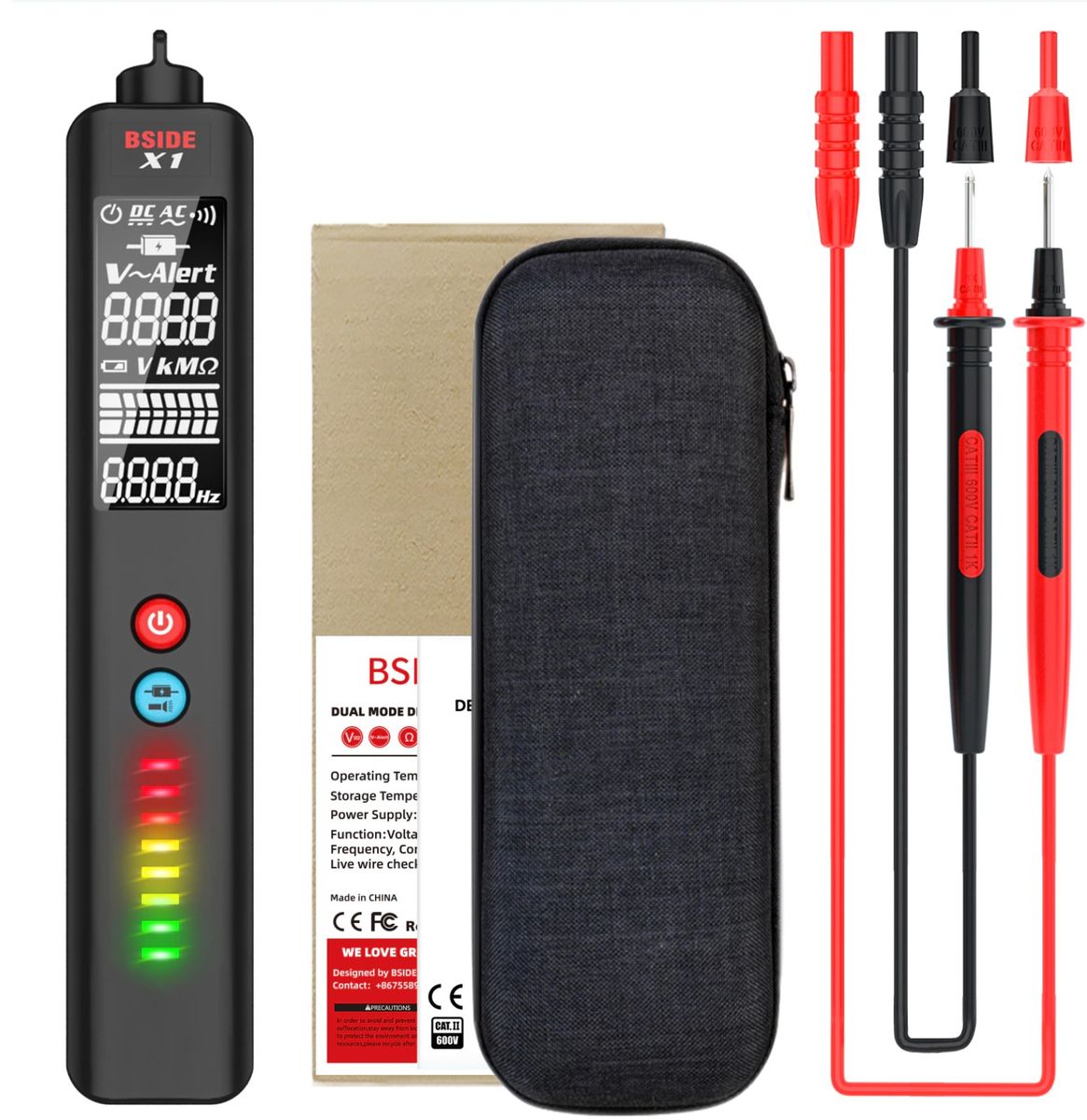

What's In the Box
1 x X1 Voltage Tester
1 x Test Leads
1 x EVA High quality zipper case
1 x English User Manual
