| Model |
S11/S |
| Weight (kg) |
1 |
| Color |
Black |
| Main Material |
Plastic |
Display: 9999 counts

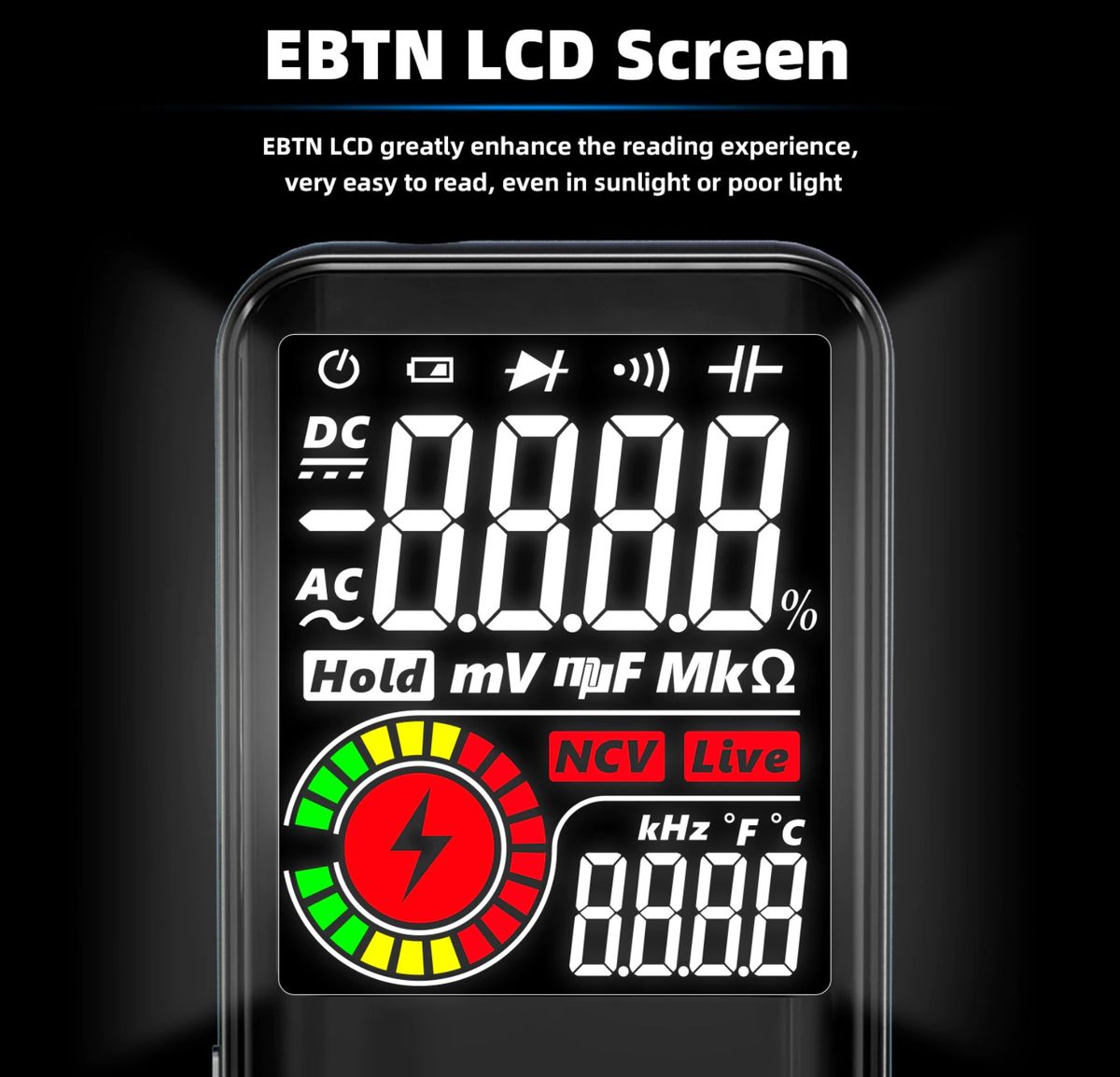

Screen: 3.5 inch
DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V
AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V

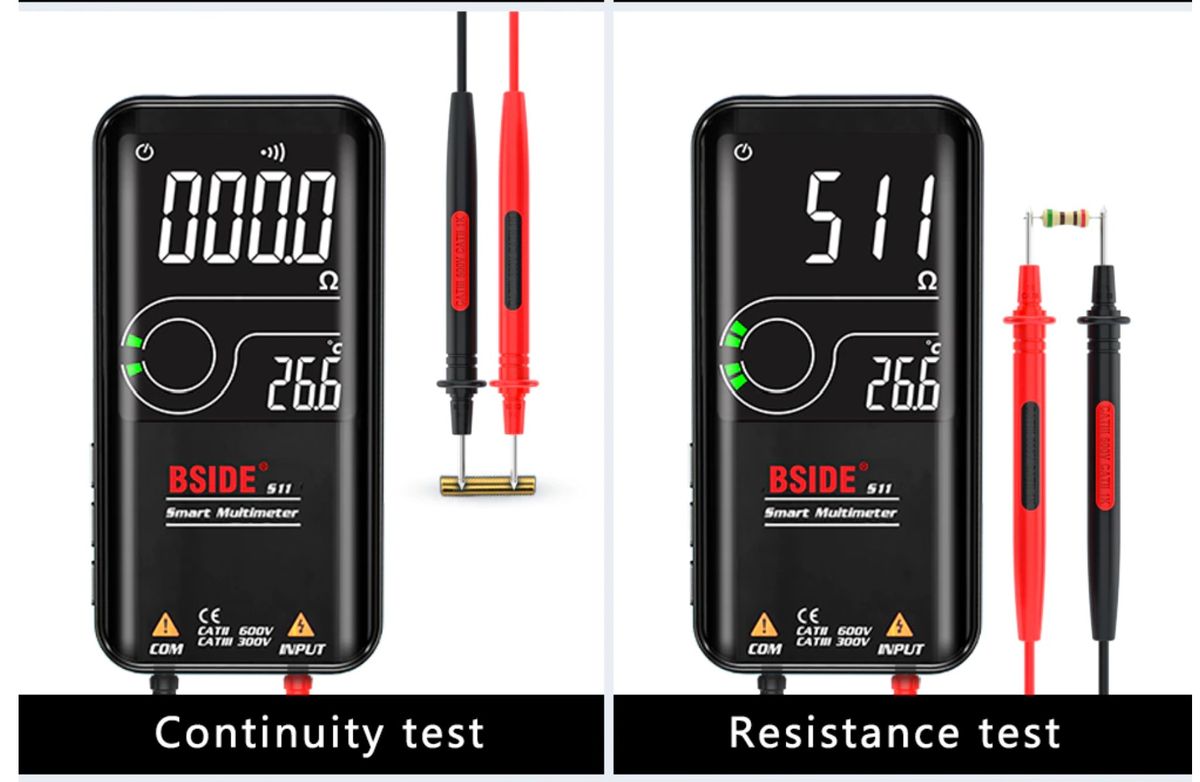

Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω

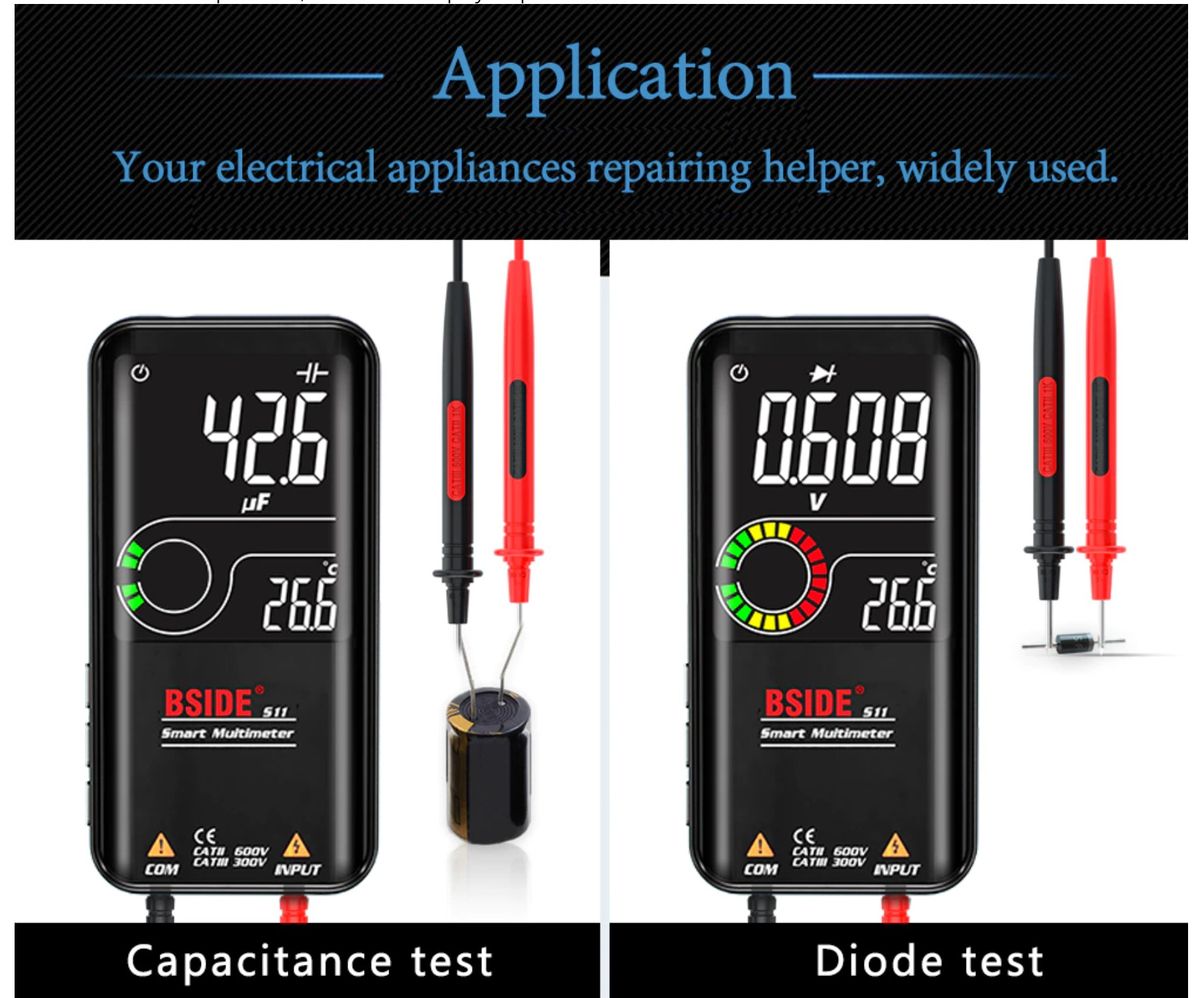

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V);
Resolution: 0.001Hz

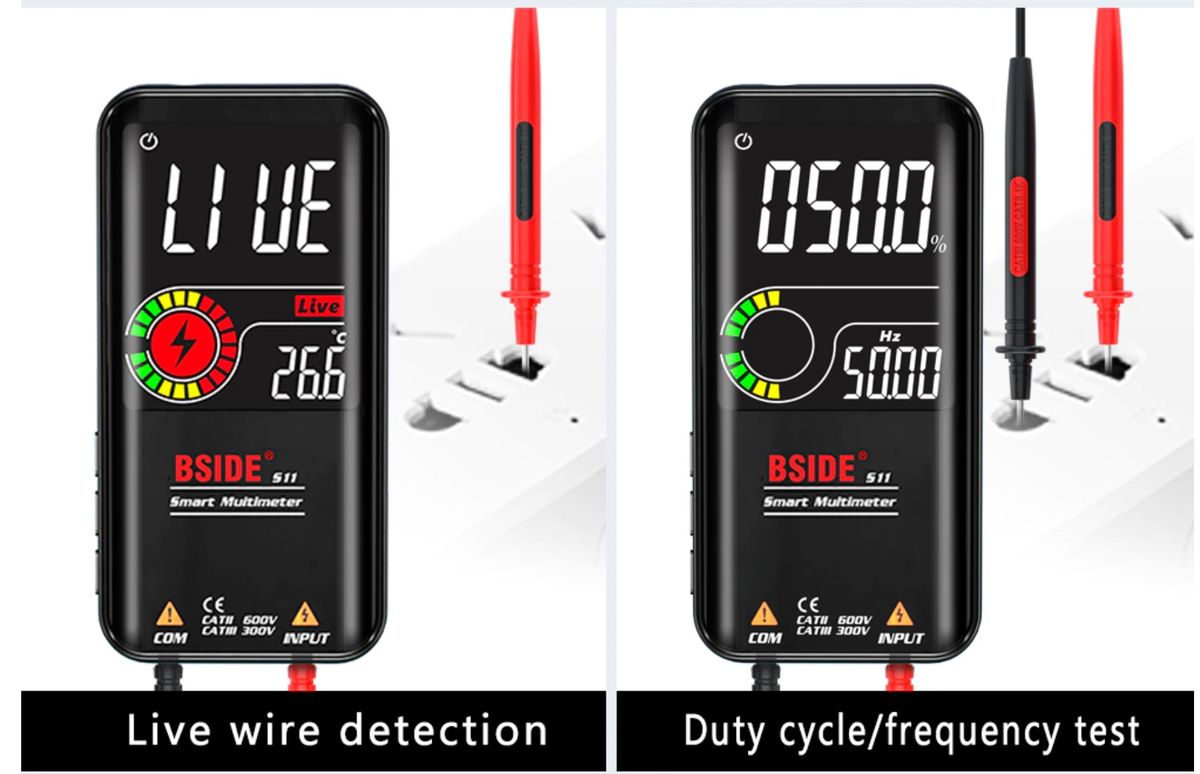

Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%
Diode: Auto identify diode if less than 3.0V

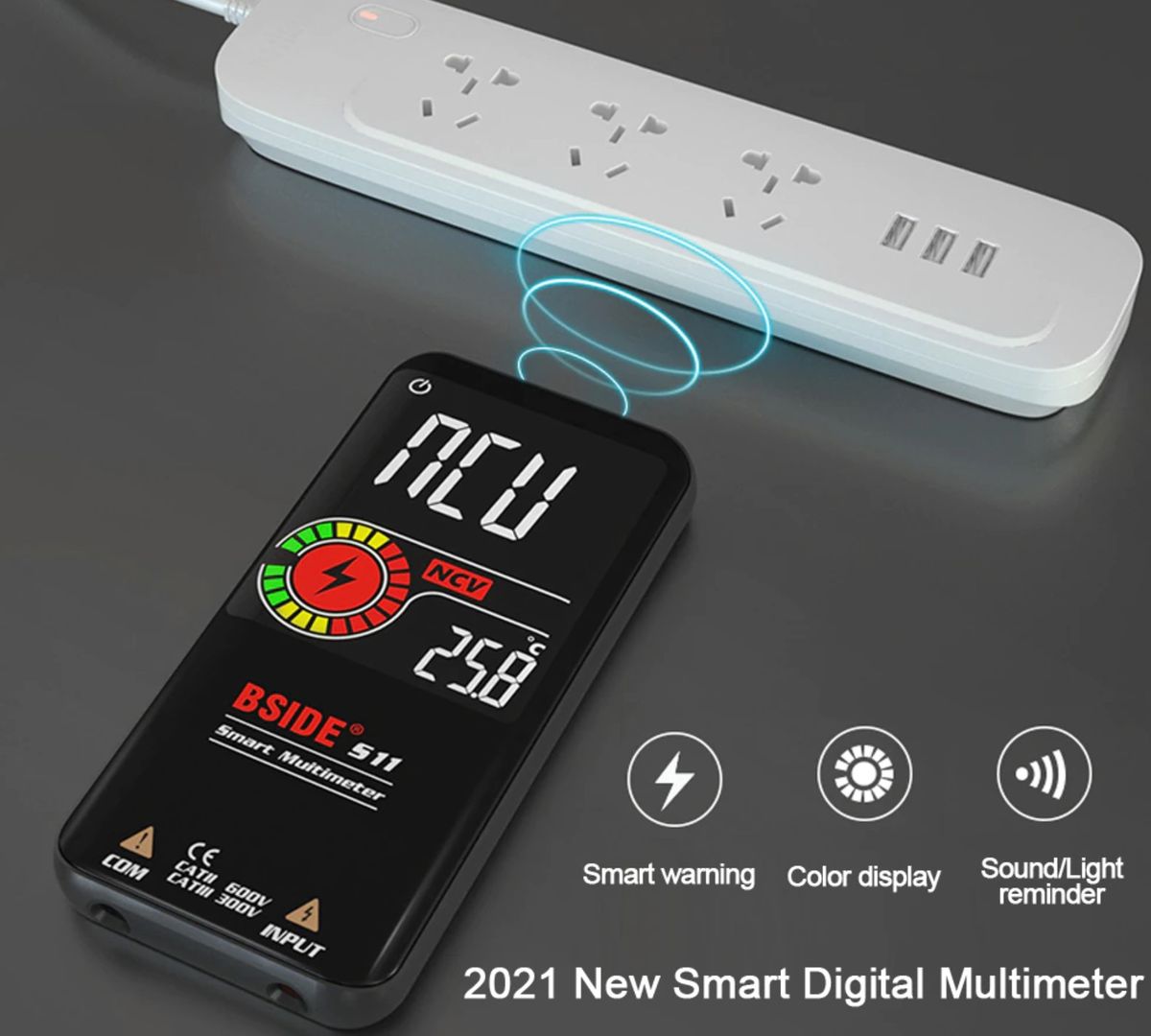

V-Alert(non-contact voltage detection): beep alarm sounds
Live Check: alarm beep sounds, LCD screen display stripe
What's In the Box
Package Includes:
1 * Multimeter. 1 * Test Lead.
1 * English user Manual. 1 * Packing Box.
1 * USB charging cable.（S11/S20）
1 * EVA portable cloth bag.（S11/S20）
1 * Protective shell.（S11/S20）
