2017 new vhs to pc converter convert HDMI/YPbPr directly into U-Driver SD TF Card no pc required
1080P HD Video Game Capture HDMI Recorder Card HDMI/Ypbpr TV Video Recorder With Remote Control Support Mic USB Disk

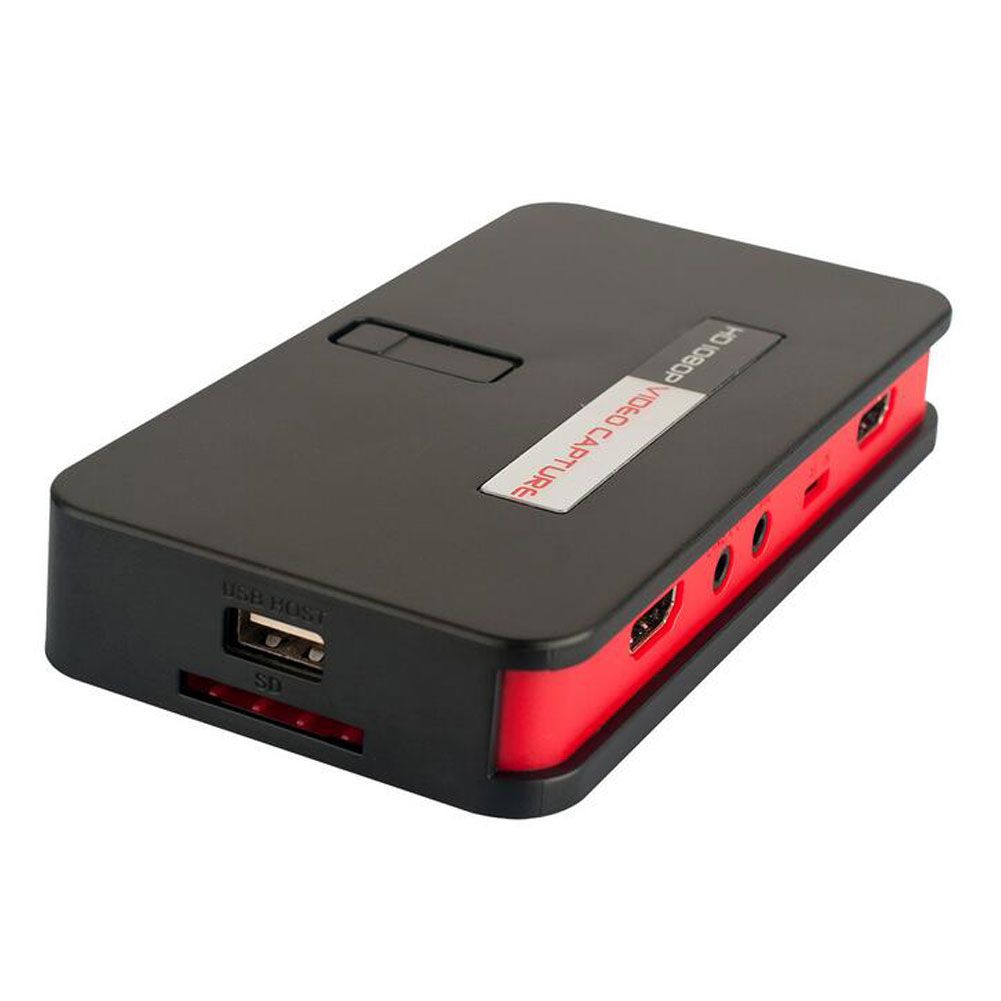

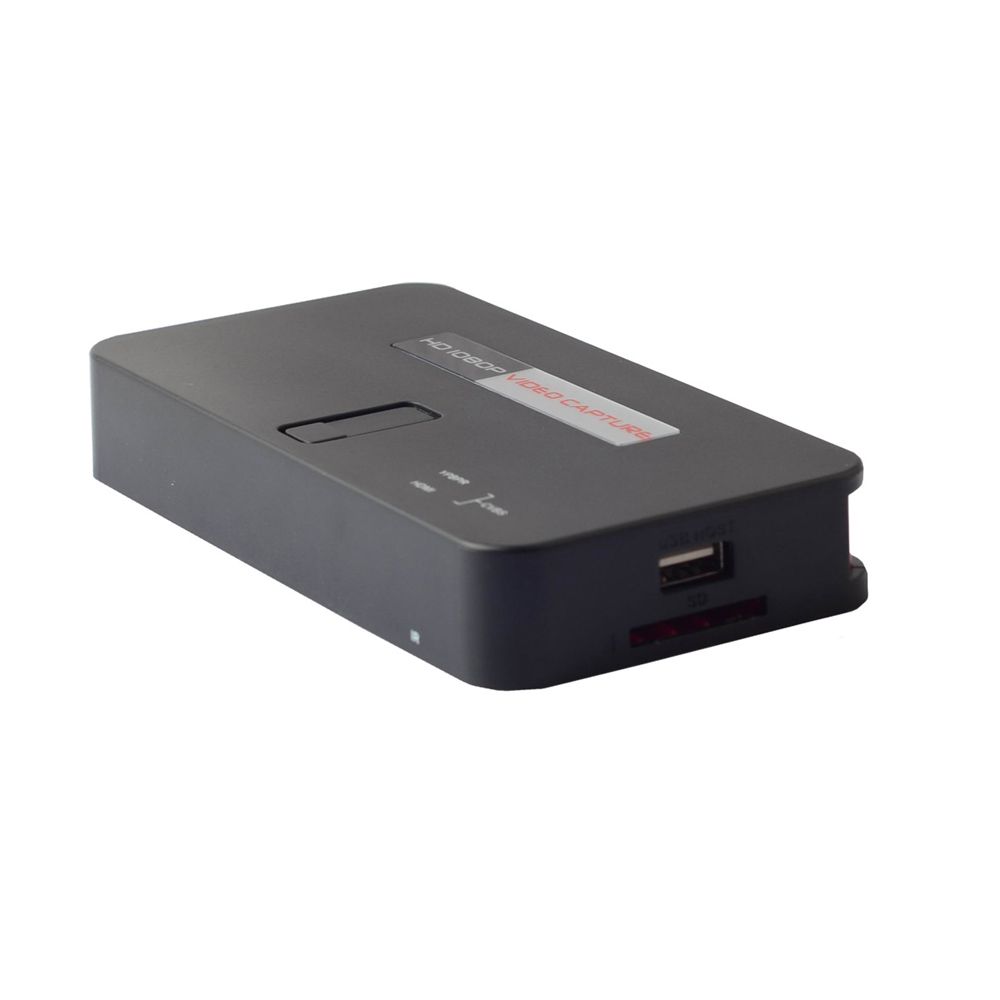

With this HD Video Capture, you can capture up to 1080P video from HDMI, Ypbpr (component) or composite port, such as blue ray, set-top-box, computer, game box, VHS, etc. With remote control, can set input signal manually, recording quality, or capture a still image by SNAPSHOT on.
Features:
The HD Video Recorder captures videos and games up to 1080p, and then save them into USB Flash Disk, Portable Hard Disk, or SD Card.
Easy to use, no any set-up, no PC enquired. To record video is very simple: pre the record on, then you will see the indicator turns to pink, it means now recording.
Simple insert one USB Flash drive or SD Card (support,32, and NTFS) to get videos anywhere, anytime; Share the gameplay and fun with your friends anywhere.
With remote control, can manually set input signal, recording quality, or capture a still image by SNAPSHOT on.
have 3 input modes: HDMI, component, composite. You can capture 1080P video from game consoler(for 3 & 4), STB, DVD, BlueRay or other video source.
Note 1: Some HDMI video sources may have HDCP , you cannot get the pa through video and record it.
Note 2: For PS4, it has disabled HDCP option for firmware 1.7 or later.
Note 3: Disable HDCP option is only for game play, not for blue ray DVD play.
Specifications:
CPU: Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Video Input: HDMI (Digital); Component Video, Composite Video (Analog).
Audio Input: HDMI (Digital);A Audio L/R, 3.5mm Microphone In (Analog) (Note: Microphone without pa through for HDMI input).
Video Output: HDMI (Pa-through from HDMI or Component or Composite) (Digital).
Audio Output: HDMI(Pa-through from HDMI or L/R) (Digital); 3.5mm Stereo (Pa-through from HDMI or AudioA L/R Input) (Analog).
Codec: Hardware MPEG4 encoder
User Interface: On-board Hot on for one-click recording; LED indicator for working sratus.
Storage Media: USB Flash Disk, Portable Hard Disk, SD Card (exformat is not supported).
Input Resolution / Pa-through:
720 * 480 (60p), 720 * 576 (50p), 1280 * 720p (50p), 1280 * 720p(60p), 1920 * 1080 (50i), 1920 * 1080 (60i),
1920 * 1080 (24p), 1920 * 1080 (25p), 1920 * 1080 (30p), 1920 * 1080 (50p), 1920 * 1080 (60p).
Capture Resolution:
720 * 480 (60p), 720 * 576 (50p), 1280 * 720p (50p), 1280 * 720p(60p), 1920 * 1080 (50i), 1920 * 1080 (60i),
1920 * 1080 (24p), 1920 * 1080 (25p), 1920 * 1080 (30p), 1920 * 1080 (25p), 1920 * 1080 (30p). (Note: Upscaling is not supported.)
Record Format: AVI MPEG4 (Video), AAC Stereo (Audio).
Record Quality: Max 18Mbps@1080P 30fp
Record File: Max 2GB / per file
Record Place: Max 140MB / minute, 8GB / hour
Power Supply: DC 5V 2A
Main Item Size: 14.1 * 7.3 * 2.3cm / 5.55 * 2.87 * 0.91in
Main Item Weight: 116g / 4.08oz
Package Size: 15.4 * 10.6 * 8.2cm / 6.06 * 4.17 * 3.23in
Package Weight: 419g / 14.78oz
Package List:
1 * HD Video Capture
1 * Adapter Cable (for component and composite video)
1 * HDMI cable
1 * Power Adapter
1 * Software CD
1 * English User Manual
