Overview:
The latest 4K Ultra game capture card live box, it supports input and loop-out resolutions up to 2160p30 HDR, 1080p120 and 1440p, recording resolutions up to 1080p60 HD.
Features:
USB Live Cam supports Capture SDI in 1080p60 full HD, and capturing HD video in 4Kp30 Ultra HD.
Support multi video format output: NV12, YUY2, XRGB. Support XRGB output up to 1080p30.
Support UVC standard, no driver installation required.
This capture card streams video signal through USB3.0/Type C port

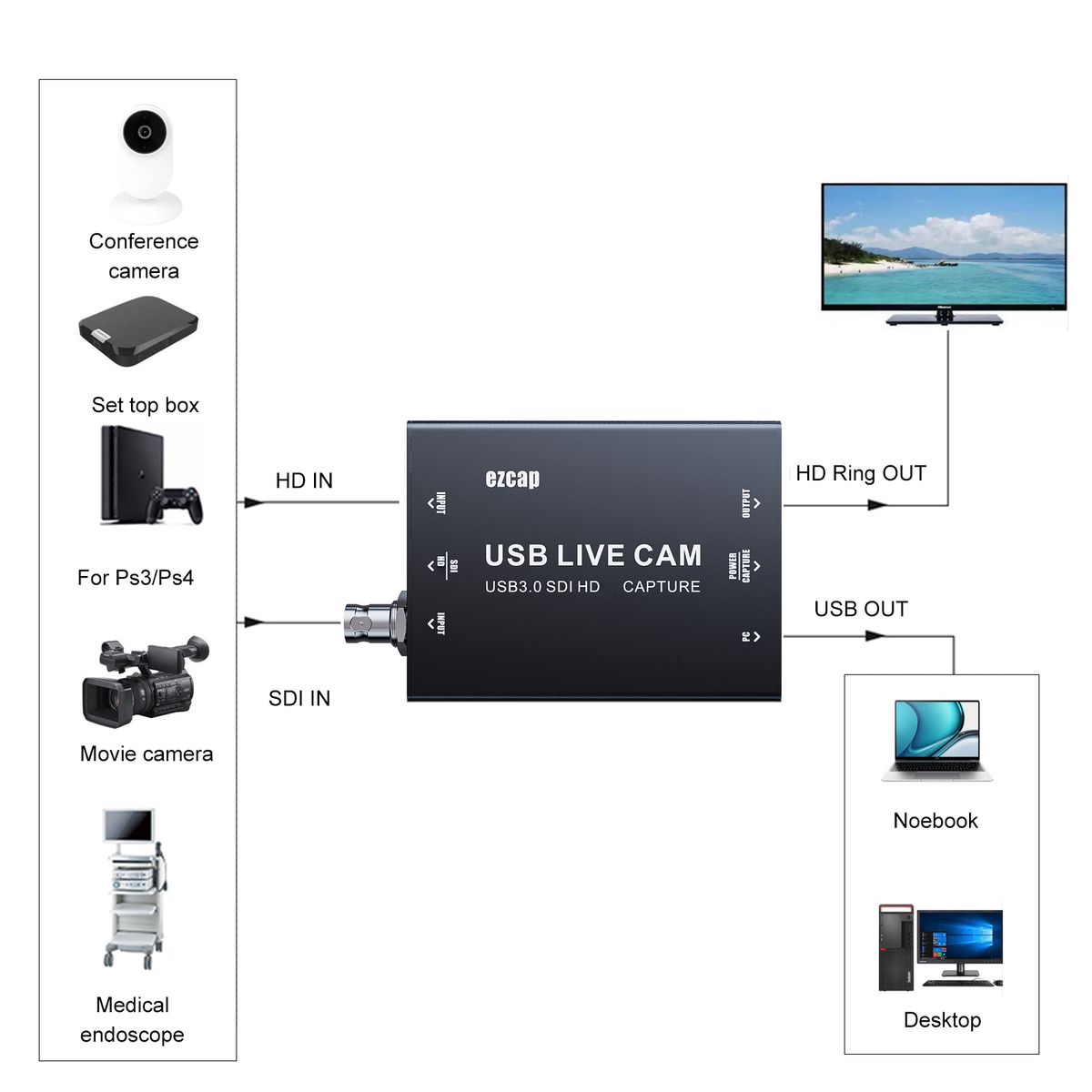

Work with most software on PC. Allow live video streaming, webcasting or video conferencing.
Notes:
1. It is not recommended to connect HD signal and SDI signal at the same time。
2. SDI or HD input resolution must be set to the same. Otherwise, the live broadcast software cannot display the video. Check the instructions for details.
3. The video format options depend on resolution, the max FPS depends on both resolution and video format
4. The live broadcast software needs to set up audio. Otherwise, you will hear noise or no audio. Please refer to the manual for settings.

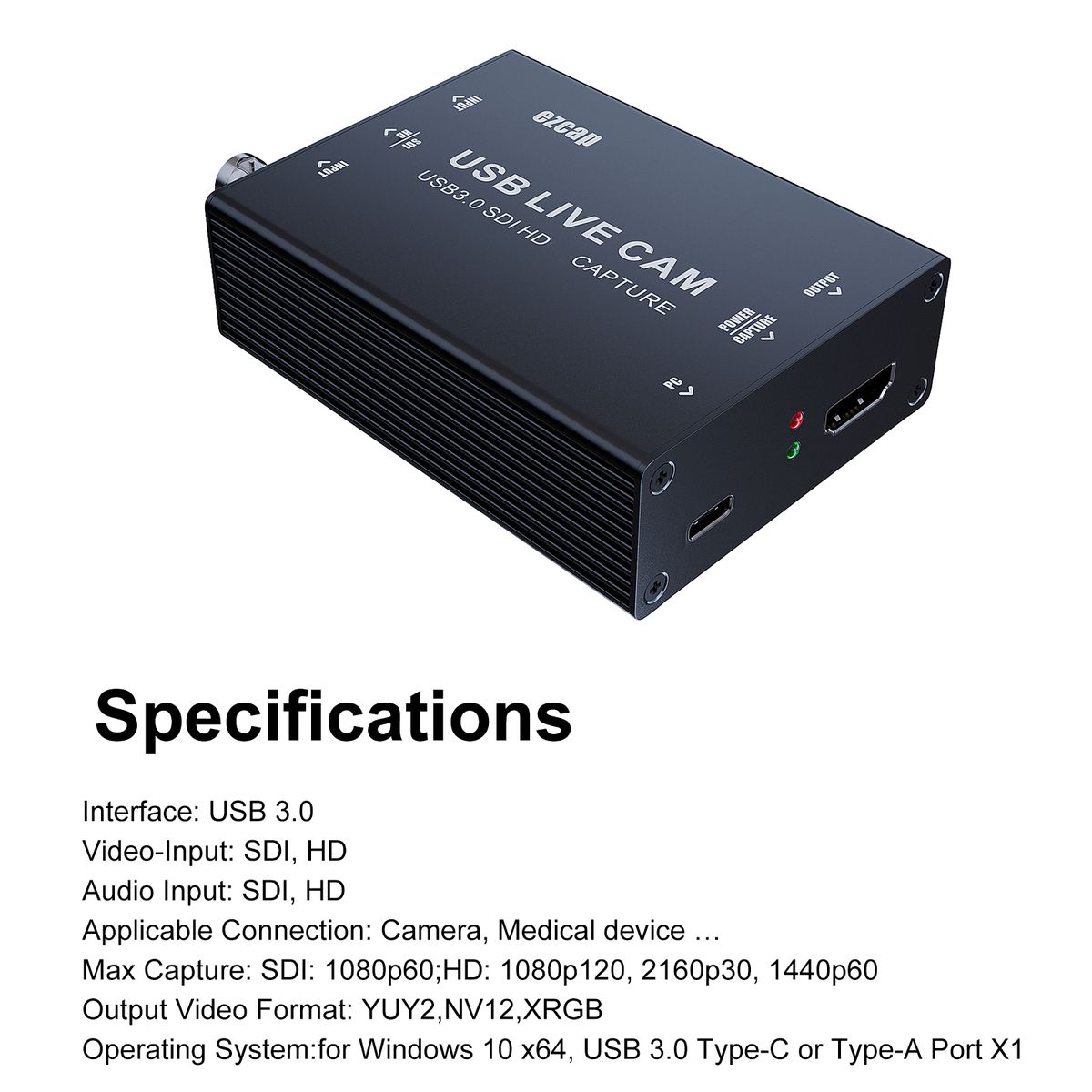

Specifications:
Interface: USB 3.0

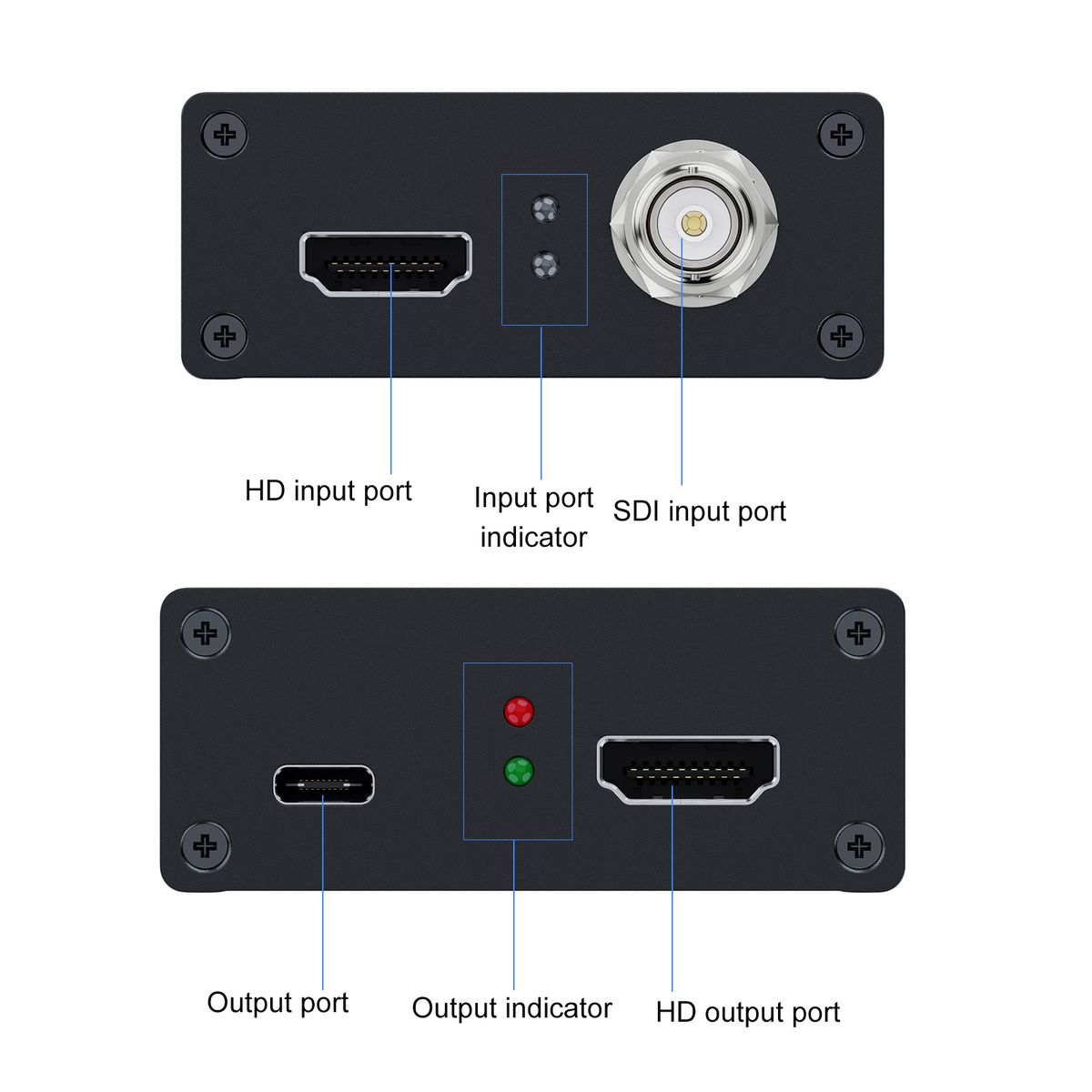

Video-Input: SDI, HD
Audio Input: SDI, HD
Applicable Connection: Camera, Medical device …
Max Capture: SDI: 1080p60;HD: 1080p120, 2160p30, 1440p60
Output Video Format: YUY2,NV12,XRGB
Operating System:for Windows 10 x64, USB 3.0 Type-C or Type-A Port X1
For 4Kp30 or 1080p120 recording:
- Intel Core i5-6XXX / Ryzen 3 XXX or above
- GTX 1060 / RX 5700 or above
- 8 GB RAM
For 1080p60 recording:
- Intel Core i5-3330 or above (3770 recommended)
- GeForce GTX 650 / Radeon R7 250X or above
- 4 GB RAM
* RAM must be DDR4 2400 or above
for Mac system requirement:for Mac OS X High Sierra 10.15 and above, USB 3.0 Type-C or USB3.0 Port X1
Resolution Input:
720 x 480(60p), 720 x 576(50p) ,1280 x 720(50p), 1280 x 720(60p), 1920 x 1080(50i), 1920 x 1080(60i), 1920 x 1080(24p), 1920 x 1080(25p), 1920 x 1080(30p), 1920 x 1080(50p), 1920 x 1080(60p), [3840 x 2160(30p)-only for HD input]
Max Device Output:
NV12: 4Kp30-only for HD input, 2Kp120, 1440p60, 720p60.
YUY2: 2Kp60, 1440p50, 720p60.
XRGB: 2Kp30, 720p60

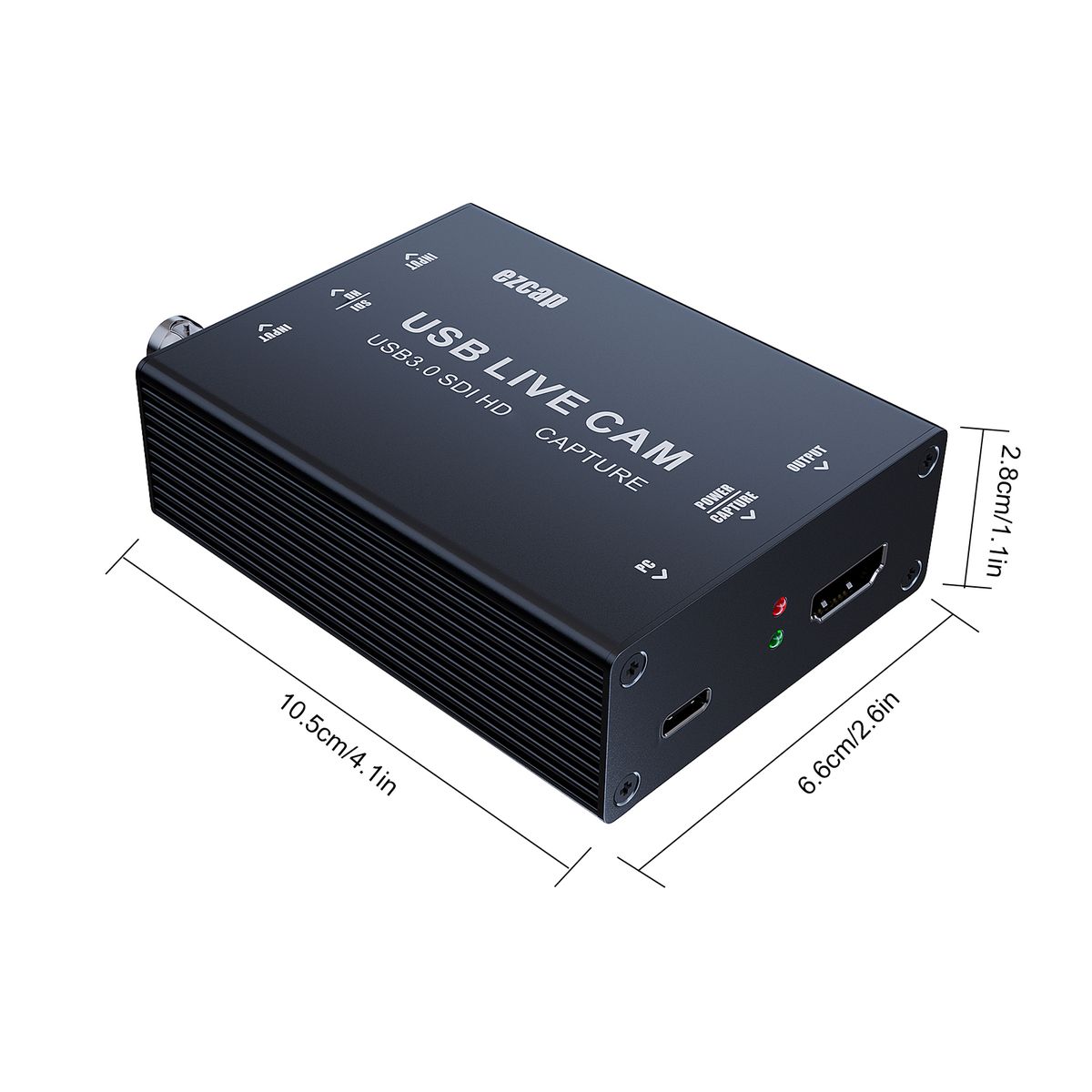

Package Size: 15.5*10.7*5.1cm / 6.1*4.2*2.0in
Package Weight: 287g / 10.1oz

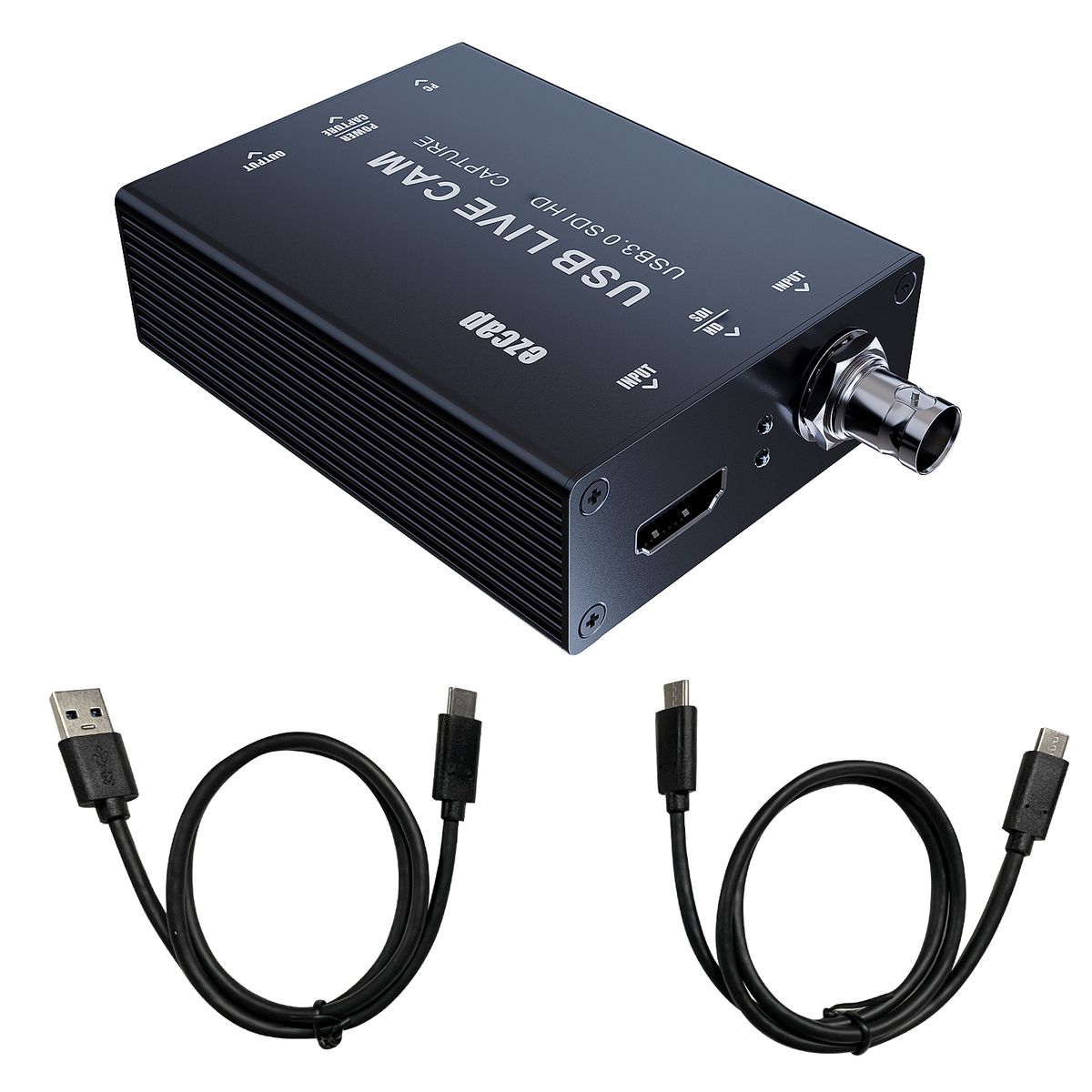

Package List:
1 * USB Live Cam SDI HD Capture
1 * Type-C to C Cable
1 * Type-C to A Cable
1 * User Manual
