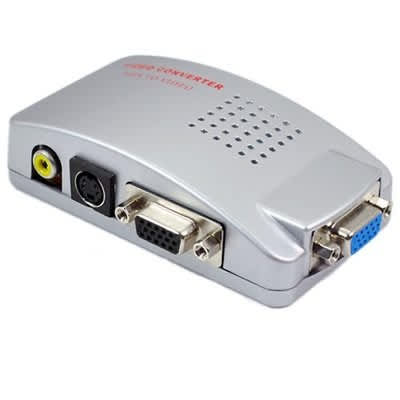

The converter enable to change the VGA signals into s-video and video signals.Let your LCD or CRT monitor change into flicker.
The converter enable to change the VGA signals into s-video and video signals.Let your LCD or CRT monitor change into flicker free display.And then you'll enjoy a high definition digital life.
Plug & play; No driver is required
Simultaneous display on VGA monitor and TV
Best for Laptop / Desktop / Notebook
Ideal for entertainment (such as play VCD, DVD, movies, Internet program on TV or experience, PC Games on TV), presentations, documentation, etc
Easy steps for connection:
Connect the VGA input port of the BOX with the PC's VGA out-put port by a VGA cable
Connect VGA out-put port of the BOX with the PC's monitor by a VGA cable
Connect the Video or S-Video out-put port of the BOX with the TV's video or S-Video input
Features:
Suitable for both PC Laptop and Desktop
Simultaneous display on VGA monitor and TV
Support 640x480, 800x600, 1024x768 display mode
Supports NTSC, PAL, PAL-M, PAL-N, AND SECAM video system
Support over-scan & under-scan function
Support position control & menu button
No software driver requirement
Function introduction
- a VGA signal input port, a VGA output port
- a Video output port, a Sideo output port
- a DC 5 v power supply interface
-input VGA signal support resolution:
640 x480 @ 60/72/75/85 hz, 800 x600 @ 60/75 hz, 1024 x768 @ 60/75 hz
- meanwhile output VGA VIDEO S - VIDEO signal
- display what television displays on PC monitor at the same time
- to support the following systems: NTSC (Taiwan, the United States, etc), NTSC - EIAJ (Japan), PAL (Europe, China),PAL - M (Brazil), PAL - N (Uruguay, Paraguay), and other countries television system
- support fullscreen (OVERSCAN) and the full screen (UNDERSCAN) two display mode
- light, thin, short, small easy to carry
- size: 110 mm (length) x56mm (width) x36mm (height)
At the same time support the PC and MAC computers
Need no install driver, plug and play
