Description:
100-240V 40A Digital PID Temperature Controller SSR K Thermocouple Sensor
Features:
1. Measuring accuracy: plusmn;0.5%FS
2. Cold-end compensation tolerance: plusmn;2℃(can be modified by software in 0~50℃)
3. Resolution: 14 bit
4. Sampling cycle: 0.5 Sec
5. Power : AC 100-240V 50/60HZ
6. Process value (PV), Setting value (SV)
7. Output, and self-tuning can be indicated by:LED
8. PIN control (including ON/OFF, step-type PID and continuous PID)
9. Self-tuning control
10. Proportional band (P): 0~full range (ON/OFF control when set to 0)
11. Detective temperature range: 0 to 999℃
12. Insulation resistance: gt;50M ohm(500V DC)
13. Insulation resistance : 1500V AC/min
14. Insulation resistance : Power Consumption lt; 10 VA
15. Service environment: 0~50℃
16. Environment with no corrosive gas 30~85% RH
Max.40A SSR:
1. Output Current: 40A
2. Input Voltage: DC 3-32V
3. Output Voltage: 24-380V AC
4. Output Voltage Range: Standard Type

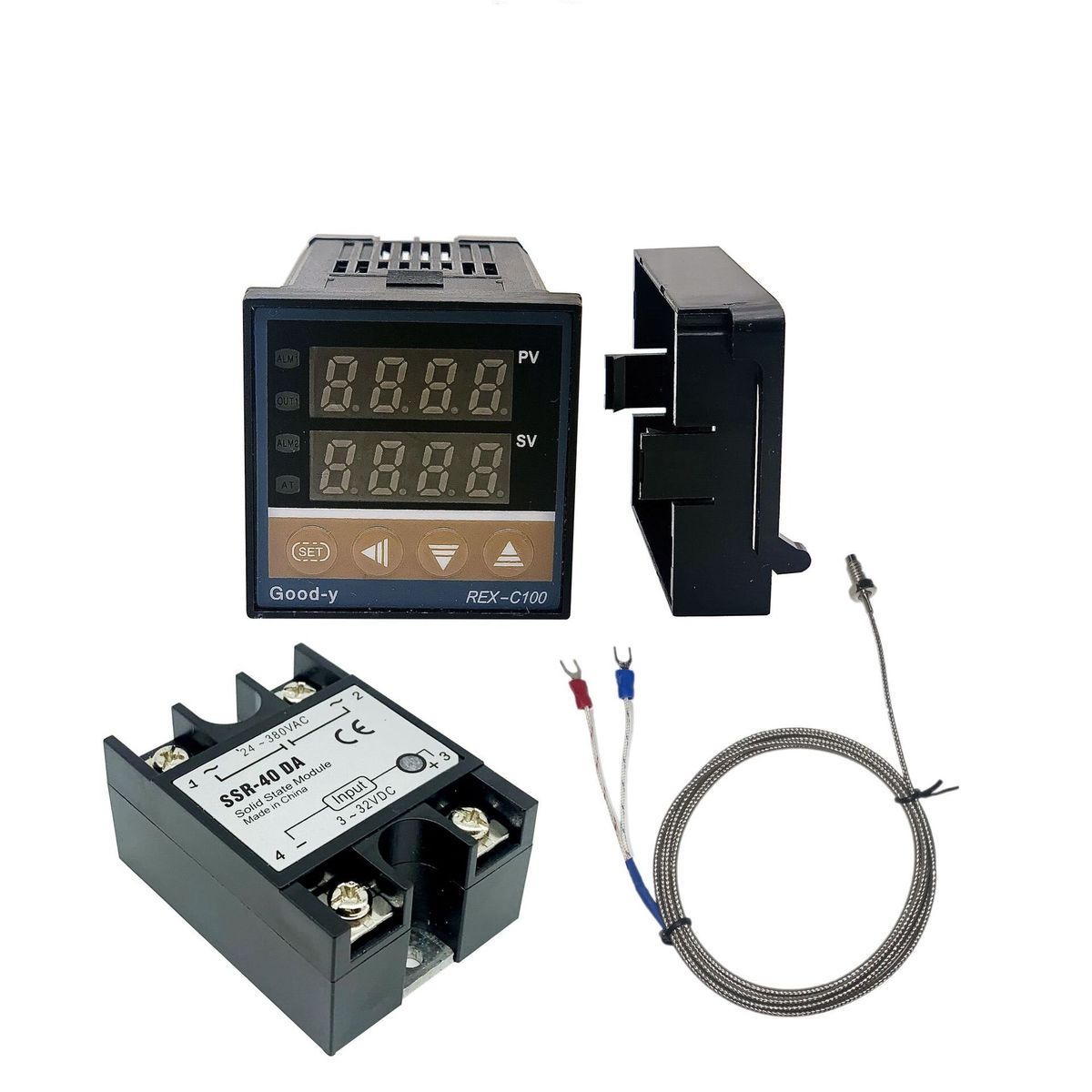

Package includes:
1 x PID Temperature Controller

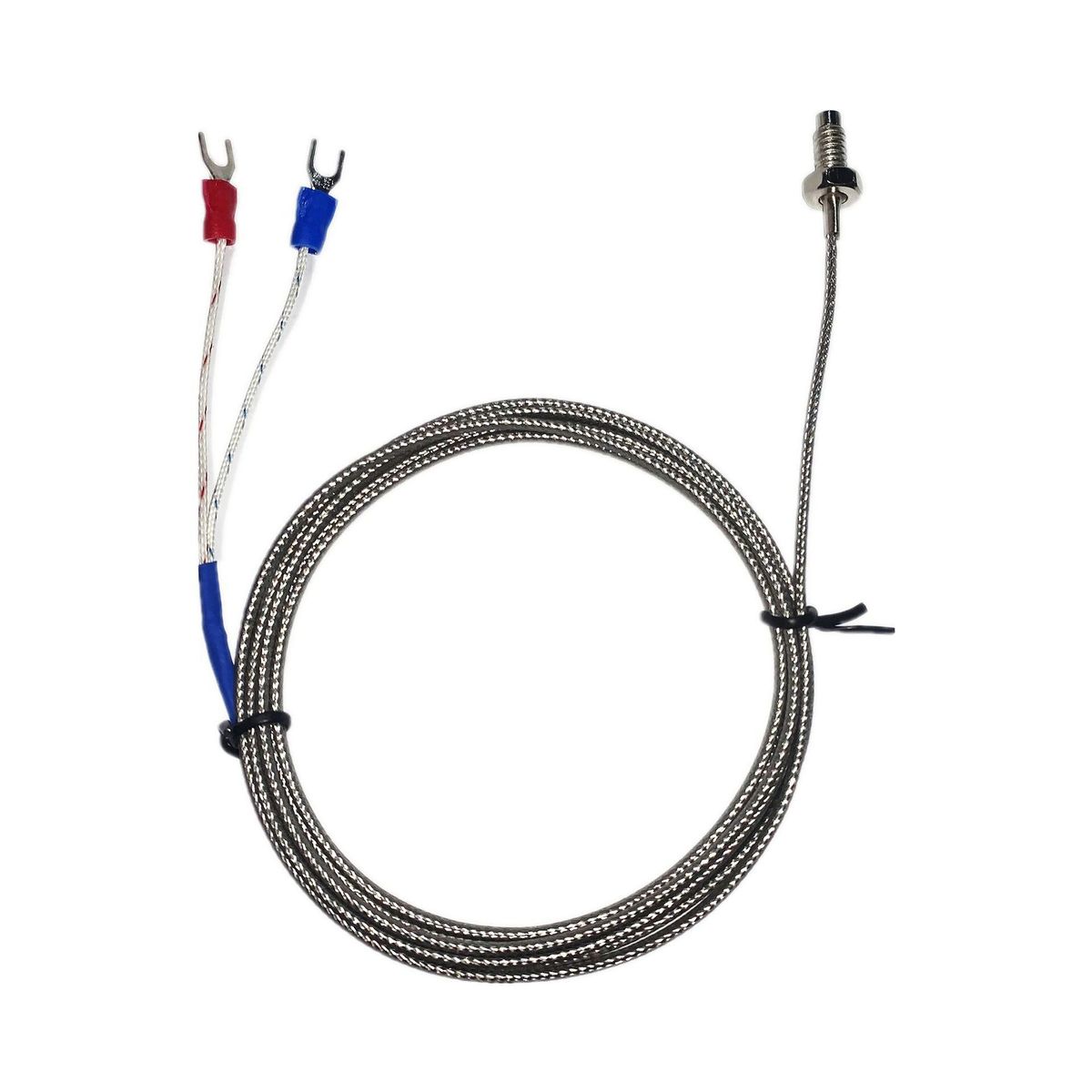

1 x K Type Probe Sensor
1 x Max.40A SSR
Details pictures:
