Safety Precautions:
1.The measuring circuit should be CAT II 600V or below.? Do not measure bare conductor.
2.Do not touch the conductor under test and the sensor head while
measuring.
3.Do not operate in wet / damp conditions.
4.Do not touch the instrument or the object under test with wet hands.
5.Please use this product within the scope permitted by the terminal.
6.Please use this product as required.? Please ground the product through the USB power cable.
Specifications:
Version: 1.0
Modify content: First release
Release time: 2019.05
Parameter: CP2100A
Bandwidth: DC ~ 800KHz (CP2100A)
Rise time: le;583ns (CP2100A)
Ranges: 10A / 100A (Optional on the switch)
Output sensitivity: 0.1V / A (10A) /0.01V/A (100A)
DC accuarcy (typical): 3% plusmn; 50mA (10A) / 4% plusmn; 50mA (100A, 500mA ~ 40Apk)
/ 15% (100A, 40Apk ~ 100Apk)
Signal delay: lt;150ns (10A) / lt;200ns (100A)
DC signal linearity (typical): DC signal linearity, typical on page 6
Measuring range: 50mA ~ 10Apk (10A) / 1A ~ 100Apk (100A)
Maximum measurable current: 100Apk, 70.7Arms (DC + ACpk) / 200Apk-pk, 70.7Arms (AC)
Maximum working voltage: CAT III 300V CAT II 600V
Maximum float voltage: CAT III 300V CAT II 600V
Maximum conductor diameter: 13mm
Overload indication: The buzzer beeping, the button light flashing
Power supply: DC 5V
Probe head size: 11 * 6.1 * 2.5cm
Control box size: 10.8 * 5.6 * 2.6cm
Length: 228cm
Weight: 290g
Single package weight: 1000g
Single package size: 29.5 * 23.6 * 5.7cm
Operating Temperature: 0 deg; C ~ 50 deg; C
Storage Temperature: -20 deg; C ~ 80 deg; C
Operating Humidity: 5% ~ 95% (0 deg; C ~ 40 deg; C, No condensation)
/ 5% ~ 65% (40 deg; C ~ 50 deg; C, No condensation)
Operating Altitude: le;3000m
Storage Altitude: le;12000m
User Instructions:
1.Connect the BNC of the current probe to the oscilloscope (or other instrument) and connect the USB cable to power the current probe.

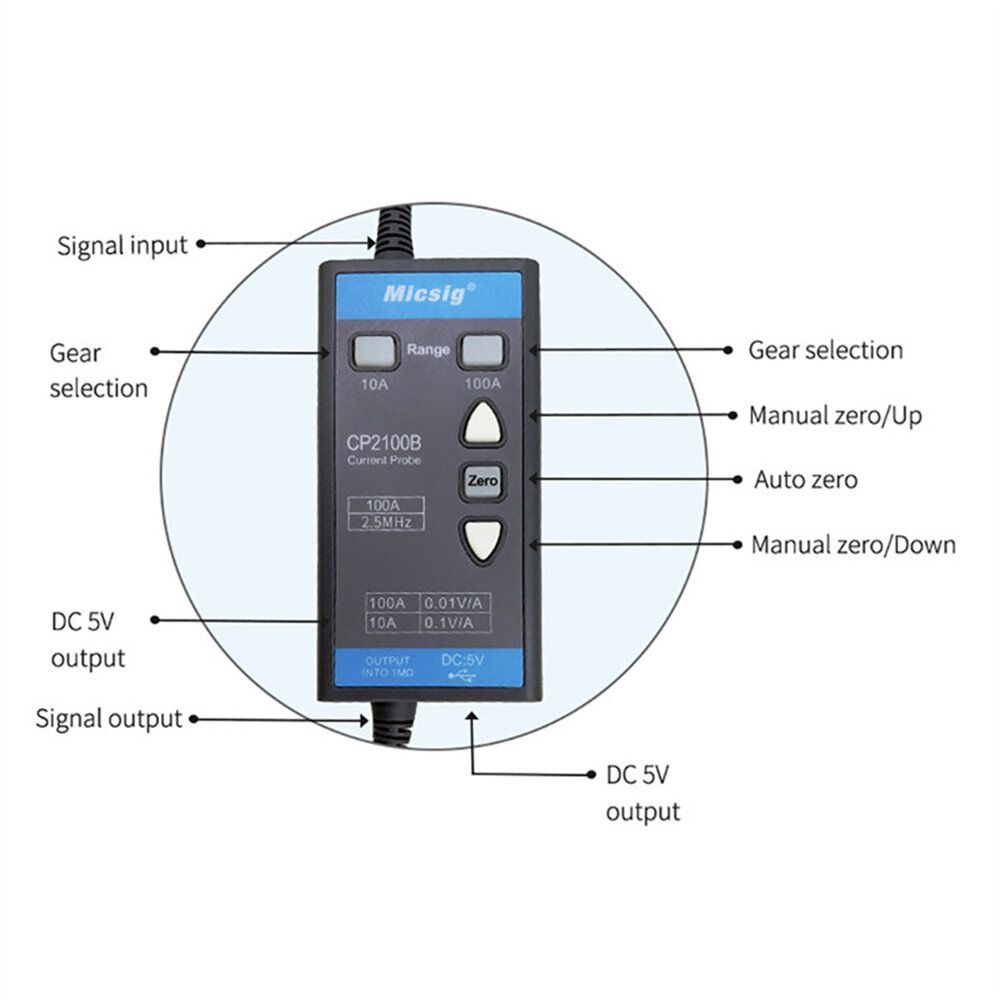

2.According to the current, select the appropriate range on the probe, the corresponding button light turns green.
3.Adjust the oscilloscope settings: input impedance 1M Omega;; Select current or set display unit as A; Set the probe attenuation multiplier of the corresponding channel. If the probe is 100A (0.01V / A), the oscilloscope should be 100X, if the probe is 10A (0.1V / A), oscilloscope is 10X.
4.Press the auto zero button to realize the auto zero adjustment of the
probe. After the zero adjustment is successful, the buzzer will beep for once. Otherwise, the \\\'beep\\\' sound will be 3, indicating that the zero adjustment fails; The external magnetic field may have a slight influence on the DC zero of the probe . After the zero adjustment is completed, please do not move it in a large range.
5. Open the clamp of the current probe to clamp the conductor under test according to the direction indicated by the clamp head. Note: If the measured current flow direction is opposite to the direction indicated by the clamp head, the output is negative.
6. Adjust the oscilloscope to get the best waveform.
Note: When the current exceeds the range, the buzzer will sound for a long time and the button light will flash.
Feature:

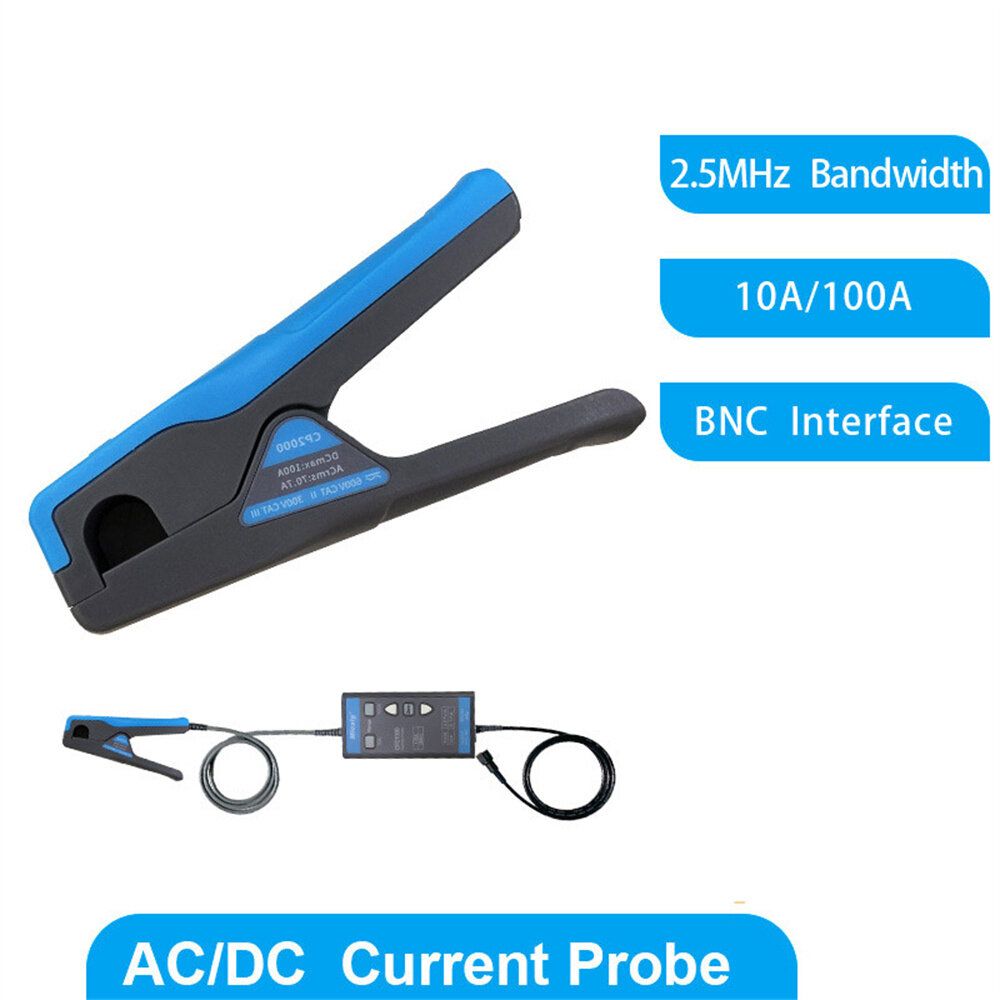

1.The CP2100 series is a current probe that can measure both DC and AC.
2.It is a split-type design that is small and beautiful.
3. It uses a standard BNC interface for oscilloscopes or a multi-connector for adapters.
4.The maximum current that can be measured is 100Apk (70Arms);CP2100A measurable bandwidth range is DC ~ 800KHz,The CP2100 series current probe has two optional ranges : 10A and 100A.
5.With automatic and manual zero adjustment, USB power supply, no additional power supply, making measurement more convenient.
6.Commonly used in motor drive, power frequency, inverter, power supply, avionics and other fields.

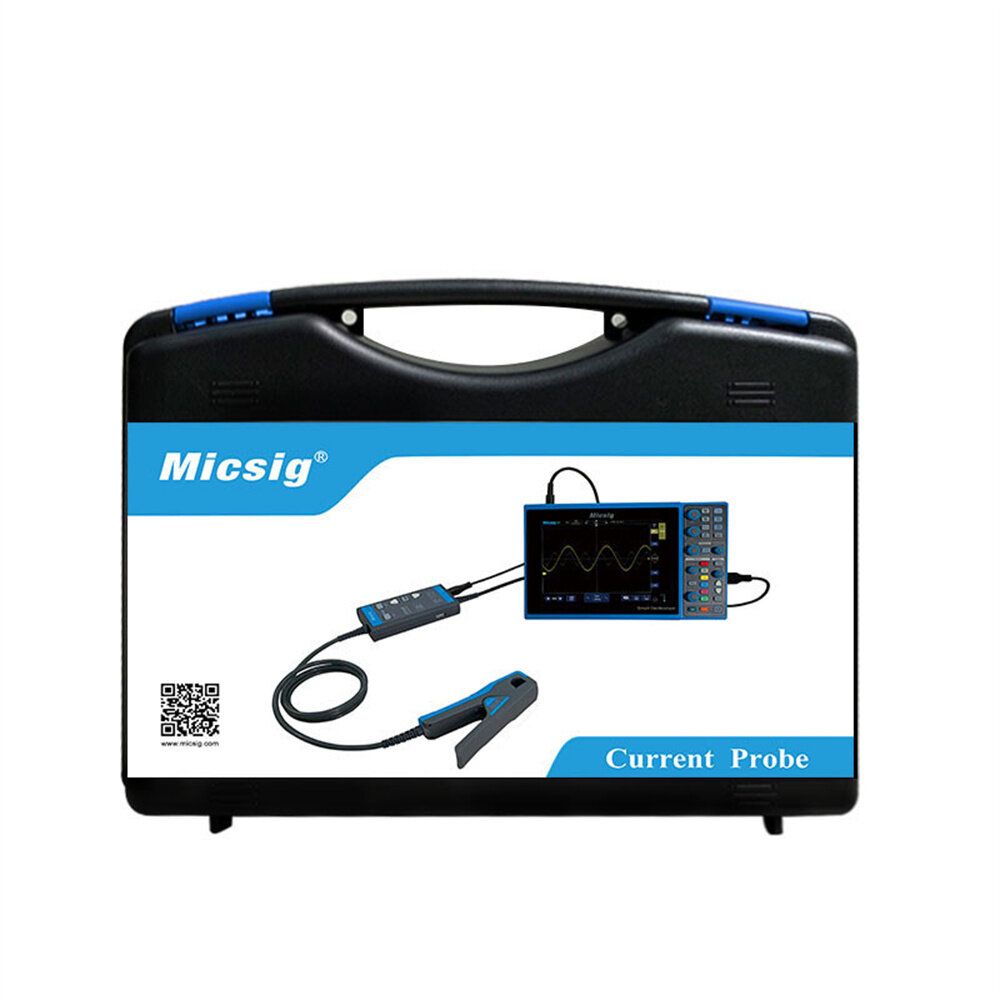

Pacakge included:
1 set of Micsig AC / DC Current Probes (CP2100A)

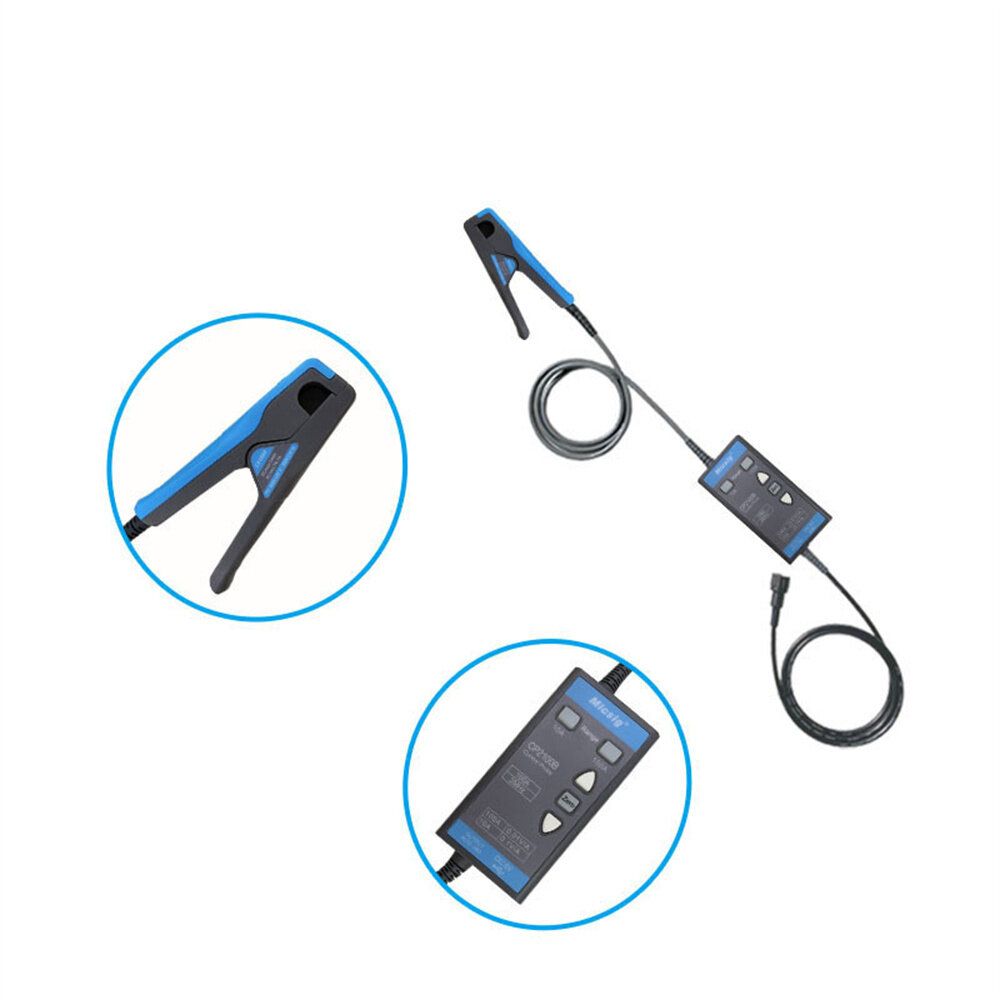

Details picture:
