| Model |
XTM027 |
| Production Country |
China |
| Weight (kg) |
0.375 |
| Certifications |
Eco Friendly |
| Color |
Off-white |
| Main Material |
N/A |
| From the Manufacturer |
Yuequing Sopwer Electric Co Ltd |
| Care Label |
Pls do not drop. Ensure correct wiring |

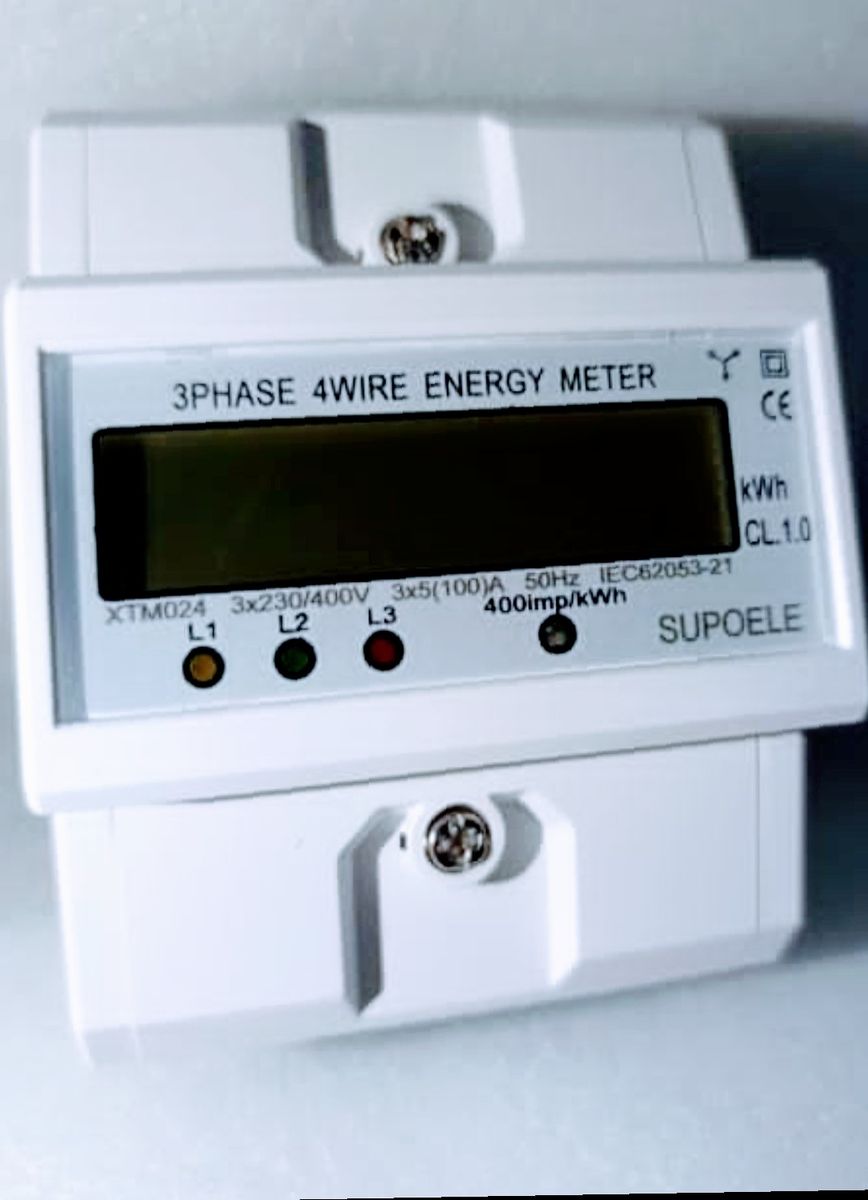

Three Phase Electricity Energy Check Meter 100AAre you desirous of tracking your actual power consumption? Do you want to pay for exactly what you consume?
This is the meter for you.

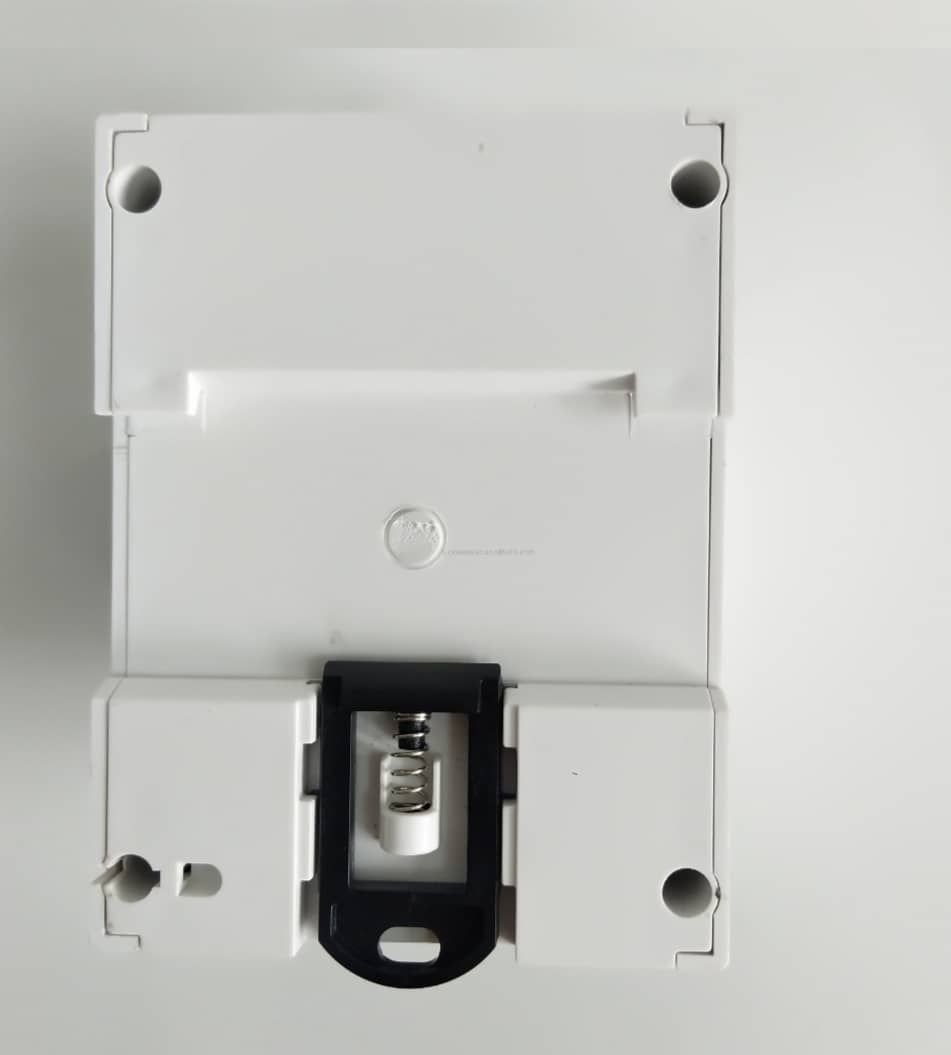

Features The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 3 single-phase energy meter, which can directly and accurately measure active energy of the energy consumption.6+2 digits LCD display shows the total power consumption.It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc.It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life.This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz three phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 ℃ ~ 55 ℃, relative humidity is ≤ 95%, and in the air does not contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.
Specifications:- : Metal + ABS
- Reference Voltage: 3 X 220/380(V)
- Reference Current: 3 X 20(100A)
- Accuracy Level: 1.0
- Rated Frequency: 50Hz
- Constant Pulse: 400imp / kWh
- Display: LCD 6 + 2
- Power Consumption: ≤2W, 10VA
- Starting Current: 0.004Ib
- Operating Temperature: -20 ~ 55℃
- Storage Temperature: 25 ~ 70℃
- Operating Voltage: 0.9-1.1 Rated Voltage
- Utmost Voltage: 0.8-1.15 Rated Voltage
- Average Humidity Value of Year: ≤75%

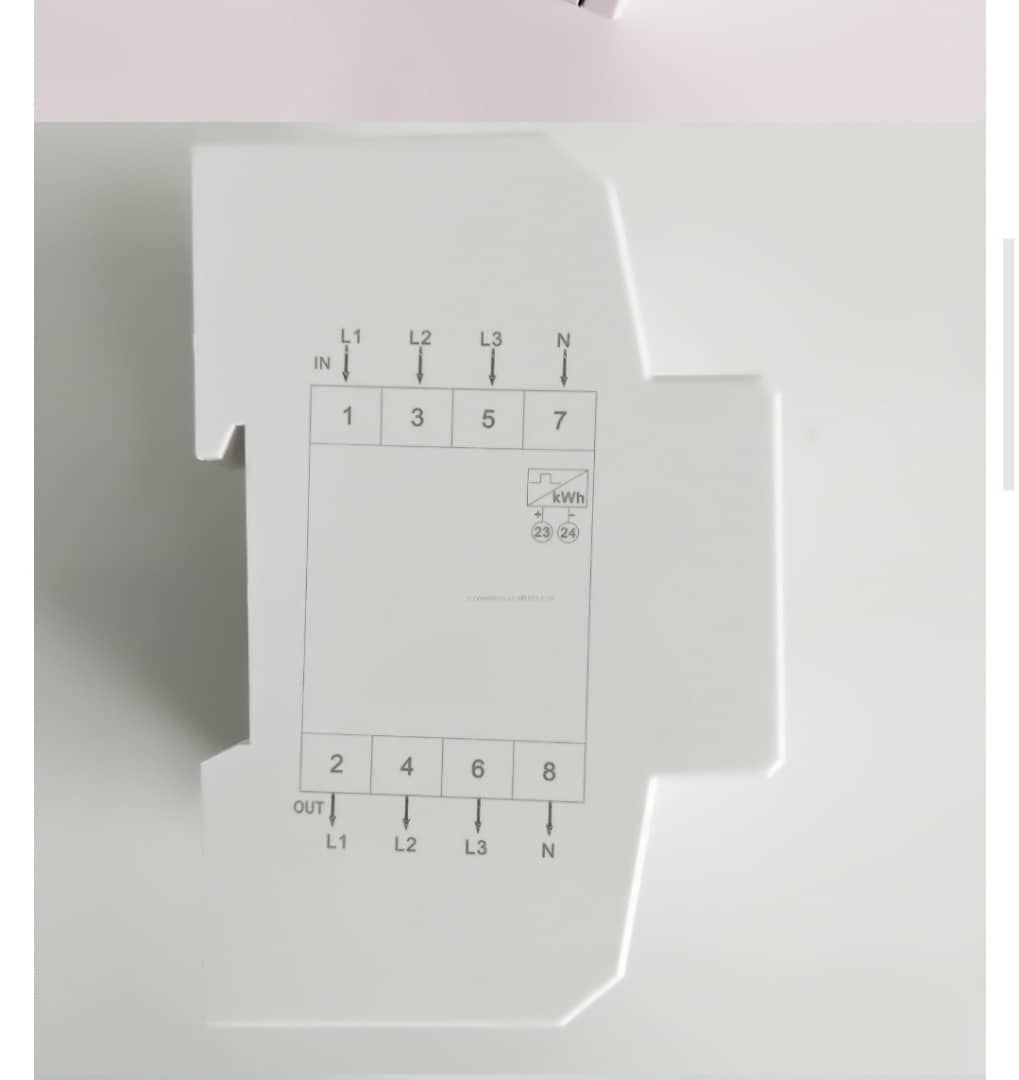

- Type: Three Phase Four Wire Electronic Type
- Size: Approx. 10X 7.6 X 6.5cm / 3.97 X 2.99 X 2.55in
- Net Weight: 373g
What's In the Box
1 x Three phase meterManual
