Have your Rechargeable fans powered up with this classy easy-to-install, easy-to-manage Qasa mono solar panel? Ideal for areas where there is minimal minimal public power. Also for all Fans requiring 18v DC power. Item can fit directly into Qasa 18" AC/DC Standing Fans, Qasa 18" Yoga Rechargeable Fans, and many other fans that are not of the Qasa family.
20watts your6-meter cable enclosedAll Fans and gadgets needing 18v DC power easy-to-an agencyHigh-quality ? toughened glass with high-light transmittanceUnique technology makes the component beautiful, strong, and resistant to wind.Unique technology to avoid water accumulation freezing in the frame, work, and deformationCan Never expire.Have you Rechargeable fans powered up with this classy easy to install, easy to manage mono solar panel. Ideal for areas where there is minimal minimal public power. Also for all Fans requiring 18v DC power. Item can fit directly into Qasa 18" AC/DC Standing Fans, Qasa 18" Yoga Rechargeable Fans and many other fans that are not of the Qasa family.
Customized 20W solar panel with 5m cable with pin connector. Ideal for charging your rechargeable fan with solar energy. Connects directly to Protege rechargeable fans or any other brand of rechargeable fan with solar charging option. It charges your fan fully within 8 hours of sunshine.
20watts 18v6-meter cable enclosedAll Fans and gadgets needing 18v DC powerHigh efficiencyHigh-quality toughened glass with high-light transmittanceUnique technology makes the component beautiful, strong, and resistant to wind.Unique technology to avoid water accumulation freezing in the framework and deformationCan Never expire.
FEATURES:
1. High quality guarantee using 156 mm high conversion efficiency crystalline silicon solar cells.
2. High performance bypass diodes minimize the power drop caused by shade
3. High transmittance, low iron tempered glass; High performance EVA; A weatherproof back sheet and sandblast electrophorus is aluminum frame extend the application of modules greatly
4. 25-year limited warranty on power output and performance
5. Sealed, waterproof, multi-functional junction box gives high level of safety.
APPLICATIONS:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4. 12V and 24V battery charging systems;
5. Other industrial and commercial applications.
ELECTRICAL PERFORMANCE
Electrical parameters at Standard Test Conditions (STC)
Module Name 100W Solar Panel
Module Type TK100P-17b
Power output Pmax W 100
Power output tolerances Pmax % & plusmn;5
Module efficiency & eta;m % 12.9
Voltage at Pmax Vmpp V 17.1
Current at Pmax Impp A 5.86
Open-circuit voltage Voc V 21.5
Short-circuit current Isc A 6.17
STC: 1000W/m2 irradiance, 25 centigrade cell temperature,AM1.5g spectrum according to EN 60904-3.Average relative efficiency reduction of 5% at 200W/m2 according to EN 60904-1.
Electrical parameters at Nominal Operating Cell Temperature (NOCT)
Power output Pmax W 100
Voltage at Pmax Vmpp V 18
Current at Pmax Impp A 5.49
Open-circuit Voltage Voc V 22.75
Short-circuit current Isc A 5.99
GENERAL CHARACTERISTICS
Dimensions (L/W/H) 1500mm/520mm/30mm
Weight 5.68kg
PACKING SPECIFICATIONS
Number of modules per box 1
Packaging box dimensions(L/W/H) 1500mm/520mm/30mm
We undertake strict quality control system and insist on perfect workmanship and the use of top quality materials.
And our products have been CE, CB and SASO certified. Our pursuit of first-rate quality, competitive prices and considerate after-sales services offers both potential and long-standing client confidence in our company.

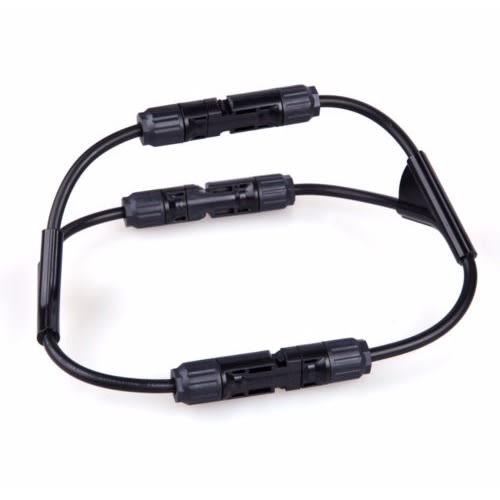

T & Y Branch Solar Panel MC4 Connectors Splitter Coupler - 2 Pairs
This product enables you to directly connect your solar panel array in parallel using the MC4 connectors that come with your solar panels. You do not need to run long (extra) wires from your panels to the point of connection. Just plug-and-play and your connections can now look professional instead of using wire nuts that aren & rsquo;t weather-proof.
Features:
Quick & simple assembly process and simple removal of plugs without the aid of any extra instrument
Double seal rings for better waterproof effect
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with high current and voltage
Technical Specifications:
-Insulation Material:PC/PA, black -Temperature Range: -40 C ~ +90 C -Withstanding Voltage:1000 V DC
-Contact Material: Copper, Sliver plated -Flame Class: UL94-VO or UL94-5VA -Rated Current: 30A -Rated Current:22(2.5 mm),30A (4,6 mm) -Contact resistance: & le;0.2mm & Omega; -Waterproof degree?IP67 -Flame class: UL94-VO -Safety Class: ? -Withdrawal force: & ge;50N -Insertion force: & le;50N -Insulation material: PPO + PA -Temperature range: -40 ? ~ +90 ? -Protection Degree: IP 2X unmated; IP67, mated
Compatibility: Compatible with all MC4 solar connector & lt; MC4 branch connectors or Y/T connectors & gt; Package includes:
2 x MC4 Branch Male/Female/Female
2 x MC4 Branch Female/Male/Male
10 Pairs MC4 Male Female Wire Cable Connector Set For Solar Panel - 30A IP67 P8
Get a FREE pair of MC4 Spanners / Wrenches when you buy this product.
This product enables you to connect directly with the MC4 connectors that come with your solar panels. You do not need to cut them off from the solar panel any more. Your connections can now look professional instead of using wire nuts that aren & rsquo;t weather-proof.
Quick & simple assembly process and simple removal of plugs without the aid of any extra instrument
Double seal rings for better waterproof effect
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with high current and voltage
Specification: -Insulation Material:PC/PA, black
-Temperature Range: -40 C ~ +90 C
-Withstanding Voltage:1000 V DC
-Contact Material: Copper, Sliver plated
-Flame Class: UL94-VO or UL94-5VA
-Rated Current: 30A
-Rated Current:22(2.5 mm),30A (4,6 mm)
-Pin dimension: 4.0 mm dia.
-Contact resistance: & le;0.2mm & Omega;
-Waterproof degree?IP67
-Flame class: UL94-VO
-Safety Class: ?
-Withdrawal force: & ge;50N
-Insertion force: & le;50N
-Insulation material:PPO + PA
-Connecting system: crimping connection
-Temperature range: -40 ? ~ +90 ?
-Protection Degree: IP 2X unmated; IP67, mated
-Wire Size Range: 2.5mm2, 4mm2, 6mm2[AWG14, AWG12, AWG10] Package include: 10 x MC4 Male Solar Panel Cable Connectors
10 x MC4 Female Solar Panel Cable Connectors
A Free pair of MC4 spanners
Solar Powered 7.5kva Inverter Installation with 10 Batteries & 20 Solar Panels
SmartPOWERFIX is a one-stop shop for power backup and no1 Power Provider in Nigeria, Since 2002 with proven track records.We have team of young, talented, experienced and professional engineers registered with the Nigerian Society of Engineers. For safe, efficient and professional INVERTER installation. We Recommends, Supplies and Installs HIGH QUALITY PURE SINE WAVE KOREAN, INDIAN AND AMERICAN INVERTERS WITH SOLAR MODULES across THE NATION at competitive prices with 5YEARS WARRANTY and 24/7 after-sales-services.
Our INVERTERS: LUMINOUS, GENUS, MPOWER, UTL, SAFEPOWER, GP, BRIGHTON, BLUEGATE, SUKAM.
24 hours power supply on
7.5kva- 120v Estimated load capacity:
2 Fridges,
2 freezers
1.5HP-AC,
7 Fans,
50 Lighting Points & times;5watts
2 DSTV Decoder
5 LED T.V or Plasma
1 Music System
2 PC / Equivalent loads.
20 Solar Panels / batteries are required
Backup Period: This will give you 24hrs Backup
Installation fee Includes: DELIVERY, CABLING, TRUNKING, SURGE PROTECTOR & BATTERY RACK
Have your Rechargeable fans powered up with this classy easy-to-install, easy-to-manage Qasa mono solar panel? Ideal for areas where there is minimal minimal public power. Also for all Fans requiring 18v /12v DC power. Item can fit directly into Qasa 18" AC/DC Standing Fans, Qasa 18" Yoga Rechargeable Fans, and many other fans that are not of the Qasa family.
50watts your6-meter cable enclosedAll Fans and gadgets needing 18v DC power easy-to-an agencyHigh-quality ? toughened glass with high-light transmittanceUnique technology makes the component beautiful, strong, and resistant to wind.Unique technology to avoid water accumulation freezing in the frame, work, and deformationCan Never expire.Have you Rechargeable fans powered up with this classy easy to install, easy to manage mono solar panel. Ideal for areas where there is minimal minimal public power. Also for all Fans requiring 18v DC power. Item can fit directly into Qasa 18" AC/DC Standing Fans, Qasa 18" Yoga Rechargeable Fans and many other fans that are not of the Qasa family.
Customized 50W solar panel with 5m cable with pin connector. Ideal for charging your rechargeable fan with solar energy. Connects directly to Protege rechargeable fans or any other brand of rechargeable fan with solar charging option. It charges your fan fully within 8 hours of sunshine.
50watts 18v/12v6-meter cable enclosedAll Fans and gadgets needing 18v DC powerHigh efficiencyHigh-quality toughened glass with high-light transmittanceUnique technology makes the component beautiful, strong, and resistant to wind.Unique technology to avoid water accumulation freezing in the framework and deformationCan Never expire.
Talkers Monocrystalline high-efficiency solar panel is Ideal for isolated solar power systems, these photovoltaic panels can be used individually or associated, serving energy systems of different sizes and providing electricity for all kinds of application.
FEATURES:
1. High-quality guarantee using 156 mm high conversion efficiency crystalline silicon solar cells.
2. High-performance bypass diodes minimize the power drop caused by shade
3. High transmittance, low iron tempered glass; High-performance EVA; A weatherproof back sheet and sandblast electrophorus is aluminum frame extend the application of modules greatly
4. 25-year limited warranty on power output and performance
5. Sealed, waterproof, multi-functional junction box gives a high level of safety.
APPLICATIONS:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4. 12V and 24V battery charging systems;
5. Other industrial and commercial applications.
ELECTRICAL PERFORMANCE
Electrical parameters at Standard Test Conditions (STC)
Module Name 80W Solar Panel
Module Type TK100P-17b
Power output Pmax W 80
Power output tolerances Pmax % & plusmn;5
Module efficiency & eta;m % 12.9
Voltage at Pmax Vmpp V 17.1
Current at Pmax Impp A 5.86
Open-circuit voltage Voc V 21.5
Short-circuit current Isc A 5.17
STC: 1000W/m2 irradiance, 25 centigrade cell temperature,AM1.5g spectrum according to EN 60904-3.Average relative efficiency reduction of 5% at 200W/m2 according to EN 60904-1.
Electrical parameters at Nominal Operating Cell Temperature (NOCT)
Power output Pmax W 80
Voltage at Pmax Vmpp V 18
Current at Pmax Impp A 4.65
Open-circuit Voltage Voc V 21.60
Short-circuit current Isc A 5.14
GENERAL CHARACTERISTICS
Dimensions (L/W/H) 1210*545*35MM
Weight 5.68kg
PACKING SPECIFICATIONS
Number of modules per box 1
Packaging box dimensions(L/W/H) 1200mm/545mm/35mm
Talkers Energy undertakes a strict quality control system, insist on perfect workmanship and the use of top quality materials. And our products have been certified. Our pursuit of first-rate quality, competitive prices, and considerate after-sales services offers both potential and long-standing client confidence in our company.
