DIY digital standing waves meter, it is small and portable, built-in rechargeable-battery does not require external supplys, directly displays forward , reflected , antenna , antenna efficiency, standing waves, battery voltage, accuracy meets amateur needs, high standing waves, the battery under voltage alarm function.
Features:

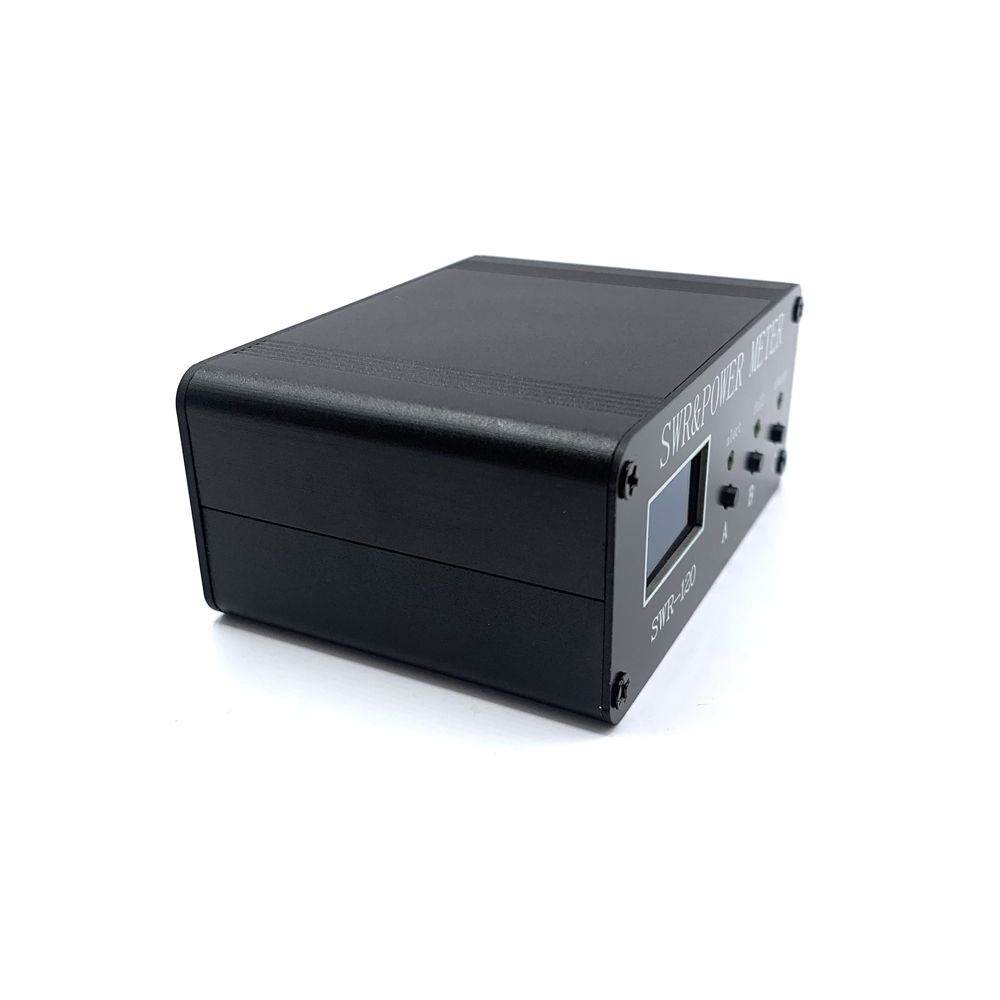

The standing waves meter adopts aluminum alloy housing, with high hardness, high conductivity, wear resistance and nice durability.
It is small and portable, built-in rechargeable-battery does not require external supplys.
Equipped with large OLED display, which can directly displays forward , reflected , antenna , antenna efficiency, standing waves and battery voltage.
The accuracy meets amateur needs, high standing waves, with the battery under voltage alarm function.

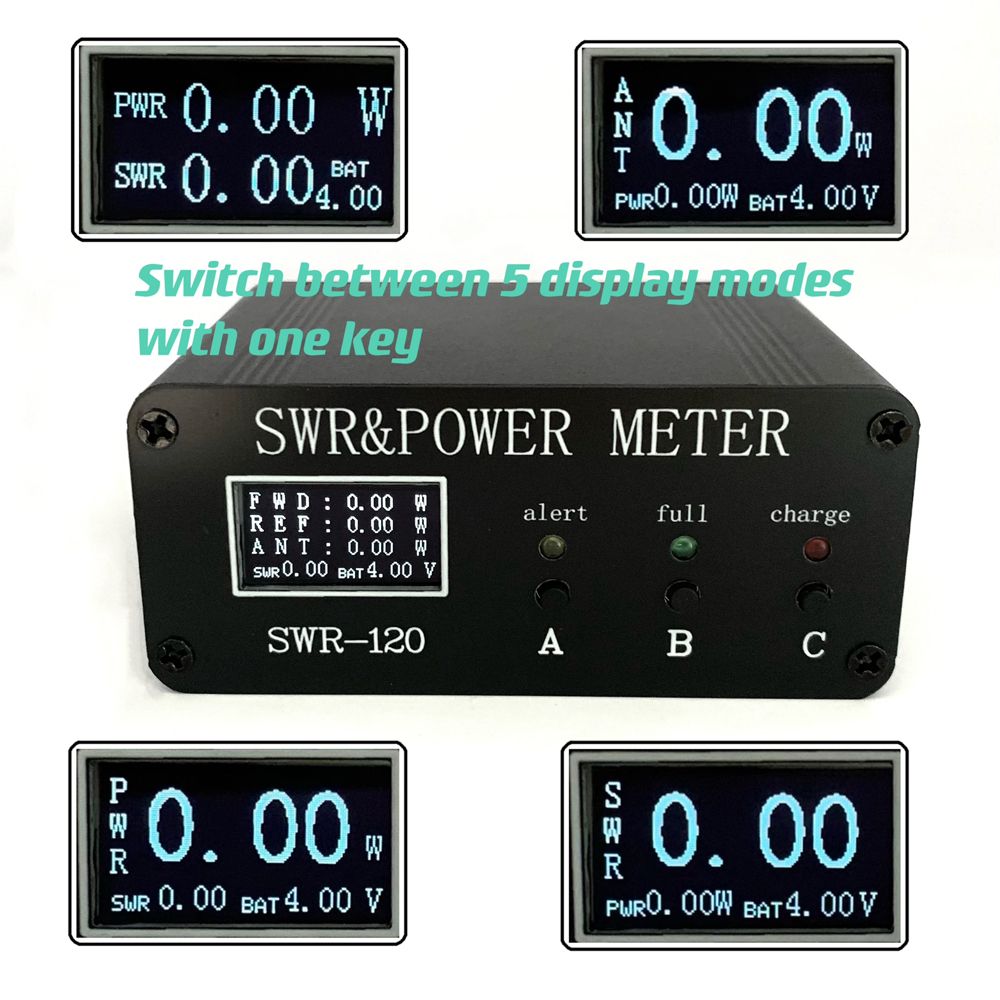

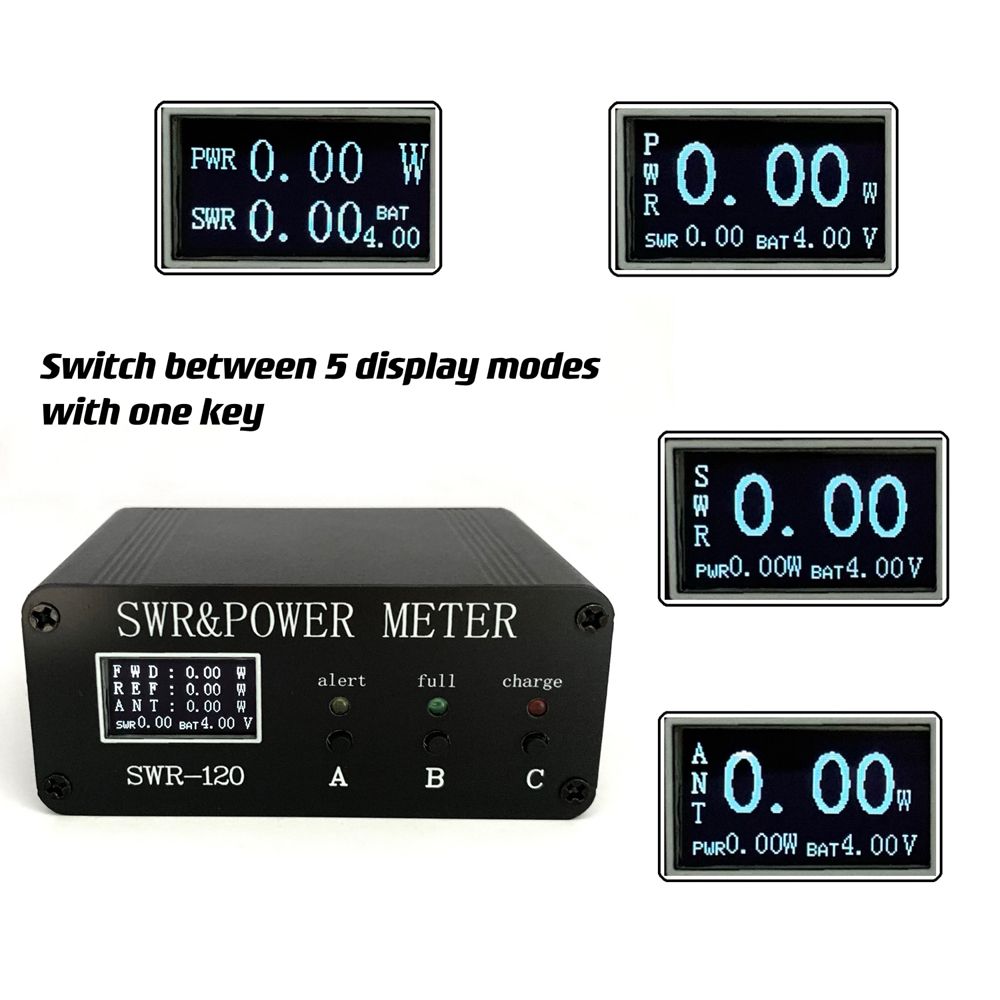

With the on/off function, Chinese and English language switch function, and display mode switching function, 5 modes can be switched at will.
User guide:
In the -on state, it shows red light when , green light when fully charged, and yellow light when under voltage.
When the VSWR is less than 1.5, the green indicator is on, the VSWR is greater than 1.5 and less than 2.5, the yellow indicator is on, and the VSWR is greater than 2.5. The red indicator is on.
If the standing waves is greater than 2.5 and less than 3, the will alarm intermittently, and if the standing waves is greater than 3, it will continuously alarm.
The battery is under-voltage, the keeps prompting, and the yellow indicator light is on.
Specifications:

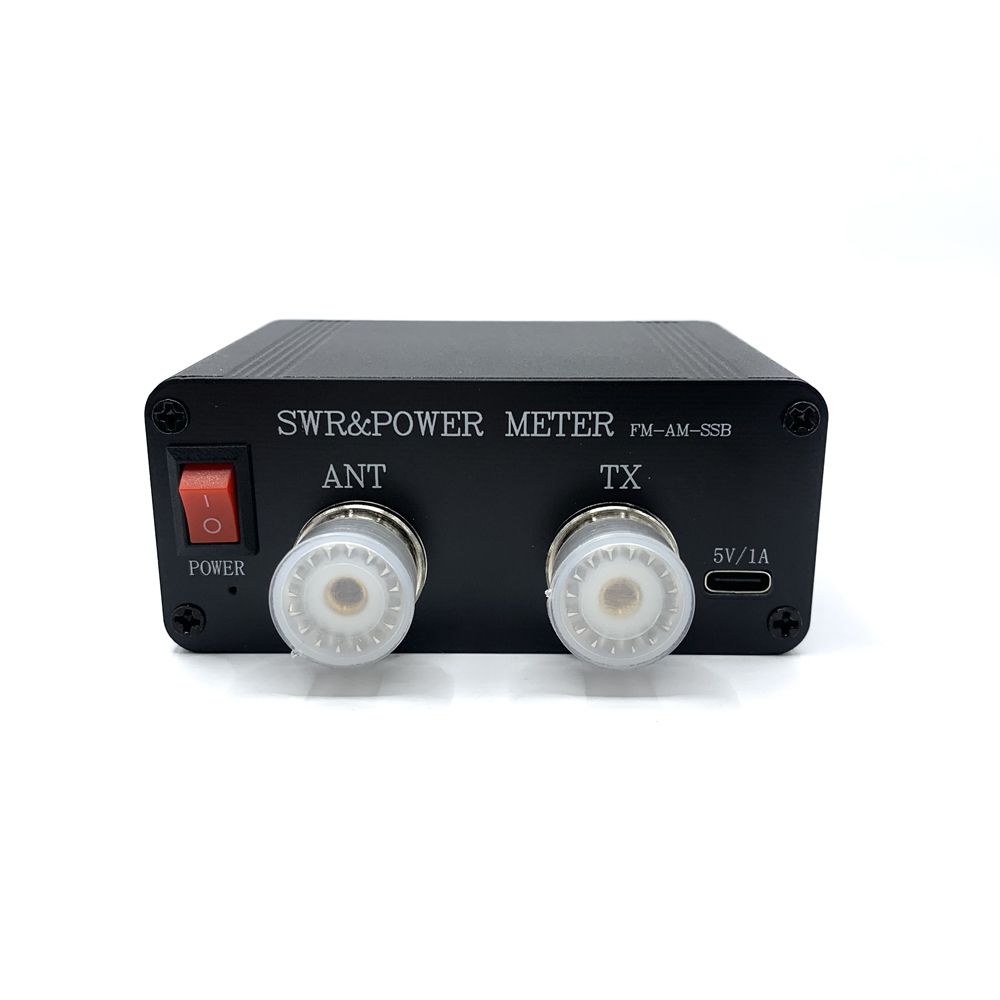

Name: SWR Meter
Material: aluminum alloy + printed circuit board
Battery: 1 * 1000mAh lithium battery (included)
Frequency ranges: 1.8MHz-50MHz (in fact, there is a reference value to the V segment)
ranges: 0.5W-120W (up to 200W, Frequency Modulation, AM, CW mode is recommended for long-term testing below 120W, SSB mode is optional)
Measurement accuracy:
Key Features
The standing waves meter adopts aluminum alloy housing, with high hardness, high conductivity, wear resistance and nice durability.
It is small and portable, built-in rechargeable-battery does not require external supplys.
Equipped with large OLED display, which can directly displays forward , reflected , antenna , antenna efficiency, standing waves and battery voltage.
The accuracy meets amateur needs, high standing waves, with the battery under voltage alarm function.
With the on/off function, Chinese and English language switch function, and display mode switching function, 5 modes can be switched at will.
The standing waves meter adopts aluminum alloy housing, with high hardness, high conductivity, wear resistance and nice durability.
What's In the Box
1 x SWR Meter
