The maximum point of the pv array can be quickly tracked in any environment so that it can get the maximum energy from the solar panel and significantly improve the utilization of energy in solar system. The machine has LCD display and standard communication interface, convenient for user extension application and satisfy different monitoring needs to the maximum extent. It can be used in communication base station, home system, solar street lamp, courtyard lamp systems, etc.
Feature：The tracking efficiency is no less than 99.5%.
Fine quality material are used to improve the system performances, and the maximum conversion efficiency can up to 97%.
Quick maximum tracking speed while ensuring tracking efficiency.
Reliable maximum input of pv array to ensure the safety of equipment.
Wide pv array maximum point operating voltage range.
12Volt/24Volt automatic voltage identification.

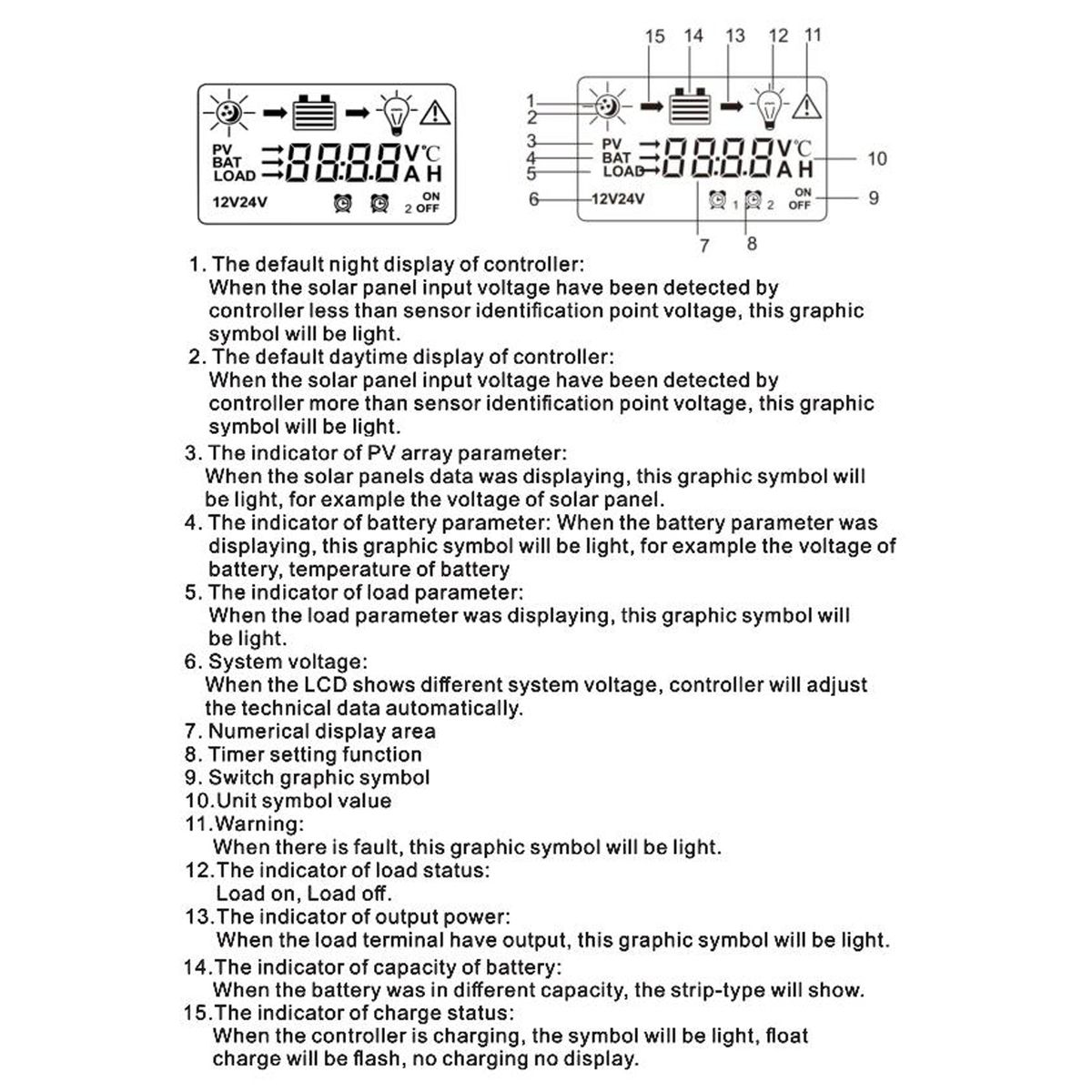

The LCD is designed to dynamically display the operation data and working status of the equipment.
Various load control modes: general mode, light control mode, dual time mode, purecharger mode and timing mode.
The function of battery temperature compensation.
statistics recording function.
Specifications:Current: 20A, 30A, 40A (optional)
Tracking efficiency: >99%
Color: black+orange
Material: metal+plastics
Item size:
20A: 178 * 123 * 48mm / 7.0 * 4.8 * 1.9in
30A: 202 * 135 * 55mm / 8.0 * 5.3 * 2.2in
40A: 220 * 150 * 67mm / 8.7 * 5.9 * 2.6in
Package size:
20A: 205 * 130 * 55mm / 8.1 * 5.1 * 2.2in
30A: 220 * 145 * 60mm / 8.7 * 5.7 * 2.4in
40A: 260 * 205 * 100mm / 10.2 * 8.1 * 3.9in
Package weight:
20A: 650g / 1.4lb
30A: 920g / 2.0lb
40A: 1620g / 3.6lb
Packing List:1 * Solar Panel Controller
Key Features
12Volt/24Volt Automatic Voltage Solar Controller Solar Panel Regulator LCD Display Solar Controller with Backlight Multiple Load Control Modes Solar Controller
12Volt/24Volt Automatic Voltage Solar Controller Solar Panel Regulator LCD Display Solar Controller with Backlight Multiple Load Control Modes Solar Controller
12Volt/24Volt Automatic Voltage Solar Controller Solar Panel Regulator LCD Display Solar Controller with Backlight Multiple Load Control Modes Solar Controller
12Volt/24Volt Automatic Voltage Solar Controller Solar Panel Regulator LCD Display Solar Controller with Backlight Multiple Load Control Modes Solar Controller
12Volt/24Volt Automatic Voltage Solar Controller Solar Panel Regulator LCD Display Solar Controller with Backlight Multiple Load Control Modes Solar Controller
12Volt/24Volt Automatic Voltage Solar Controller Solar Panel Regulator LCD Display Solar Controller with Backlight Multiple Load Control Modes Solar Controller
What's In the Box
1 x Solar Panel Controller
