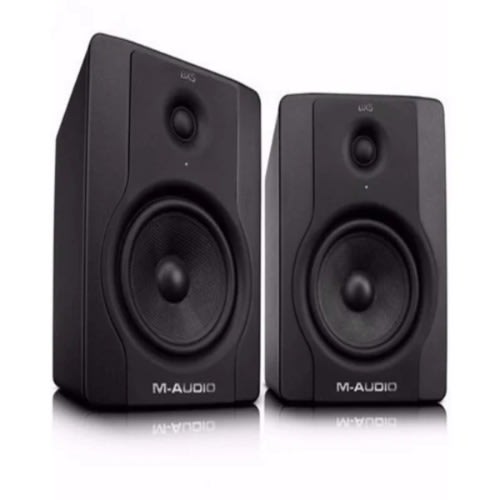

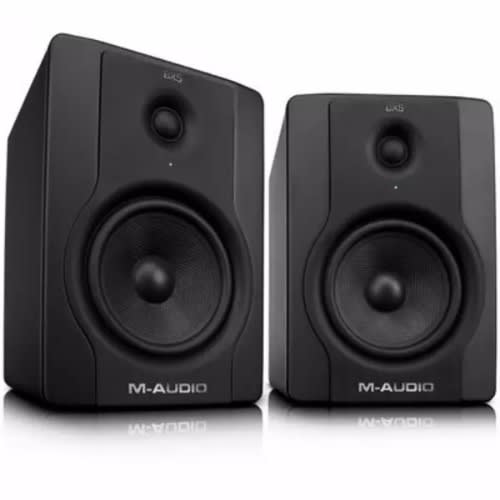

The BX5 D2 Active 70W 5" 2-Way Studio Monitor Speaker (Pair) from M-Audio provides excellent sound quality in a compact and affordable design. Each cabinet houses a 5" Kevlar woofer and a 1" waveguide-loaded tweeter to provide a full, detailed frequency response. An optimized bass port on the rear of each cabinet extends low frequency response for terrific bass punch and clarity.
The drivers are powered by a pair of Class-A/B internal amplifiers with a combined power of 70W for a strong performance. The rear panel of each cabinet offers XLR and 1/4" input connectors for terrific versatility. An easy-to-use volume control knob is also provided. Each cabinet is magnetically shielded for safe use near video monitors and other electronic equipment without interference.
Compact design is ideal for home, project, and mobile studios
The large 5" Kevlar woofer and 1" waveguide-loaded tweeter provide a wide frequency response and detailed audio reproduction
The tweeter is isolated from the rest of the enclosure to minimize distortion. The integrated waveguide provides a wide sound stage and excellent imaging characteristics
The optimized rear bass port extends low frequency response while minimizing compression and turbulence
The Class-A/B bi-amplified design provides 70W of total power for a strong performance with low distortion and high headroom
XLR and 1/4" input connectors allow you to connect to a variety of sound systems and devices
Convenient volume control on the rear panel
Magnetically shielded for safe use near video monitors and other electronic equipment
Each speaker has an isolation pad that decouples it from your table or desk to reduce vibrations and reflections
Type Active, 2-Way, Bass-Reflex
Low Frequency Driver 5" (127mm) Kevlar Woofer
High Frequency Driver 1" (25mm) Silk Dome Tweeter
LF Amplifier 40W
HF Amplifier 30W
Crossover 3kHz
Frequency Range 53Hz - 22kHz
Maximum Sound Pressure Level (SPL) 90dBA
Signal to Noise Ratio > 100dBA
Connectors 1 x Power Input
1 x XLR Input
1 x 1/4" TRS Input
Input Impedance 20 kOhms, Balanced
10 kOhms, Unbalanced
Controls and Indicators 1 x Volume Control Knob
1 x Voltage Selector Switch
1 x Power Switch
Cabinet Vinyl-Laminated MDF
Protection RF Interference, Output Current Limiting, Over Temperature, Turn On/Off Transient, Subsonic Filter, External Mains Fuse
Shielding Yes, Magnetic
Power 115-230VAC, 50/60Hz
Dimensions (HxWxD) 9.9 x 6.9 x 7.7" (251 x 175 x 196mm) (Each Speaker)
Weight 11 lbs (5kg) (Each Speaker)
Package Includes:
M-Audio BX5 D2 Active 70W 5" 2-Way Studio Monitor Speaker (Set of 2)
2 x Power Cords
2 x Isolation Pads
