Model |
CP313-SF |
Production Country |
UK |
Size (L x W x H cm) |
14.3mm x 12.7mm x 6.2mm |
Weight (kg) |
192 |
Color |
Red |
Main Material |
Plastic |
The Intelligent Wall Mount Sounder Strobe is a high-quality 4
tone, Loop powered device designed to alert building occupants of an emergency with both audible and visible notification. It's particularly important for hotels and certain residential businesses to consider this type of fire alarm, as it will help to awaken anyone while they are sleeping.
CP313-SF Sounder Beacon is ideal for applications where a dual purpose audible and visual alarm device voltage is from 17 - 33v.
It features advanced optics and an innovative lens design, providing outstanding sound output.
Technical data
- Operating voltage - DC17 - 33v
- Operating Temperature - -10oc to + 550c
- Sound Output - 95dB at 1meter distance
- Relative Humidity - 95% non-condensing
- Dimensions - 143mm x 127mm x 62mm
- Flash Rate - 1-2Hz
- Alarm Current - 55mA 9Maximum)
- Weight - 192g (with base)
- Operating voltage - DC17 - 33v
- Operating Temperature - -10oc to + 550c
- Sound Output - 95dB at 1meter distance
- Relative Humidity - 95% non-condensing
- Dimensions - 143mm x 127mm x 62mm
- Flash Rate - 1-2Hz
- Alarm Current - 55mA 9Maximum)
CP313-SF Sounder Beacon is ideal for applications where a dual purpose audible and visual alarm device voltage is from 17 - 33v.
Key Features
Operating voltage - DC17 - 33v
Operating Temperature - -10oc to + 550c
Sound Output - 95dB at 1meter distance
Relative Humidity - 95% non-condensing
Dimensions - 143mm x 127mm x 62mm
Flash Rate - 1-2Hz
Alarm Current - 55mA 9Maximum)
Weight - 192g (with base)
Operating voltage - DC17 - 33v
Operating Temperature - -10oc to + 550c
Sound Output - 95dB at 1meter distance
Relative Humidity - 95% non-condensing
Dimensions - 143mm x 127mm x 62mm
Flash Rate - 1-2Hz
Alarm Current - 55mA 9Maximum)
Operating voltage - DC17 - 33v
Operating Temperature - -10oc to + 550c
Sound Output - 95dB at 1meter distance
Relative Humidity - 95% non-condensing
Dimensions - 143mm x 127mm x 62mm
Flash Rate - 1-2Hz
Alarm Current - 55mA 9Maximum)
Operating voltage - DC17 - 33v
Operating Temperature - -10oc to + 550c
Sound Output - 95dB at 1meter distance
Relative Humidity - 95% non-condensing
Dimensions - 143mm x 127mm x 62mm
Flash Rate - 1-2Hz
Alarm Current - 55mA 9Maximum)

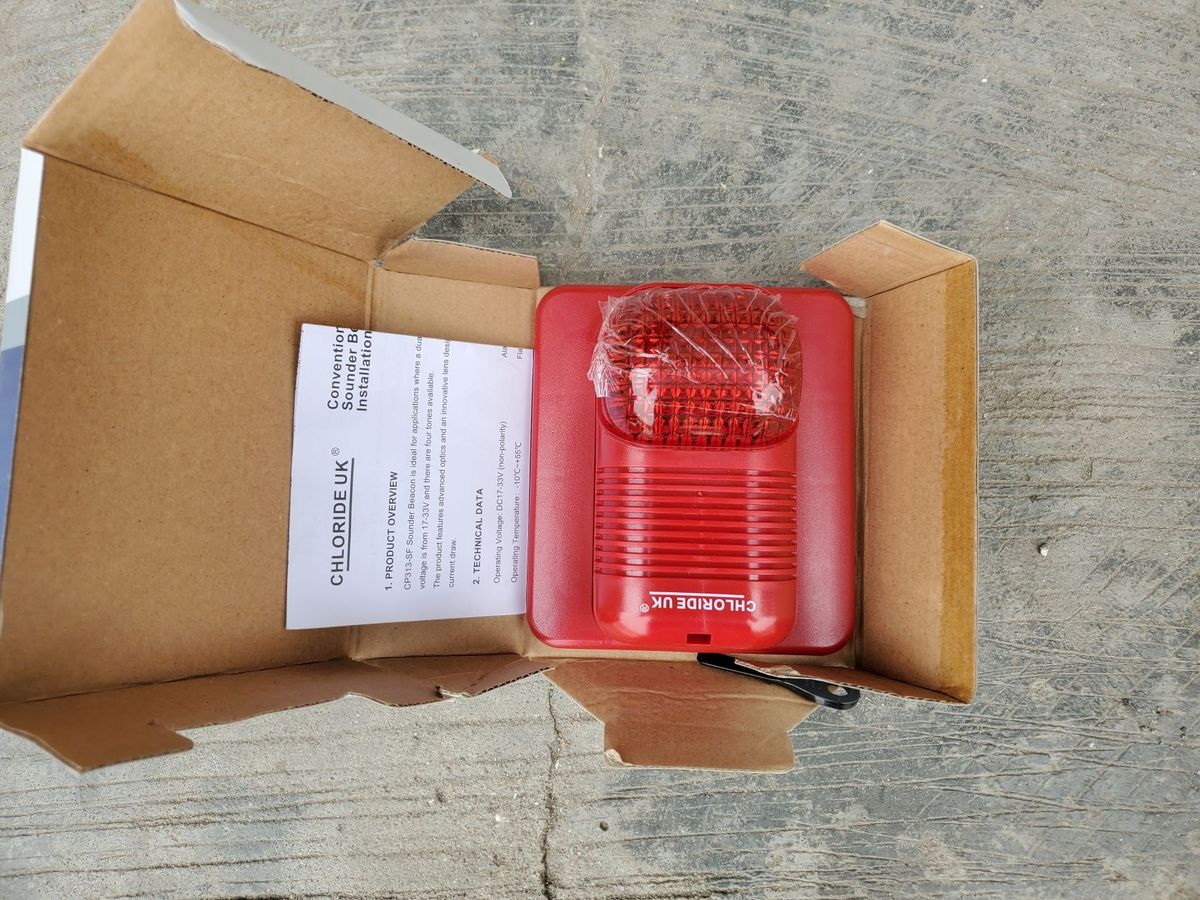

What's In the Box
