Model |
BG 821U2 |
Production Country |
United Kingdom |
Size (L x W x H cm) |
(H x W x D) cm 18 x 11 x 3.3 |
Weight (kg) |
0.082 |
Color |
White |
Main Material |
Plastic |

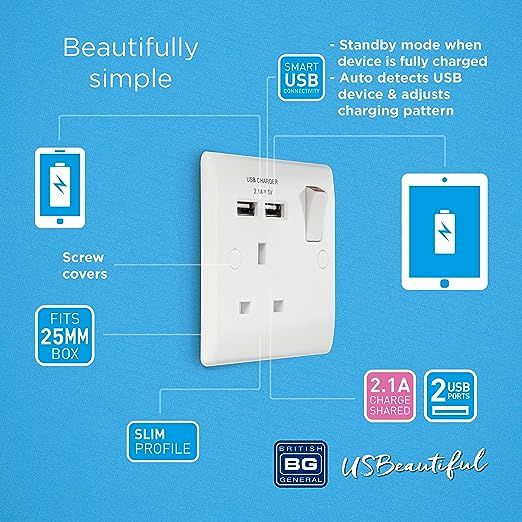

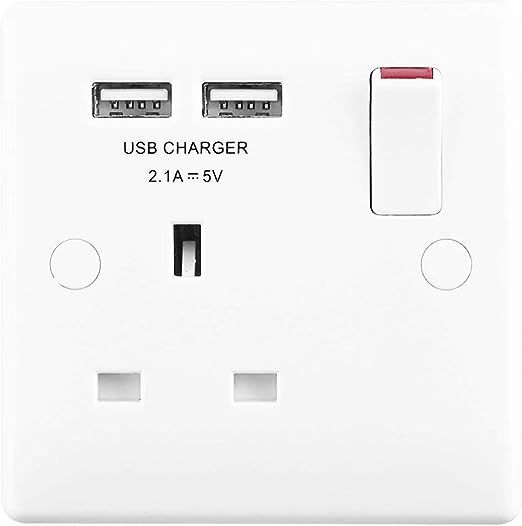

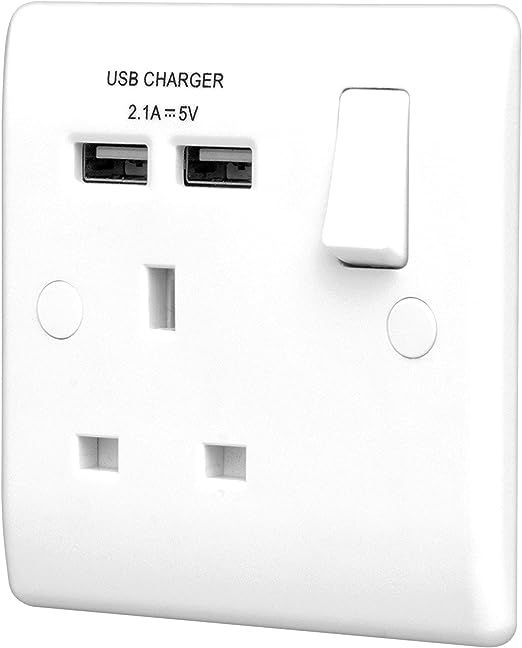

This Nexus 800 series white moulded 13A single socket from British General comes with two USB charging ports allowing you to plug in an electrical device and charge mobile devices simultaneously without having to sacrifice a power socket. Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. With its rounded edge finish, the white moulded wall plate will seamlessly fit with any style or decor in your home, and fits a 25mm backbox, ideal for retro-fit.
- 13A Rated
- Easy to install supplied with fixing screws and installation instructions
- Free your sockets and charge all your devices - ideal for mobile phone tablets, MP3's and other
- USB chargeable devices
- 2.1A USB charging output with charge shared across two outlets. 2 Type A outlets, 2.1A, 5V
- Smart USB - Standby mode when device is fully charged; AutoDetect's the USB device and adjusts charging pattern to suite; protective overload function
PRODUCT INFORMATION
- Part Number 821U2
- Part Number Note x = length of cable in metres
- Product Dimensions (H x W x D) cm 18 x 11 x 3.3
TECHNICAL SPECIFICATIONS
- Standard(s) BS 1363-2:2016+A1:2018
- Rating 13 Amp 240V ~
- Switch Type Single Pole (824U44 Unswitched)
- Terminal Capacity - L & N 3 x 2.5mm², 3 x 4.0mm² & 2 x 6.0mm²
- RoHS Directive Yes
- WEEE Directive Yes
- Mounting Box Depth (Min) 25mm
- Fixing Centres 60.3mm (821U2 products), 120.6mm (822U3, 822U33, 824U44 products)
Key Features
13A Power Sockets with integrated USB-A ports
Smart Charging - Intelligently adjusts the voltage to give devices the power they need, when they need it, without overcharging
White moulded round edge, sleek and slim with softly rounded edges
Power socket for standard 3 pin UK plug
Easy to install, supplied with fixing screws and installation instructions
Angled in-line colour coded terminals with backed out screws for fast installation
Screw cover caps for a sleek appearance
Twin earth fitted as standard for high integrity circuits
Anti-microbial certified - manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
What's In the Box
One piece of socket with 2 USB ports
