Model |
BG 820 |
Production Country |
United Kingdom |
Size (L x W x H cm) |
(H x W x D) cm 15.0 x 9.0 x 5.0 |
Weight (kg) |
0.113 |
Color |
White |
Main Material |
Plastic |

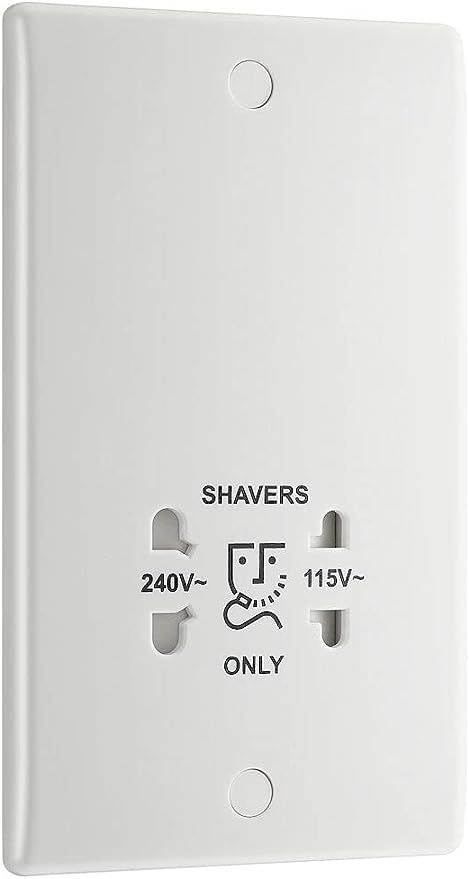

This Nexus 800 series white moulded dual voltage shaver socket from British General is suitable for use with 240V and 115V shavers and electric toothbrushes. Its moulded white front-plate has a high resistance to fading discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Designed with captive screws for ease of installation, and finished with softly rounded edges and screw caps for a sleek appearance. The subtle design will blend with any decor - suitable for domestic or commercial installations.
- White moulded round edge, sleek and slim with softly rounded edges
- Easy to install, supplied with fixing screws and installation instructions
- Colour coded terminals with backed out captive screws for fast installation
- Screw cover caps for a sleek appearance
- Anti-microbial certified - manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
PRODUCT INFORMATION
- Part Number 820
- Part Number Note x = length of cable in metres
- Product Dimensions (H x W x D) cm 15.0 x 9.0 x 5.0
- Sockets 2
TECHNICAL SPECIFICATIONS
- Standard(s) BS EN 61558 BS 4573
- Rating 20VA
- Voltage 115/240V AC
- Terminal Capacity 3 x 2.5mm² & 2 x 4.0mm²
- RoHS Directive Yes
- WEEE Directive Yes
- Mounting Box Depth (Min) 47mm
- Fixing Centres 120.6mm
IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN
SAFETY WARNING
PLEASE READ CAREFULLY AND USE IN ACCORDANCE WITH OUR SAFETY INSTRUCTIONS BELOW
- Do Uncoil cable before use
- Do Position the cable carefully to avoid accidents
- DON'T Use in wet conditions
- DON'T Allow heavy tools etc to hang unsupported on the cable or from the socket
- DON'T Remove the plug and wire directly into a mains supply
- DON'T Exceed the total maximum load.
Key Features
Dual voltage 115/240 V
Easy to install, supplied with fixing screws and installation instructions

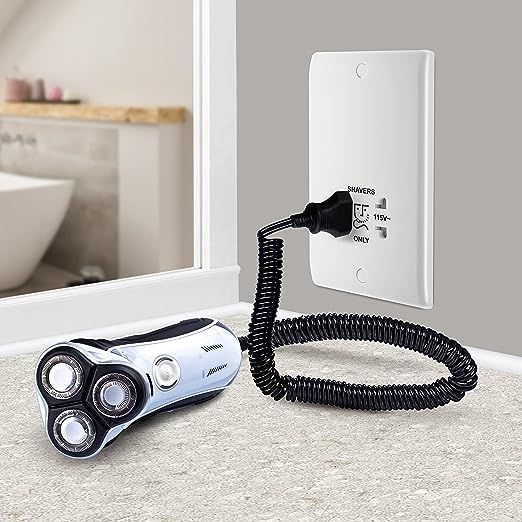

Suitable for shavers and electric toothbrushes
Colour coded terminals for ease of installation
Captive screws prevent screw loss
Screw covers for sleek appearance
Minimum mounting box depth 47mm
Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
Certified to BS EN 61558, BS 4573
ASTA Licence number 1016
What's In the Box
One piece of shaver socket
