Specification:Model:SW-311R/SW-311GMini Cross Line Laser:Red Beams/Green BeamsSW-311R Laser Wavelength: 635±5nmSW-311G Laser Wavelength: 510-530nmLaser Class:Class 2 (IEC/EN60825-1/2014)Leveling Accuracy:±3mm/10mHorizontal/Vertical Accuracy:±3mm/10mLeveling/Compensation Range:4°±1°/ 4°±1°SW-311R Working Distance (Line): 10mSW-311G Working Distance (Line): 20mWorking Distance (Line with Detector): NoSW-311R Operating Time: Approximately 8 HoursSW-311G Operating Time: Approximately 4 HoursIP Rating:IP54Operation Temperature Range:-10 ℃ - 50 ℃Storage Temperature Range:-20 ℃ - 70 ℃Power source:2*1.5V AA(not include)Product Dimension:65.4x75x76mmPackage Weight:460gPacking Contents:1 X laser level( No battery )1 X Magnetic pivoting base1 X English User's Manual1 X Bag
Self-leveling Mode: It is enabled when the laser tool is switched to the unlockedposition.
It has laser beam(s) blink fast at 2 Hz when tool is out of self-leveling range.
It allows proper use of tool's full time pulse mode with laser detector.
Manual Mode:It is enabled when the pendulum lock is in its lockedposition to position the laser tool at various
angles to project non-level straight lines
It disables self-leveling operations; Accuracy of the beam(s) is not guaranteed to be level, and
laser beam(s) will blink about every 5 seconds

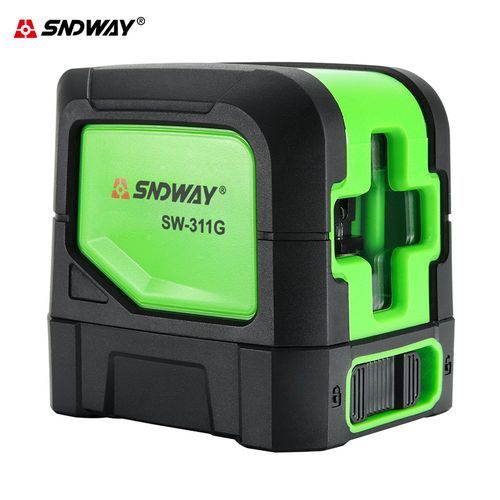

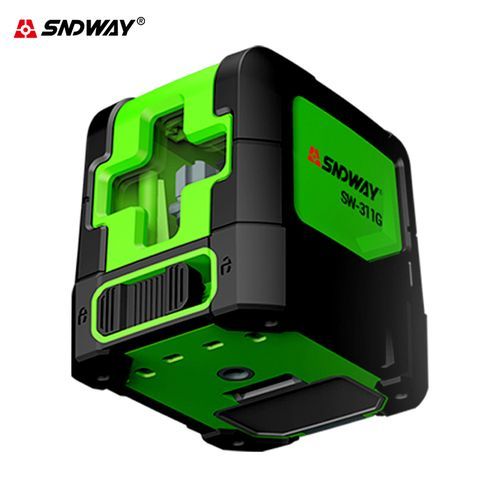

High accuracy cross line laser level, stable and durable
Green \ Red laser beam mini and powerful
The laser projects visible green lines, which are up to 4X brighter than standard red beams

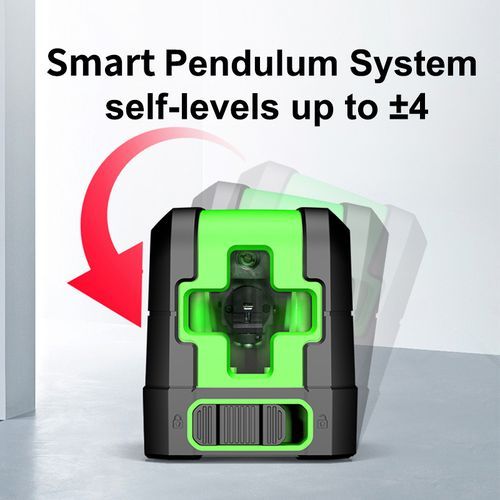

with a Smart Pendulum System allowing for automatic self-leveling
locks pendulum for safe transport
Stable structure and improved stability
The connector on the bracket is free to rotate
IP54 ensures splash water/dust protection for years of dependable operation
±∠4° Self-leveling mode, laser beams blink fast at 2 HZ when the tool is
out of self-leveling range

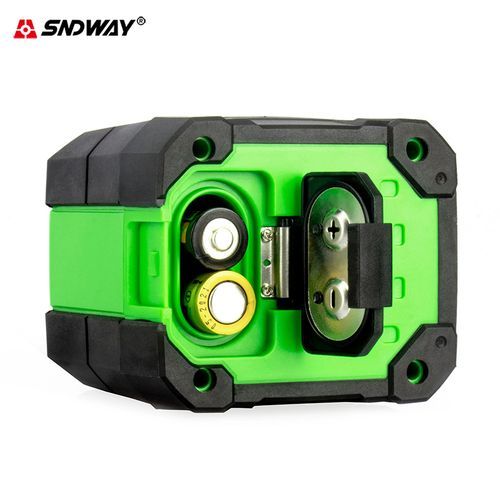

Power by battery, easy to replace.(battery no include)
Key Features
Mini Cross Line Laser:Red Beams/Green Beams
SW-311R Laser Wavelength: 635±5nm
SW-311G Laser Wavelength: 510-530nm
Laser Class:Class 2 (IEC/EN60825-1/2014)
Leveling Accuracy:±3mm/10m
Horizontal/Vertical Accuracy:±3mm/10m
Leveling/Compensation Range:4°±1°/ 4°±1°
SW-311R Working Distance (Line): 10m
SW-311G Working Distance (Line): 20m
SW-311R Operating Time: Approximately 8 Hours
SW-311G Operating Time: Approximately 4 Hours
IP Rating:IP54
Operation Temperature Range:-10 ℃ - 50 ℃
Storage Temperature Range:-20 ℃ - 70 ℃

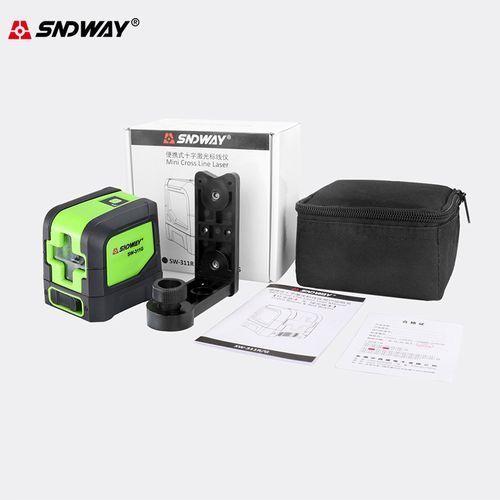

What's In the Box
1 X laser level( No battery )
1 X Magnetic pivoting base
1 X English User's Manual
1 X Bag
