| Model |
311G |
| Production Country |
China |
| Size (L x W x H cm) |
10x8x5 |
| Weight (kg) |
0.5 |
| Certifications |
Eco Friendly |
| Color |
green |
| Main Material |
ABS |
| From the Manufacturer |
NA |
| Care Label |
NA |

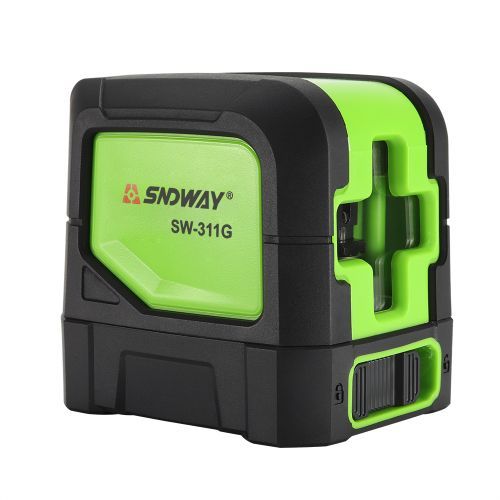

SpecificationModel SW-311G Mini Cross Line Laser Red Beams Green Beams Laser Wavelength 635±5nm / 510-530nm Laser Class Class 2 (IEC/EN60825-1/2014)Leveling Accuracy ±3mm/10mHorizontal/Vertical Accuracy ±3mm/10mLeveling/Compensation Range 4°±1°Working Distance (Line) 10m 20m Working Distance (Line with Detector) NoOperating Time Approximately 8 HoursIP Rating IP54Operation Temperature Range -10 ℃ - 50 ℃Storage Temperature Range -20 ℃ - 70 ℃Power source 2*1.5V AA(not include) Product Dimension 65.4x75x76mmProduct Weight 261gPackage Size 135 x 125 x 80mmPackage Weight 455gPacking Contents:1 X laser level( No battery ) 1 X Magnetic pivoting base 1 X English User's Manua 1 X Bag
General Notes:• Press or slide locking switch to turn laser tool ON;short press to turn laser tool OFF when the laser tool is locked with pendulum.
Self-leveling Mode• It is enabled when the laser tool is switched to the position.• It has laser beam(s) blink fast at 2 Hz when tool is out of self-leveling range.• It allows proper use of tool's full time pulse mode with laser detector.
Key Features
Laser Wavelength 635±5nm / 510-530nm
Laser Class Class 2 (IEC/EN60825-1/2014)
Leveling Accuracy ±3mm/10m
Horizontal/Vertical Accuracy ±3mm/10m
Leveling/Compensation Range 4°±1°
Working Distance (Line) 10m 20m
Working Distance (Line with Detector) No
Operating Time Approximately 8 Hours
IP Rating IP54
Operation Temperature Range -10 ℃ - 50 ℃
Storage Temperature Range -20 ℃ - 70 ℃
Power source 2*1.5V AA(not include)
What's In the Box
1 X laser level
