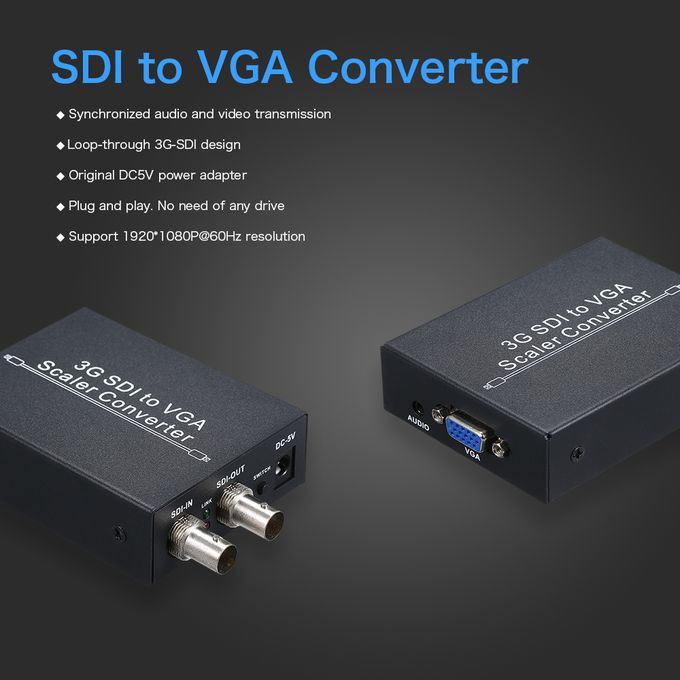

The SDI to VGA scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on VGA displays while ensuring high bit rates of 2.970 Gbit/s to give you signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on VGA displays thanks to the built in this converter. Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and VGA at the same time.
Features:
It operate at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.
Support auto video mode detection (3G/HD/SD). Equalized and re-clocked loop output.
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.
Connect with other units to extend your signal over long distances.
Support signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals.
Specification:
SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI in/out Resolution SD: 480i@60, 576i@50
HD:720p@50/60, 1080i@50/60
3G:1080p@24/25/29.97/30/50/59.94/60
VGA Output Resolution: 800x600@60Hz, 1024x768@60Hz,
1280x720@60Hz,1440x900@60Hz
1280x1024@60Hz,1680x1050@60Hz
1600x1200@60Hz,1920x1080@60Hz

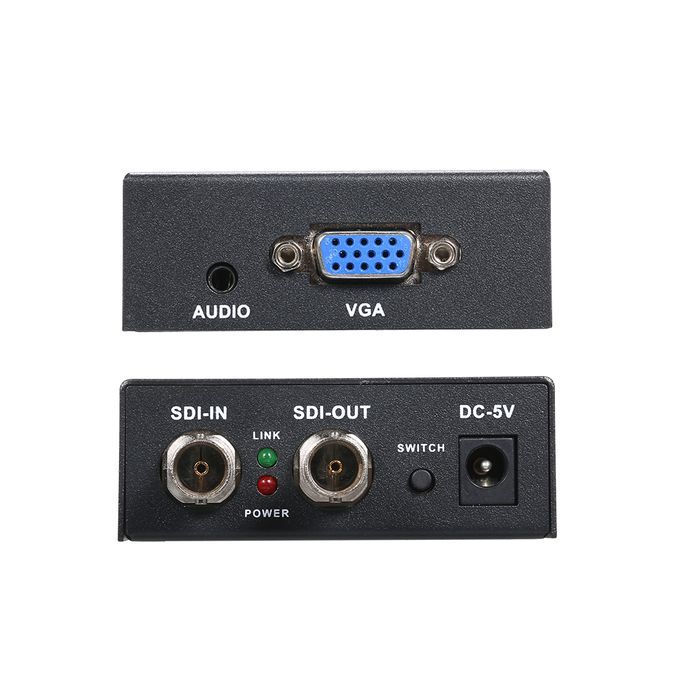

Input Port: 1 x BNC (SD/HD/3G-SDI)
Output Port: 1 x BNC (SD/HD/3G-SDI), 1 x VGA,1 x Earphone(L/R)
Supply: 5V
ESD Protection Human body model:±8kV (air-gap discharge) ,
±4kV (contact discharge)

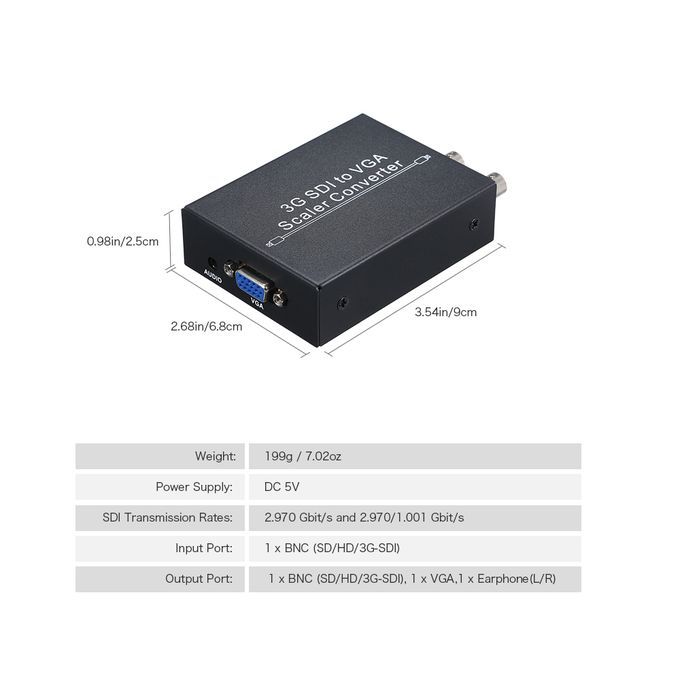

Item size: 9 * 6.8 * 2.5cm / 3.54 * 2.68 * 0.98in(L * W * H)
Item weight: Approx.199g / 7.02oz
Package size: 19.3 * 14.7 * 6.4cm / 7.60 * 5.79 * 2.52in(L * W * H)
Package weight: 362g / 12.77oz
Package list:
1 * SDI to VGA converter

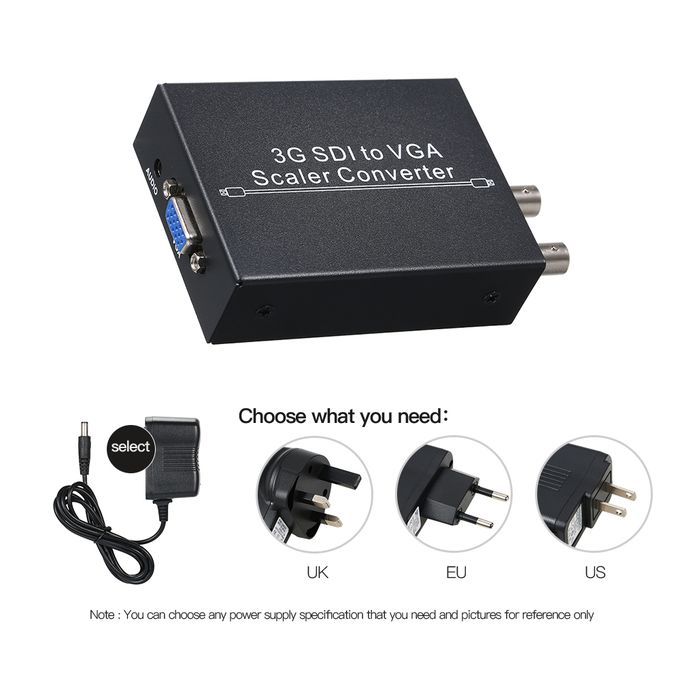

1 * Adapter
1 * User Manual
a a a a a
Key Features
It operate at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.
Support auto video mode detection (3G/HD/SD). Equalized and re-clocked loop output.
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.
Connect with other units to extend your signal over long distances.
Support signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals.
It operate at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x SDI to VGA converter 1 x Adapter 1 x User Manual
