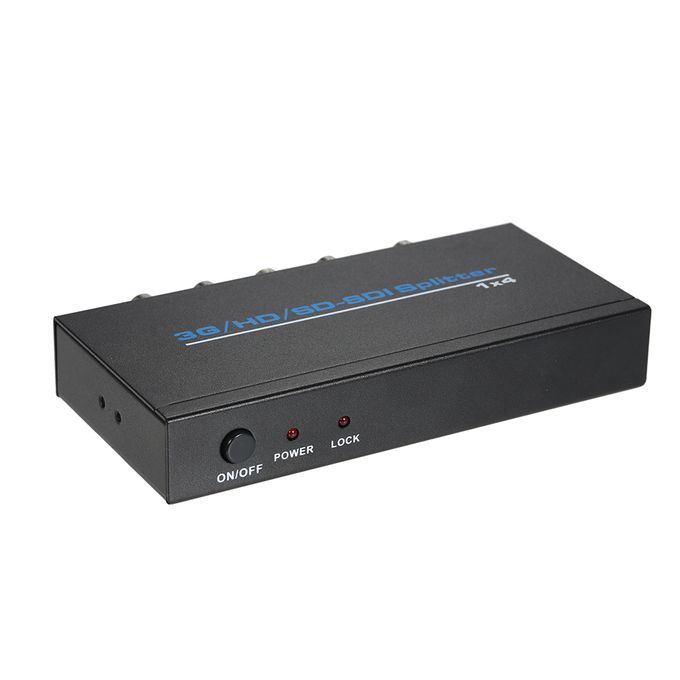

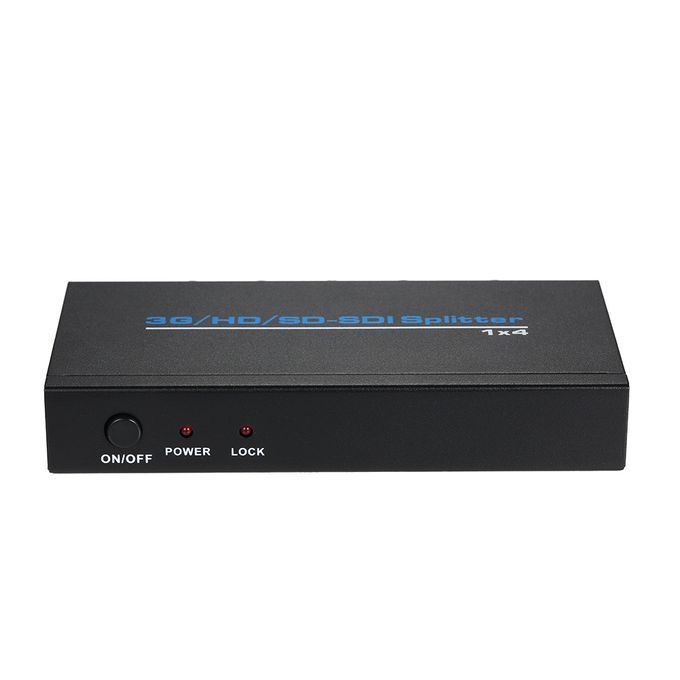

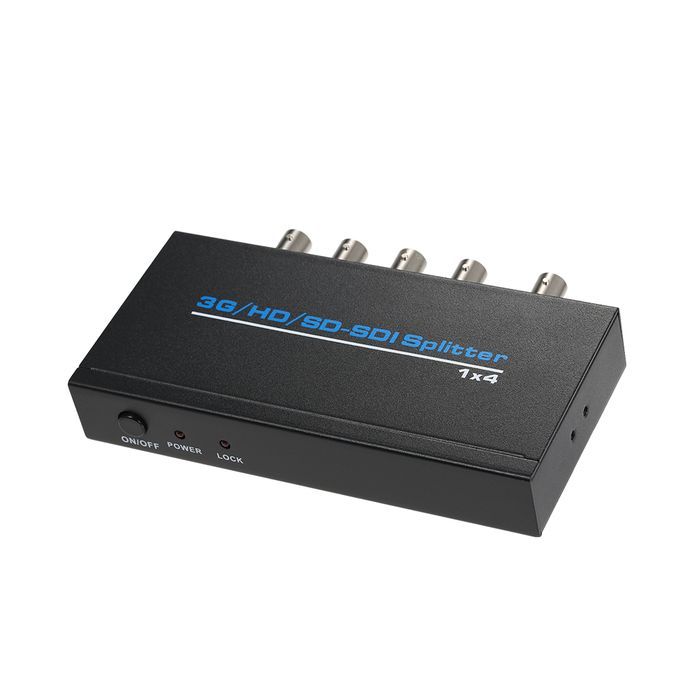

1 * 4 Splitter distributes allows 1 SDI, HD-SDI, 3G-SDI video source to 4 SDI/HD-SDI/3G-HDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal.
Features
1 SDI input signal split to 4 SDI sink devices.
Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
Divided by a signal into four signals. The input signal is 1080p and the output signal is also 1080p.
Supports signal input and output distance up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
Support 5-12V wide voltage input.
Specification

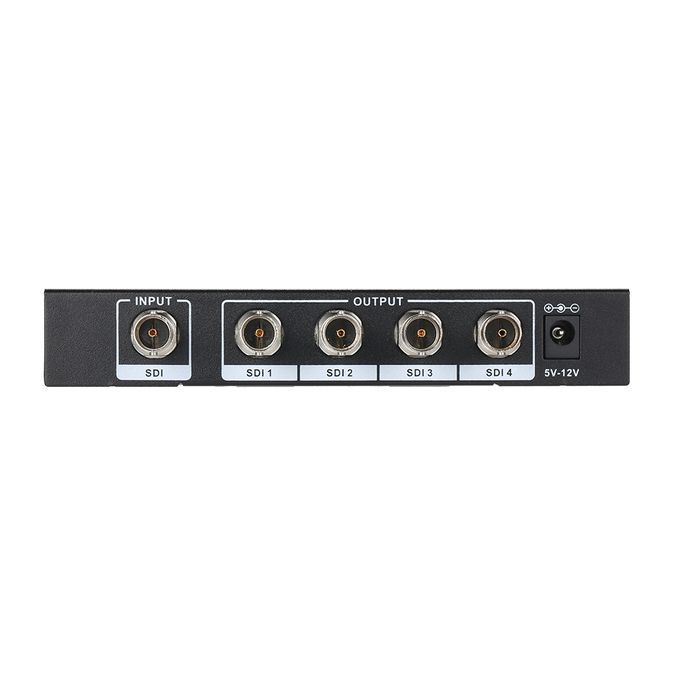

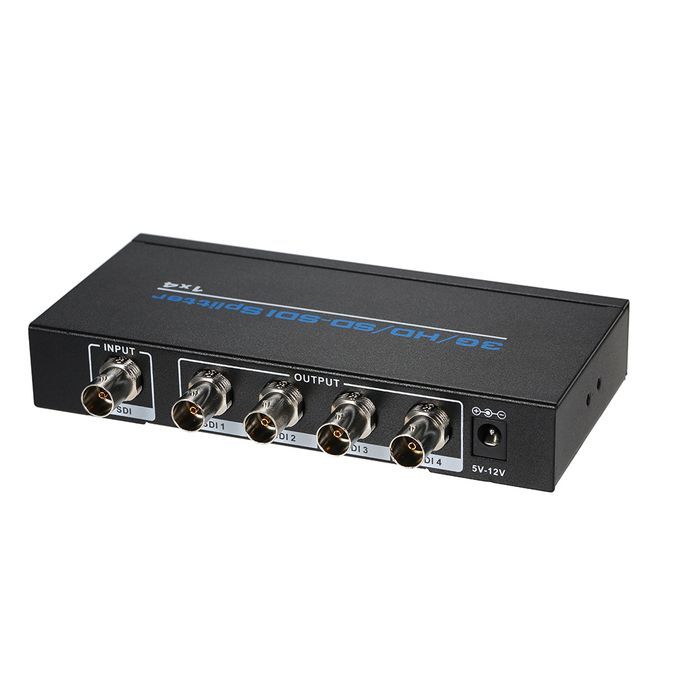

Input Ports : 1 * BNC Female input port
Output Ports : 4 * BNC Female output ports
Frequency Bandwidth : 3Gbps
ESD Protection Human Body Model:
± 8kV (air-gap discharge)
± 4kV (contact discharge)
Operating Temperature : 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature : -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity : 20 ~ 90% RH (Non-condensing)
Supply : 5V 1A
Consumption (Max) : 1.5W
Item Size: 14.6 * 7 * 2.3cm / 5.75 * 2.76 * 0.91in
Item Weight: 327.7g / 11.56oz
Package Size: 21.3 * 15 * 5.5cm / 8.39 * 5.90 * 2.17in
Package Weight: 493g / 1.09LB
Package list
1 * SDI Splitter
1 * Supply adapter
1 * User Manual
a a a a a
Key Features
1 SDI input signal split to 4 SDI sink devices.
Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
Divided by a signal into four signals. The input signal is 1080p and the output signal is also 1080p.
Supports signal input and output distance up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.
Support 5-12V wide voltage input.
1 SDI input signal split to 4 SDI sink devices.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x SDI Splitter 1 x Supply adapter 1 x User Manual
