KVM extender for HDMI video signal, USB (keyboard / mouse) and infrared signal (IR). It consists of two modules that are interconnected with each other using Cat.5e or Cat.6 cable. It allows working at a maximum resolution of 4K HDMI video and 1080p Full HD. The maximum cable distance can be up to 120m.
HDMI, USB and IR video extender.
It consists of a local module and a remote module that are connected by Cat.5e or Cat.6 cable.
Maximum point-to-point distance: 120m (Cat.5e / Cat.6).
Maximum distance with a repeater or LAN-switch: 200m (2 sections of 100m maximum and half the switch).
Local module connectors: HDMI input, USB input (type B-female) for keyboard / mouse, IR emitter connector (minijack 3.5mm female), ethernet connector (RJ45-female), and 5 VDC power connector (DC-jack -female).
Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), IR receiver connector (3.5mm female minijack), ethernet connector (RJ45-female), and 5 VDC power connector (DC-jack -female).
Compatible with USB 1.1 and USB 2.0.
Resolution 480p, 720p, 1080p and 4K.
Compatible with HDMI 1.4 and HDCP 1.4.
Size of each module: 162 x 86 x 24 mm.
Includes 2 5VDC power supplies and IR (infrared) emitter / receiver.
The AVMatrix Mini SC1221 from Lilliput Electronics is an ultra-compact HDMI to dual 3G-SDI signal converter in a robust metal housing.
The Mini SC1221 features a full-size HDMI input and two 3G-SDI outputs and supports up to 1080p60 resolution. EMC compliant, the Mini SC1221 can reliably be used 24 hours a day, 7 days a week without interruptions, lag, or delay. A mounting bracket is also included that easily attaches/detaches and allows for convenient mounting indoors or outdoors.
The Mini SC1221 has a USB port for power and an LED indicator that confirms power status. An AC adapter is supplied that connects into the micro-USB port to provide continuous power, but you can also connect it to other sources over a USB cable (included). For example, you can connect it to a laptop or a power bank. A 10,000mAh power bank will run the converter for approximately 24 hours.
The converter is also capable of working in a wide temperature range of -4 to 140 & deg;F.
HDMI Type-A Input
Two 3G/HD/SD-SDI Outputs
Supports up to 1080p60 Resolution
Works 24/7 without Lag/Delay
Micro-USB Port for Power
AC Power Adapter Included
Can Be Connected to Power Banks, Etc.
LED Power Indicator
Mounting Bracket Included
Wooden Director's Film Movie Clapboard Clapper Board
7Whether you're working on a home movie or would like one for decoration, this clapboard measured 27cm x 29cm and completely wooden for easier writing and cleaning would be a good choice. Great to be used for film, TV series, studio live, advertising, video and other filming work.
Features:
Material: wood, quality safe and environmental-friendly.
Color: White and black
Engraved lettering for longevity
Bolts in sticks can be adjusted if needed
Wooden-made Clapboard, it will be easy to erase without leaving any marks.
Built-in magnetic strip provide a stable closure and can make a crisp sound when using this product..
It can be used in recording film production, shooting ads, playing a drama, making a film, etc.
Dimension: 27cm X 29cm
Package Contents:
1 x Clapperboard
100%new,white and black wood handmade clapperboard.
English version, beautiful and stable.
Bolts in sticks can be adjusted.
Pure manual craft makes you feel comfortable, easy and convenient to use.
Usage: Shoot props/Advertisement /Home decoration/Cosplay/Background/ Desktop blackboard and etc.
MULTI-PURPOSE: Ideal prop for TV, movies, home video. Just shout "action'' and easily sync sound and picture of your next film project without hassle!
PERFECT FOR ALL: Whether you are a cinephile, an aspiring director or just need a prop for your next Hollywood themed party this slate clapper is perfect for you.
Combining capabilities usually reserved for a computer controlled converter the SC2030 3G-SDI/HDMI Scaling Cross Converter from AV Matrix is a compact device that features a video cross converter and scaler all in one. The SC2030 features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It also features a 3.5mm analog audio input which can be embedded into your output signal. The built-in scaler and frame rate converter each allow you to convert the input signal to your required output standard.
The SC2030 features one HDMI output and two 3G-SDI outputs, controllable via selectable conversion modes accessed by DIP switches, providing you with a variety of modes to fit your needs. It can also be controlled using a Windows computer with AV Matrix software via the micro-USB port, which is also used to power the unit. Dual threaded locking connectors allow you to power the unit with external power supplies for redundancy.
HDMI & 3G-SDI Input, 3.5mm Audio Input
Converts HDMI to SDI & SDI to HDMI
Upscales/Downscales, Converts Frame Rate
1 x HDMI & 2 x SDI Outputs
DIP Switches Set Conversion Modes
USB Port for Power and Control
Dual Threaded Locking Power Connector
Hds9135- 5-channel Live Video Flexible Switcher - 4*hdmi, 1*dp
Our hds9135 supports a total of 5 video signals: 4 HDMI + 1 DP signal input. External preview signals can be output synchronously in addition to the small display screen and fully bodied alloy design. The hds9135 has HDMI embedded audio as well as external analogue audio. It can be embedded in the output HDMI signal or output from the analogue port after it has been mixed. All input signals' resolutions are automatically adjusted, and the output signal resolution can be selected as needed, giving you a lot of flexibility. It has a tally system and supports mix/fade and other special effects switching, as well as hard cut. The features of the hds9135 can completely fulfil the demands of broadcast and television, program production, on-site interview and speech production, outdoor sports events, school courseware creation, and other video switching needs.
Features:
1. Portable All-In-One design, 15.6 & rdquo; LCD
2. Aluminium alloy material, small size & lightweight
3. Integrated control keyboard
4. FTB/AUTO/CUT transitions and MIX/ FADE effects, PIP, STILL, Mute
5. Support Bar, AFV, MIX
6. 2-CH MIC Input, 1-CH Line Input, 1-CH Line Output, Listen
7. Support PC software remote control and upgrade, Tally, DCB
8. Type-C Live Streaming, UVC
9. Built-in chassis temperature detection and fan intelligent control system
This 4K/30HZ 120m HDMI Extender receiver and transmitter,uses one single cat-5e or cat-6(recommended) cable instead of HDMI cable, you can extend the 4K/30HZ signal to 120 meters.The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.
Extends 4K@30Hz/ 1080p up to 400ft via Cat5e / Cat6 / Cat7 Ethernet Cable | Max. 50ft on each HDMI cable | HDMI 1.4, HDCP 1.4.
Supported Video Resolutions - 4K@30Hz, 1080P, 1080i, 720p, 576p, 576, 480p, 480i; Supported Audio Formats - Dolby Digital, Dolby True HD, DTS, DTS-HD, Dolby-AC3, DSD, LPCM7.1.
Local Loop Out - Allows one additional display on the signal sending side provides convenience for monitoring; Remote IR Control - Control the input HDMI video source (e.g. DVD player) from the display (e.g. TV, monitor) location with the included IR sensor cables; Cascading - Allows 1-to-1 or 1-to-multiple extension with additional Receiver unit..
Premium Product Quality - Provides 8000v industry-level surge protection against static electricity and lightning strikes; Latest Innovation & ndash; Newly-designed isolation transformer enhances your signal for stable transmission over longer distances and also isolates the core for added protection from power surges and lightning strikes..

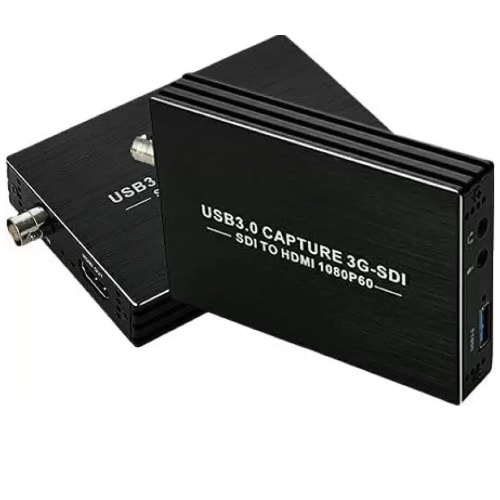

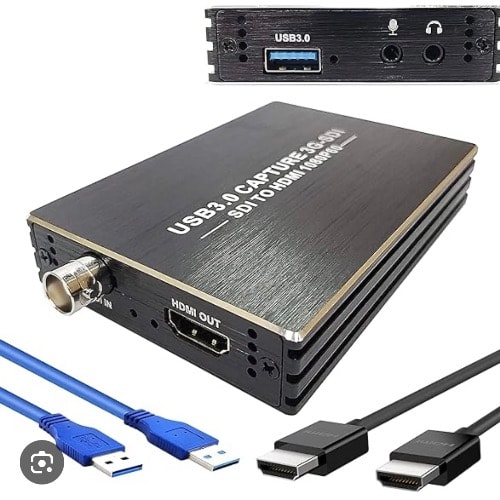

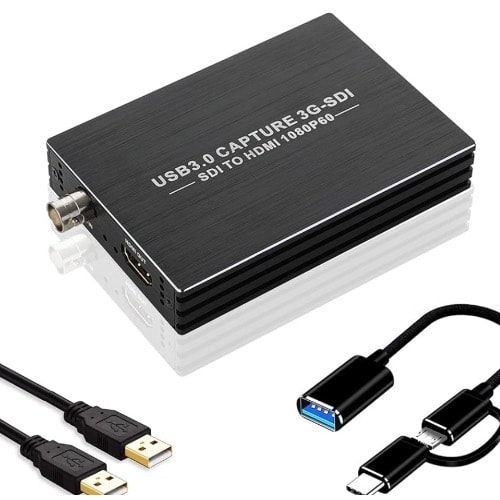

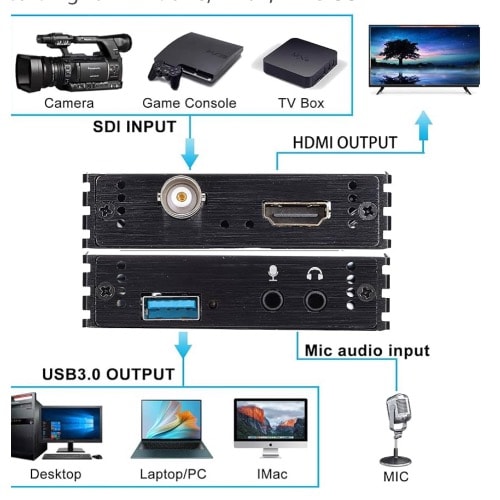

SDI Capture Card USB3.0, SDI to USB3.0 with HDMI Loopout, 1080P 60Fps SDI HDMI Video Capture for Game Streaming Video Recording for Windows, Linux, OS X
Plug & Play: No driver or external power supply required, true PnP. Once plugged in, the device is identified automatically as a webcam. Detect input and adjust output automatically.
Output Resolutions: HDMI Output: 480i, 480p, 576i, 576p, 720p, 1080i, 1080P. USB3.0 Output: 640x360, 800x450, 1280x720, 960x540, 1920x1080. Frame Rate: 30/40/48/50/59.94/60fps.
Compatible with Multiple Systems: Suitable for Windows, Linux and Mac OS. High speed USB 3.0 technology and superior low latency technology makes it easier for you to transmit live streaming to Twitch, Youtube, Facebook, Twitter, OBS, Potplayer and VLC.
What You Get: 1 x USB3.0 Capture 3G-SDI Box, 1 x USB3.0 Cable, 1 x HDMI Cable, 1 x User Manual.
Ps2 To Hdmi Converter
PS2 to HDMI ConverterPS2 to HDMI is mainly for Sony PS2 home game to do a high demand video converter, the PS2s 480I, 576I, 480P resolution signal lossless HDMI signal conversion, while supporting PS2 audio input, HDMI audio output and AUDIO Analog audio output, effectively prevent, HDMI transmission process, no inconvenience caused by audio.The current test found that some models of Samsung TV will not be an image, Samsung TV HDMI mainly for 50Hz please choose to buyInterface Description:1.AUDIO analog audio output interface, connect headphones or active speakers.2.HDMI Output HDMI output interface, connect HDMI TV or monitor.3.USB 5V Input USB5V power supply input interface, connect PS2 USB interface.4.PS2 Ypbpr Input pS2 color difference input interface, connected to the PS2 machine.How to set your PS2 YPbPr outputSelect the corresponding hdmi interface on the TV.Then you need to adjust your PS2 output to YPbPr mode. Setting method: boot into the Seven Stars screen without placing the disk, press the direction down and then press the X button, after entering, press the three bottom up or down to find the image output, and then select YPbPr.Please NoteSupported HDMI output Mode: Outputs pure digital HDMI video audio signals.NOT support convert to DVI signal.The PS2 must setup for Component Video Output Y Pb Pr. As opposed to RGB output. If you can't see anything on your TV when using this, you probably need to go into the Configuration Settings load PS2 without a disc and scroll through the options to change SpecificationColor: BlackDimensions: 2.79 1.35 0.55inchNet Weight: 2.11ozAccessories Description1 PS2 to HDMI Converter1 USB Cable1 User Manual
