Buy RF Amplifier, Low Noise LNA 50 To 4000MHz in Nigeria

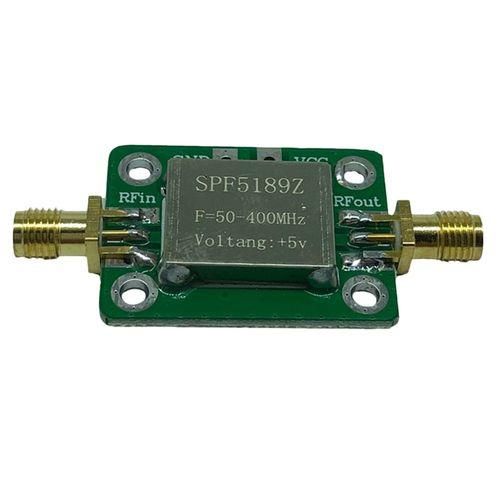

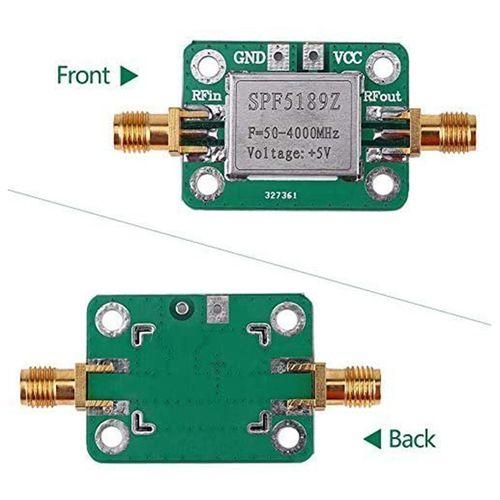

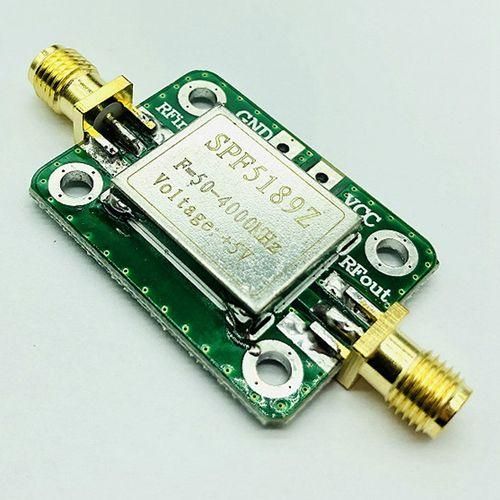

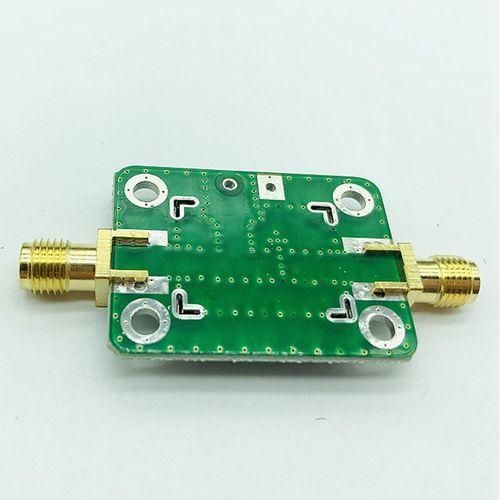

RF Amplifier, Low Noise LNA 50 To 4000MHz

₦ 10,454.54 ₦ 16,594.50 -37%

0 No Reviews

Product SKU: RENG354429

Brand: 915 Generation

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	Signal Boosters
Production Country	China
Size (L x W x H cm)	8x5x1
Weight (kg)	0.0075
Color	multicolor
Main Material	PCB+metal

The following is the detailed introduction about our products:

1. [Operating frequency] This RF low noise amplifier LNA is 50-4000MHz, NF = 0.6dB
2. [Application] It is commonly used as a high frequency or intermediate frequency preamplifier for various radio receivers, as well as an amplifying circuit for high sensitivity electronic detection equipment
3. [Wide use range] This LNA for primary mobile communications base station infrastructure applications such as wireless communication transceiver cards, tower amplifiers, combiners, repeaters and remote/digital wireless broadband terminal applications
4.LNA RF Amplifier] This is an LNA RF amplifier with a low noise figure that produces lower noise and distortion while amplifying the signal
5.[improve the signal-to-noise ratio] In the case of amplifying a weak signal, the noise of the amplifier itself may be very severe, so it is desirable to reduce this noise to improve the signal-to-noise ratio of the output

Ultra-low Noise Figure = 0.60 db at 900MHZ
Gain = 18.7db at 900MHZ
High Linearity: OIP3 39.5dbm at 1960 MHZ
P1db = 22.7dbm at 1960 MHZ
Single-supply Operation: 5V at IDO = 90MA
Flexible Biasing Options: 3V to 5V, Adjustable Currents
Broadband Internal Matching
Cellular, PCS, W-CDMA, ISM WIMAX Receivers
PA Driver Amplifier
Low Noise, High Linearity Gain Block Applications
Colour:green
Material:PCB+metal
Size:5 x 2.5 x 1cm

Package Contents:
1 x RF Amplifier

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
3. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !"
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
48517. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !

Key Features

The following is the detailed introduction about our products: 1. [Operating frequency] This RF low noise amplifier LNA is 50-4000MHz, NF = 0.6dB
2. [Application] It is commonly used as a high frequency or intermediate frequency preamplifier for various radio receivers, as well as an amplifying circuit for high sensitivity electronic detection equipment
3. [Wide use range] This LNA for primary mobile communications base station infrastructure applications such as wireless communication transceiver cards, tower amplifiers, combiners, repeaters and remote/digital wireless broadband terminal applications
4.LNA RF Amplifier] This is an LNA RF amplifier with a low noise figure that produces lower noise and distortion while amplifying the signal
5.[improve the signal-to-noise ratio] In the case of amplifying a weak signal, the noise of the amplifier itself may be very severe, so it is desirable to reduce this noise to improve the signal-to-noise ratio of the output
Ultra-low Noise Figure = 0.60 db at 900MHZ
Gain = 18.7db at 900MHZ
High Linearity: OIP3 39.5dbm at 1960 MHZ
P1db = 22.7dbm at 1960 MHZ
Single-supply Operation: 5V at IDO = 90MA
Flexible Biasing Options: 3V to 5V, Adjustable Currents
Broadband Internal Matching
Cellular, PCS, W-CDMA, ISM WIMAX Receivers
PA Driver Amplifier
Low Noise, High Linearity Gain Block Applications
Colour:green
Material:PCB+metal
Size:5 x 2.5 x 1cm
Package Contents:
1 x RF Amplifier
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.About Shipments 1.We will send out the orders ASAP once your payment is completed normally. 2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name. About After-sale Service We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer. About Feedback 1. Please check the package and item when you get carefully to make sure there is no problem. 2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you. 3. If there is no problem, please leave us five star positive feedback. Your affirmation is our greatest motivation ! ! !" About Us We provide the good product with the best price,we support Wholesale/Drop Shipping Order 1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it. 2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands. About Shipments 1.We will send out the orders ASAP once your payment is completed normally. 2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name. About After-sale Service We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer. About Feedback 1. Please check the package and item when you get carefully to make sure there is no problem. 2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you. 48517. If there is no problem, please leave us five star positive feedback. Your affirmation is our greatest motivation ! ! !

What's In the Box

1 x RF Amplifier
